48" Heritage Series range - Gas Oven - 6 brass burners + griddle
Model: HERT486GGASXT
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
48" Heritage Series range - Gas Oven - 6 brass burners + griddle
Model: HERT486GGASXTQuick Specs
Depth
27.375"
Height
34.75"
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Storage
NO
Warming
NO
Discontinued
Regular price
$24,893.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
27.375"
Height
34.75"
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
7
Continuous Grate
YES
Convection
YES
Self Clean
NO
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Drawer Proof Mode
NO
Dual Fuel
NO
Oven Ignition Type
ELECTRONIC

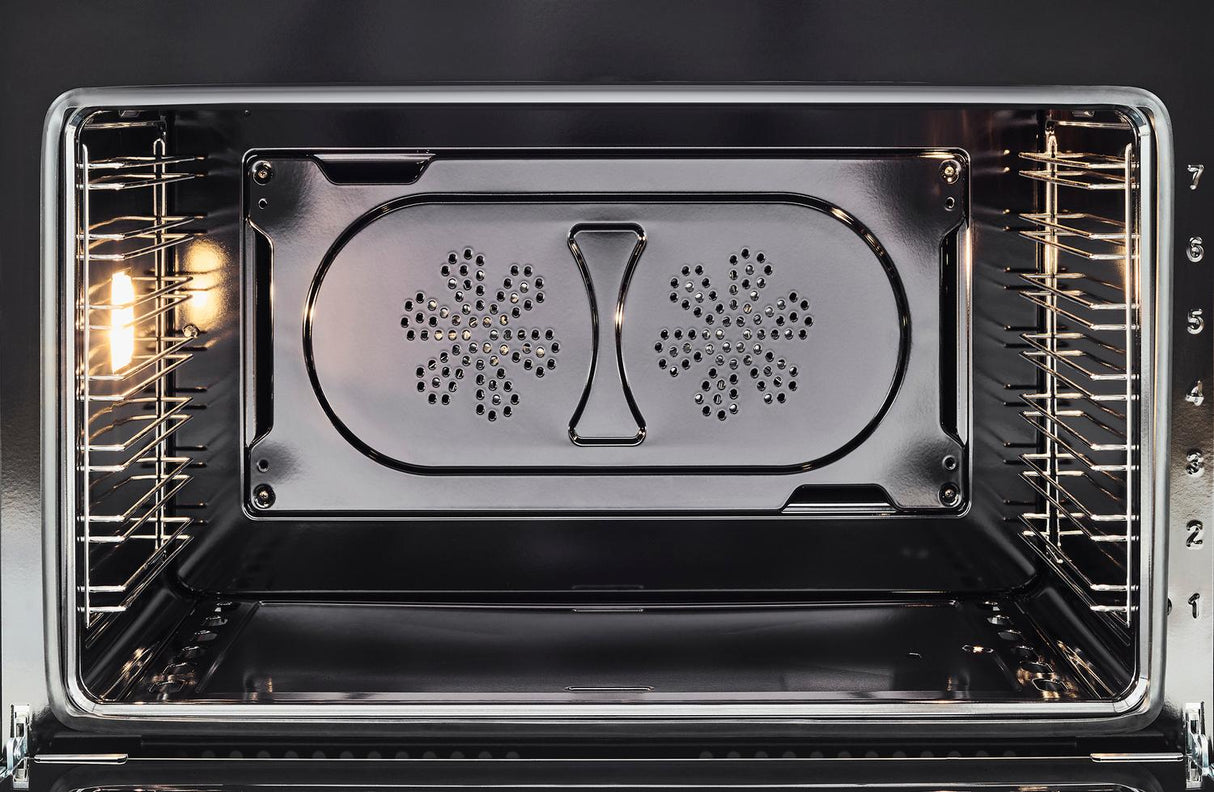

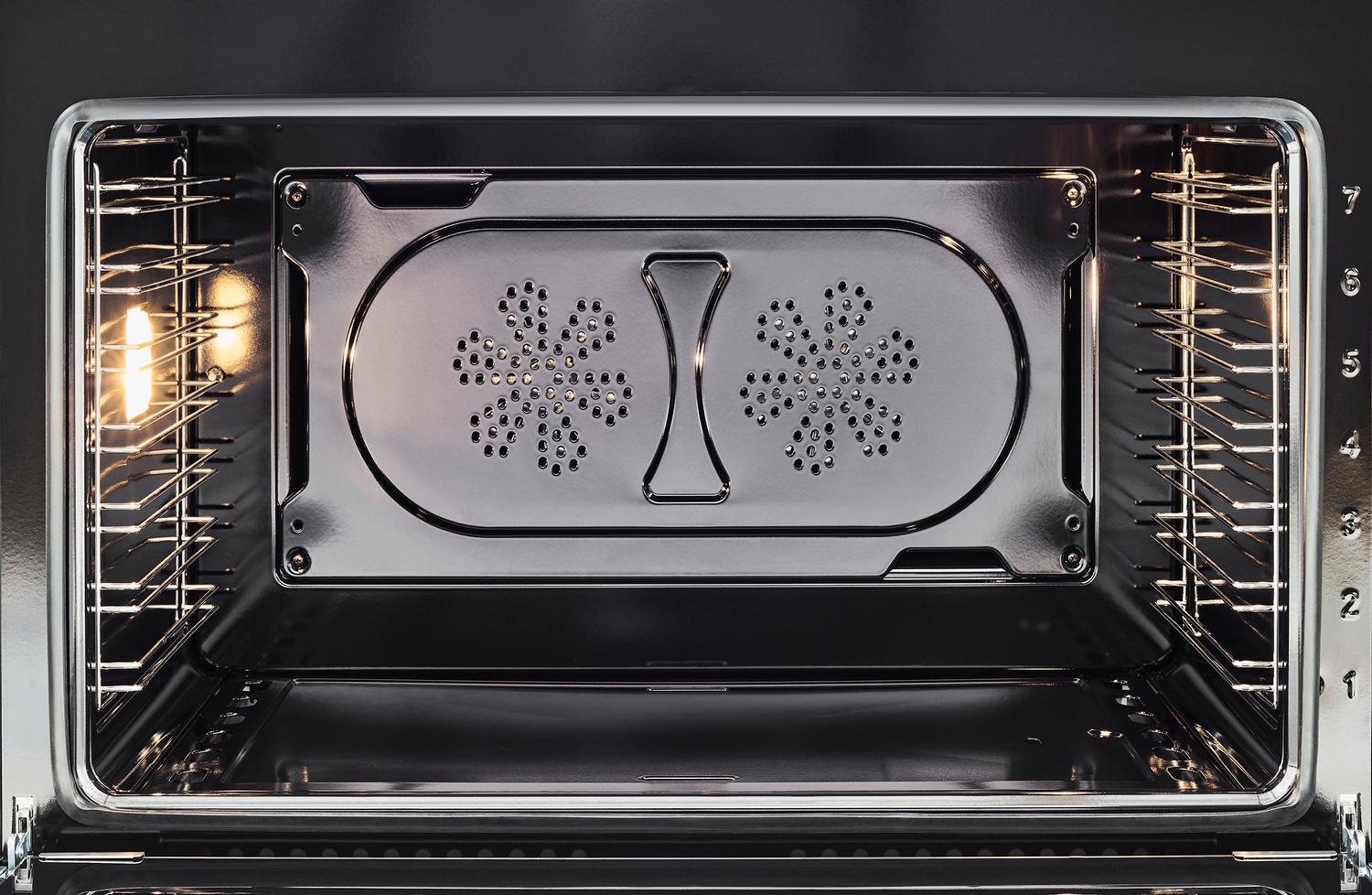

Most even-temperature baking and roasting

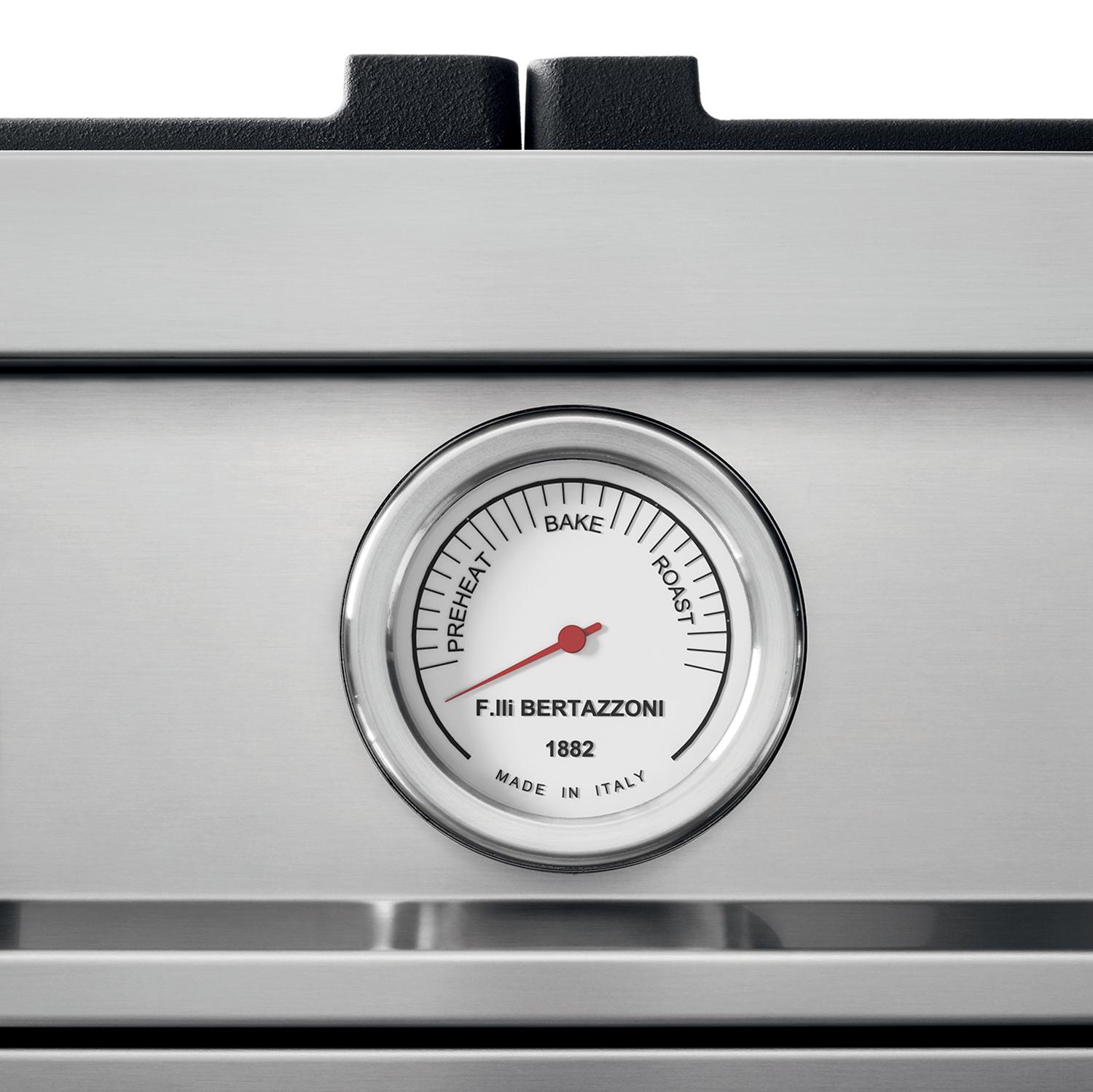

(BR)(BULL)Dual convection fans for even heat distribution on 7 shelf levels - best-in-class(BR)(BULL)Largest oven volume in its class(BR)(BULL)Full-width gas infrared broiler(BR)(BULL)Elegant temperature gauge for control of oven temperature during pre-heating and baking
Designed for speed and efficiency
(BR)(BULL)Category-leading time-to-boil water - under 6 minutes(BR)(BULL)Dual ring power burners for sear and simmer(BR)(BULL)Multiple size monobloc burners(BR)(BULL)Continous surface cast iron contour grates(BR)(BULL)Thermocouple safety device standard on every burner(BR)(BULL)Product shown features brass burners, available on select models
- 6 Monobloc Brass burners with up to 19000 BTU and stainless steel electric griddle with cover
- Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
- 19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
- Stainless steel worktop is formed from one piece to allow easy cleaning with no gaps, joints, or screws
- European Convection Oven
- Soft-close oven door with edge-to-edge tempered glass
| Size | 48 in |
| Number of gas zones | 6 burners |
| Knobs | solid metal |
| Burner type | brass |
| Main oven type | fan assisted gas |
| Auxiliary oven type | gas conventional |
| Worktop | |
| Size | 48 in |
| Cooking zones | 7 |
| Number of gas zones | 6 burners |
| Griddle zones | electric |
| Worktop type | electric / gas |
| Knobs | solid metal |
| Burner type | brass |
| Grates | cast iron |
| Continous grating | yes |
| Thermocouple safety device | yes |
| One-hand ignition | yes |
| Backguard | yes |
| Wok ring | yes |
| Simmer ring | yes |
| Cooking zones | |
| Power burners | 1300 BTU/h - 19 000 BTU/h (2) |
| Medium burner | 1500 BTU/h - 5900 BTU/h (2) |
| Simmer burner | 750 BTU/h - 3500 BTU/h (1) |
| Griddle power | 1100 W |
| Griddle dual control | yes |
| Griddle drip tray | yes |
| Oven cavity | |
| Oven configuration | double |
| Oven fuel | gas |
| Oven convection system | dual horizontal fans |
| Main oven type | fan assisted gas |
| Main oven broiler type | gas |
| Main oven functions | bake / broiler / convection bake |
| Main oven volume | 4.7 ft |
| Auxiliary oven type | gas conventional |
| Auxiliary oven broiler type | gas |
| Auxiliary oven functions | bake / broiler / convection bake |
| Auxiliary oven volume | 2.4 ft |
| Inner oven door | triple |
| Removable inner glass | yes |
| Cooling fan | yes |
| Oven levels | 7 |
| Door hinges | soft-close |
| Sliding shelves | 2 sets of telescopic glides |
| Wire-shelves | 2 each cavity |
| Tray | 1 enamelled |
| Grill trivet for tray | yes |
| Oven lights | double lateral |
| Bottom | |
| Legs | stainless steel |
| Technical specifications | |
| Electrical supply | 120V 60 Hz - 1200W 10 A |
- 6 Monobloc Brass burners with up to 19000 BTU and stainless steel electric griddle with cover
- Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
- 19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
- Stainless steel worktop is formed from one piece to allow easy cleaning with no gaps, joints, or screws
- European Convection Oven
- Soft-close oven door with edge-to-edge tempered glass
