Dishwasher
Model: DOD651PHXXLS
Dishwasher
Model: DOD651PHXXLSQuick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
ECO wash
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
Self Cleaning
ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
Green mode
The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!
Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.
Rinse & hold
The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
Aqua Level(TM) Sensor
The Aqua Level(TM) Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.
Night Mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
Aqua Detect(TM) Sensor
The Aqua Detect(TM)Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.
Intensive Mode
When food has dried on to the dishes or pans the Intensive mode, with increased pressure in the spray arm, more water and higher temperature, gets your dishes clean again.
Power Zone Cutlery(TM)
Power Zone Cutlery(TM) is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.
Plastic wash
The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
Kid Safe(TM)
To stop small fingers from starting the dishwasher the Kid Safe(TM) makes the control panel easy to lock. This also prevents altering any settings by mistake.
- Residual heat
| Noise level (max) | 48 dB(A) |
| Number of place settings | 15 pcs |
| Number of racks | 2 |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Size | XXL |
| Automatic dosing system | No |
| Installation | Freestanding outdoor |
| Series | Style |
| Color of the product | Stainless Steel |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 2 pcs |
| Cleaning systems | Stainless steel spray arms Aqua Level™ Sensor No need to rinse the dishes thanks to Super Cleaning System™ Cutlery Spray™ - Extra dishwashing power for the cutlery basket Wide Spray™ - Extra dishwashing power for pots and pans |
| Exterior handle | SZW pro handle |
| Use and flexibility | |
| Number of place settings | 15 pcs |
| Number of racks | 2 |
| Top tray | Without top tray |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Upper basket system | Easy height adjustable with lever |
| Upper basket | Perfect ergonomy with easy sliding telescopic rails Standard knife stand Fixed glass support Fixed pin rows Foldable wine shelves to right Foldable wine shelves to left Handle with ASKO logo Handle Small distance between the basket threads - makes loading easy and prevents small items to fall through |
| Middle basket | Without middle basket |
| Lower rack type | Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket |

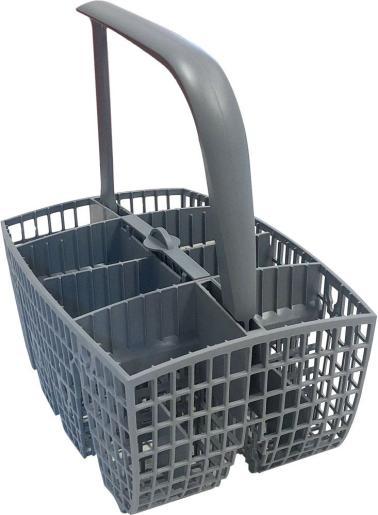

| Lower rack | Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle Handle with ASKO logo Foldable/divisible rear pin row Cutlery basket |
| Automatic dosing system | No |
| Interior light | No |
| Interaction and control | |
| Possible to control via Wi-Fi | No |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | No |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Chinese simpified Chinese traditional Swedish Slovenian Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish |
| Functions, programs and modes | |
| Programs | Sanitize Light wash Self cleaning Crystal glass Rinse and hold programme Plastic wash Time program ECO wash Standard |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Extra dry - Improves the drying result Super Rinse™ - Two extra rinses Time set Green mode - Less energy and water is used. The program time is extended Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Intensive mode - The dishwasher uses more heat and water. The program time is extended |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | No |
| Installation | Tip guard Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Fixed high loop outlet hose Multi fit outlet hose |
| Sliding door | No |
| Possible to install elevated | Yes |
| Height setting | 1 15/16 '' |
| Adjustable kick plate | No |
| Safety and maintenance | |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level™ Sensor - Ensures an optimized water level Aqua Detect™ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 48 dB(A) |
| Reference programme | 1 |
| Estimated yearly energy consumption | 235 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 749.7 gal |
| Water consumption | 3.5 gal |
| Power consumption in standby mode | 0.49 W |
| Consumption in off mode | 0.49 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 159.8 lb |
| Dimensions | |
| Width | 24 1/2 '' |
| Height | 34 5/8 '' |
| Depth | 24 15/16 '' |
| Maximum product height | 36 5/8 '' |
| Length of electrical cord | 47 1/4 '' |
| Depth with door open | 51 5/8 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 26 3/8 '' |
| Packaging height | 39 3/4 '' |
| Packaging depth | 29 1/2 '' |
| Gross weight | 179.7 lb |
| Product code | 737071 |
| EAN code | 3838782511868 |
| Noise level (max) | 48 dB(A) |
| Number of place settings | 15 pcs |
| Number of racks | 2 |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Size | XXL |
| Automatic dosing system | No |
| Installation | Freestanding outdoor |
| Series | Style |
| Color of the product | Stainless Steel |
- Residual heat
