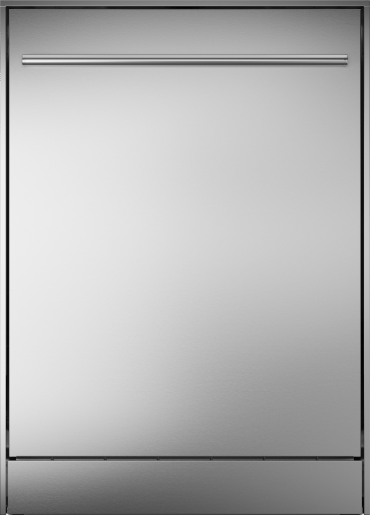

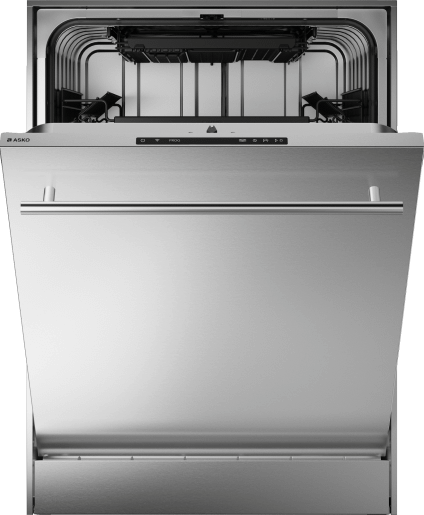

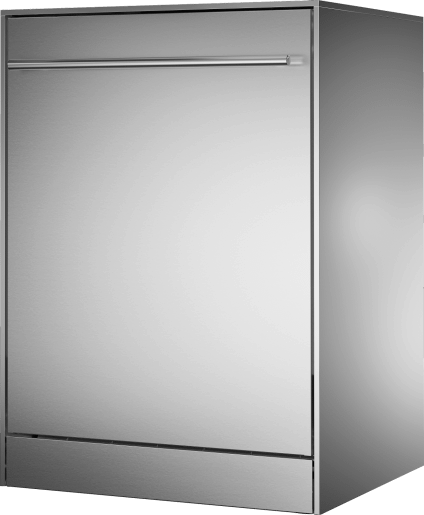

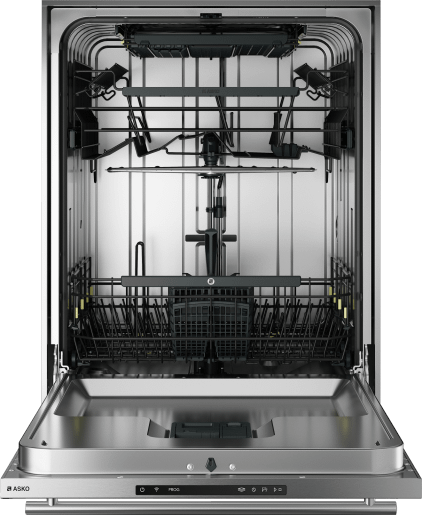

Dishwasher
Model: DOD561TXXLS
Dishwasher
Model: DOD561TXXLSQuick Specs
Dishwasher is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
XXL dishwashers
Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
8 Steel(TM)
8 Steel(TM) - more steel less plasticNo other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift(TM) you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Flexiracks(TM)
ASKO Flexiracks(TM) from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
Outdoor Model
The durable outdoor version is made of stainless steel in all vital parts to protect it from the elements. Perfect for small summer houses or when you want to upgrade your outdoor kitchen.
Instant Lift(TM)
Our InstantLift(TM) height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
16 - Loading capacity
The world s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.
7 Spray(TM)
ASKO s spray system consists of up to 7 effective spray zones to ensure a totally clean load. In the lower rack there are two power zones to take care of the dirtiest parts.
15-3/4" plates in lower rack
Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.
3 Level rack
ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
Super Cleaning System(TM) (SCS(TM))
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One - and we call it the Super Cleaning System - or our best invention.
Focus points
Focus points - a hint of natureOpening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.
- Residual heat
- No
- Auto Door Open Drying(TM)
| Noise level (max) | 48 dB(A) |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Size | XXL |
| Automatic dosing system | No |
| Installation | Freestanding outdoor |
| Series | Logic |
| Color of the product | Stainless Steel |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 3 pcs |
| Number of spray zones | 7 |
| Cleaning systems | Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Stainless steel spray arms |
| Exterior handle | T-Bar |
| Use and flexibility | |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Top tray | Easy height adjustment Handle Removable |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Upper basket system | Switch wheels |
| Upper basket | Small distance between the basket threads - makes loading easy and prevents small items to fall through Handle with plastic logotype Foldable wine shelves to left Foldable wine shelves to right Fixed pin rows Fixed glass support Standard knife stand |
| Middle basket | Without middle basket |
| Lower rack type | Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket |
| Lower rack | Cutlery basket Foldable/divisible rear pin row Handle with plastic logotype Small distance between the basket threads - makes loading easy and prevents small items to fall through. |
| Automatic dosing system | No |
| Interior light | No |
| Interaction and control | |
| Possible to control via Wi-Fi | No |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | No |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Chinese simpified Chinese traditional Swedish Slovenian Slovak Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish Czech Ukrainian |
| Functions, programs and modes | |
| Programs | Sanitize Light wash Self cleaning Rinse and hold programme Time program Standard Intensive program |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Heat Boost Mode Night mode - Lower noise level. The program time is extended. Speed mode - The program time is shortened. More energy is used. Time set Super Rinse™ - Two extra rinses Enable/disable automatic door opening |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | No |
| Installation | Multi fit outlet hose Fixed high loop outlet hose Tip guard |
| Sliding door | No |
| Possible to install elevated | No |
| Height setting | 1 '' |
| Adjustable kick plate | No |
| Safety and maintenance | |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level™ Sensor - Ensures an optimized water level Aqua Detect™ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 48 dB(A) |
| Reference programme | 1 |
| Duration of standard programme | 125 min |
| Estimated yearly energy consumption | 220 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 647.5 gal |
| Water consumption | 3 gal |
| Power consumption in standby mode | 0.5 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 158.7 lb |
| Dimensions | |
| Width | 24 1/2 '' |
| Height | 34 11/16 '' |
| Depth | 24 15/16 '' |
| Maximum product height | 35 11/16 '' |
| Length of electrical cord | 71 7/16 '' |
| Depth with door open | 51 9/16 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 42 1/8 '' |
| Logistic information | |
| Packaging width | 26 3/8 '' |
| Packaging height | 39 3/4 '' |
| Packaging depth | 29 1/2 '' |
| Gross weight | 178.6 lb |
| Product code | 740110 |
| EAN code | 3838782688058 |
| Noise level (max) | 48 dB(A) |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Size | XXL |
| Automatic dosing system | No |
| Installation | Freestanding outdoor |
| Series | Logic |
| Color of the product | Stainless Steel |
- Residual heat
- No
- Auto Door Open Drying(TM)
