Dishwasher
Model: DBI675PHXXLS
Dishwasher
Model: DBI675PHXXLSQuick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
XXL dishwashers
Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
8 Steel(TM)
8 Steel(TM) - more steel less plasticNo other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
Flexiracks(TM)
ASKO Flexiracks(TM) from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
LED interior light
The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.
Light Lock(TM)
Light plastic cans and bowls are easily flipped over and filled with water. The LightLock(TM) smart fixation helps them to retain their position throughout the program.
Turbo Drying(TM)
The Turbo Drying(TM) system mixes dry air from outside the machine with the moist air inside. This feature also is available for fully integrated machines. We promise, you ll be a great fan.

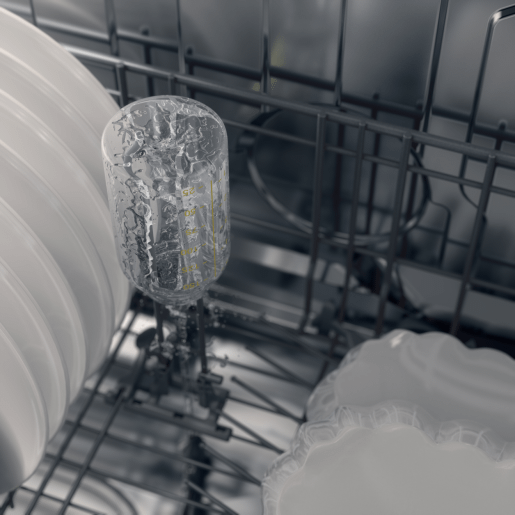

Vase/bottle holder
Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.
Jet Spray(TM)
Our JetSpray(TM) nozzle for tall, narrow objects like baby bottles, vases and bottles is combined with a special holder that makes sure that the cleaning result is perfect.
Status Light(TM)
ASKO s new generation dishwashers have Status Light(TM) -a small light placed in the bottom right corner to let you know the actual status of the program.
Wide Spray(TM)
WideSpray(TM) which creates a high-pressure jet spray in combination with a wide spraying nozzle. The pots and pans becomes clean and you get time to widen your scope.
Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
Super Cleaning System(TM) (SCS(TM))
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One - and we call it the Super Cleaning System - or our best invention.
3 Level rack
ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
- Turbo Drying(TM) ensures the dishes are dry and cool with fan assisted removal of moist air
| Noise level (max) | 40 dB(A) |
| Number of place settings | 17 pcs |
| Number of racks | 3 |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Size | XXL |
| Automatic dosing system | No |
| Installation | Built-in |
| Series | Style |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 2 pcs |
| Cleaning systems | Jet Spray™ - Extra dishwashing power for vases, bottles and baby bottles Wide Spray™ - Extra dishwashing power for pots and pans Twin Tubes™ - separate spray zone for the middle basket Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Sensi Clean™ Sensor - measures dirtiness level Stainless steel spray arms |
| Exterior handle | SZW pro handle |
| Use and flexibility | |
| Number of place settings | 17 pcs |
| Number of racks | 3 |
| Top tray | Without top tray |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Upper basket system | Easy height adjustable with lever |
| Upper basket | Foldable pin rows Perfect ergonomy with easy sliding telescopic rails Light Lock™ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Two foldable glass supports Divisble/foldable wine shelves to left Foldable wine shelves to right Handle with ASKO logo Handle Small distance between the basket threads - makes loading easy and prevents small items to fall through |
| Middle basket | Removable rack for large utensils Removable rack for bowls, cups and glasses Handle Middle basket connection fitted with non-return valve Perfect ergonomy with easy sliding telescopic rails |
| Lower rack type | Exclusive |
| Lower rack | Cutlery basket Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front pin row Foldable/divisible rear pin row Handle with ASKO logo Handle Small distance between the basket threads - makes loading easy and prevents small items to fall through. |
| Automatic dosing system | No |
| Interior light | Yes, 4 LED lights |
| Interaction and control | |
| Possible to control via Wi-Fi | No |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | Yes |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Chinese simpified Chinese traditional Swedish Slovenian Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish |
| Functions, programs and modes | |
| Programs | Sanitize Light wash Self cleaning Crystal glass Lower half Upper half Rinse and hold programme Plastic wash Time program ECO wash Standard Auto wash |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Intensive mode - The dishwasher uses more heat and water. The program time is extended Night mode - Lower noise level. The program time is extended. Speed mode - The program time is shortened. More energy is used. Green mode - Less energy and water is used. The program time is extended Time set Super Rinse™ - Two extra rinses Extra dry - Improves the drying result |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | Yes |
| Installation | Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Min. niche width | 24 '' |
| Min. niche height | 33 7/8 '' |
| Depth (incl. wall spacing) | 22 5/8 '' |
| Height setting | 1 15/16 '' |
| Adjustable kick plate | 30-94/0 |
| Safety and maintenance | |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level™ Sensor - Ensures an optimized water level Aqua Detect™ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 40 dB(A) |
| Reference programme | 1 |
| Estimated yearly energy consumption | 235 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 687.4 gal |
| Water consumption | 3.2 gal |
| Power consumption in standby mode | 0.49 W |
| Consumption in off mode | 0.49 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 102.5 lb |
| Dimensions | |
| Width | 24 '' |
| Height | 34 5/16 '' |
| Depth | 22 5/8 '' |
| Maximum product height | 36 1/4 '' |
| Length of electrical cord | 47 1/4 '' |
| Depth with door open | 49 5/16 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 25 3/16 '' |
| Packaging height | 36 5/8 '' |
| Packaging depth | 26 3/4 '' |
| Gross weight | 110.5 lb |
| Product code | 737070 |
| EAN code | 3838782508929 |
| Noise level (max) | 40 dB(A) |
| Number of place settings | 17 pcs |
| Number of racks | 3 |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Size | XXL |
| Automatic dosing system | No |
| Installation | Built-in |
| Series | Style |
- Turbo Drying(TM) ensures the dishes are dry and cool with fan assisted removal of moist air
