Dishwasher
Model: DBI663THS
Dishwasher
Model: DBI663THSQuick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

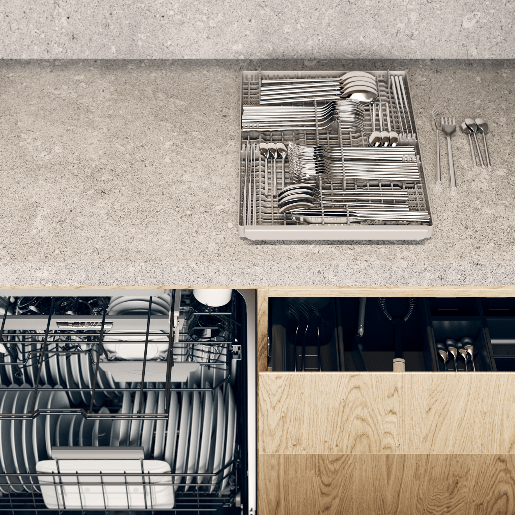

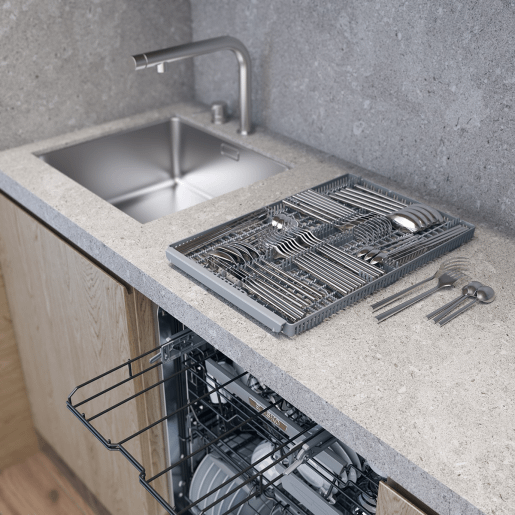

Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift(TM) you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
XL dishwashers
Our XL dishwashers have a loading height of 21-1/4". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.
Self Cleaning
ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.
Night Mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
ECO wash
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
Intensive Mode
When food has dried on to the dishes or pans the Intensive mode, with increased pressure in the spray arm, more water and higher temperature, gets your dishes clean again.
Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
Plastic wash
The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.
Green mode
The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!
Lower half wash
The Lower half wash program only sprays the bottom half of the machine which means less water and energy is used. An more environmentally friendly way to clean your plates and cutlery.
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
Upper half wash
The Upper basket program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.
- Turbo Drying(TM) ensures the dishes are dry and cool with fan assisted removal of moist air
| Noise level (max) | 42 dB(A) |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Size | XL |
| Automatic dosing system | No |
| Installation | Built-in |
| Series | Style |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 3 pcs |
| Cleaning systems | Jet Spray™ - Extra dishwashing power for vases, bottles and baby bottles Wide Spray™ - Extra dishwashing power for pots and pans Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Stainless steel spray arms |

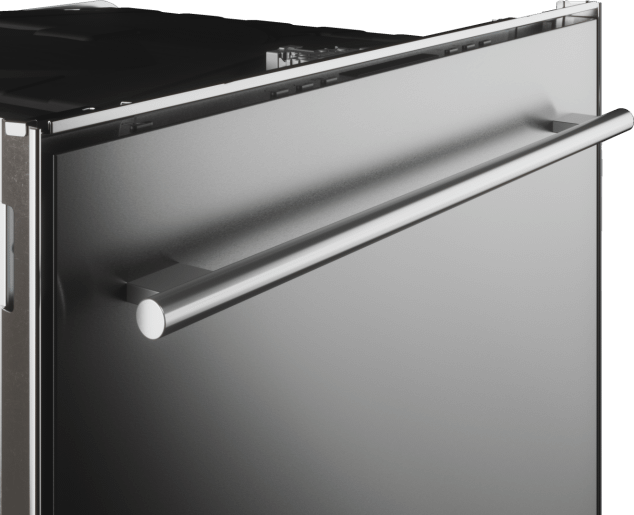

| Exterior handle | SZW tubular handle |
| Use and flexibility | |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Top tray | Easy height adjustment With rack for knives and utens With rack for bowls and cups With telescopic rails Handle Removable |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Upper basket system | Easy height adjustable with lever |
| Upper basket | Perfect ergonomy with easy sliding telescopic rails Standard knife stand Fixed glass support Fixed pin rows Right foldable wine shelf with utensil rack Foldable wine shelves to right Foldable wine shelves to left Handle with ASKO logo Handle Small distance between the basket threads - makes loading easy and prevents small items to fall through |
| Middle basket | Without middle basket |
| Lower rack type | Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket |
| Lower rack | Cutlery basket Foldable/divisible rear pin row Handle with ASKO logo Handle Small distance between the basket threads - makes loading easy and prevents small items to fall through. |
| Automatic dosing system | No |
| Interior light | No |
| Interaction and control | |
| Possible to control via Wi-Fi | No |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | No |
| Remaining time indication | Yes |
| Wash end indication | Sound signal |
| Language settings | Chinese simpified Chinese traditional Swedish Slovenian Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish |
| Functions, programs and modes | |
| Programs | Sanitize Light wash Self cleaning Crystal glass Lower half Upper half Rinse and hold programme Plastic wash Time program ECO wash Standard |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Intensive mode - The dishwasher uses more heat and water. The program time is extended Night mode - Lower noise level. The program time is extended. Speed mode - The program time is shortened. More energy is used. Green mode - Less energy and water is used. The program time is extended Time set Super Rinse™ - Two extra rinses Extra dry - Improves the drying result |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | Yes |
| Installation | Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Min. niche width | 24 '' |
| Min. niche height | 32 5/16 '' |
| Depth (incl. wall spacing) | 22 1/16 '' |
| Height setting | 1 15/16 '' |
| Adjustable kick plate | No |
| Safety and maintenance | |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level™ Sensor - Ensures an optimized water level Aqua Detect™ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 42 dB(A) |
| Reference programme | 1 |
| Estimated yearly energy consumption | 235 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 687.4 gal |
| Water consumption | 3.2 gal |
| Power consumption in standby mode | 0.49 W |
| Consumption in off mode | 0.49 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 93.7 lb |
| Dimensions | |
| Width | 24 '' |
| Height | 32 11/16 '' |
| Depth | 22 '' |
| Maximum product height | 34 11/16 '' |
| Length of electrical cord | 47 1/4 '' |
| Depth with door open | 47 3/16 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 25 3/16 '' |
| Packaging height | 35 1/16 '' |
| Packaging depth | 26 3/4 '' |
| Gross weight | 101 lb |
| Product code | 737064 |
| EAN code | 3838782508332 |
| Noise level (max) | 42 dB(A) |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Size | XL |
| Automatic dosing system | No |
| Installation | Built-in |
| Series | Style |
- Turbo Drying(TM) ensures the dishes are dry and cool with fan assisted removal of moist air
