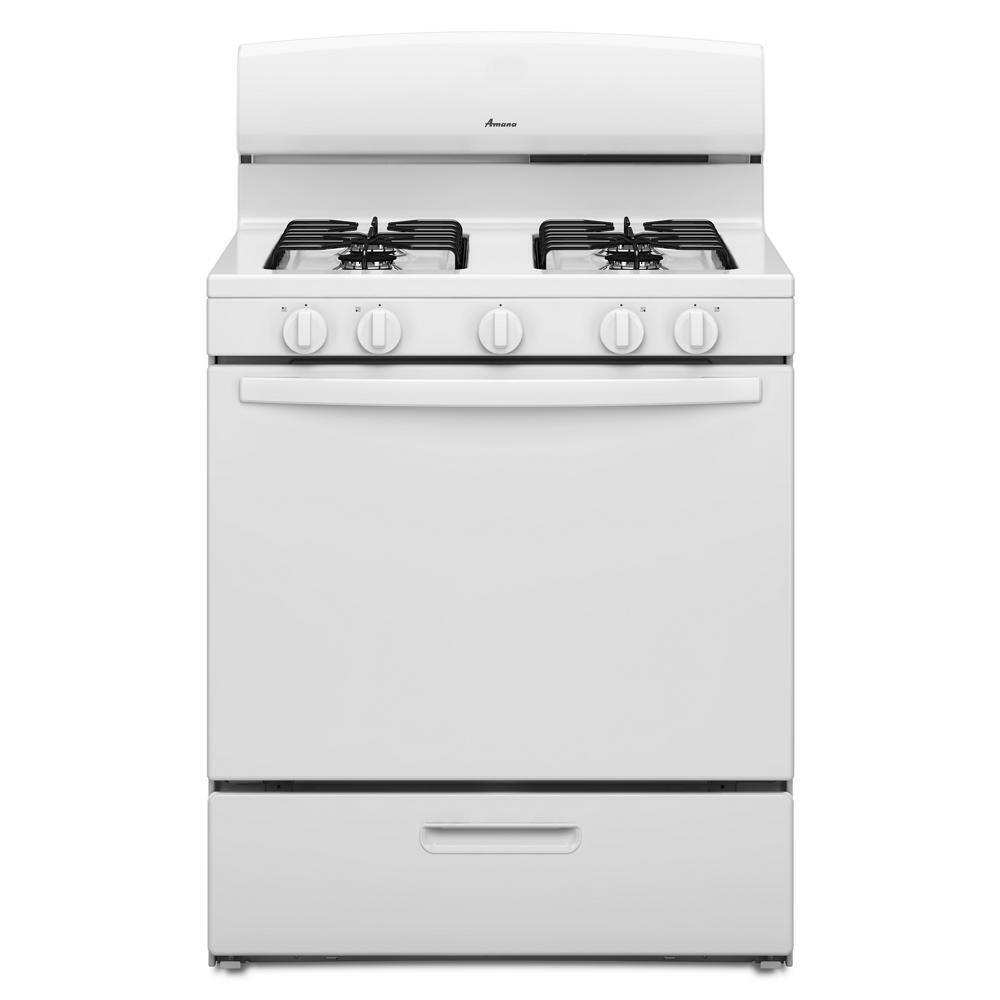

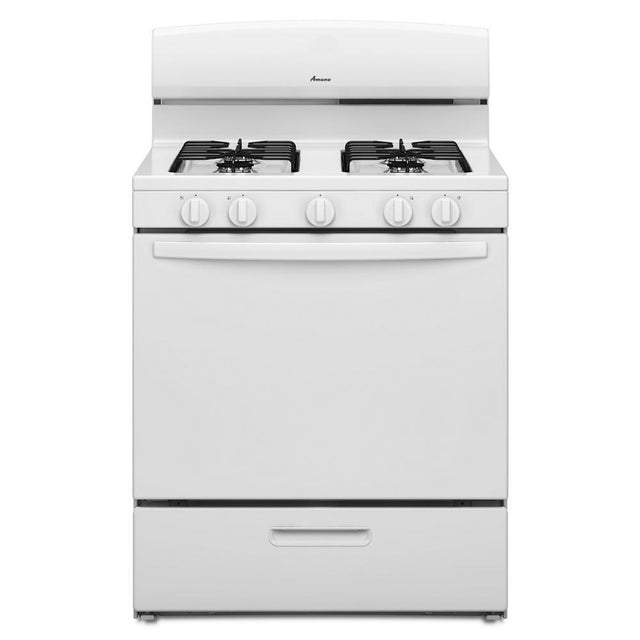

30-inch Gas Range with EasyAccess™ Broiler Door
Model: AGR4230BAW
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
30-inch Gas Range with EasyAccess™ Broiler Door
Model: AGR4230BAWQuick Specs
Depth
27.25
Height
46.25
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Storage
NO
Warming
YES
30-inch Gas Range with EasyAccess™ Broiler Door is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
27.25
Height
46.25
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
YES
Cooking oven number of burners
4
Continuous Grate
NO
Convection
NO
Self Clean
NO
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Drawer Proof Mode
NO
Dual Fuel
NO
Oven Ignition Type
ELECTRONIC
Sealed Burners
Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.

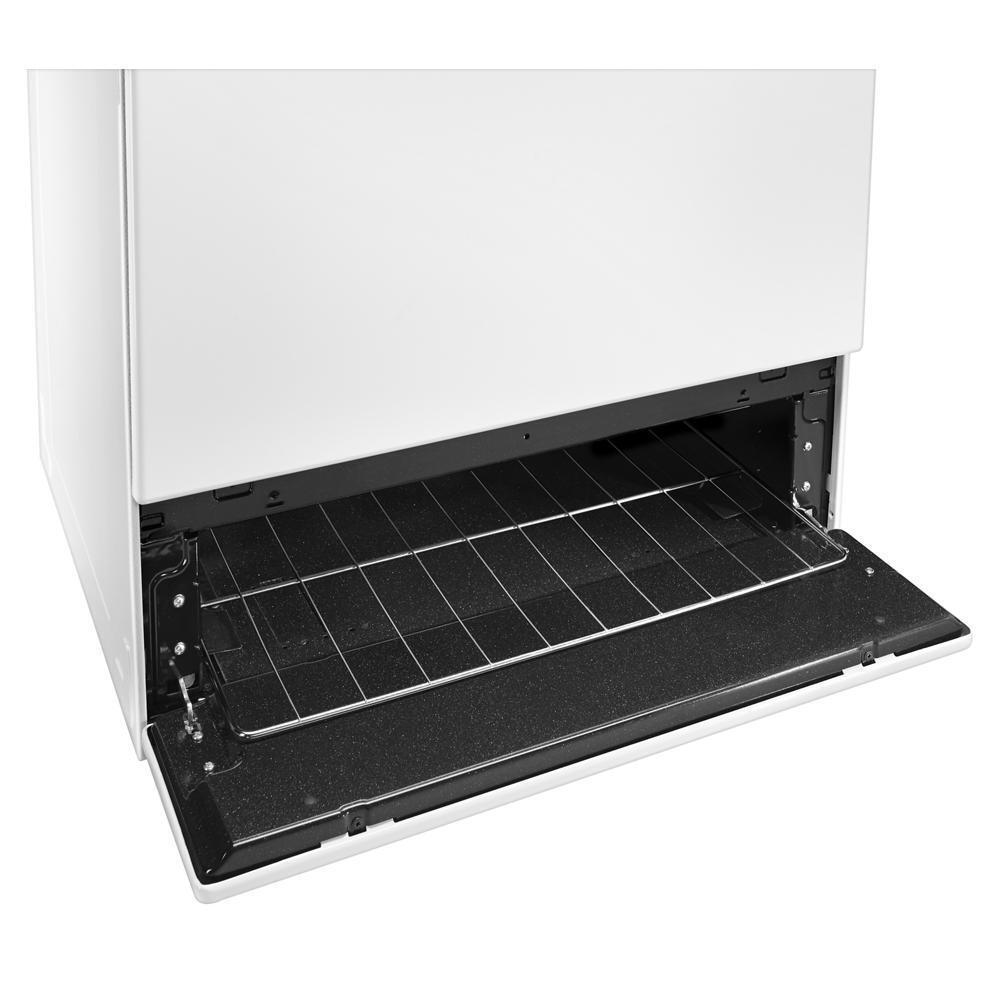

EasyAccess(TM) Broiler Door
The EasyAccess(TM) broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
- EasyAccess™ Broiler Door
- The EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.

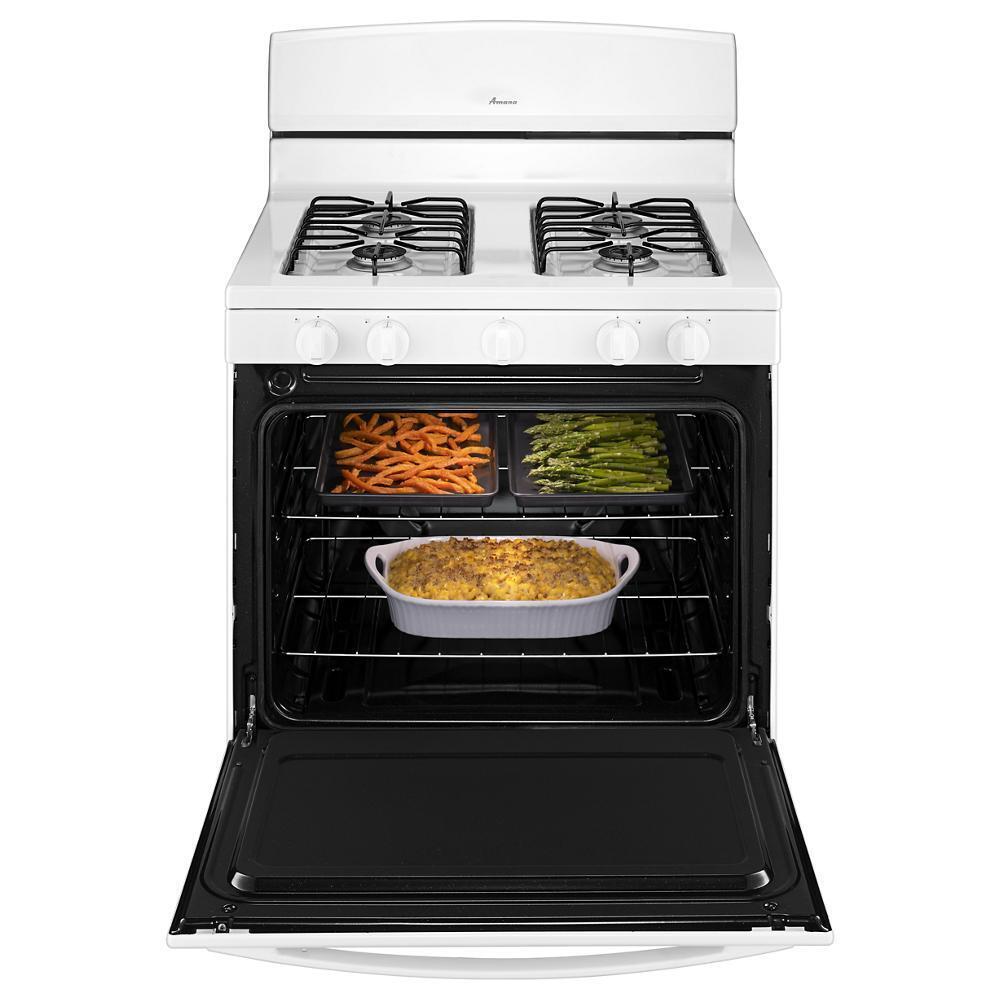

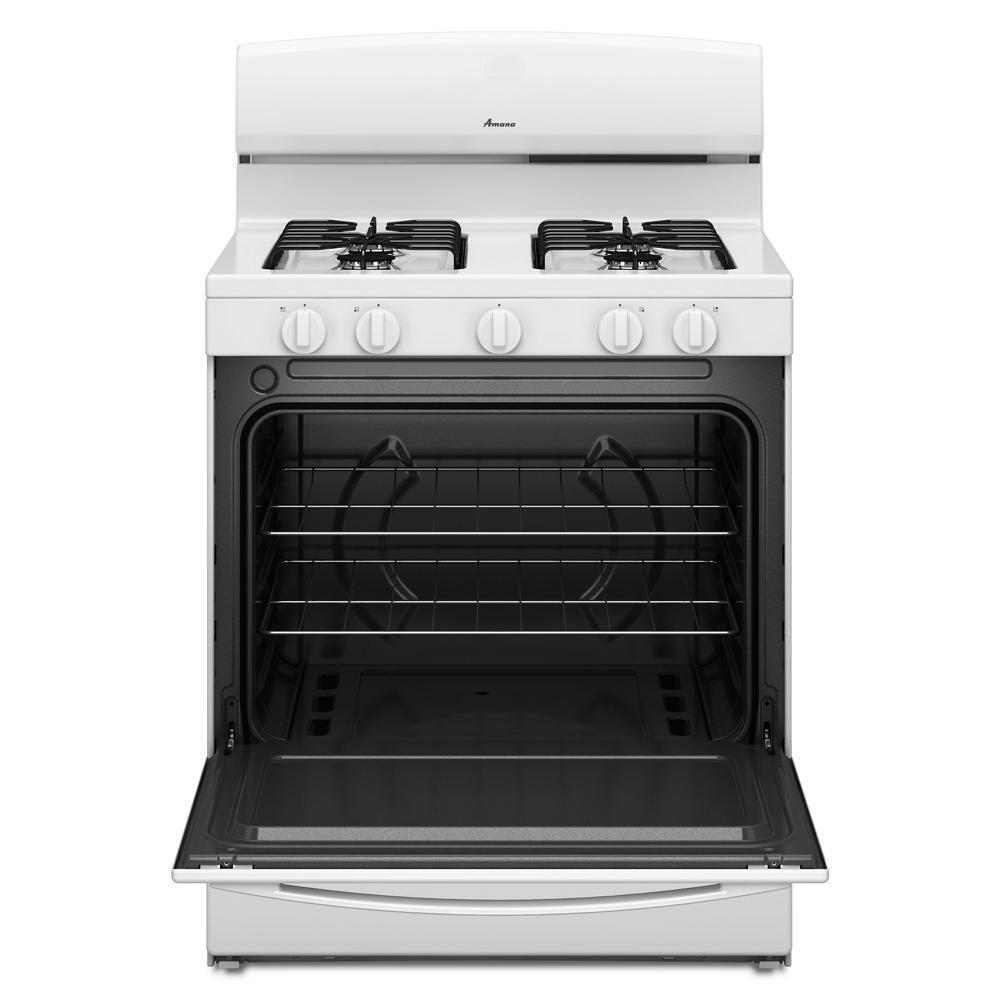

- Large Oven Capacity
- 5.0 Cu. Ft. Oven Capacity gives you the space you need to make dinner and dessert at the same time.

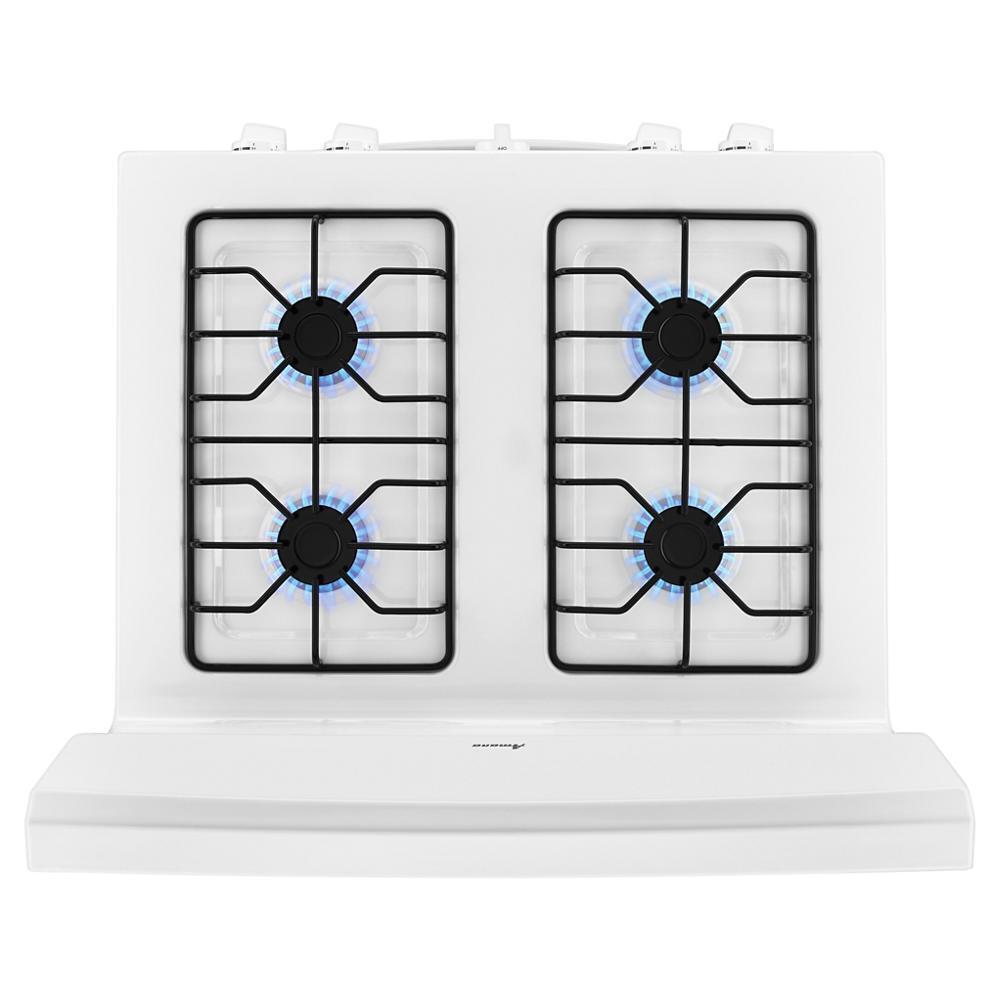

- Sealed Burners
- Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.

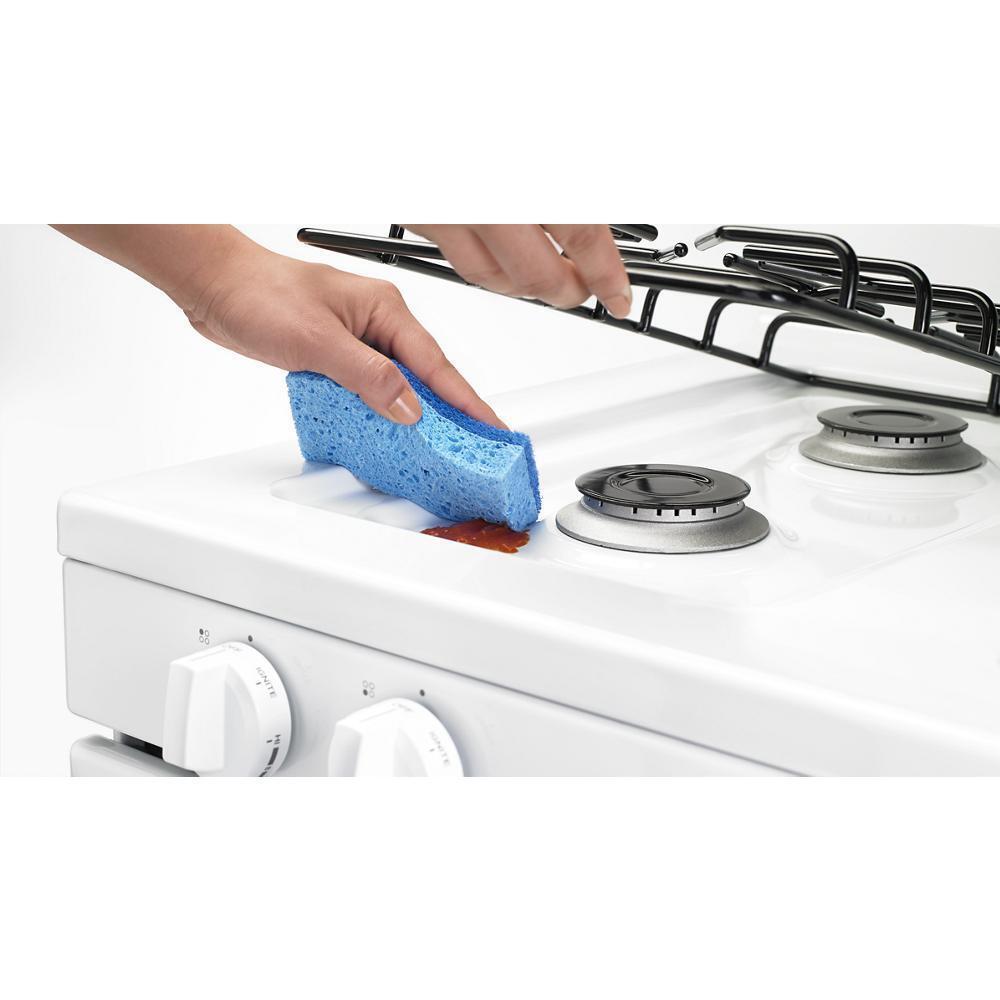

- SpillSaver™ Upswept Cooktop
- Go ahead, spill the beans. The SpillSaver™ Upswept Cooktop comes with raised edges to keep spills contained and surfaces clean.
- Temp Assure™ Cooking System
- Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
- Versatile Cooktop
- Our Versatile Cooktop features multiple burner options that provide up to 9,500 BTUs, helping you cook your favorites all at once.
- EASYACCESS Broiler Door helps you broil large dinners
- 5.0 Cu. Ft. Oven Capacity lets you cook multiple dishes at once
- Sealed Burners help keep spills from dripping beneath the cooktop
- SpillSaver(TM) Upswept Cooktop keeps spills contained
- TEMP ASSURE Cooking System distributes heat throughout the oven
- Versatile Cooktop has multiple burner options up to 9,500 BTUs
| Certifications | |
| Ada Compliant | No |
| Prop65 | Standard |
| Ul | Yes |
| Cooktop Details | |
| Cooktop Control Knob Color | White |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | White |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic |
| Details | |
| Automatic Convection Conversion Temperature Adjust | No |
| Fuel Type | Gas |
| Lp Convertible | Yes |
| Oven Configuration | Single Oven |
| Power On Indicator Light | No |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Drawer Type | Broiler Drawer |
| Range Type | Freestanding |
| Dimensions | |
| Product Height | 46.25 |
| Cutout Height | 36 |
| Depth Closed Excluding Handles | 25.125 |
| Carton Height | 48 |
| Gross Weight | 136 |
| Carton Depth | 28 |
| Carton Width | 32 |
| Cutout Width | 30.125 |
| Product Depth | 27.25 |
| Net Weight | 0 |
| Product Width | 29.875 |
| Depth With Door Open 90 Degree | 45.21 |
| Electrical | |
| Power Cord Included | Yes |
| Element/burner Details | |
| Cooktop Element Style | Sealed Burner |
| Left Front Element-burner Power | 9,500 BTU |
| Left Front Element-burner Type | Sealed Burner |
| Left Rear Element-burner Power | 9,500 BTU |
| Left Rear Element-burner Type | Sealed Burner |
| Number of Cooking Element-burners | 4 |
| Right Front Element-burner Power | 9,500 BTU |
| Right Front Element-burner Type | Sealed Burner |
| Right Rear Element-burner Power | 5,000 BTU |
| Right Rear Element-burner Type | Sealed Burner |
| Exterior Details | |
| Door Type | Enameled Steel |
| Handle Color | White |
| Handle Material | Plastic |
| Knob Color | White |
| Knob Type | Dishwasher-Safe Plastic |
| Oven Control Location | Front |
| Oven Control Type | Knobs |
| Oven Window Size | None |
| Grate Details | |
| Grate Details | Gloss Finish; Porcelain Coated Steel Grates |
| Number of Grates | 2 |
| Oven Details | |
| Broiler Location | Drawer |
| Convection Element Type | None |
| Convection Functions | No |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Manual Clean |
| Oven Cooking System | Thermal |
| Oven Light Type | None |
| Oven Rack Type | Standard |
- EASYACCESS Broiler Door helps you broil large dinners
- 5.0 Cu. Ft. Oven Capacity lets you cook multiple dishes at once
- Sealed Burners help keep spills from dripping beneath the cooktop
- SpillSaver(TM) Upswept Cooktop keeps spills contained
- TEMP ASSURE Cooking System distributes heat throughout the oven
- Versatile Cooktop has multiple burner options up to 9,500 BTUs
 | |
|---|---|
| Key Features | |
Cooking Technology & Design Features |
|
| Product Type | |
Product Type |
|
Dual Fuel |
|
Burner Type |
|
Number of Burners/Element |
|
| Dimensions & Capacity | |
Depth |
|
Height |
|
| Other Features | |
Sabbath Mode |
|
Configuration |
|
Color |
|
Convection |
|
Self Clean |
|
Wifi Connected |
|
Cooking has Storage Drawer |
|
Cooking has Warning Drawer |
|
Continuous Grate |
|
Downdraft Ventilation |
|
Oven Rack Type |
|
Oven Ignition Type |
|
ADA |
|
