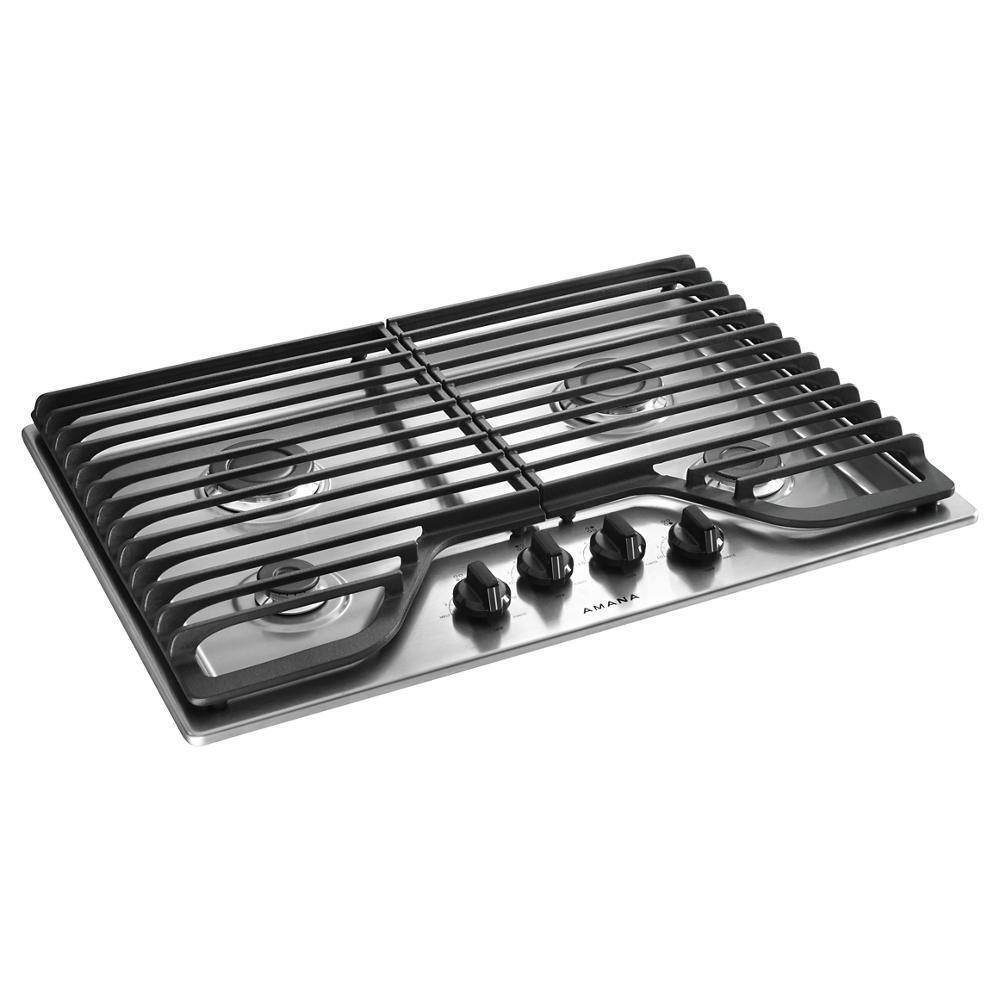

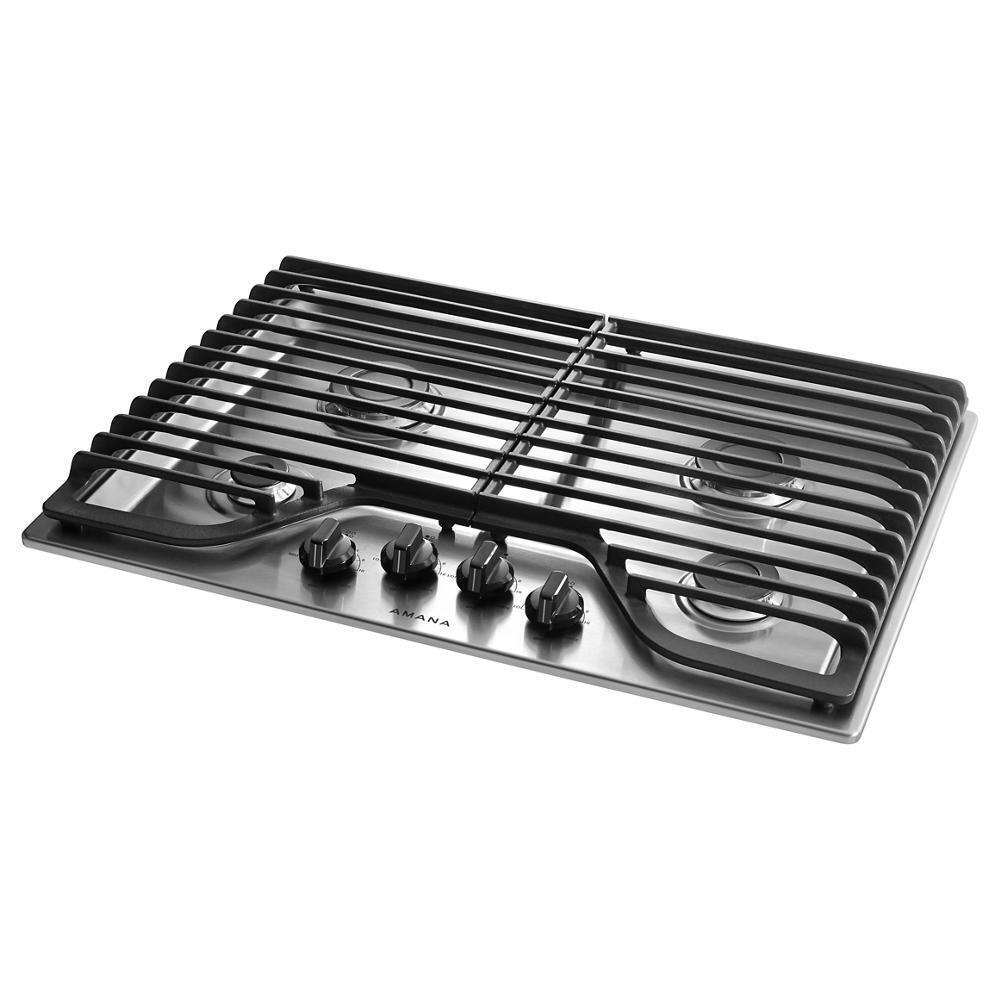

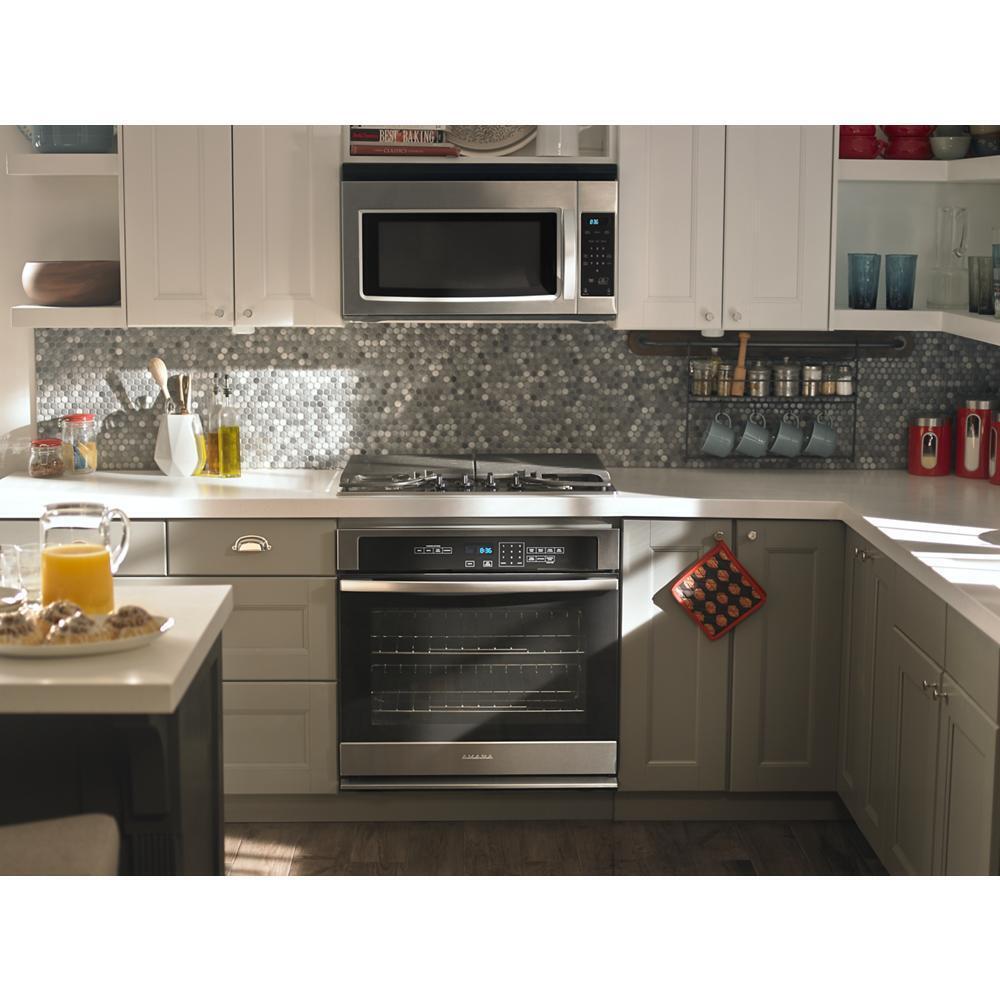

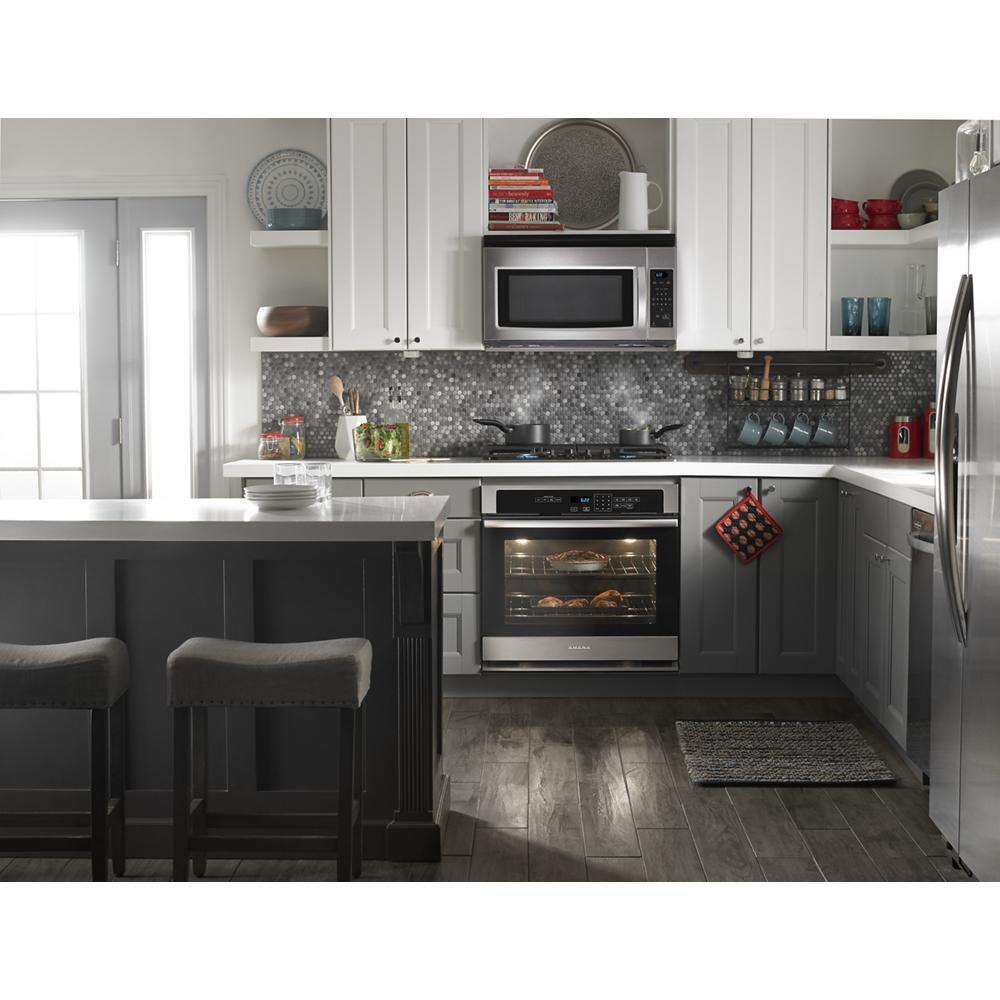

30-inch Gas Cooktop with 4 Burners
Model AGC6540KFS
Authorized Dealer
1
of
18
Loading...
Authorized Dealer
30-inch Gas Cooktop with 4 Burners
Model AGC6540KFSQuick Specs
Width
30.0
Depth
21.0
Height
4.125
Sabbath
NO
ADA
YES
Wifi
NO
Burner
Sealed
Storage
NO
30-inch Gas Cooktop with 4 Burners is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/01/2026
Regular price
$830.42
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
30.0
Depth
21.0
Height
4.125
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
NO
Self Clean
NO
Downdraft Ventilation
NO
Nominal Width
30.0
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

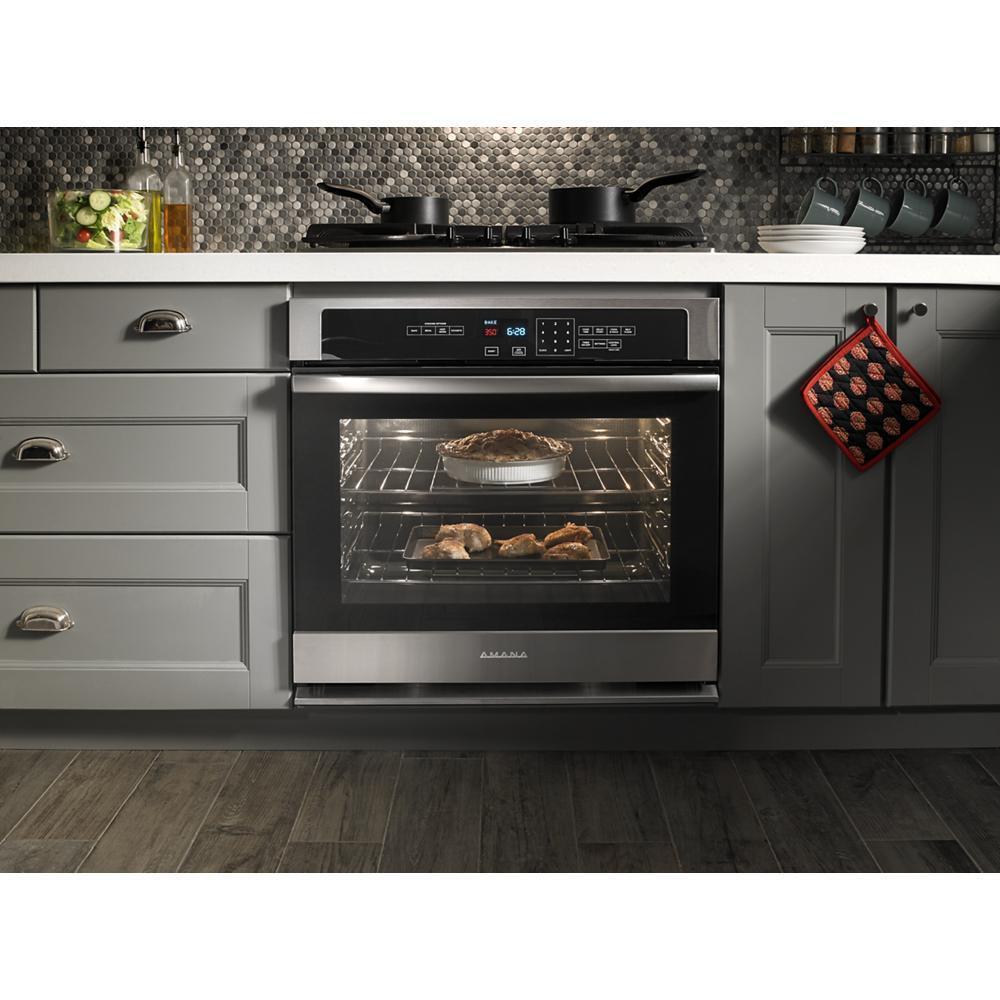

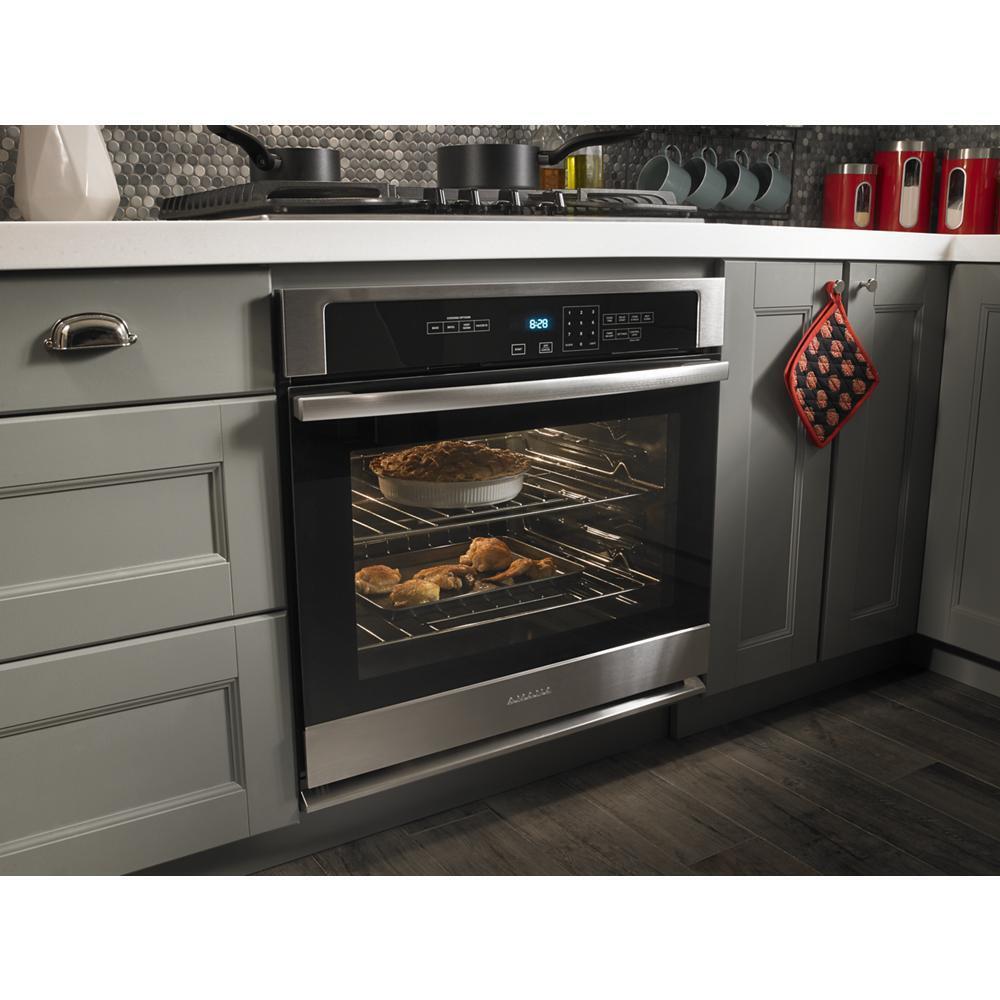

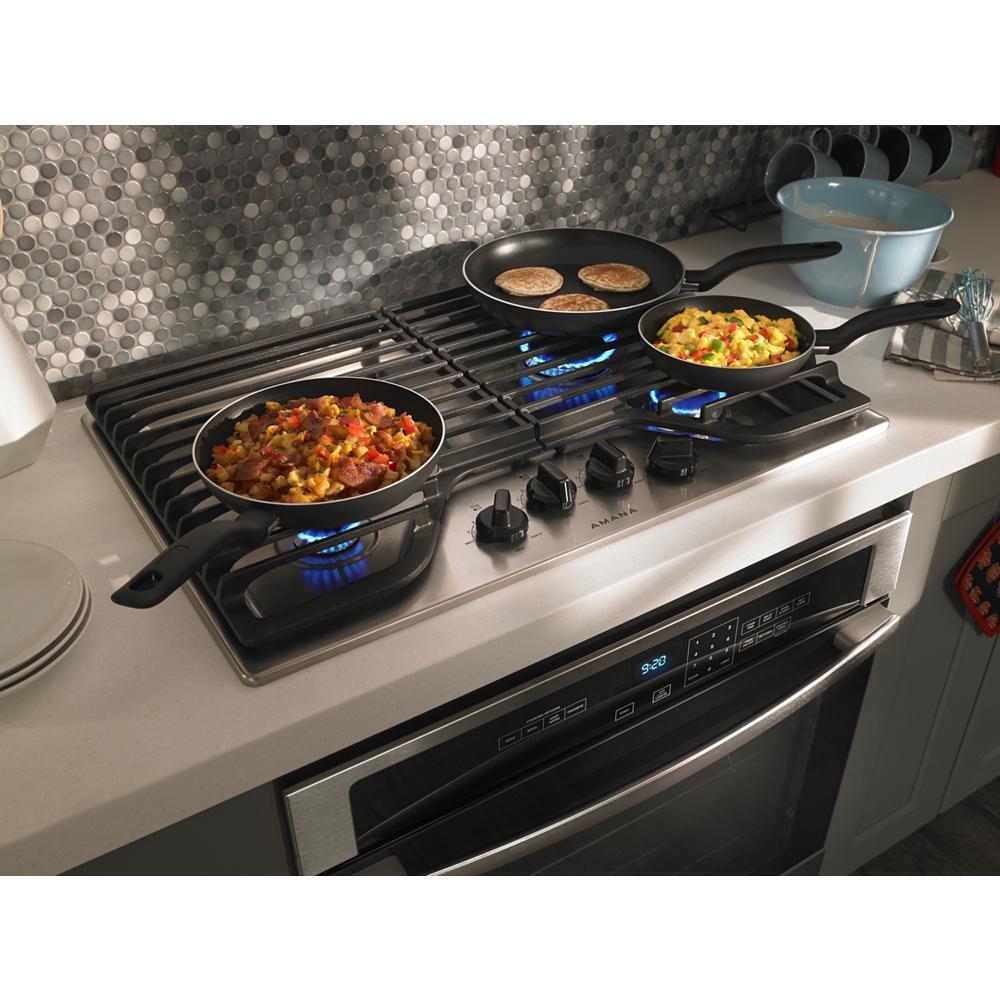

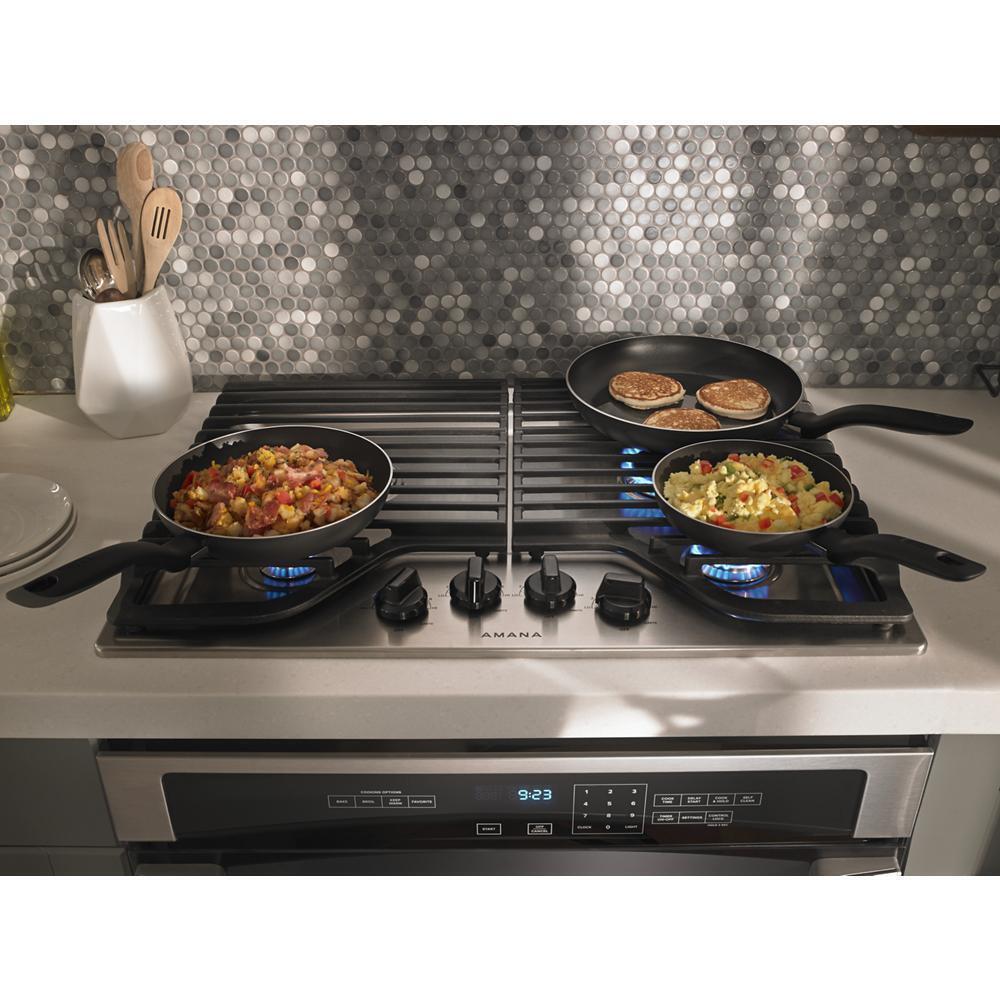

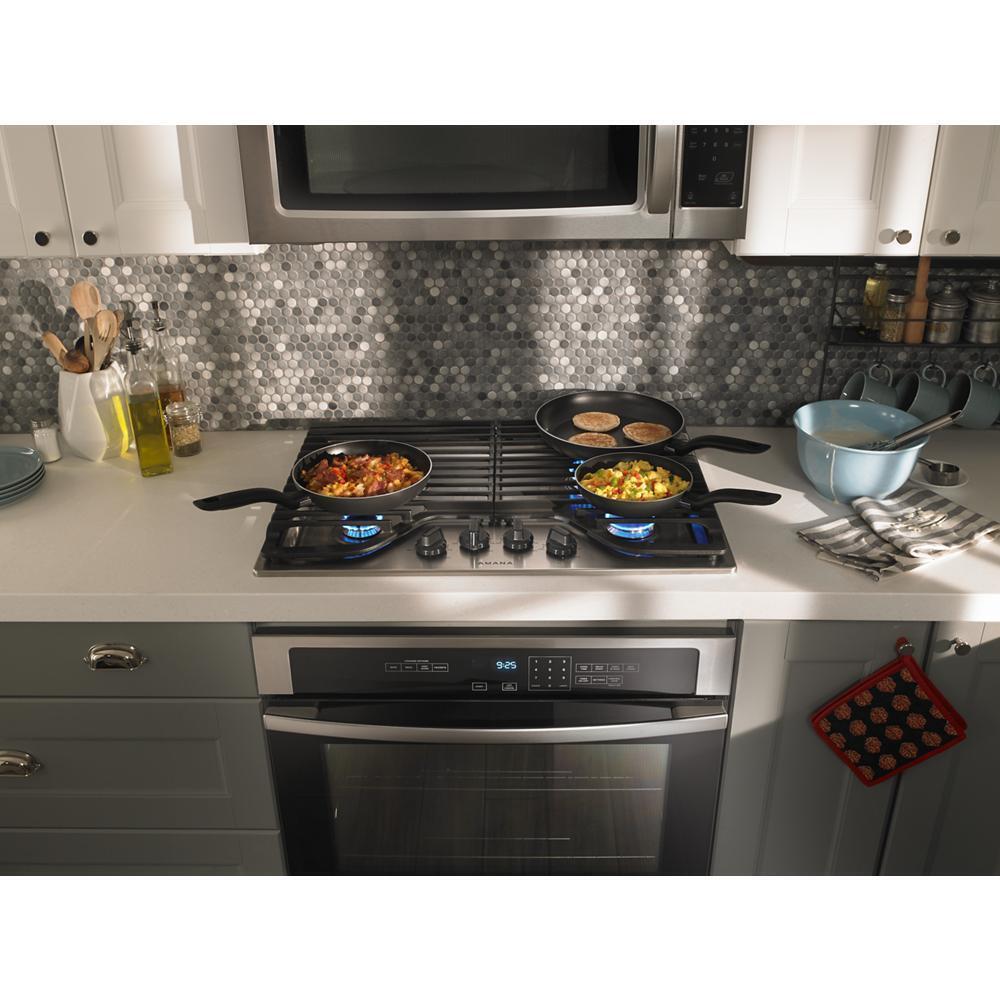

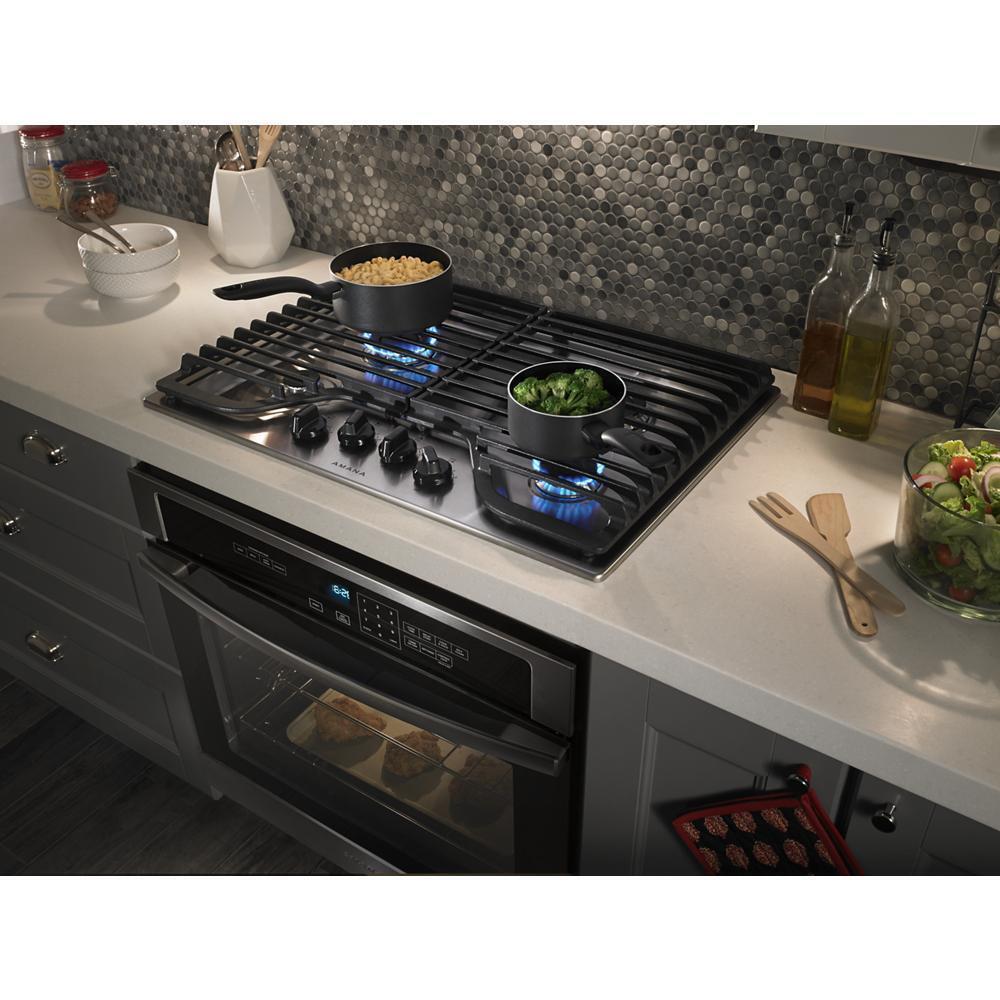

Installs Over the Wall Oven
This cooktop Installs Over the Wall Oven with ease, creating a complementary look for your kitchen.

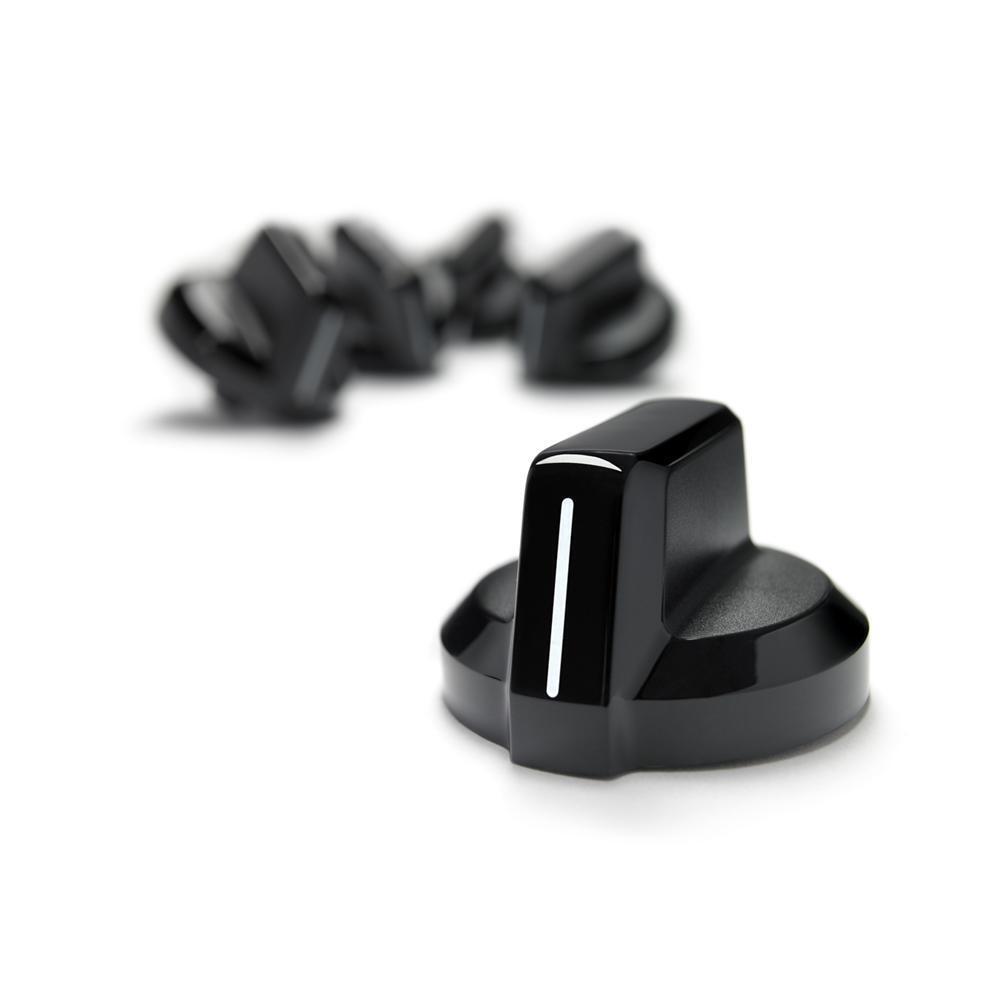

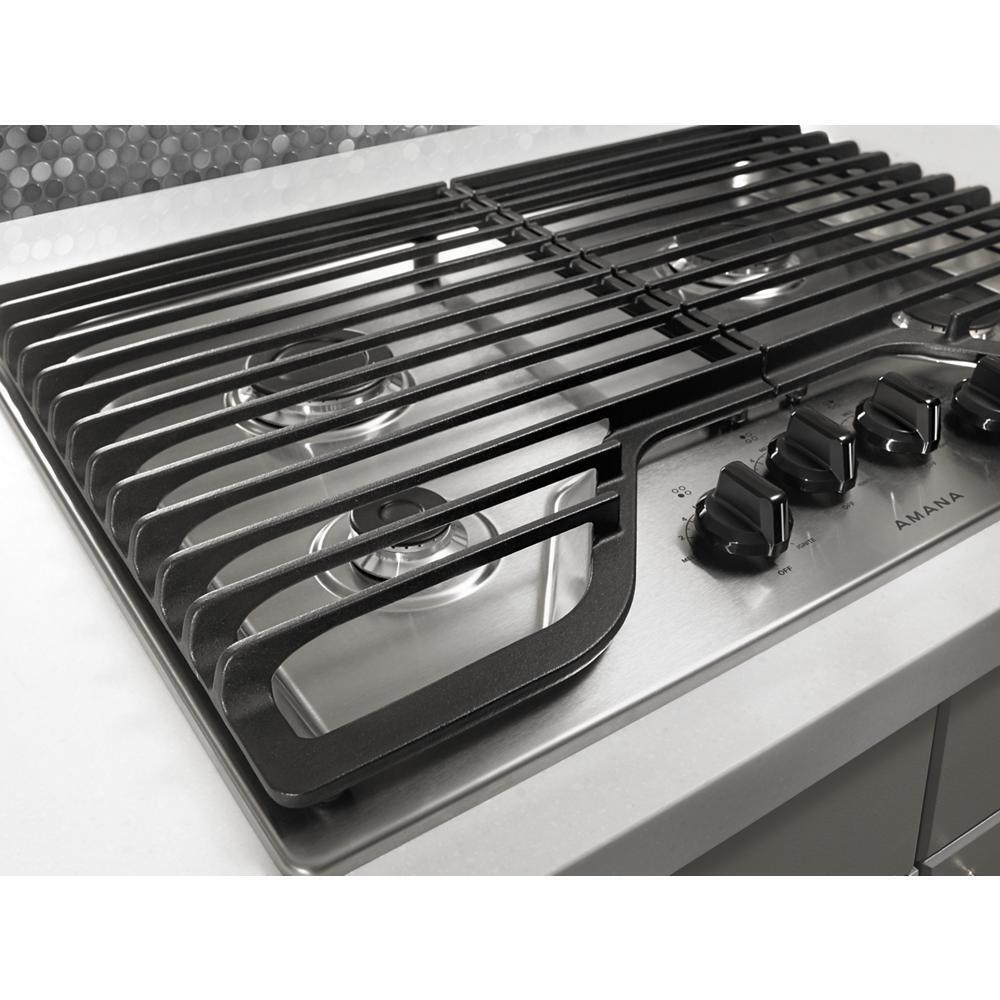

Dishwasher-Safe Grates and Knobs
Put away the sponge. These Dishwasher-Safe Grates and Knobs let the dishwasher do the dirty work.
ADA Compliant
Models with this feature meet standards set by the Americans with Disabilities Act when installed in compliance with current ADA standards.

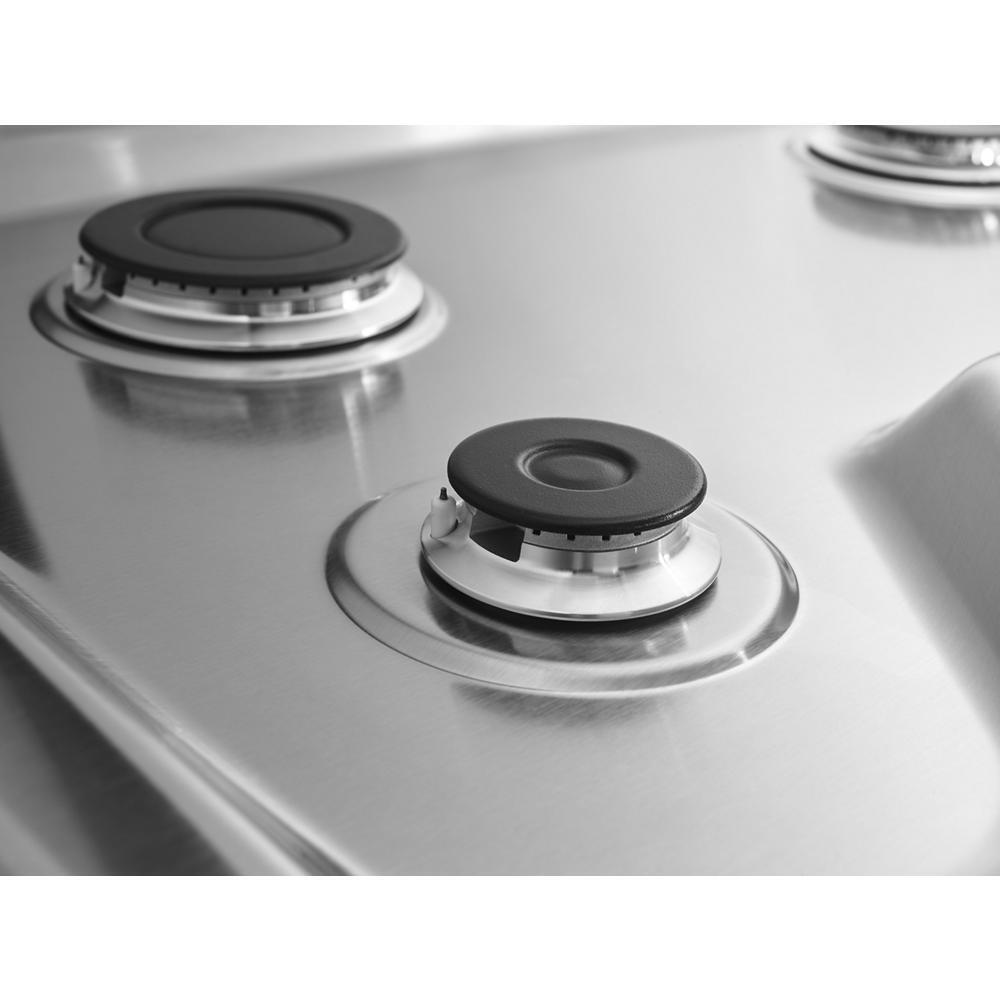

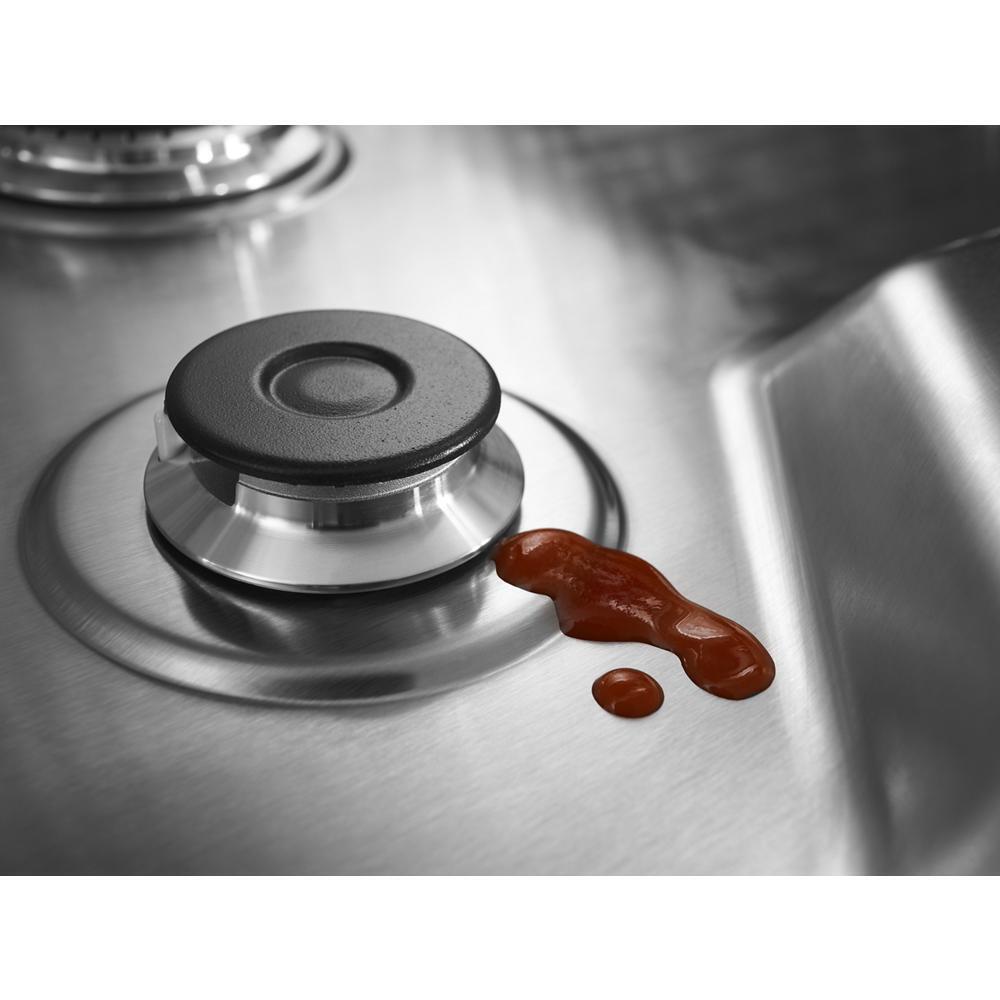

Sealed Burners
Don't sweat the small spills. Sealed Burners make cleanup easy by limiting spills from dripping beneath the cooktop.

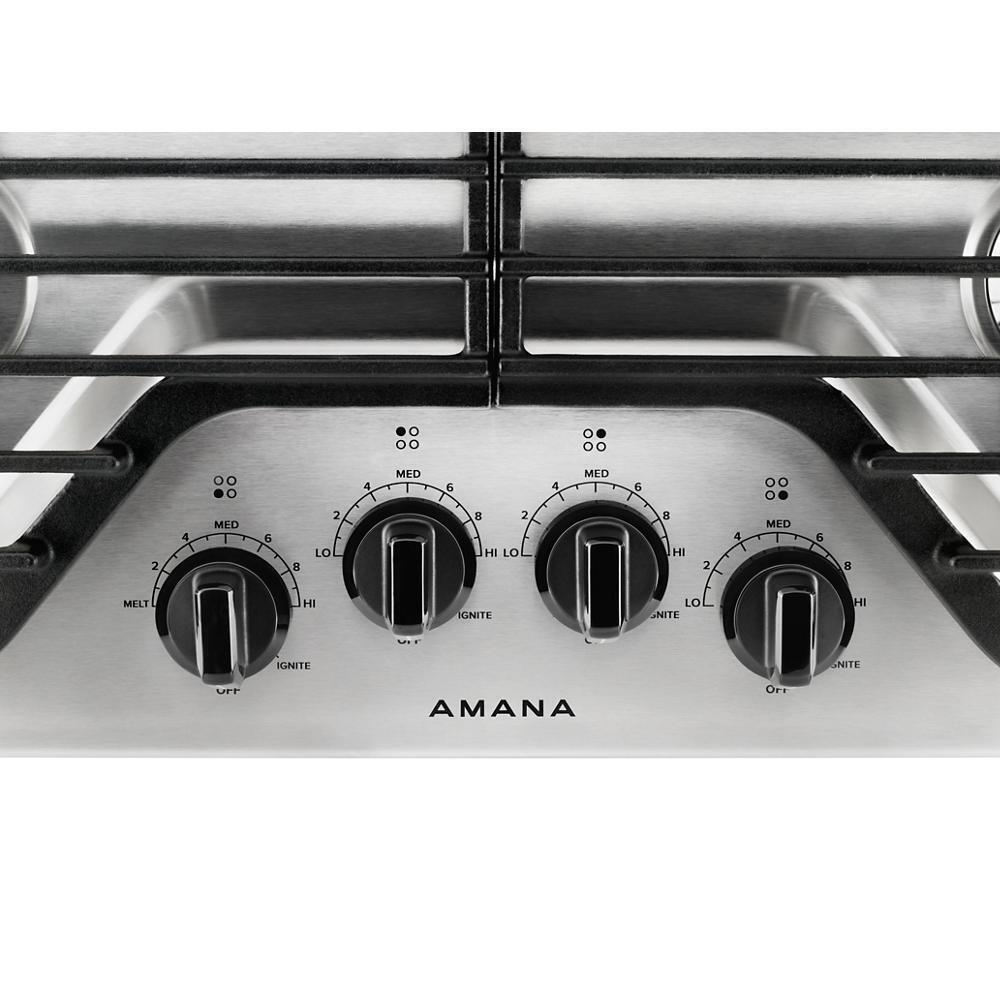

Front Controls
Easily accessible Front Controls let you turn up the heat just how you like it.

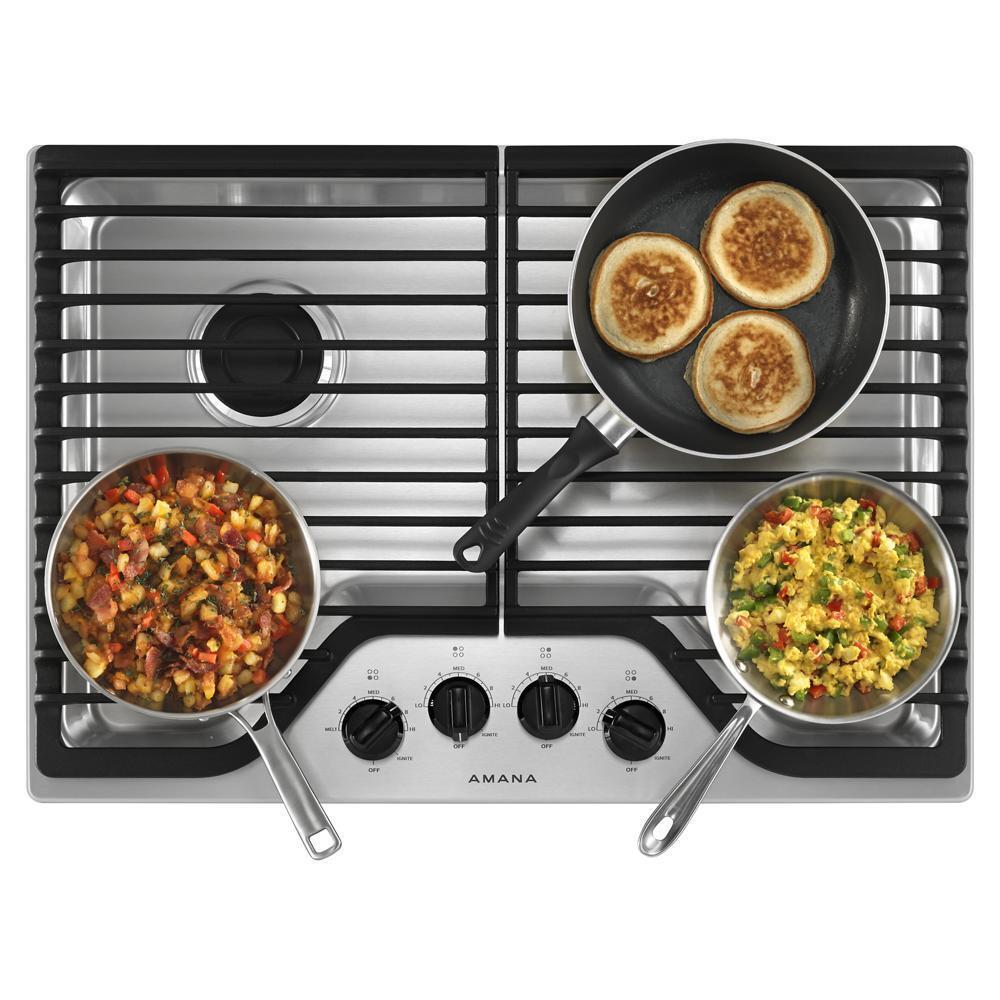

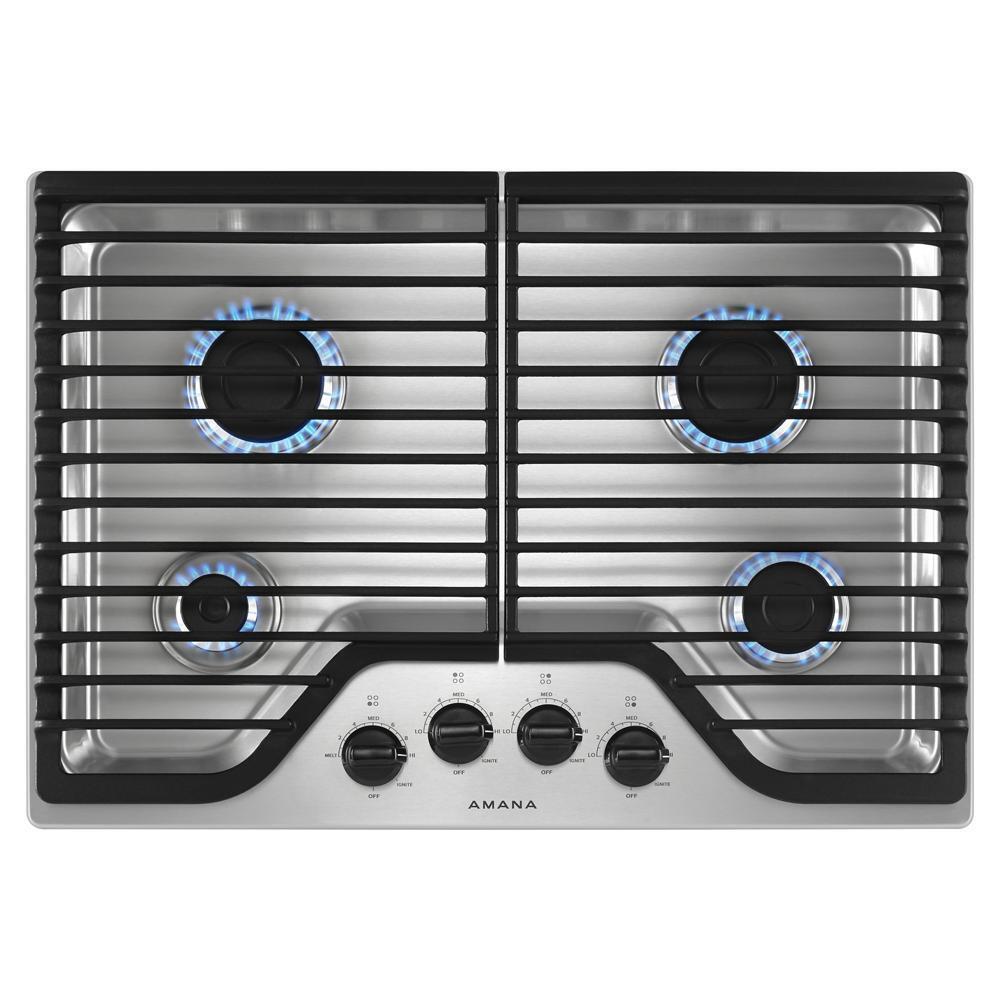

4 Burners
Now dinner's a one and done deal. 4 burners with up to 12,000 BTUs help you fry, boil, simmer and melt all your dishes at the same time.
- 4 Burners
- Now dinner's a one and done deal. 4 burners with up to 12,000 BTUs help you fry, boil, simmer and melt all your dishes at the same time.
- ADA Compliant
- Models with this feature meet standards set by the Americans with Disabilities Act when installed in compliance with current ADA standards.
- Dishwasher-Safe Grates and Knobs
- Put away the sponge. These Dishwasher-Safe Grates and Knobs let the dishwasher do the dirty work.
- Front Controls
- Easily accessible Front Controls let you turn up the heat just how you like it.
- Installs Over the Wall Oven
- This cooktop Installs Over the Wall Oven with ease, creating a complementary look for your kitchen.
- LP Conversion Kit
- This LP conversion kit converts your cooktop for use with propane gas.
- Sealed Burners
- Don't sweat the small spills. Sealed Burners make cleanup easy by limiting spills from dripping beneath the cooktop.
- 4 Burners
- Installs Over the Wall Oven
- Front Controls
- Sealed Burners
- Dishwasher-Safe Grates and Knobs
| Certifications | |
| Ada Compliant | ADA Height and Side and Front Reach Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Combinations With Oven | AWO6313; AWO6317 |
| Fuel Type | Gas |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Dimensions | |
| Product Height | 4.125 |
| Carton Height | 12.04 |
| Gross Weight | 40 |
| Carton Width | 34.76 |
| Product Depth | 21.0 |
| Cutout Depth Max | 20 |
| Cutout Width Min | 28.5 |
| Cutout Depth | 19.5 |
| Carton Depth | 25 |
| Cutout Width | 28.875 |
| Cutout Depth Min | 19 |
| Cutout Width Max | 29.313 |
| Net Weight | 34 |
| Product Width | 30.0 |
| Electrical | |
| Power Cord Included | Yes |
| Element/burner Details | |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 5,000 BTU |
| Left Front Element-burner Type | Simmer |
| Left Rear Element-burner Power | 12,000 BTU |
| Left Rear Element-burner Type | SpeedHeat™ |
| Number of Cooking Element-burners | 4 |
| Power Boost | No |
| Right Front Element-burner Power | 9,100 BTU |
| Right Front Element-burner Type | Sealed Burner |
| Right Rear Element-burner Power | 12,000 BTU |
| Right Rear Element-burner Type | Sealed Burner |
| Exterior Details | |
| Knob Color | Color Coordinated/Black on Stainless |
| Knob Type | Dishwasher-Safe Plastic |
| General | |
| Combination Match With Oven | AWO6313; AWO6317 |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Gloss Finish |
| Number of Grates | 2 |
| Ventilation Details | |
| Downdraft Vent | No |
