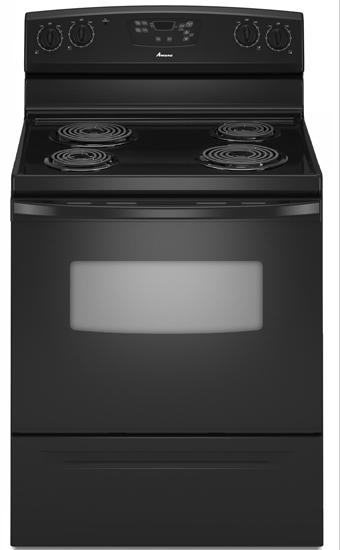

4.8 cu. ft. Electric Range with Temp Assure™ Cooking System
Model AER5523XAB
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
4.8 cu. ft. Electric Range with Temp Assure™ Cooking System
Model AER5523XABQuick Specs
Width
29.875
Depth
27.6875
Height
46.875
Sabbath
YES
ADA
NO
Storage
YES
Warming
NO
Cooktop
4
4.8 cu. ft. Electric Range with Temp Assure™ Cooking System is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/01/2026
Regular price
$657.87
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
29.875
Depth
27.6875
Height
46.875
Sabbath Mode
YES
ADA
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
4
Cooking First Oven Capacity
4.8
Convection
NO
Self Clean
YES
Nominal Width
30.0
RPM
-1.0
Drawer Proof Mode
NO
Energy Star Rated
NO
- Versatile Electric Cooktop
- Oven Capacity
- The large oven capacity of this range lets you cook multiple dishes at once, so you can handle everything from daily meals to large family dinners with ease.

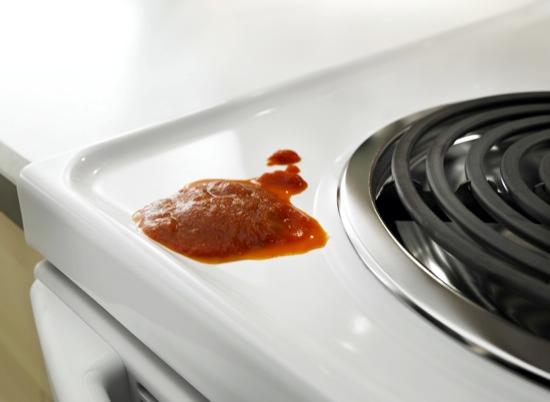

- SpillSaver™ Upswept Cooktop
- The raised edges and smooth surface of this cooktop help make spills and splashes easy to clean up.
- Easy Touch Electronic Controls
- Set bake or broil temperatures with just a touch. Plus, a clock and oven timer make it easy to count down to dinner time. Control lockout prevents unintended use as well.

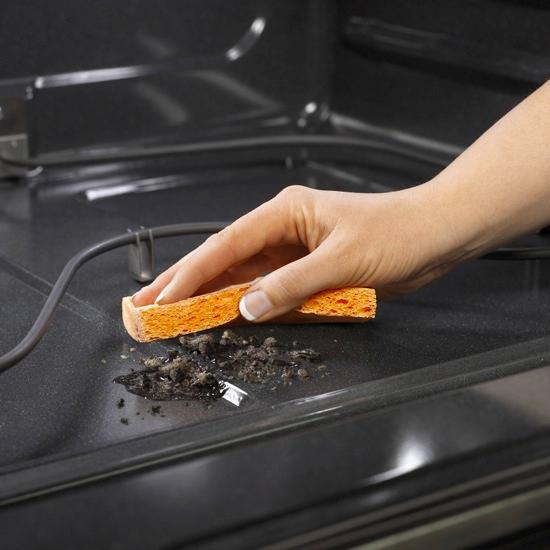

- Adjustable Time Self-Cleaning Oven
- Let the oven do the dirty work. This adjustable time self-cleaning oven lets you select the right amount of time for light, medium or heavy soils.
- Temp Assure™ Cooking System
- Now you'll be able to cook with confidence. The Temp Assure™ cooking system keeps temperatures consistent with a preheat cycle and use of the bake element.
- Custom Broil
- Lets you set the broil temperature in five-degree increments. Choose high heat for meat and lower temperature for delicate desserts.
- Limited One Year Warranty - Parts and Labor. For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or replaced free of charge. Refer to the Use and Care for warranty details
- Before operating your new range, carefully read its Use and Care Guide for instruction on the proper use, care and maintenance of your range and for warranty information. Click here to download a copy of the Use and Care Guide.
- Versatile Electric Cooktop
- Oven Capacity
- SpillSaver(TM) Upswept Cooktop
- Easy Touch Electronic Controls
- Adjustable Time Self-Cleaning Oven
- Temp Assure(TM) Cooking System
- Custom Broil
- Limited One Year Warranty - Parts and Labor. For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or replaced free of charge. Refer to the Use and Care for warranty details
- Before operating your new range, carefully read its Use and Care Guide for instruction on the proper use, care and maintenance of your range and for warranty information. Click here to download a copy of the Use and Care Guide.
(P)This 4.8 cu. ft. electric range offers the Temp Assure™ cooking system and adjustable time self-cleaning oven for added convenience.(/P)
| Capacity | |
| Capacity | 4.8 Cu. Ft. |
| Performance | |
| Model Type | Electric |
| Cooktop Features | |
| Cooking Surface Element On Light | 1 - Console |
| Cooking Surface Finish | Gloss |
| Cooktop Color | W(Wht)S(Blk) |
| Cooktop Material | Porcelain |
| Cooktop Style | Spillsaver™ Upswept Cooktop Design |
| Cooktop Type | Coil |
| Lift Top Cooktop | Yes |
| Dimensions | |
| Overall Height | 46 7/8 Inches |
| Overall Width | 29 7/8 Inches |
| Overall Depth | 27 3/4 Inches |
| Weight | 130 LB |
| Oven Features | |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Number of Oven Lights | 1 |
| Cooking System | Thermal |
| Broiler Type | 4-pass waist high |
| Broiler | Single Element Broil |
| Drawer Type | Storage Drawer |
| Oven Light Location | Back Oven, Right Rear Corner |
| Cleaning System | High Temp Self |
| Oven Control Features | |
| Preheat Type | Temperature |
| Self Clean Oven Time Clean | Hi 4 1/2 Hrs/ Lo 3 1/2 Hrs |
| Kitchen Timer | Yes |
| Oven Light Switch | On Control |
| Control Lockout | Yes |
| Oven Control Display Colors | Green |
| Oven Control Location | Console |
| Automatic Door Latch | Yes |
| Clock | Yes |
| Electric Cooktop Detail | |
| Left Front Power (watts) | 2600 |
| Left Rear Power (watts) | 1500 |
| Right Front Power (watts) | 1500 |
| Right Rear Power (watts) | 2600 |
