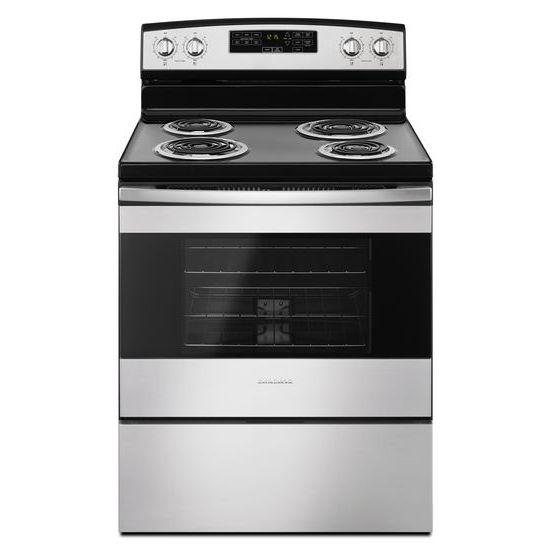

Amana® 30-inch Electric Range with Self-Clean Option - Black-on-Stainless
Model: ACR4503SFS
Amana® 30-inch Electric Range with Self-Clean Option - Black-on-Stainless
Model: ACR4503SFSQuick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Temp Assure(TM) Cooking System
Temp Assure(TM) Cooking System distributes heat throughout the entire oven to deliver delicious results.
Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

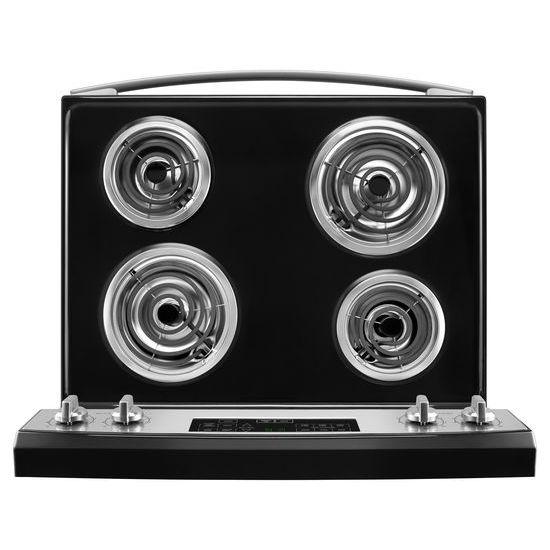

Versatile Cooktop
Our multiple element options provide up to 2,100 watts to help you cook more of your favorites at the same time.
Extra-Large Oven Window
See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.

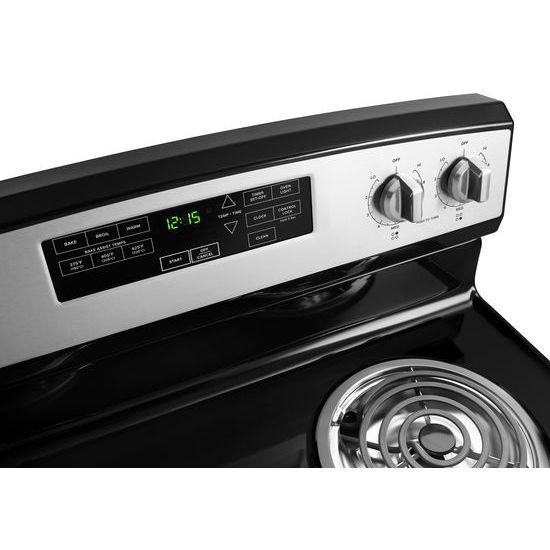

Easy Touch Electronic Controls Plus
Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Self-Clean Option
There's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Storage Drawer
This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Warm Hold
Can't serve dinner right away? Warm Hold keeps the oven at 145(degree)F to 190(degree)F, so dishes like your baked chicken parmesan are still ready when you are.

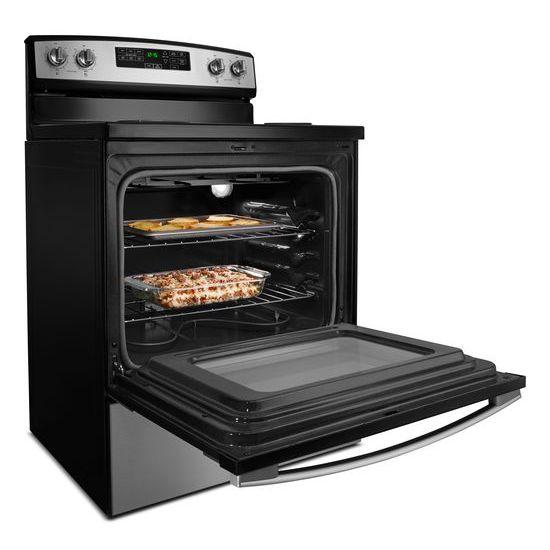

Large Oven Capacity (4.8 cu. ft.)
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
- Large Oven Capacity (4.8 cu. ft.)
- Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
- Versatile Cooktop
- Our multiple element options provide up to 2,100 watts to help you cook more of your favorites at the same time.
- Bake Assist Temps
- Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
- Easy Touch Electronic Controls Plus
- Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
- Temp Assure™ Cooking System
- Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
- Extra-Large Oven Window
- See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
- Self-Clean Option
- There's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
- Storage Drawer
- This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
- Warm Hold
- Can't serve dinner right away? Warm Hold keeps the oven at 145ºF to 190ºF, so dishes like your baked chicken parmesan are still ready when you are.
- Oven Lockout
- Oven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
- Indicator Lights
- Check your oven's status and settings at a glance with the Indicator Lights.
- Sabbath Mode
- Sabbath Mode helps override the features of modern ovens such as automatic shutoff and electrical lights for those who keep a kosher home.
- Large Oven Capacity (4.8 cu. ft.)
- Versatile Cooktop
- Indicator Lights
- Sabbath Mode
- Bake Assist Temps
- Easy Touch Electronic Controls Plus
- Temp Assure(TM) Cooking System
- Extra-Large Oven Window
- Self-Clean Option
- Storage Drawer
- Warm Hold
- Oven Lockout
| Configuration and Overview | |
| Size | 30 |
| Capacity | 4.80 |
| Prop 65 | Standard |
| Cooktop Features | |
| Cooktop Element Style | Coil |
| Cooktop Surface Color | Black on Stainless |
| Cooktop Surface Material | Porcelain Coated Steel |
| Number of Cooking Element-Burners | 4 |
| Left Front Element-Burner Power | 2100W |
| Left Front Element-Burner Size | 8" |
| Left Front Element-Burner Type | Coil |
| Left Rear Element-Burner Power | 2150W |
| Left Rear Element-Burner Size | 6" |
| Left Rear Element-Burner Type | Coil |
| Right Front Element-Burner Power | 1250W |
| Right Front Element-Burner Size | 6" |
| Right Front Element-Burner Type | Coil |
| Right Rear Element-Burner Power | 2100W |
| Right Rear Element-Burner Size | 8" |
| Right Rear Element-Burner Type | Coil |
| Oven Features | |
| Number of Oven Lights | 1 |
| Hot Surface Indicator Light | Yes |
| Power On Indicator Light | Yes |
| Light Type | Incandescent |
| Self-Cleaning | Self-Cleaning |
| Convection Functions | No |
| Convection Element Type | None |
| Bake Element Power | 2400W |
| Hidden Bake Element | No |
| Broiler Element Power | 3400W |
| Broiler Location | Top of Oven |
| Number of Oven Racks | 2 |
| Oven Rack Type | Standard |
| Number of Rack Guides | 5 |
| Controls | |
| Drawer Type | Storage Drawer |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Selections | Timer; Clock; Control Lock; Warm Hold; Audible Signal; Sabbath Mode |
| ADA Compliant | No |
| UL | UL |
| Dimensions | |
| Depth | 27 3/4 Inches |
| Height | 46 7/8 Inches |
| Width | 29 7/8 Inches |
