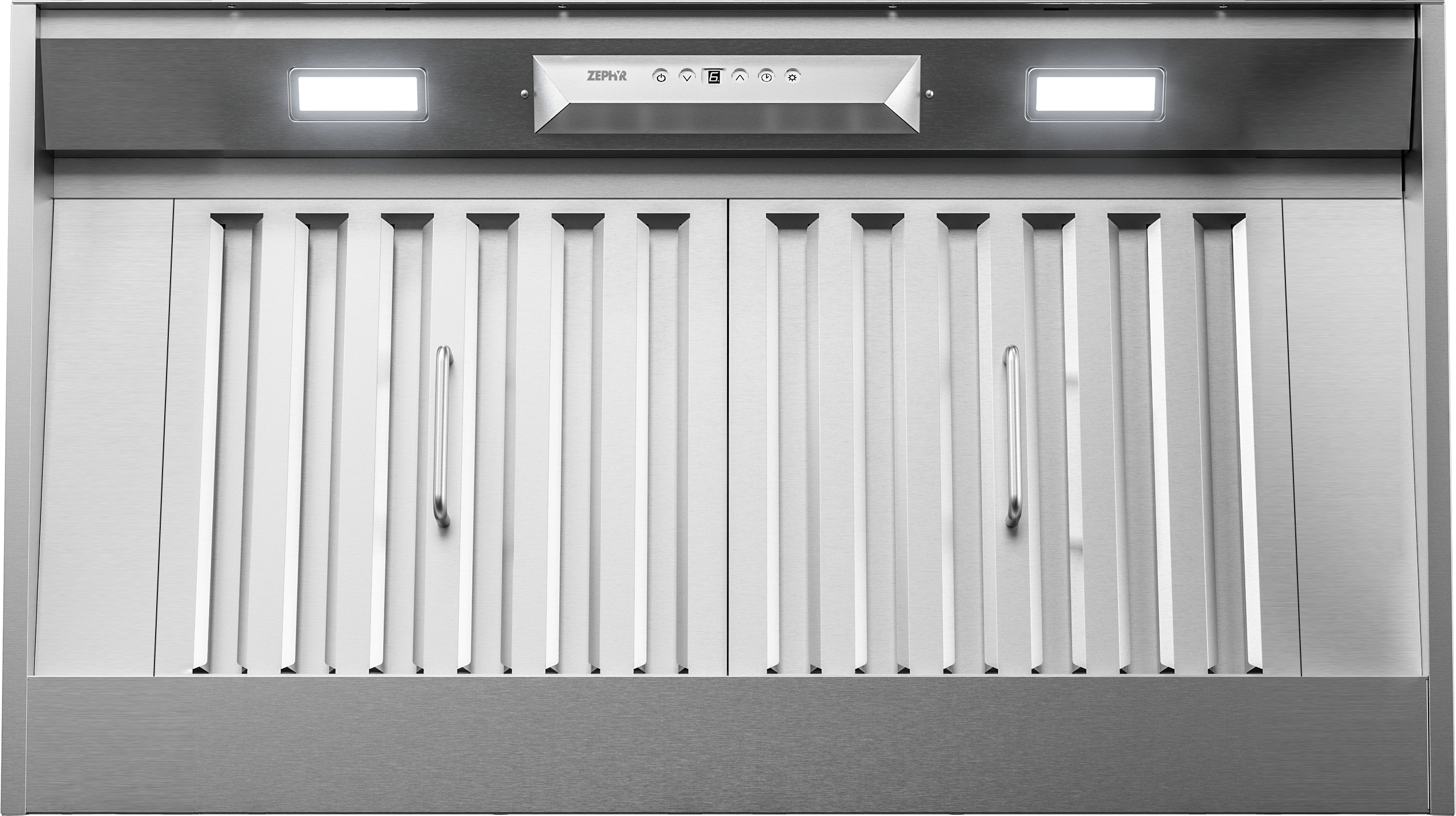

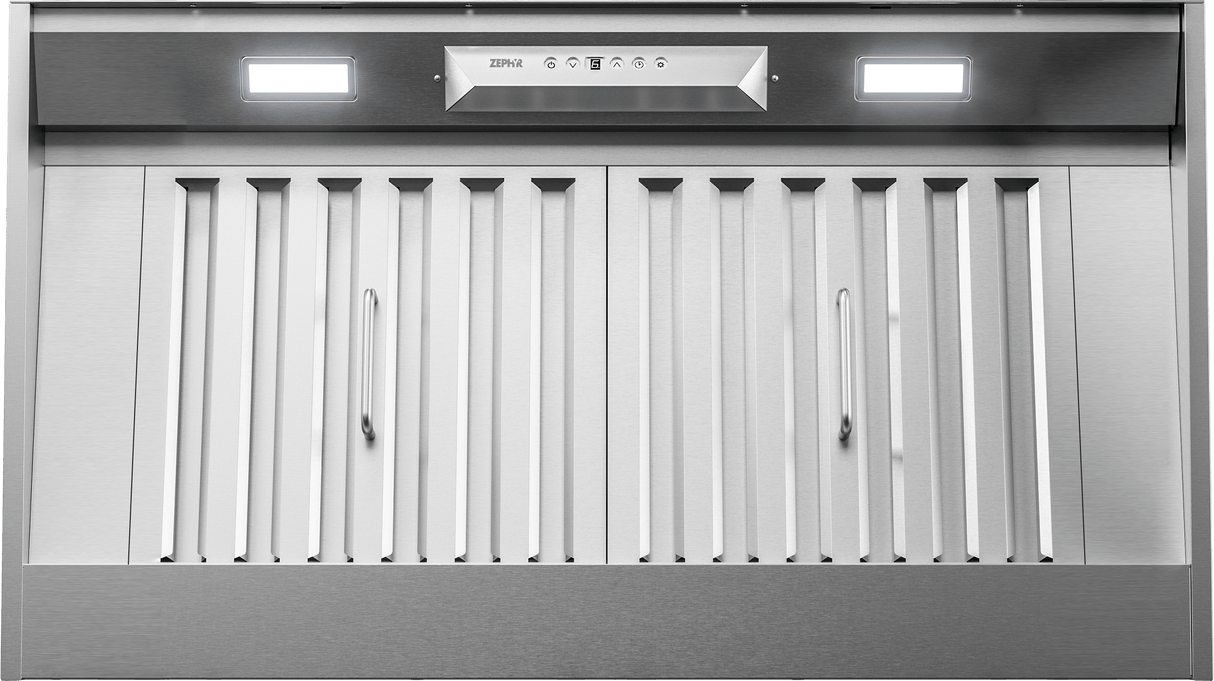

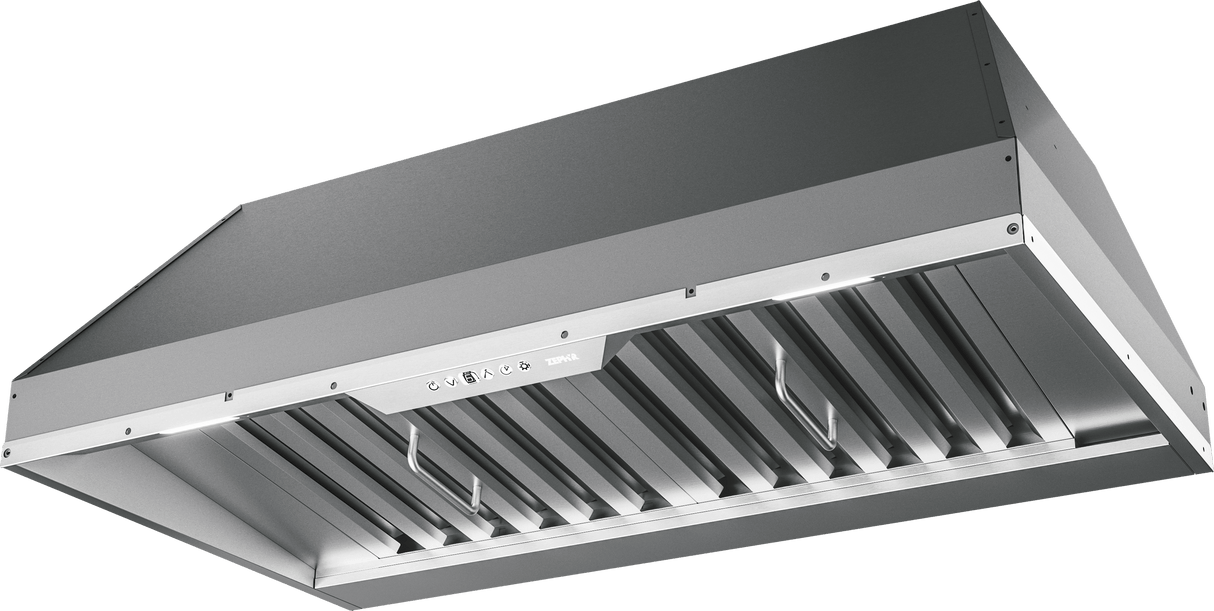

Monsoon I, Insert, 34-3/8in, SS, LED, ACT
Model AK9234BS
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Monsoon I, Insert, 34-3/8in, SS, LED, ACT
Model AK9234BSQuick Specs
Depth
19.25"
Height
12"
Energy
NO
Monsoon I, Insert, 34-3/8in, SS, LED, ACT is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/24/2026
Sale Price
Sale price
$1,299.00
Regular price
$1,399.00
Unit price
/
Unavailable
You save 7%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.25"
Height
12"
Energy Star Rated
NO
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Electronic Touch Controls
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Airflow Control Technology(TM) (ACT(TM))
- LumiLight LED Lighting
- CleanAir Function
- Electronic Touch Controls
- Professional Baffle Filters
- Vertical or horizontal ducting
- Dual-Level Lighting
Monsoon I, Insert, 34-3/8in, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328008283 |
| GTIN | 00646328008283 |
| Country of Origin | Taiwan |
| Model Group | AK92-B |
| Model Name | Monsoon I Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | MUA010A, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 19.25 |
| Net Height; IN | 12 |
| Weight; LBS | 43.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 38 |
| Shipping Width; IN | 17 |
| Shipping Height; IN | 26 |
| Shipping Weight; LBS | 54 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 22.625 |
| Cutout Width in. | 34.625 |
| Duct Type | Vertical |
| Duct Type | Vertical |
