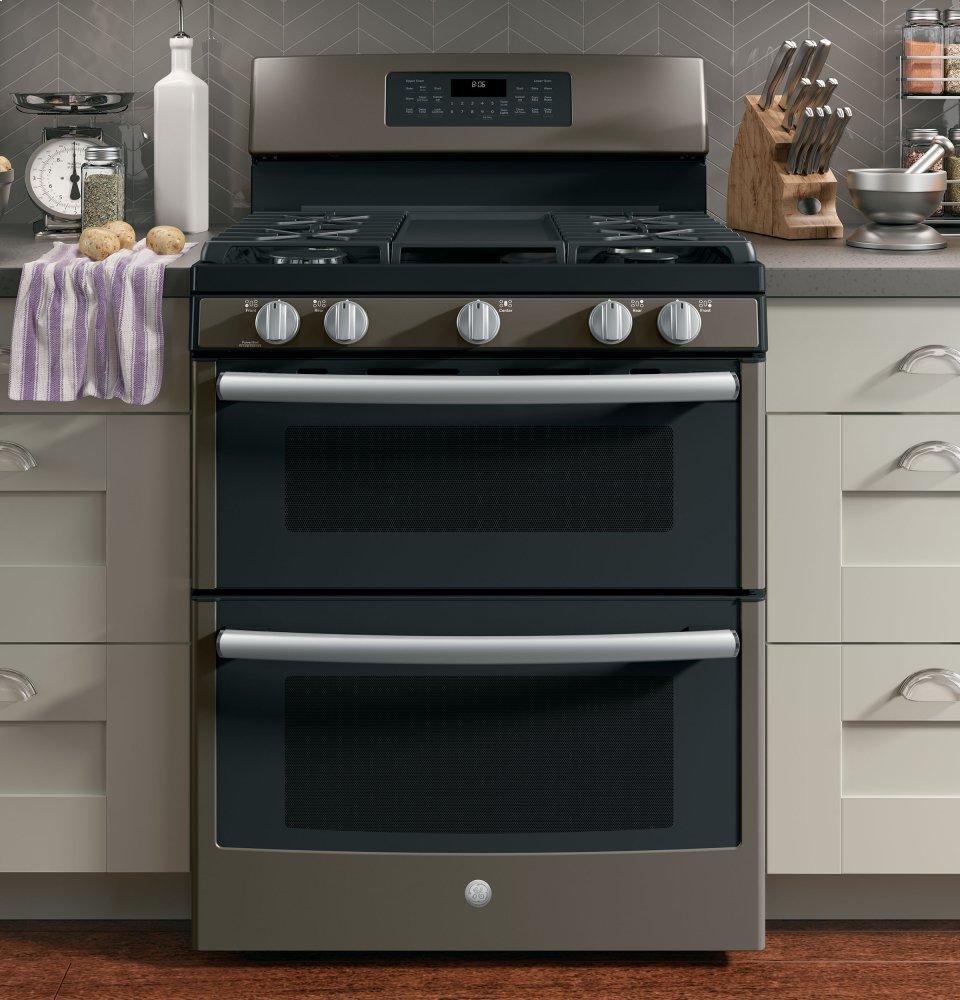

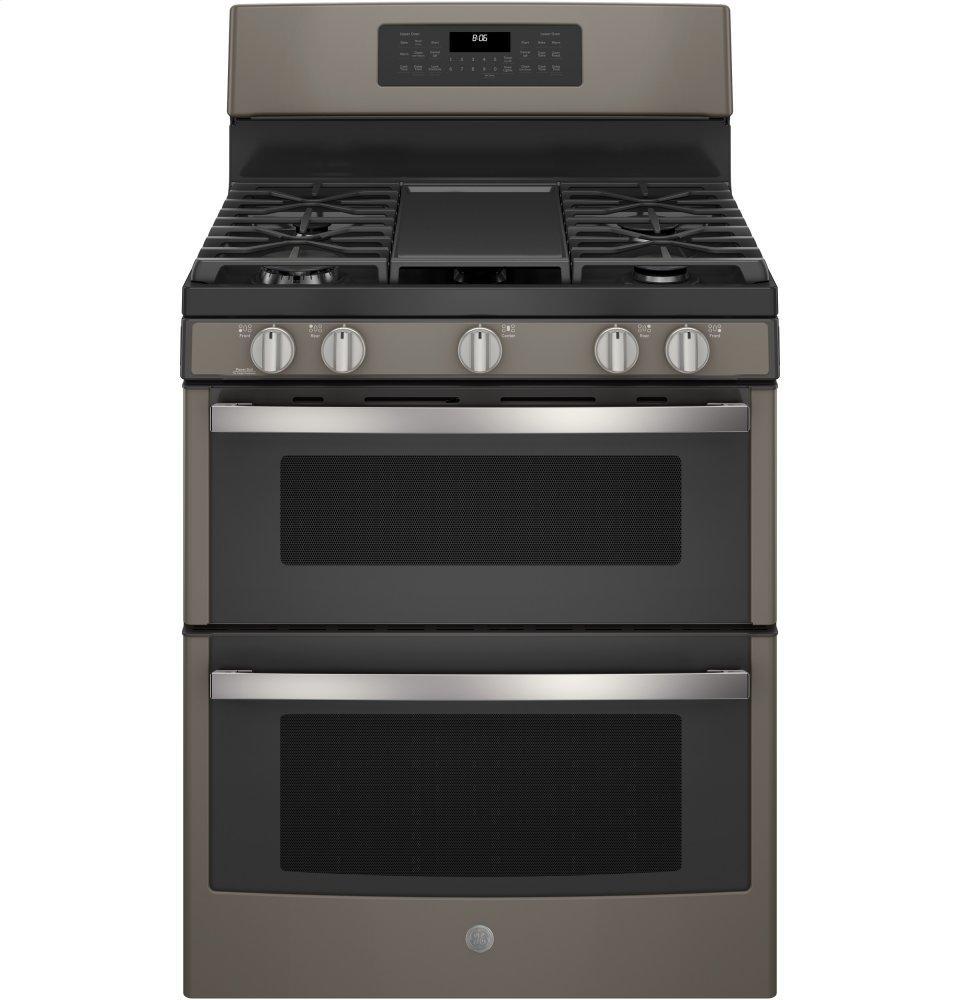

GE® 30" Free-Standing Gas Double Oven Convection Range
Model JGB860EEJESGE® 30" Free-Standing Gas Double Oven Convection Range
Model JGB860EEJESQuick Specs
GE® 30" Free-Standing Gas Double Oven Convection Range is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

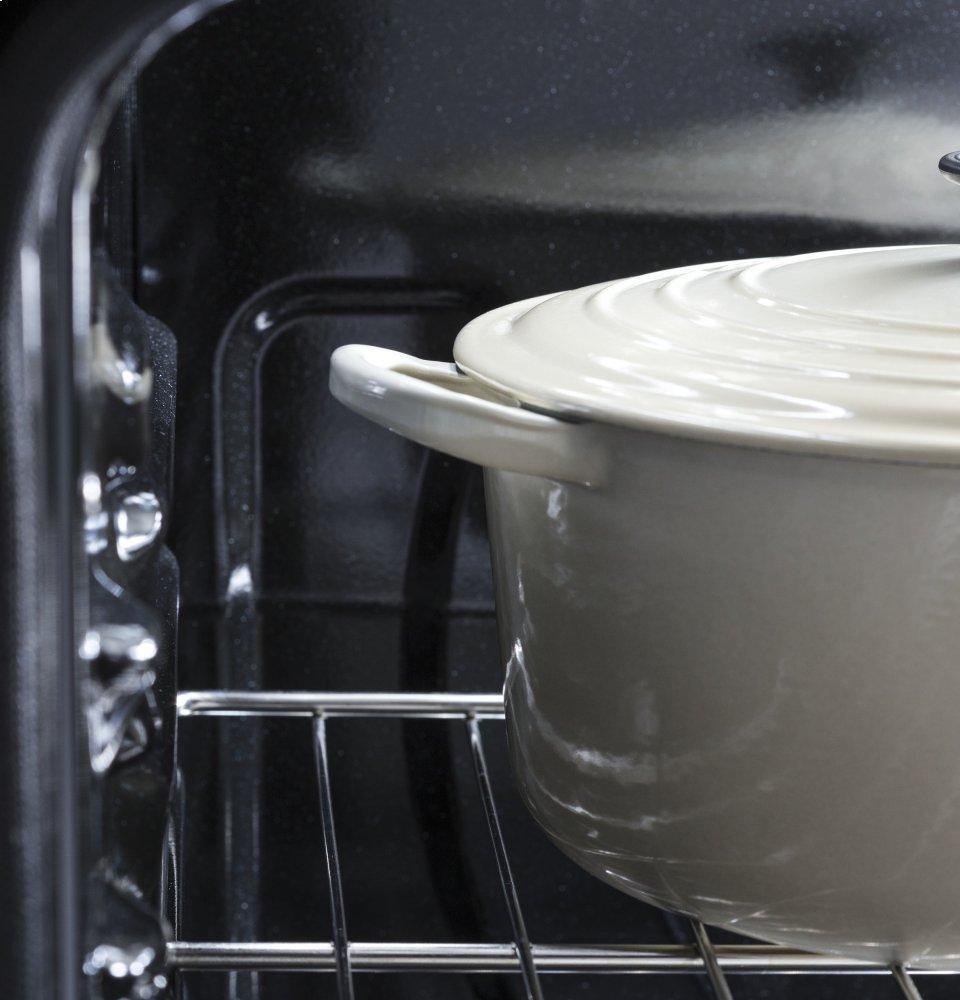

Black gloss oven interior
Enjoy a clean and sleek appearance

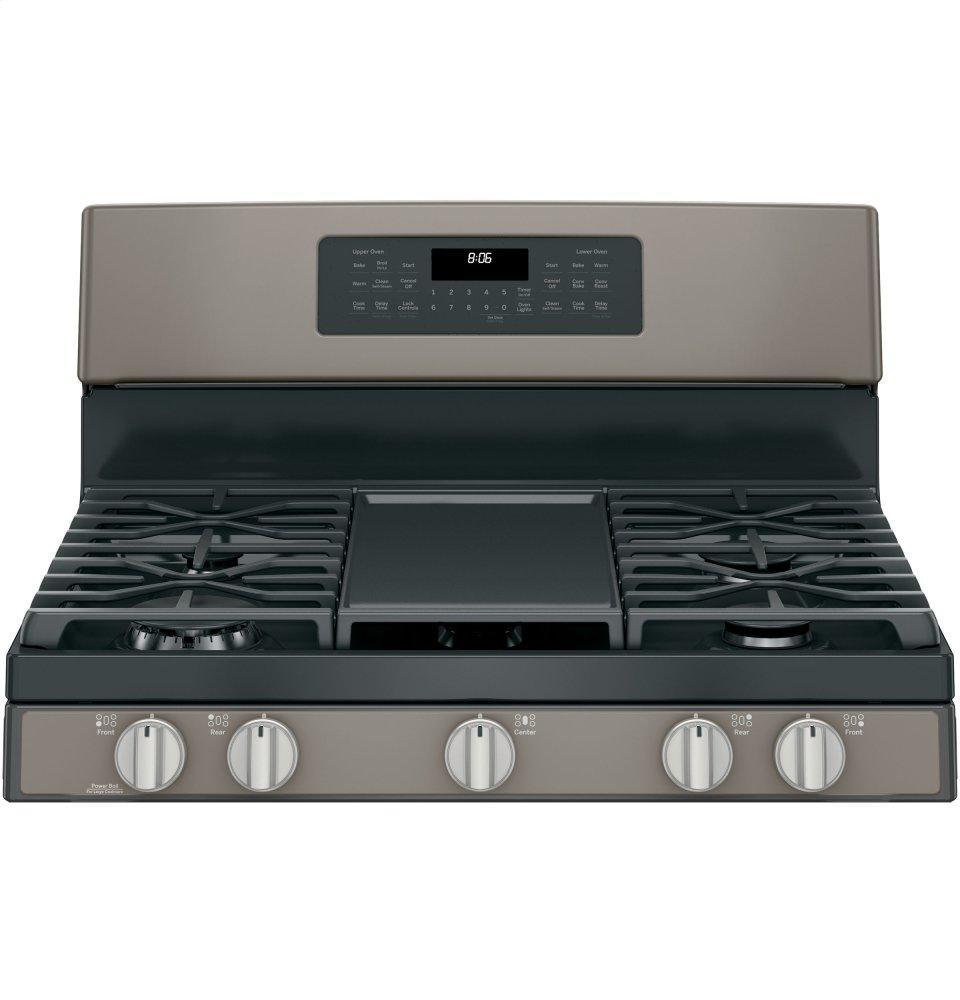

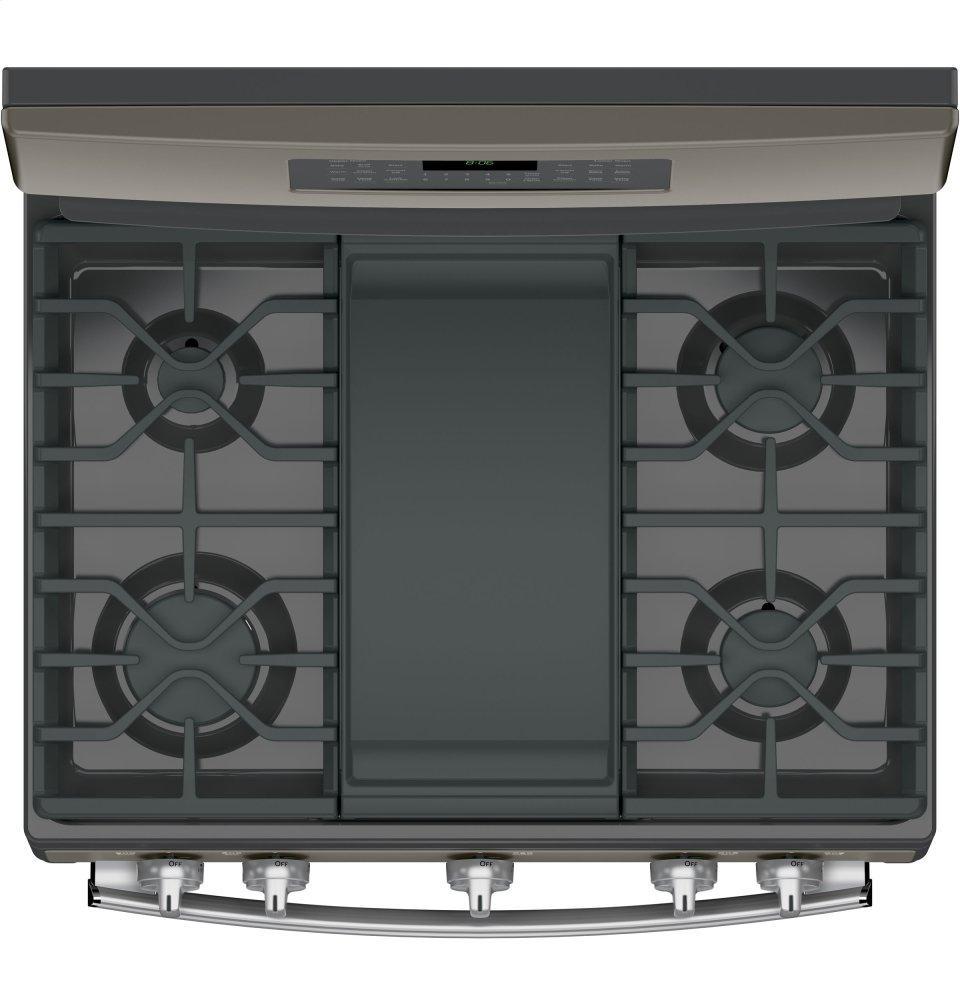

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

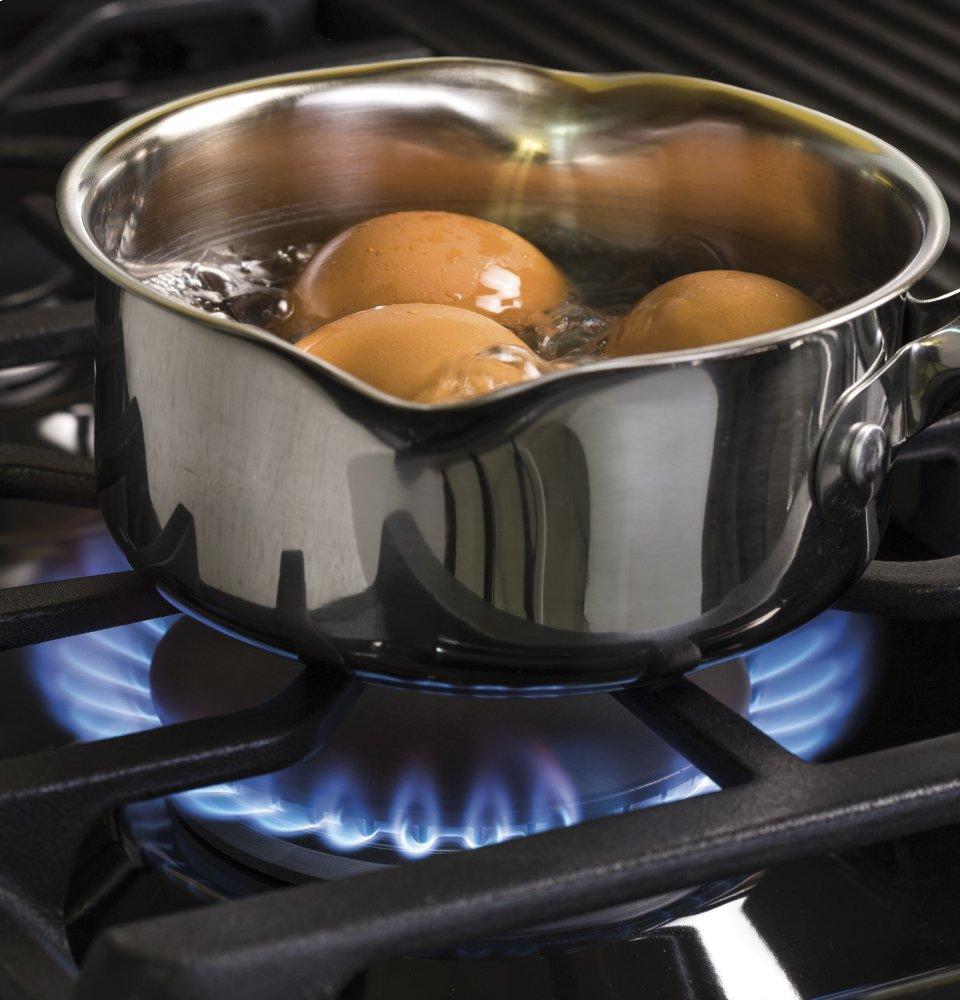

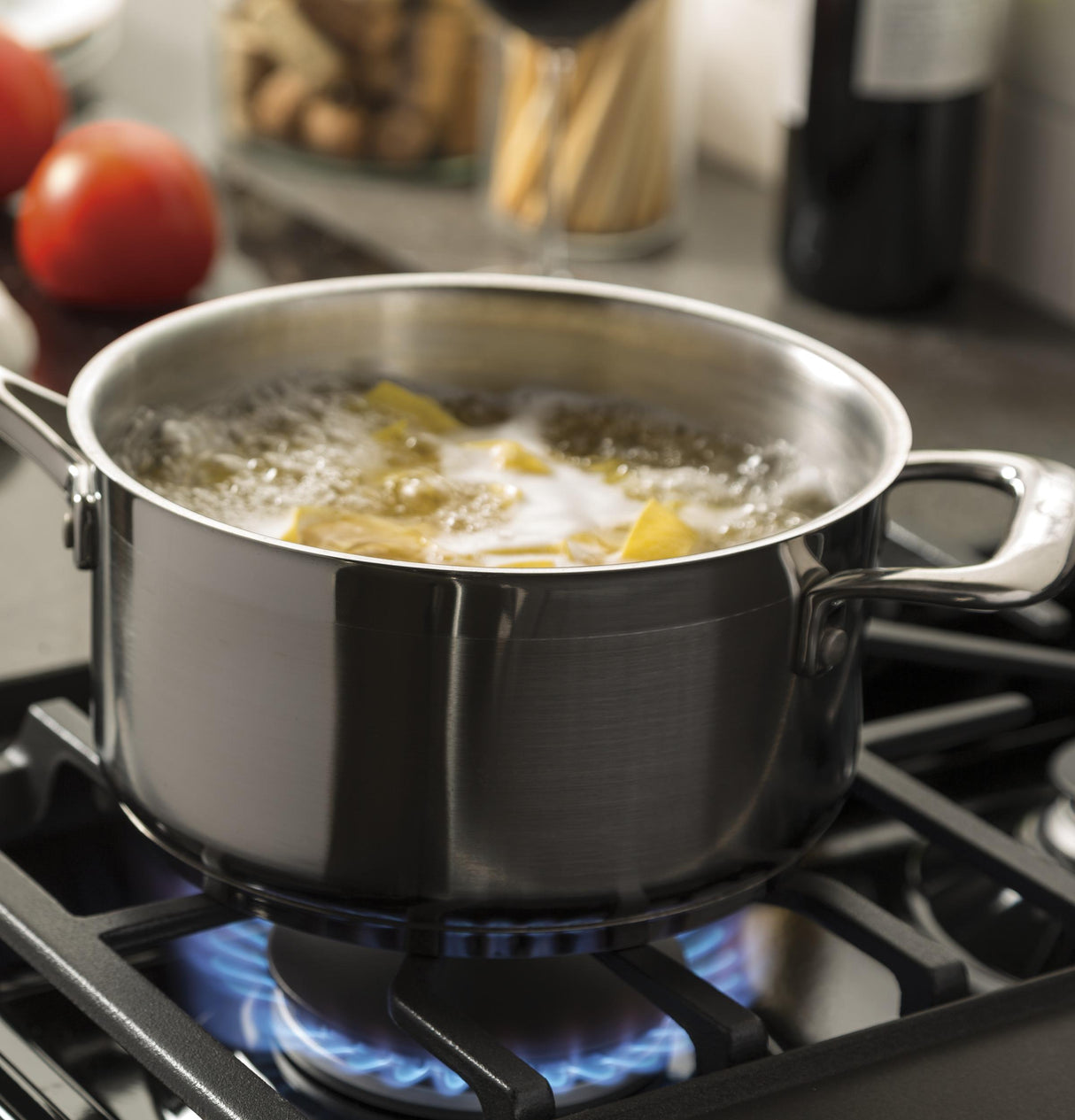

18,000 BTU Power Boil burner
Boil water fast with intense heat from this 18,000 BTU burner

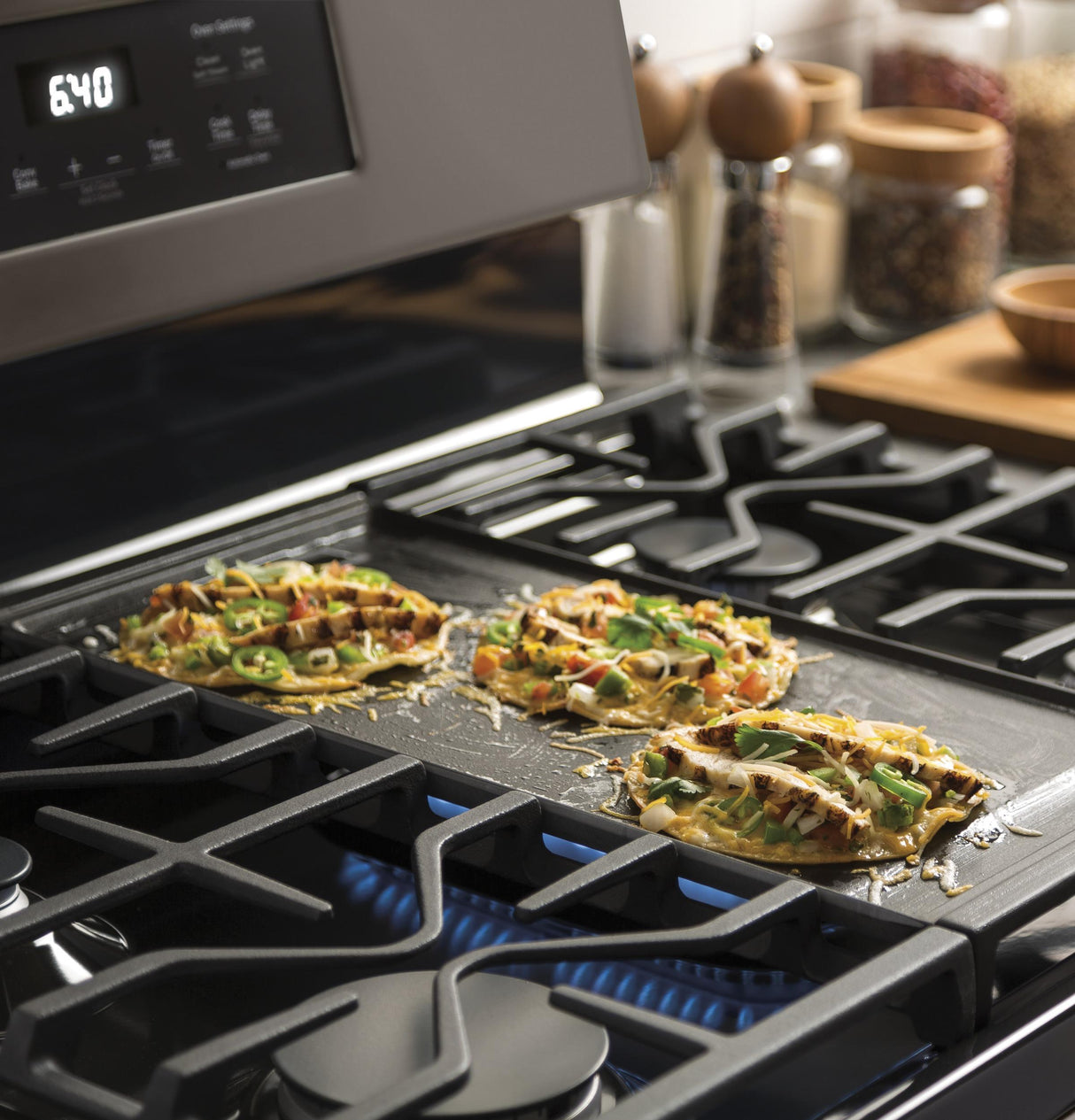

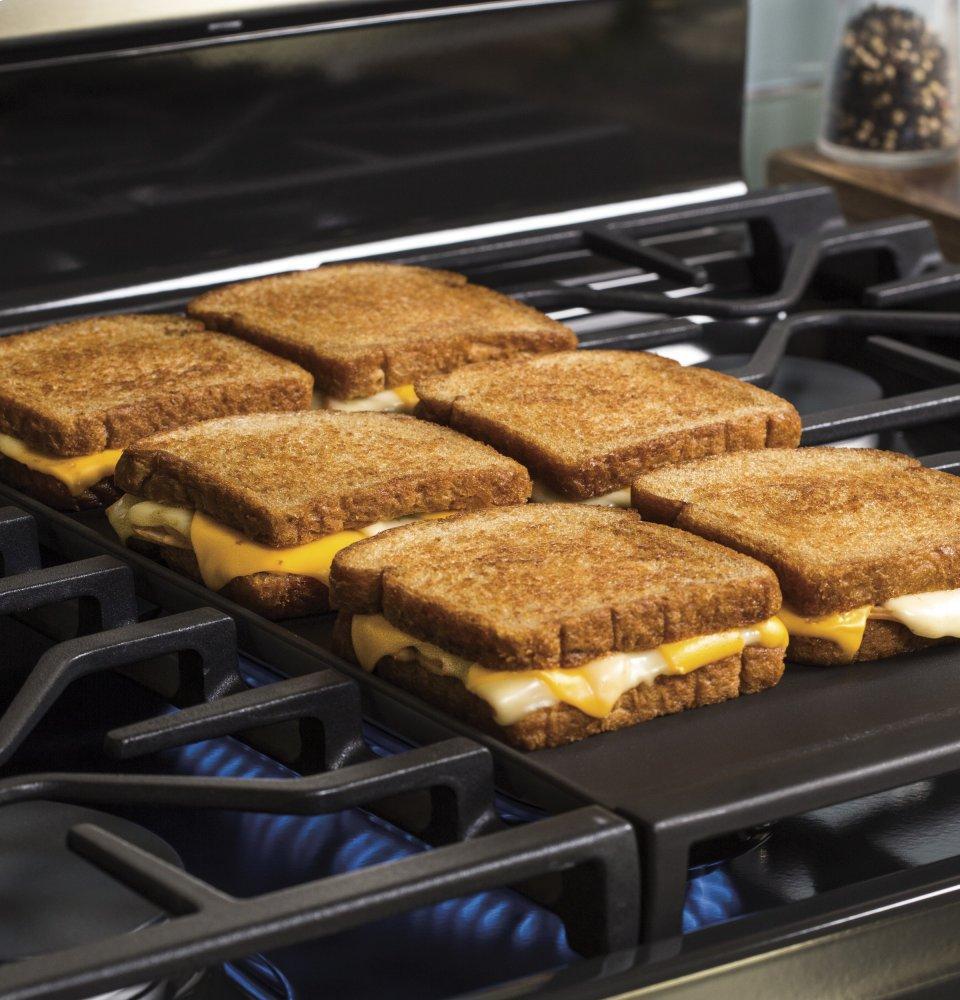

Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle

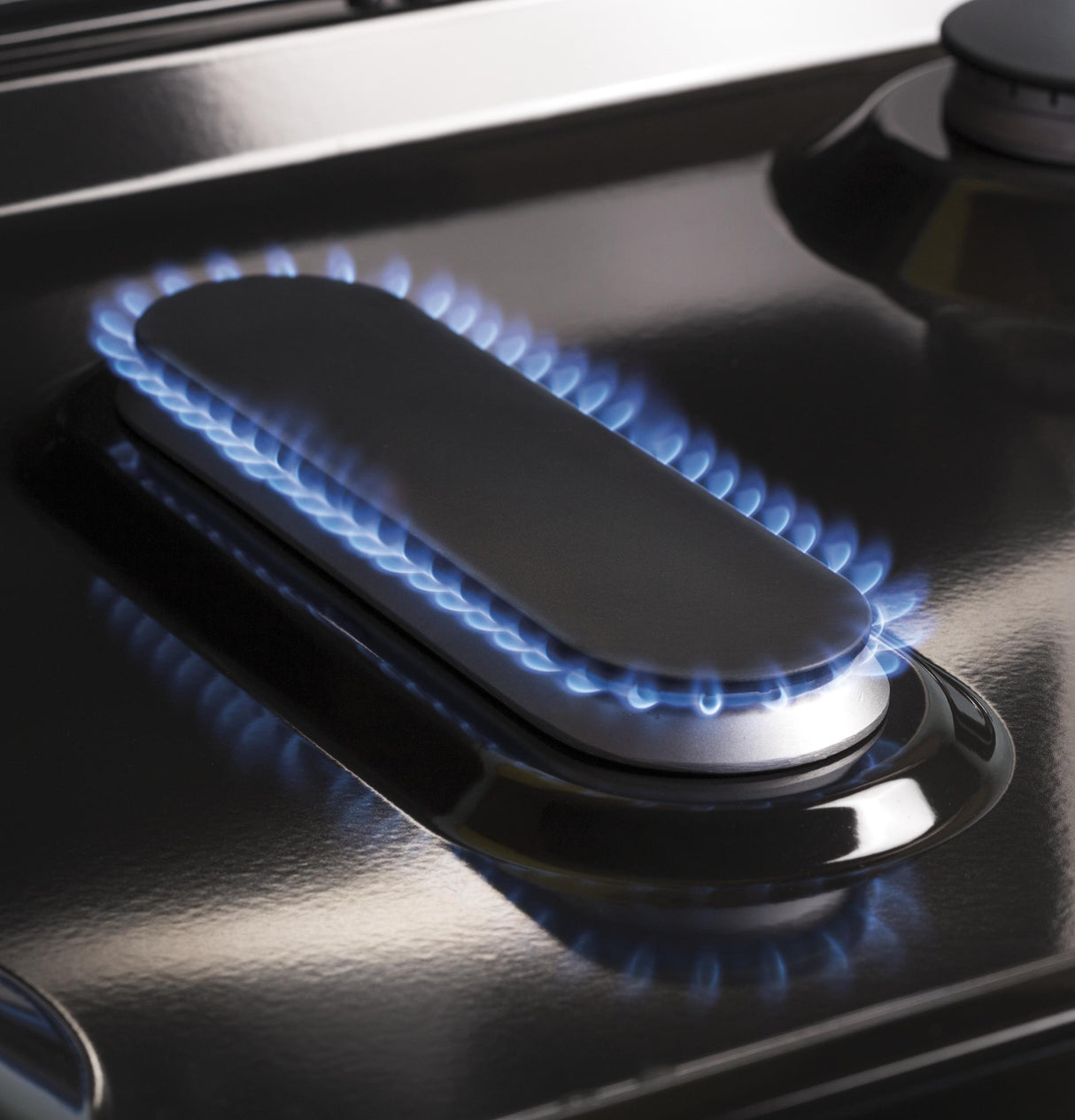

Center oval burner
Large oval fifth burner is ideal for griddle cooking

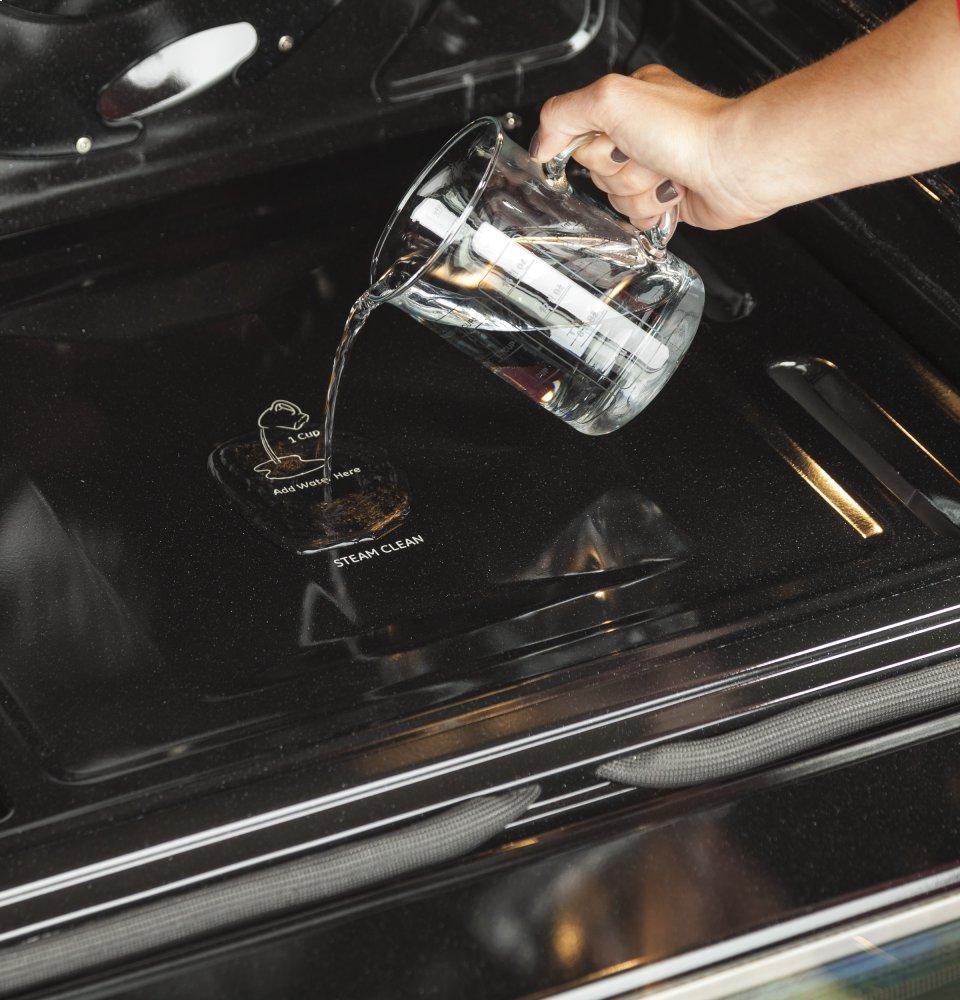

Self-clean with Steam Clean option
Clean your oven the way you want

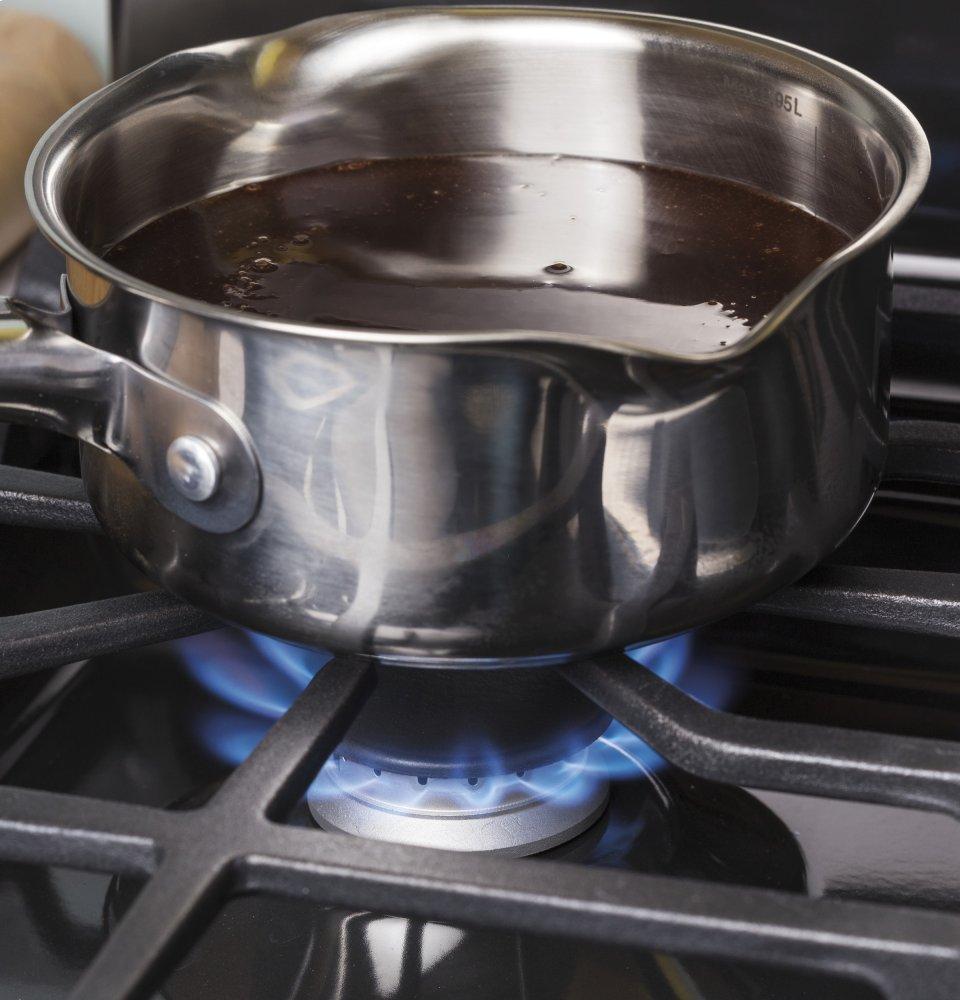

Precise Simmer burner
Delicate foods don't burn with low, even heat

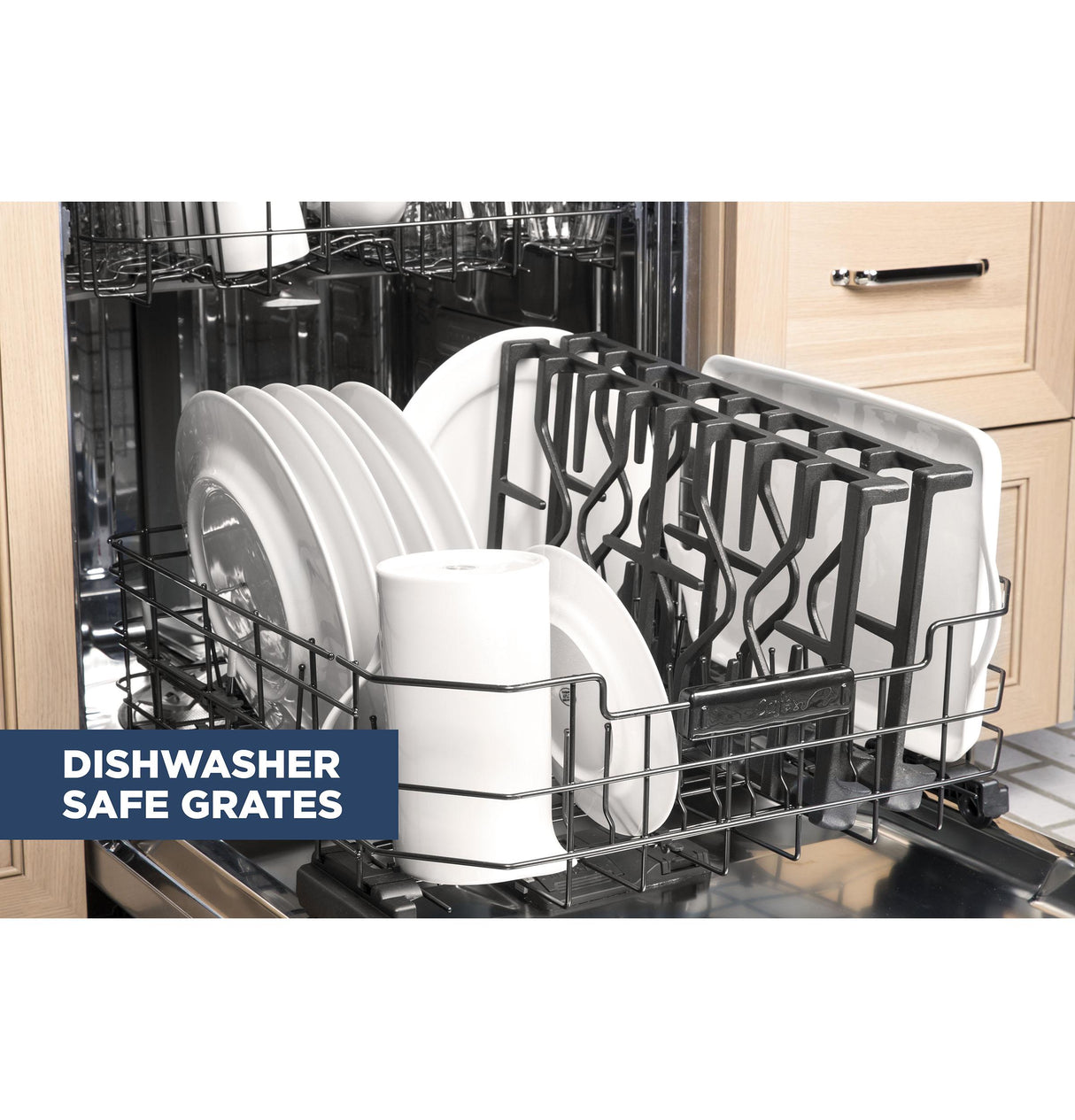

Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
- Edge-to-edge cooktop
- A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
- Extra-large integrated non-stick griddle
- Cook up to six grilled cheeses at once on the industry's largest integrated griddle

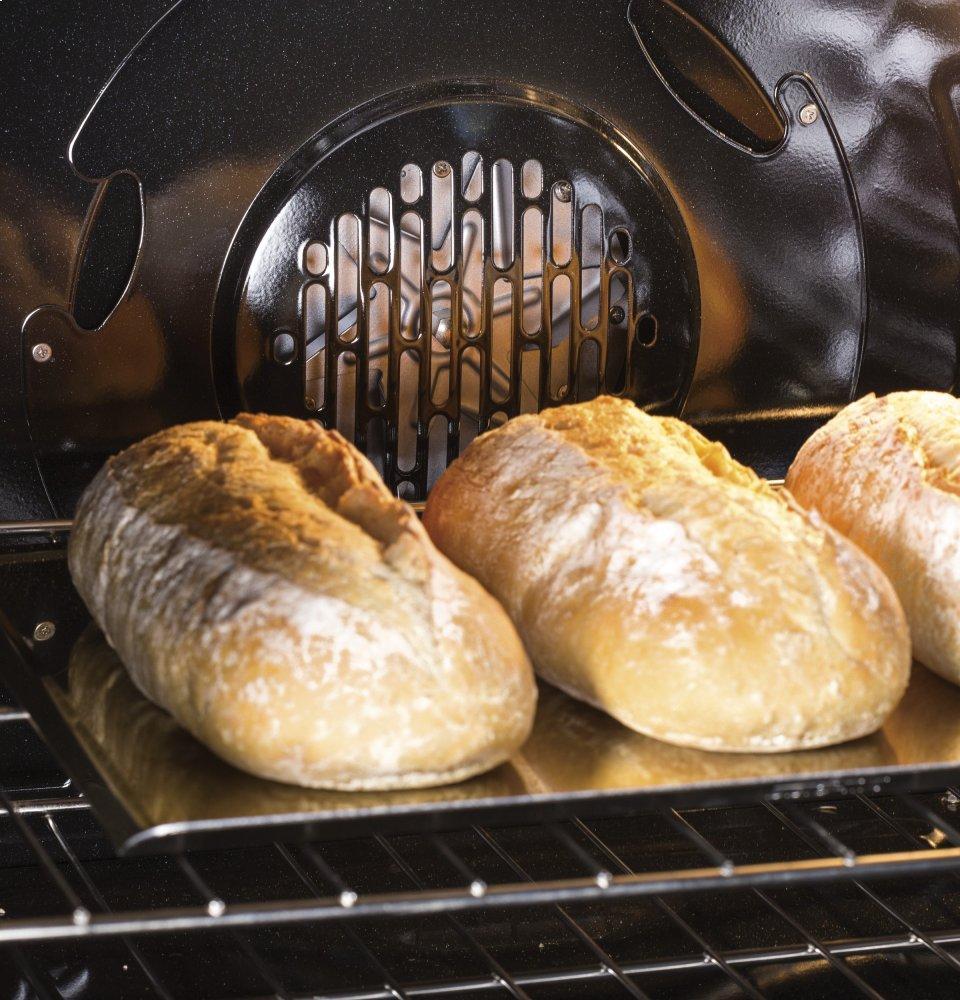

- Gas convection oven (lower oven)
- Circulates heat for high-quality results

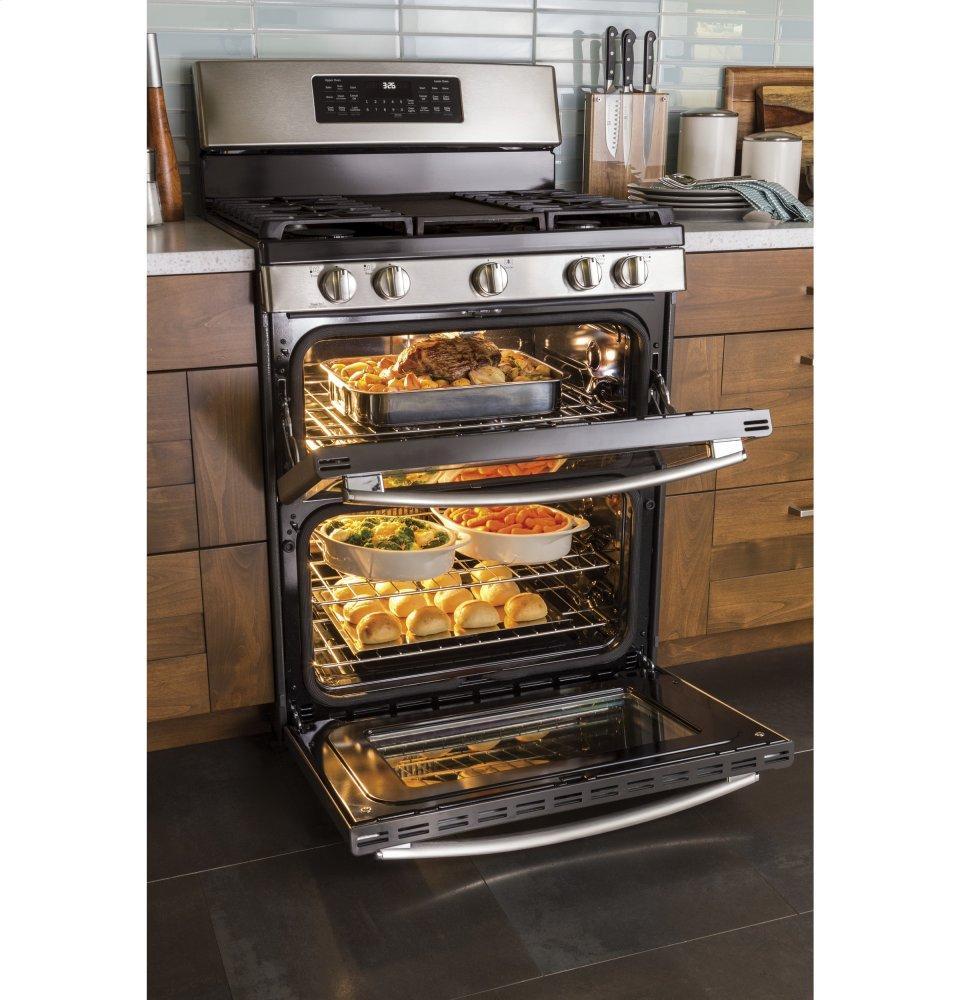

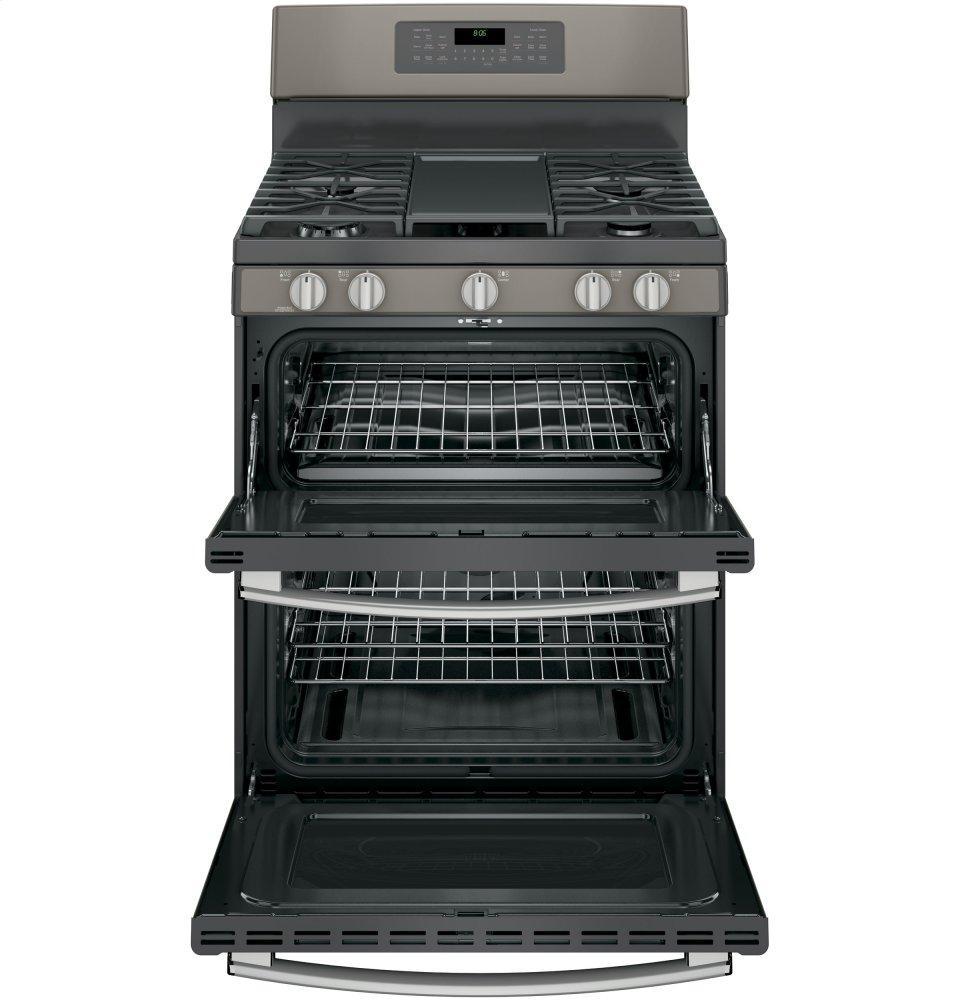

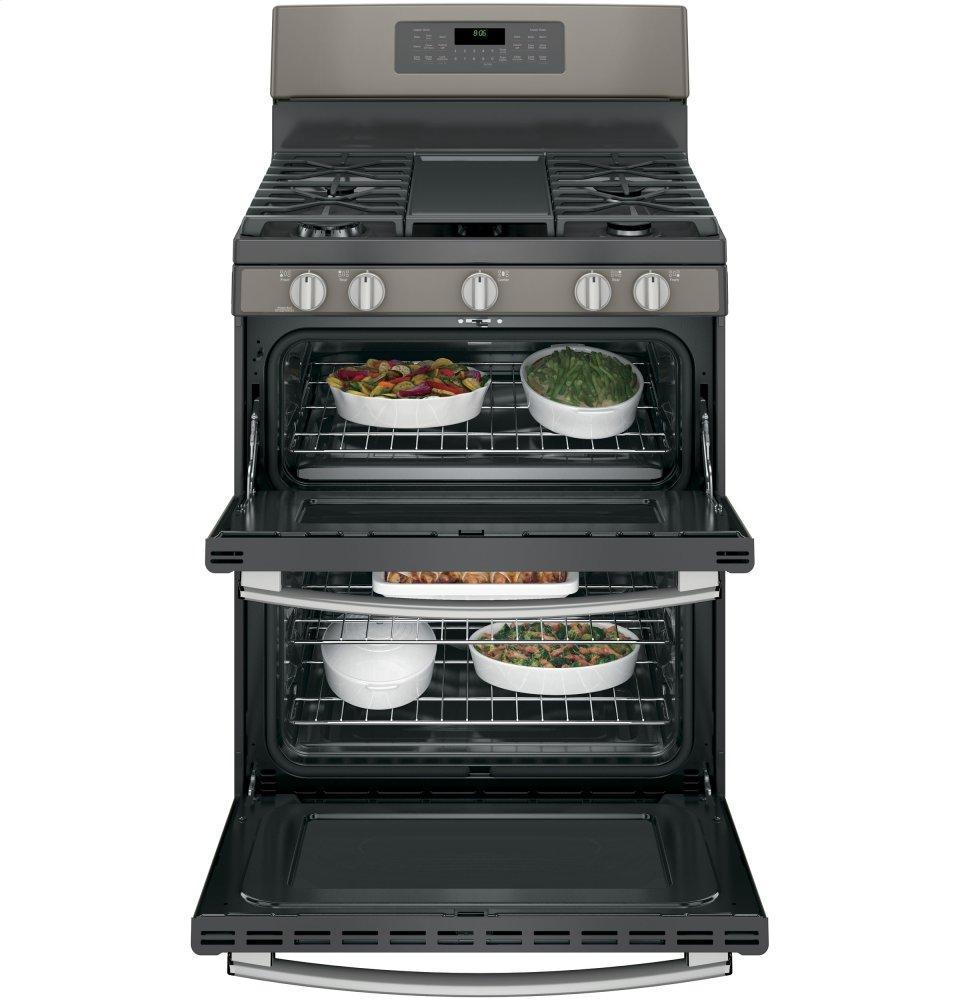

- Double oven 6.8 cu. ft. total capacity
- Large capacity is ideal for big meals
- 18,000 BTU Power Boil burner
- Boil water fast with intense heat from this 18,000 BTU burner
- Center oval burner
- Large oval fifth burner is ideal for griddle cooking
- Self-clean with Steam Clean option
- Clean your oven the way you want
- Precise Simmer burner
- Delicate foods don't burn with low, even heat
- Heavy duty, dishwasher safe grates
- Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
- Black gloss oven interior
- Enjoy a clean and sleek appearance
- Edge-to-edge cooktop
- Extra-large integrated non-stick griddle
- Gas convection oven (lower oven)
- Double oven 6.8 cu. ft. total capacity
- 18,000 BTU Power Boil burner
- Center oval burner
- Self-clean with Steam Clean option
- Precise Simmer burner
- Heavy duty, dishwasher safe grates
- Black gloss oven interior
| CAPACITY | |
| Total Capacity (cubic feet) | 6.8 |
| Capacity (Cu. Ft.) | 2.5 Upper / 4.3 Lower |
| FILTER | |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Cooktop Type | Continuous Grates with Griddle |
| App Filter - Cooking Technology | Convection Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Free-Standing Double Oven |
| App Filter - Convection | Yes |
| App Filter - Fuel Type | Gas |
| App Filter - Edge-to-Edge Cooktop | Yes |
| APPEARANCE | |
| Control Knobs | Weighted Stainless Steel Appearance |
| Handle Color | Stainless Steel |
| Handle Design | Designer Style |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Color Appearance | Fingerprint Resistant Slate |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 18.0; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 12.0 / 10.0 - Upper; 14.0 / 0.0 - Lower |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 10.0 / 10.0 - Upper; 13.5 / 0.0 - Lower |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Griddle Accessory | Integrated Non-Stick (Included) |
| Griddle | Integrated Non-Stick (Included) |
| LP Conversion Kit | Included |
| Center Grate | Optional |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 205.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth Without Handle | 26.75 |
| Overall Depth | 29.25 |
| Depth with Door Open | 43.5 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
| Overall Width | 30.0 |
| Overall Height | 47.25 |
| Approximate Shipping Weight | 225.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Burner - Right Front | 9,500 BTU |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option (Both Ovens) |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 12,000 BTU |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Oven Rack Features | 2 Upper / 5 Lower Rack Positions 3 Oven Racks |
| Fuel Type | Natural Gas (factory set) |
| Burner - Center | 10,000 BTU Oval |
| Cooking Technology | Traditional Upper; Convection Lower |
| Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
| Configuration | Double Oven Range |
| Burner - Left Front | 18,000 BTU Power Boil |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Electronic Touch |
| Oven Cooking Modes | Convection Bake Convection Roast |
| Ignition System | Electronic |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Certified Sabbath Mode Control Lock Capability |
| Product Type | Free-Standing Double Oven |
| Interior Oven Light | 1 Auto Incandescent (Both Ovens) |
| Cooktop Type | Continuous Grates with Griddle |
| Control Location | Front |
