Series 9 Integrated Double DishDrawer™ Dishwasher
Model DD24DI9N
Series 9 Integrated Double DishDrawer™ Dishwasher
Model DD24DI9NQuick Specs
Series 9 Integrated Double DishDrawer™ Dishwasher is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Quick, Sanitize and Extra Dry options
PERFECT RESULTS Quick, Sanitize and Extra Dry options The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Independent Wash

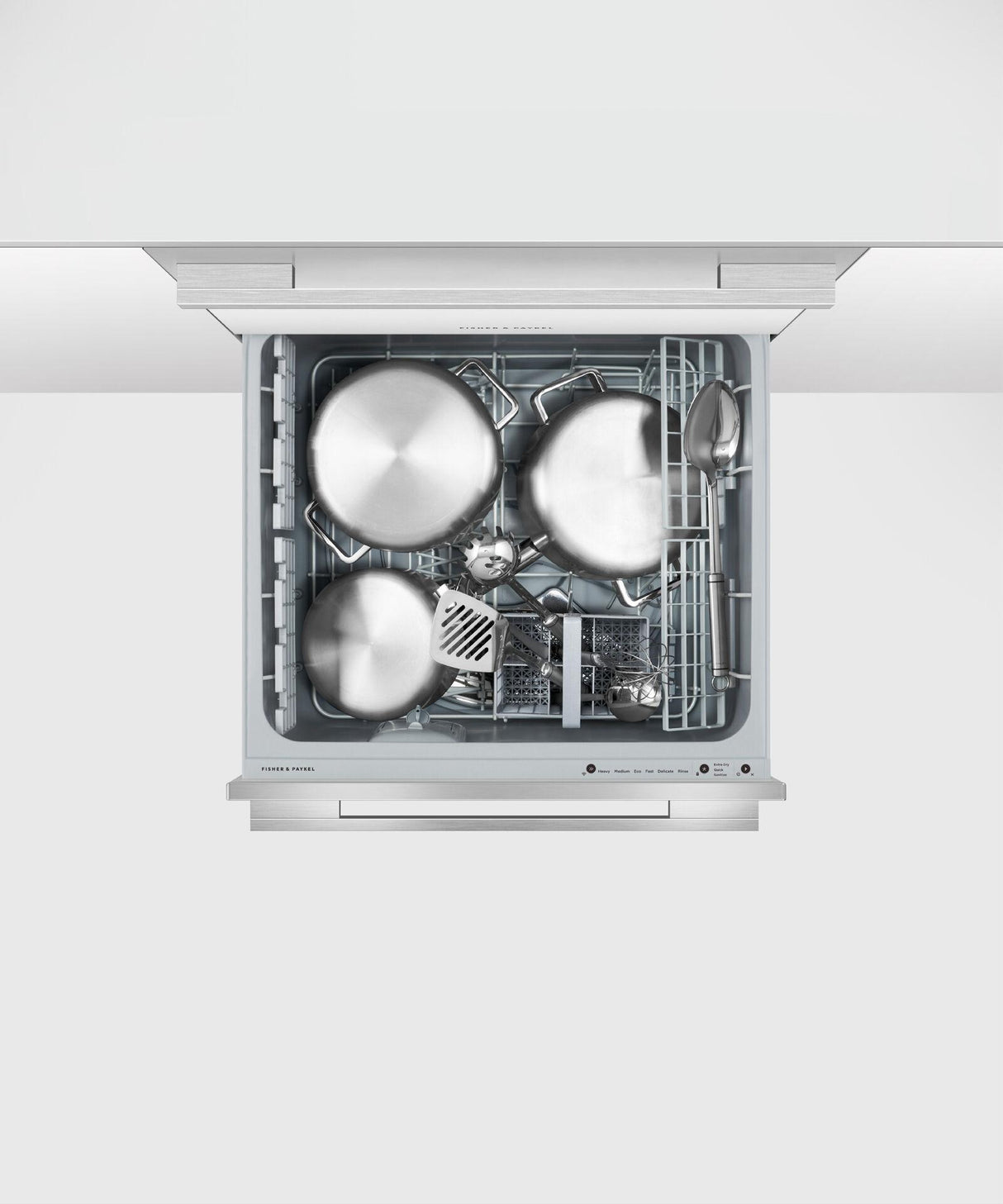

PERFECT RESULTS Independent Wash With the ability to use both drawers independently and select different wash programs the DishDrawer(TM) Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
Ease of use

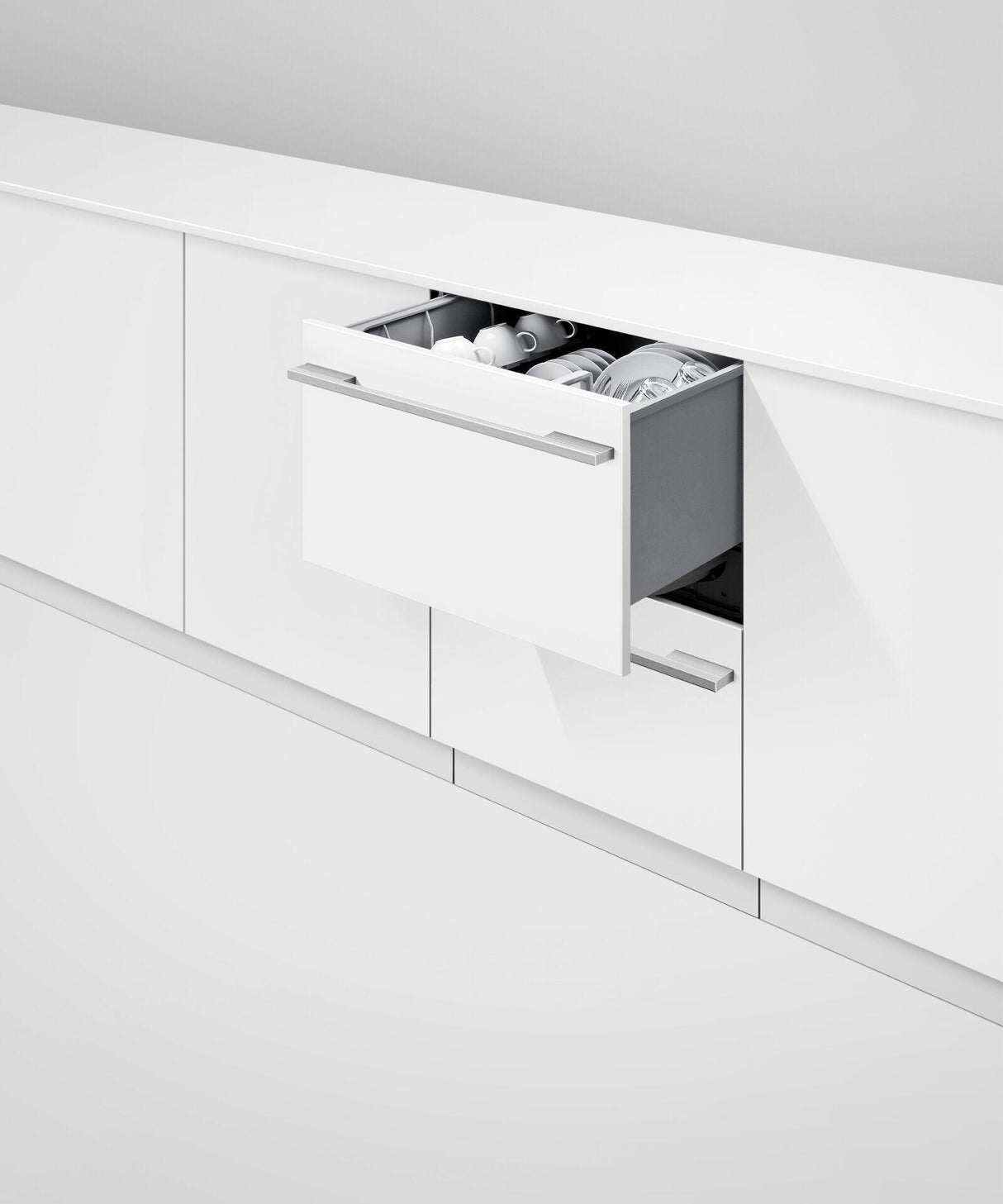

BEAUTIFUL TO USE Ease of use DishDrawer(TM) Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Knock to pause
BEAUTIFUL TO USE Knock to pause Instead of needing a remote control, these DishDrawer(TM) Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
TRUE HALF LOAD

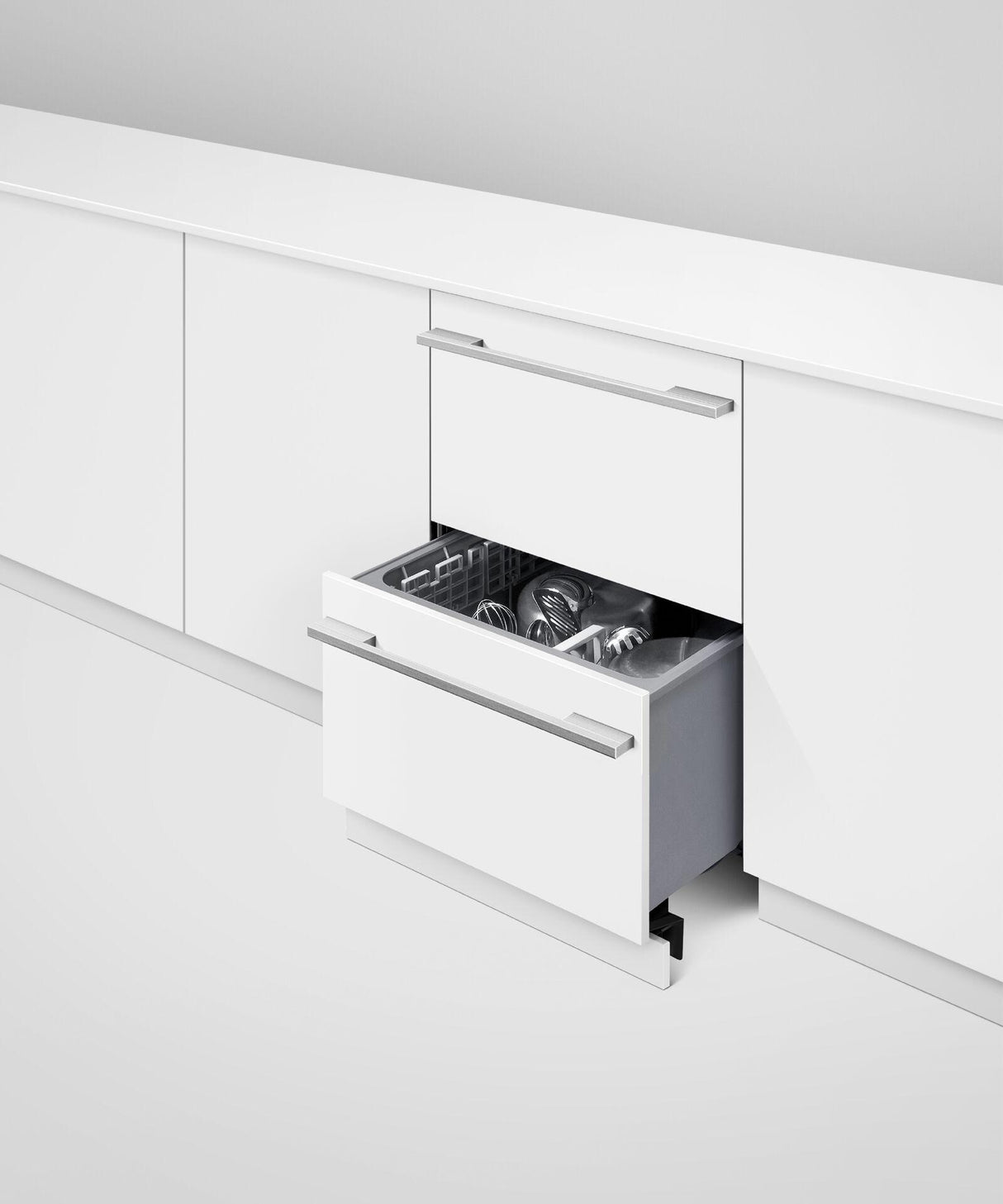

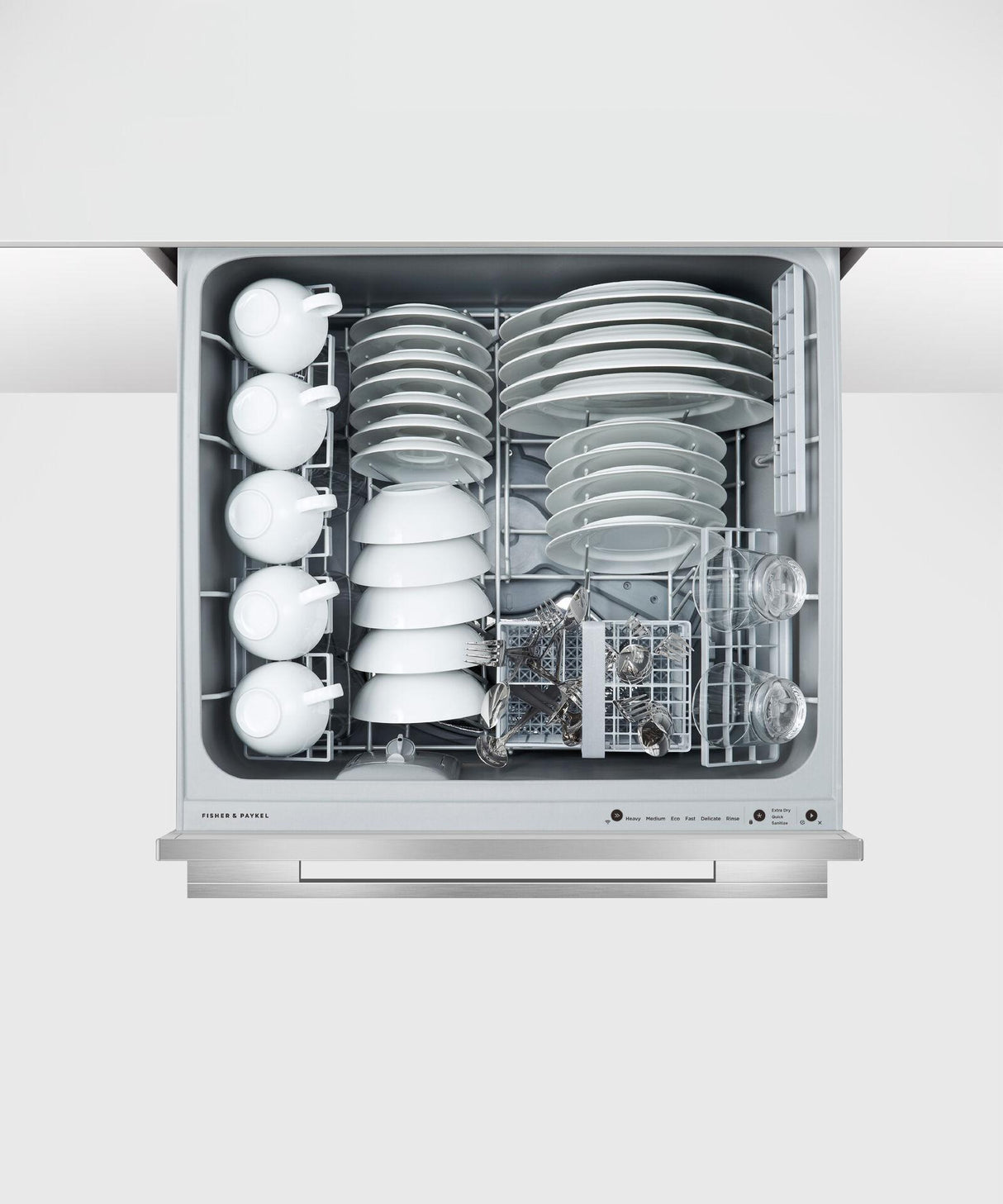

BEAUTIFUL TO USE TRUE HALF LOAD Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.
Quiet performer
BEAUTIFUL TO USE Quiet performer Running at a very low decibel rating, these DishDrawer(TM) dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SEAMLESS INTEGRATION

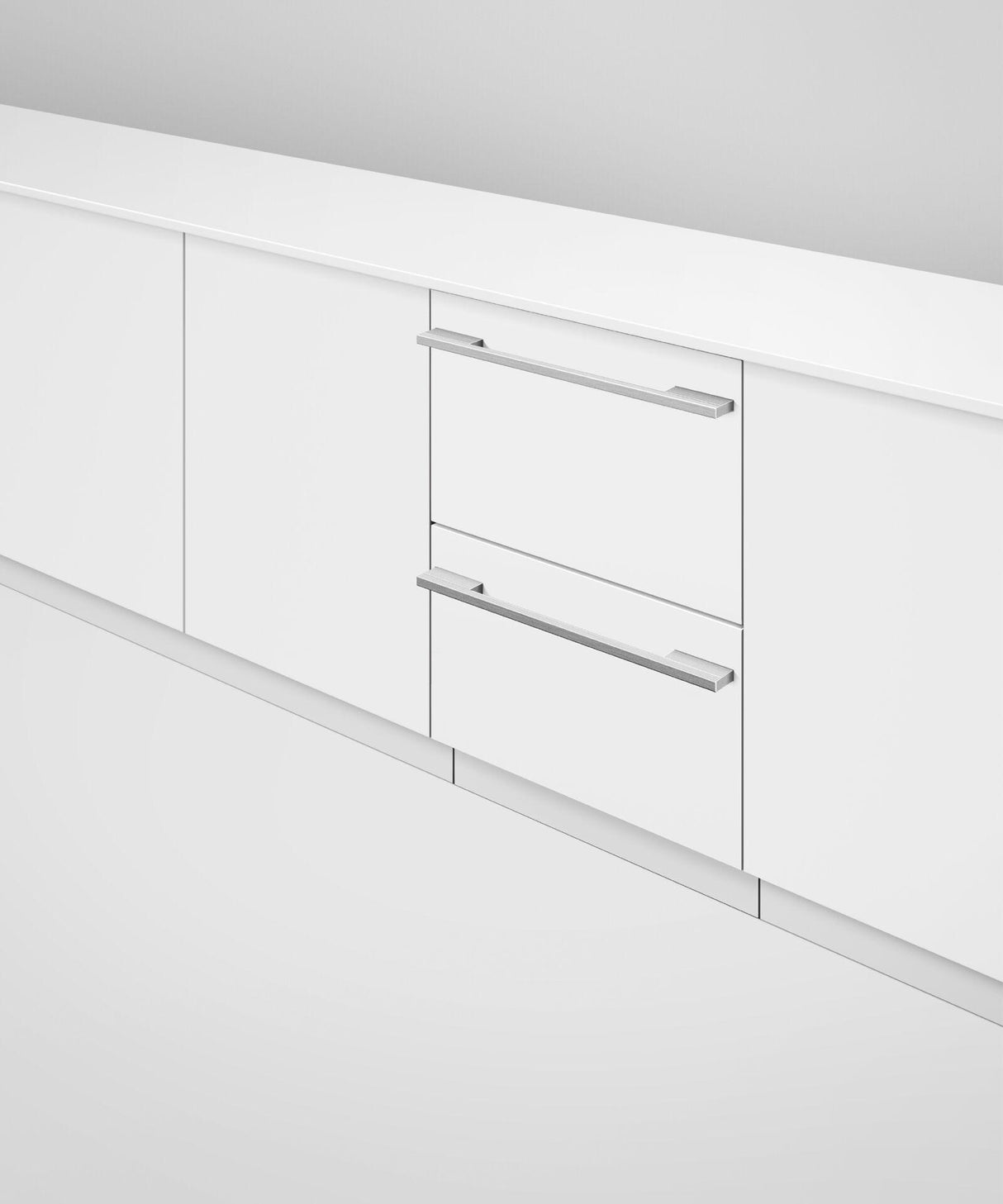

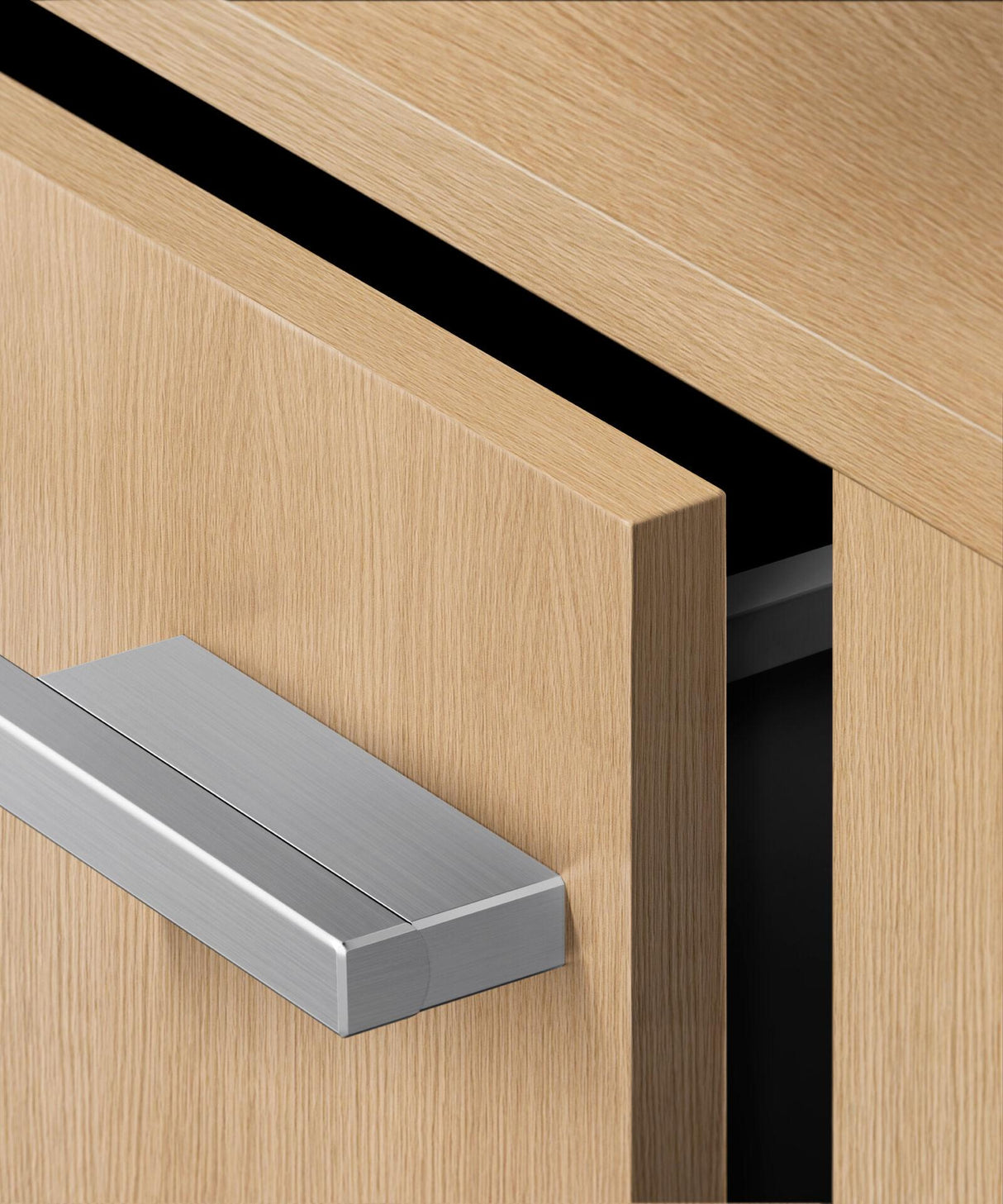

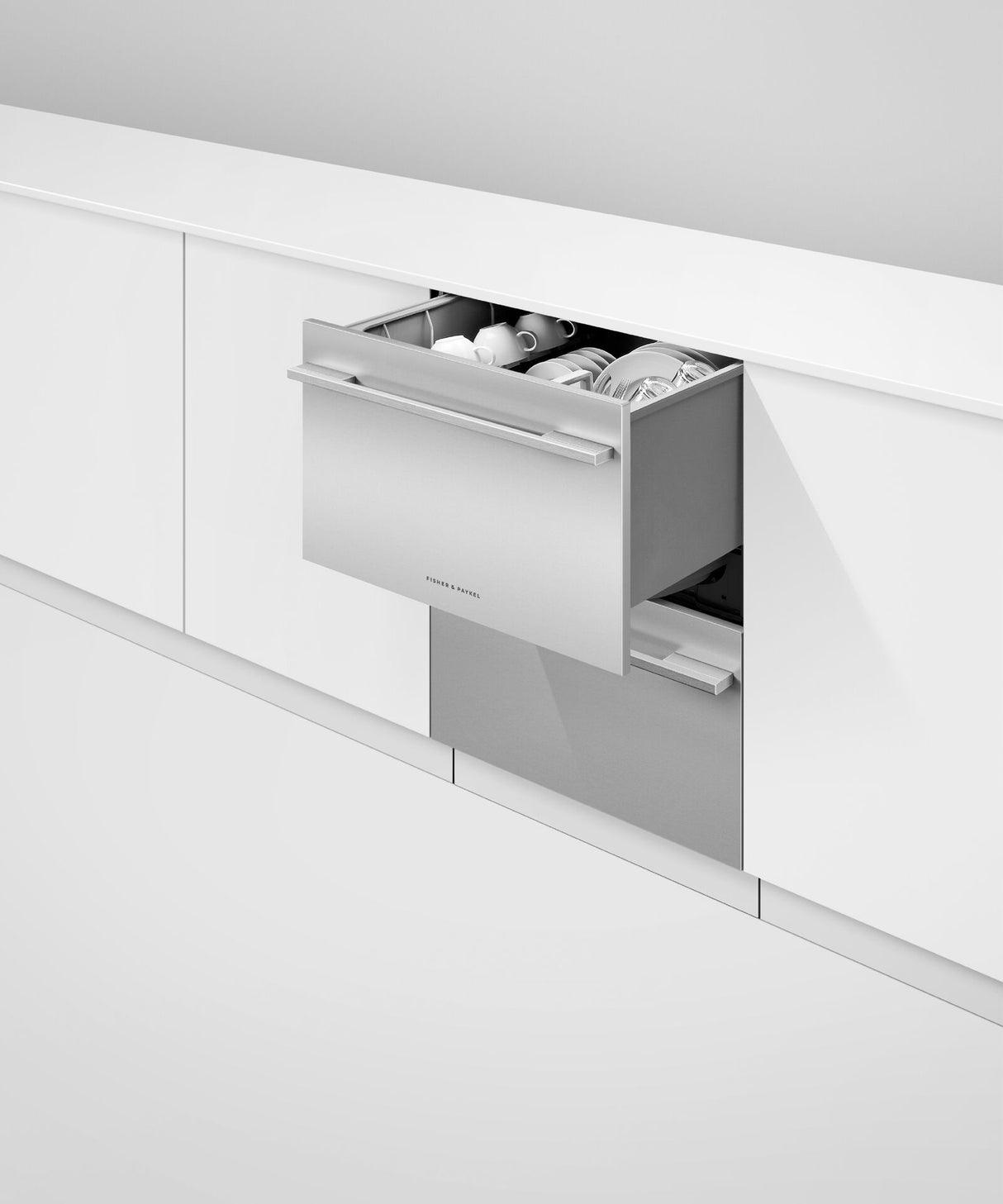

DESIGNED TO FIT SEAMLESS INTEGRATION Slide your DishDrawer(TM) Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.
- SEAMLESS INTEGRATION
- Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.
- Ease of use
- DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
- Independent Wash
- With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
- TRUE HALF LOAD
- Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.
- Quick, Sanitize and Extra Dry options
- The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
- Knock to pause
- Instead of needing a remote control, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
- Quiet performer
- Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
- Knock to pause function is perfect if you miss a dish
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options

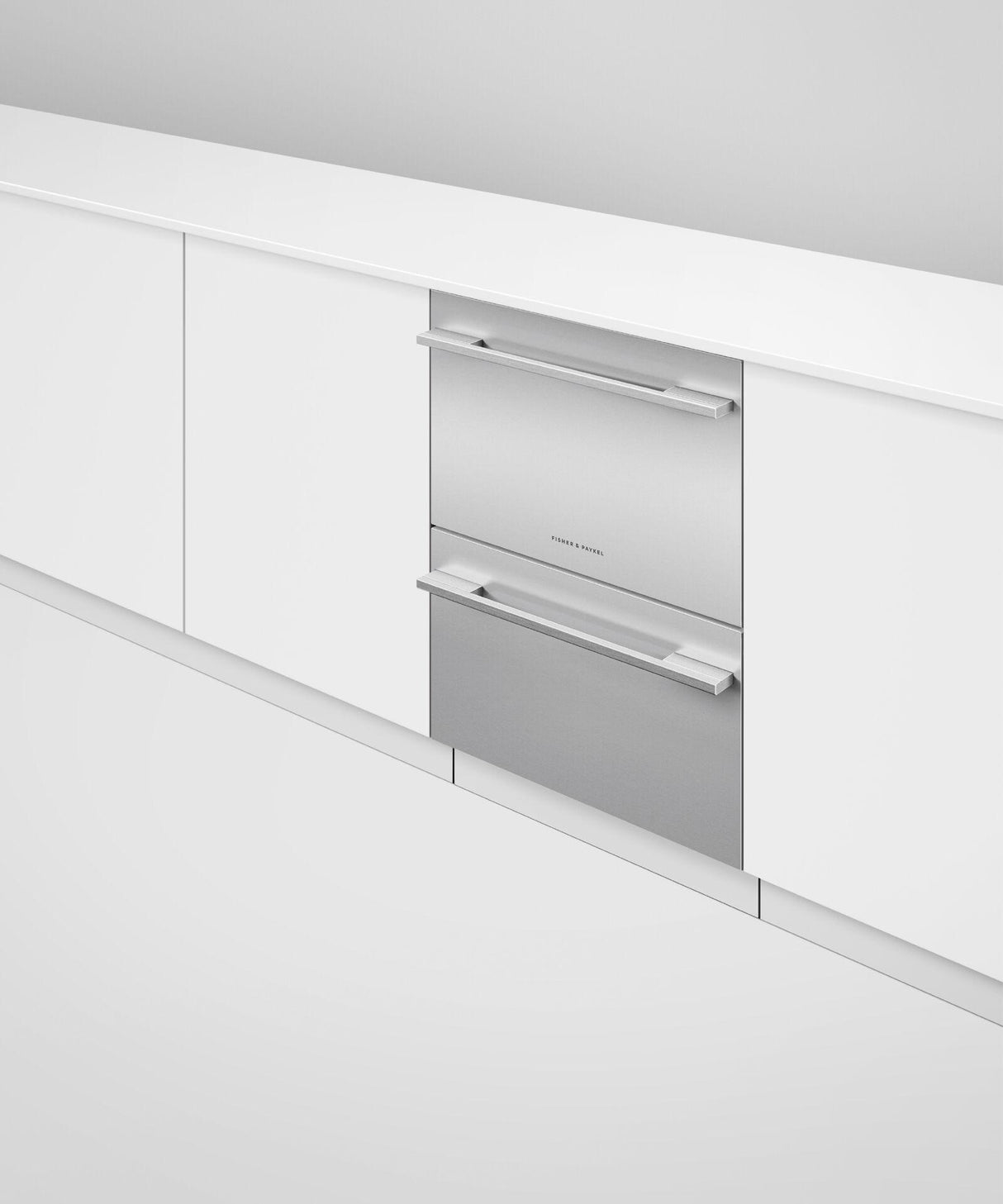

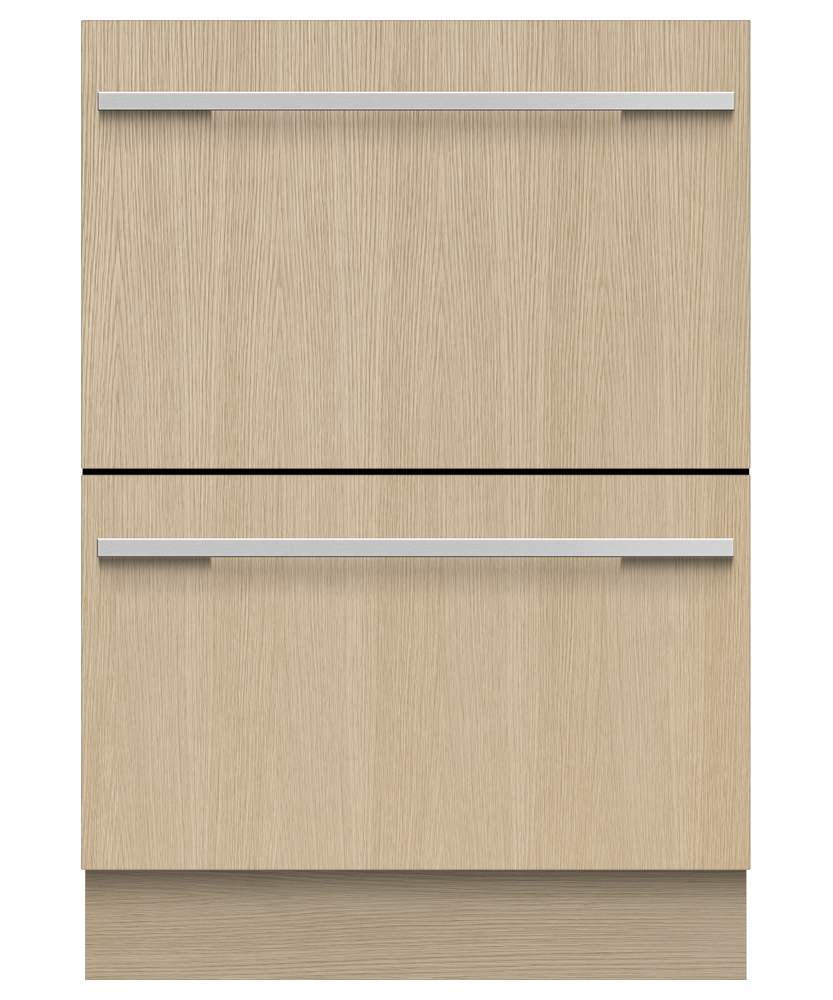

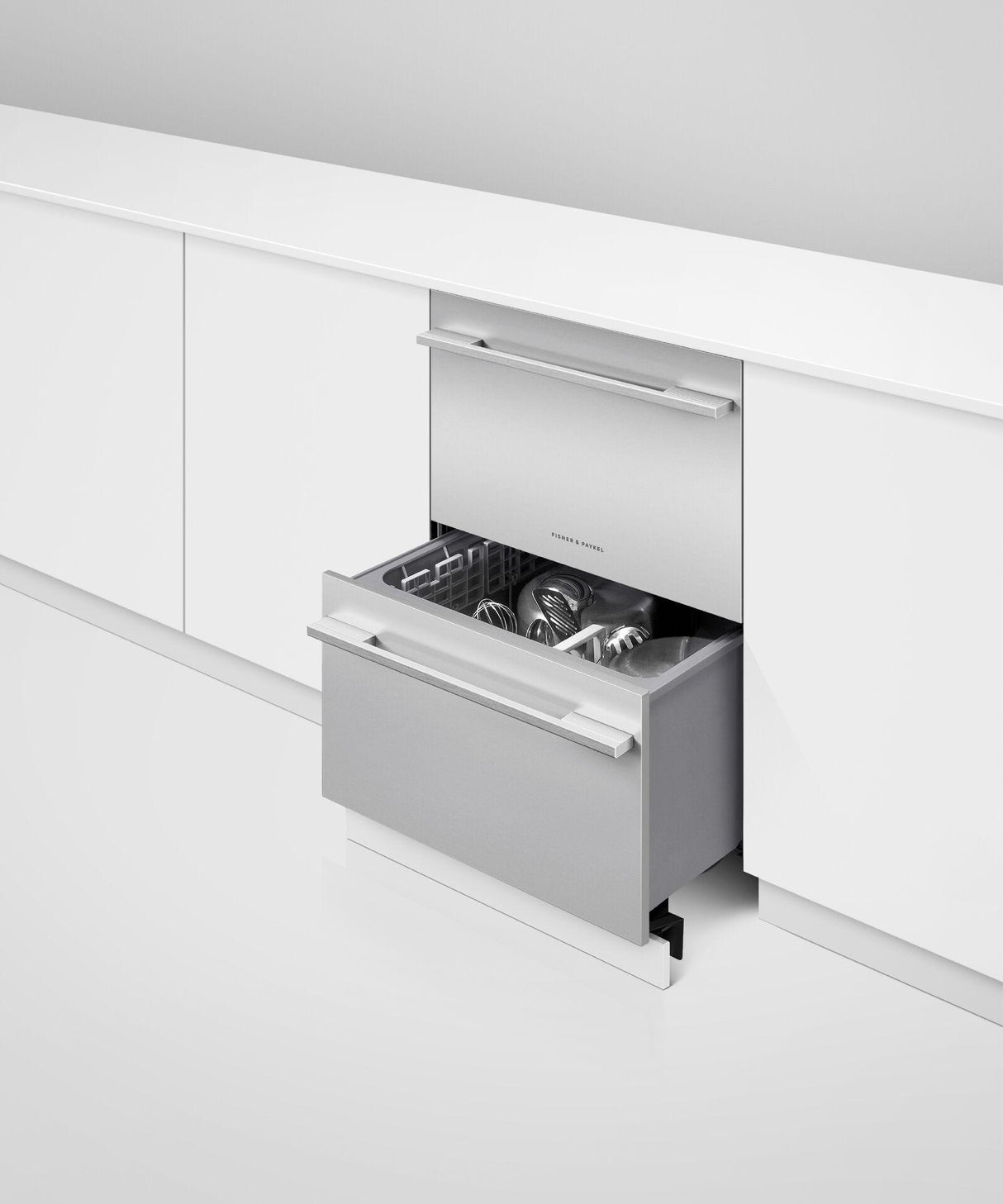

- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- American Disabilities Act (ADA) compliant, this Double DishDrawer(TM) sits at an accessible height
| Accessories (included) | |
| Accessories (sold separately) | |

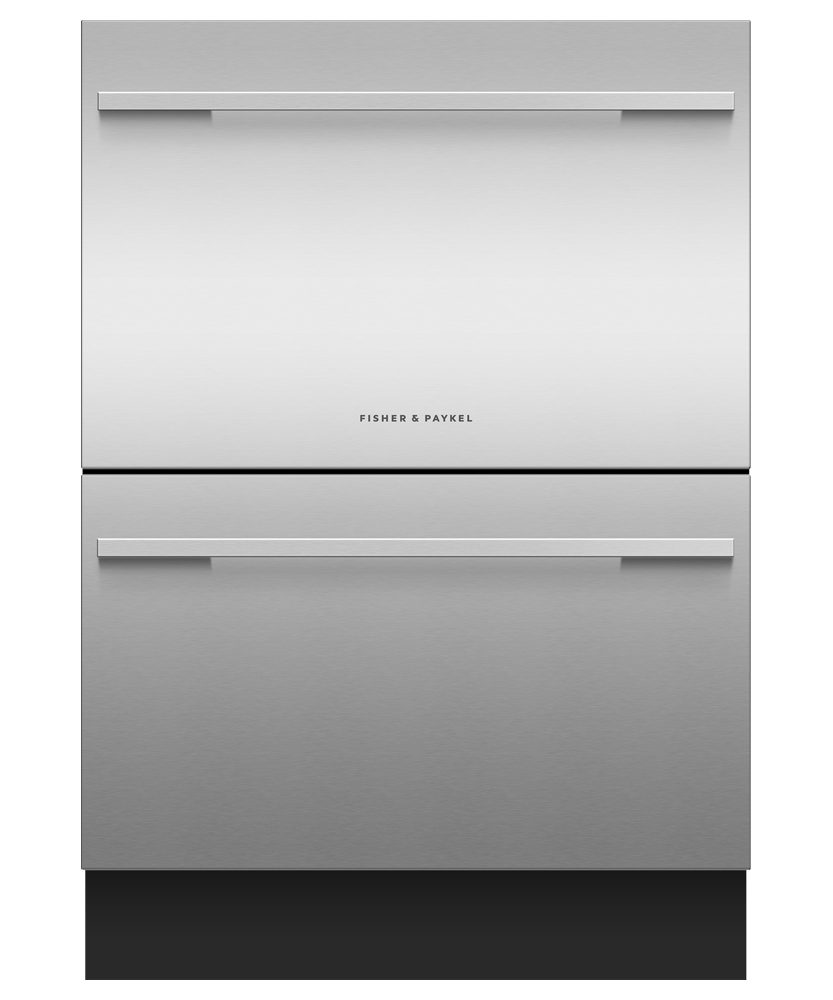

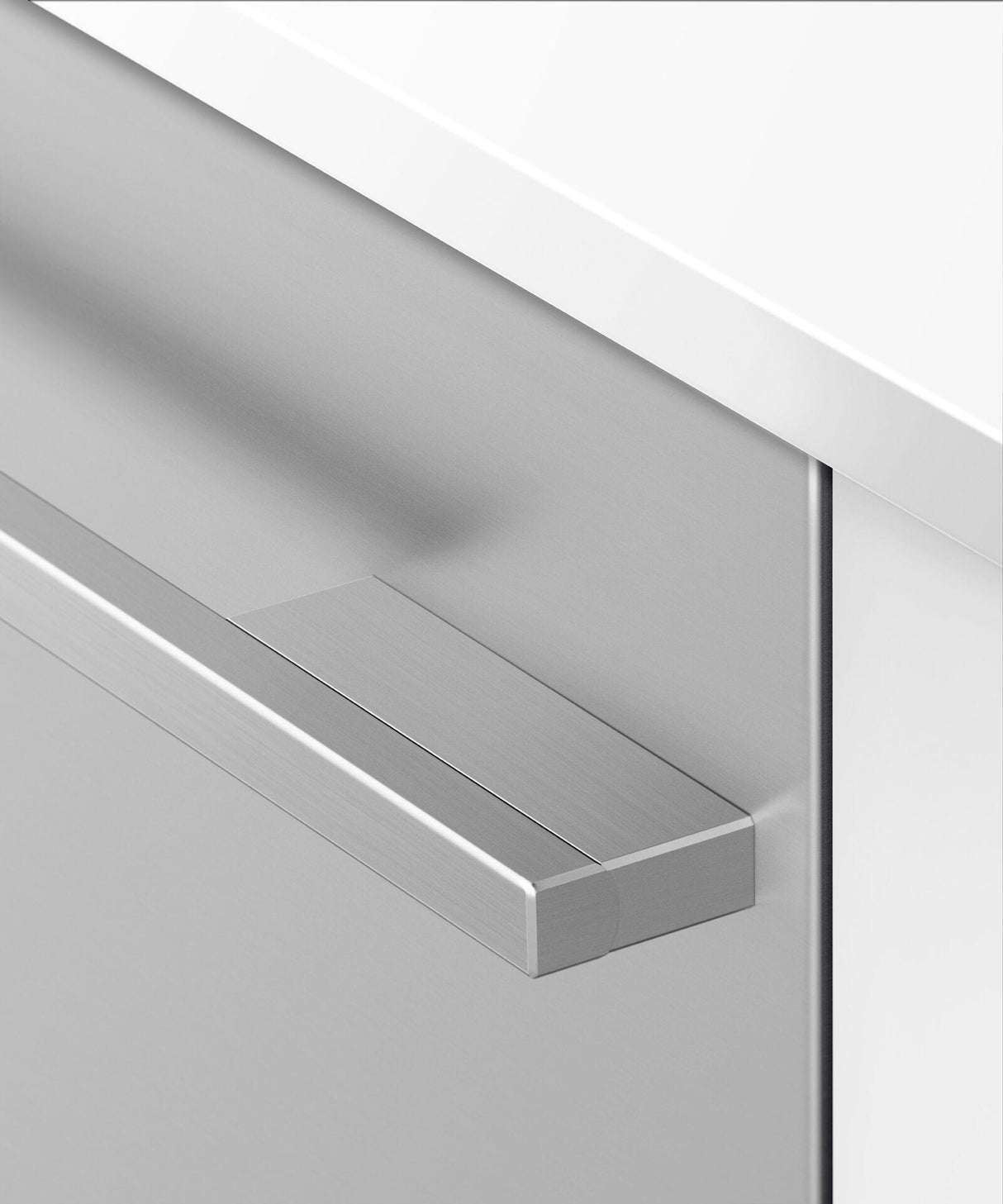

| Door panel stainless steel | ADDD24DPX |

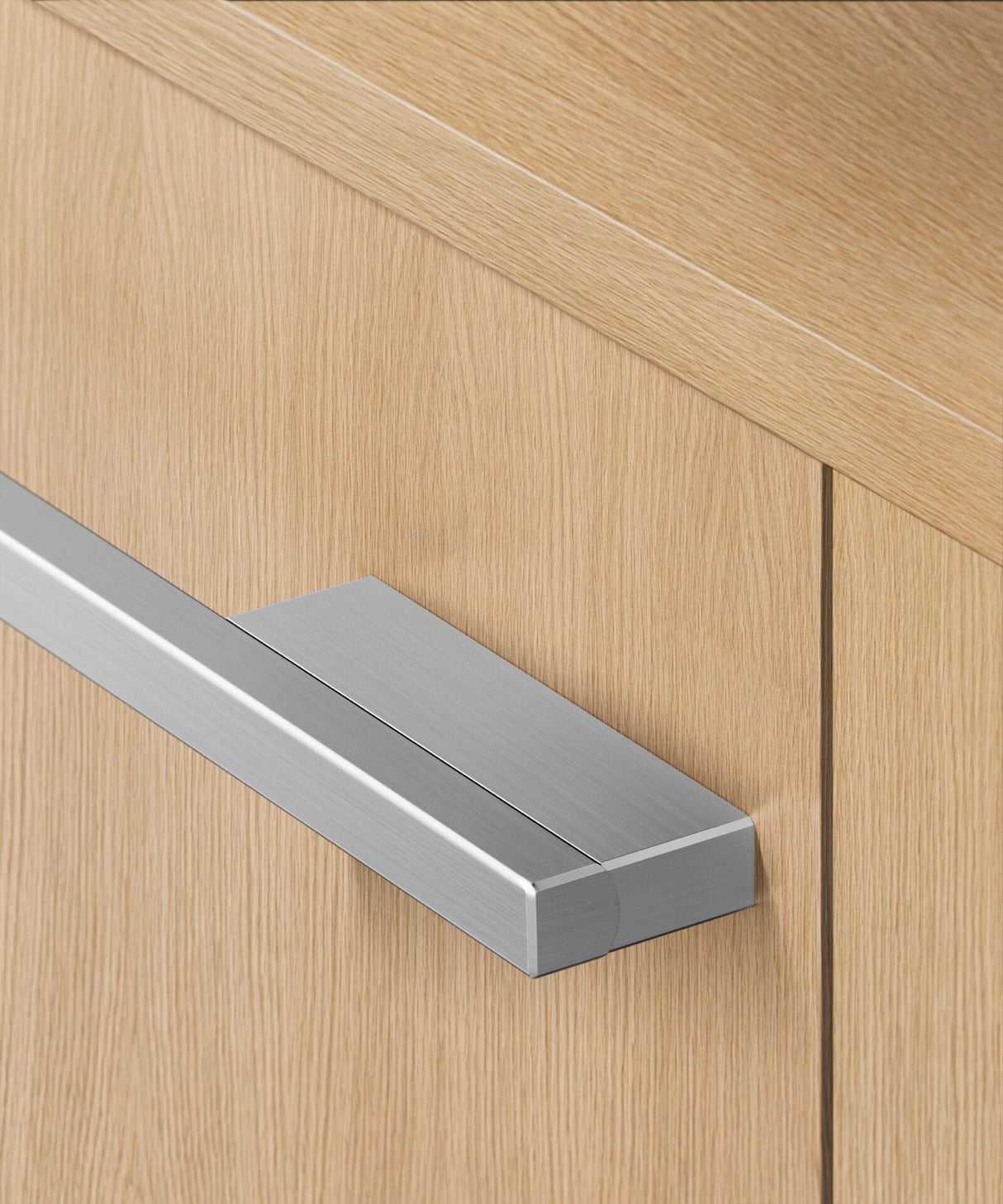

| Handle kit Classic | AHCL-DDDW-24X |
| Handle kit Contemporary round, aluminium | AHS-OBDD-60S |
| Handle kit Contemporary square fine, aluminium | AHD5-OBDD-60SX |
| Handle kit Contemporary square fine, black | AHD5-OBDD-60SB |
| Handle kit Professional round flush | AHP3-DWDD-SX |
| Handle kit Professional round flush, Brass off-stands | AHP3DDDW24BA |
| Handle kit Professional round flush, Dark Copper off-stands | AHP3DDDW24DC |
| Capacity and loading | |
| Accommodates round plates up to | 11 " (top drawer) 11" (bottom drawer) |
| Place settings | 14 |
| Place settings per drawer | 7 |
| Consumption | |
| Energy usage | 265kWh/year |
| In-use energy carbon emissions estimate Carbon Emissions Info | 93.5kgCO2e/year |
| Water usage (per wash cycle) | 3.28 gal running both tubs |
| Controls | |
| Features | |
| Motor type | BLDC |
| Performance | |
| Noise on standard cycle top drawer | 43dBA |
| Power requirements | |
| Amperage | 10A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 100 - 120V |
| Product dimensions | |
| Depth | 21 3 / 4 " |
| Height | 32 5 / 16 - 34 5 / 8 " |
| Width | 23 9 / 16 " |
| Safety and compliance | |
| Wash Program Modifiers | |
| Wash modifiers | 3 |
| Wash Programs | |
| Wash programs | 6 |
| Water connection | |
| Inlet water temperature | Max 140°F |
| Water pressure | 30kPa - 1000 kPa |
| Water supply | 3 / 8 " to suit Male Compression Fitting |
- Knock to pause function is perfect if you miss a dish
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- American Disabilities Act (ADA) compliant, this Double DishDrawer(TM) sits at an accessible height
Fisher and Paykel 15% and Warranty Extension Rebate
Offer Expires: 01/01/2026 to 12/31/2026 | Must be postmarked by: 12/31/2027
Receive up to a 15% rebate and a 5 Year Warranty with purchase of qualifying Fisher and Paykel Appliances.
Download Rebate Form- Guide De D(eback)marrage Rapide FR
- User Guide DishDrawer%E2%84%A2 Dishwasher EN
- Planning Guide Integrated Double DishDrawer%E2%84%A2
- Energy Label Double DishDrawer%E2%84%A2 Dishwasher
- Installation Guide EN
- Data Sheet Integrated Double DishDrawer%E2%84%A2 Dishwasher
- Installation Guide FR
- Planning Guide Professional Style Dial/Handle Accessories
- Quick Reference guide
- Quick Start Guide
 | |
|---|---|
| Key Features | |
Dishwasher Features Overview |
|
| Product Type | |
Type |
|
| Dimensions & Capacity | |
Width |
|
Depth |
|
Height |
|
| Appearance and Other Features | |
Configuration |
|
Color |
|
Stainless Steel Tub |
|
Wifi Connected |
|
Sabbath Mode |
|
Dish Cycle Count |
|
Fully Integrated Controls |
|
Energy Star Rated |
|
ADA |
|
