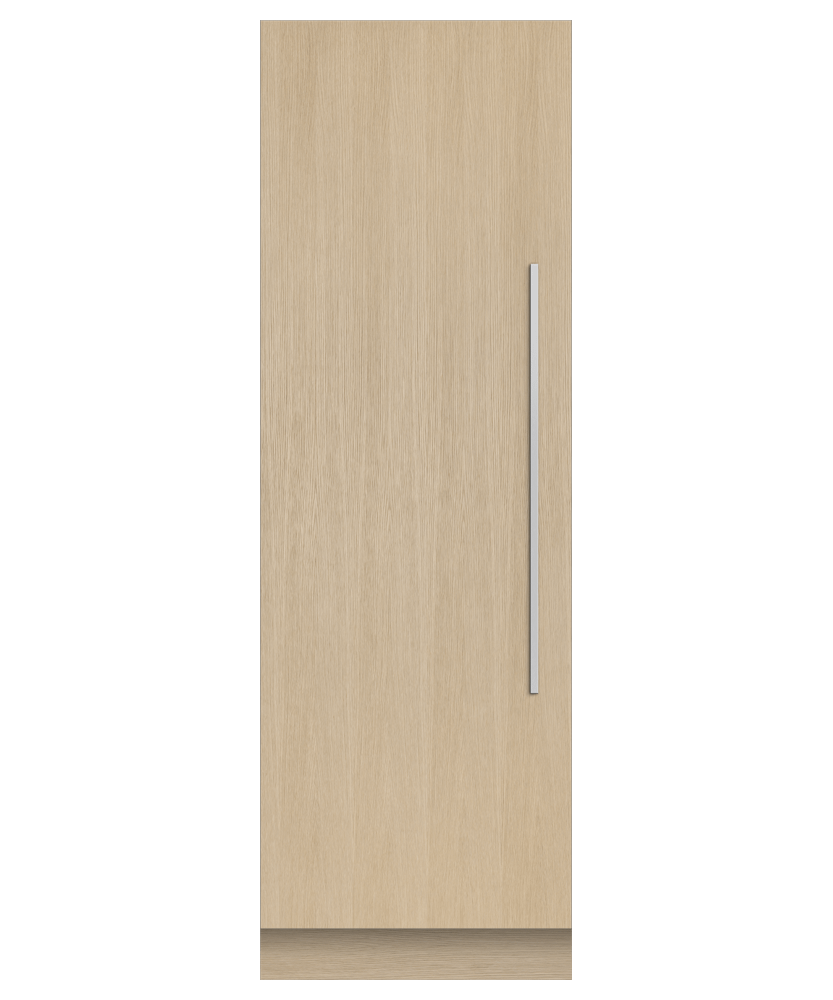

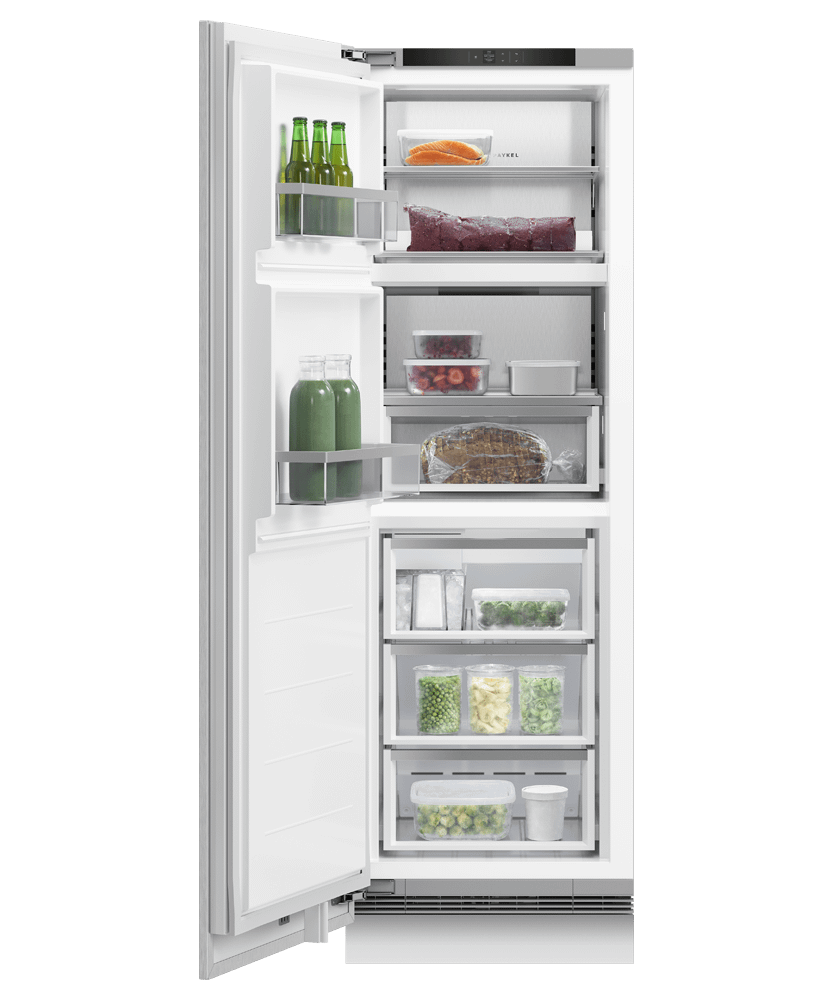

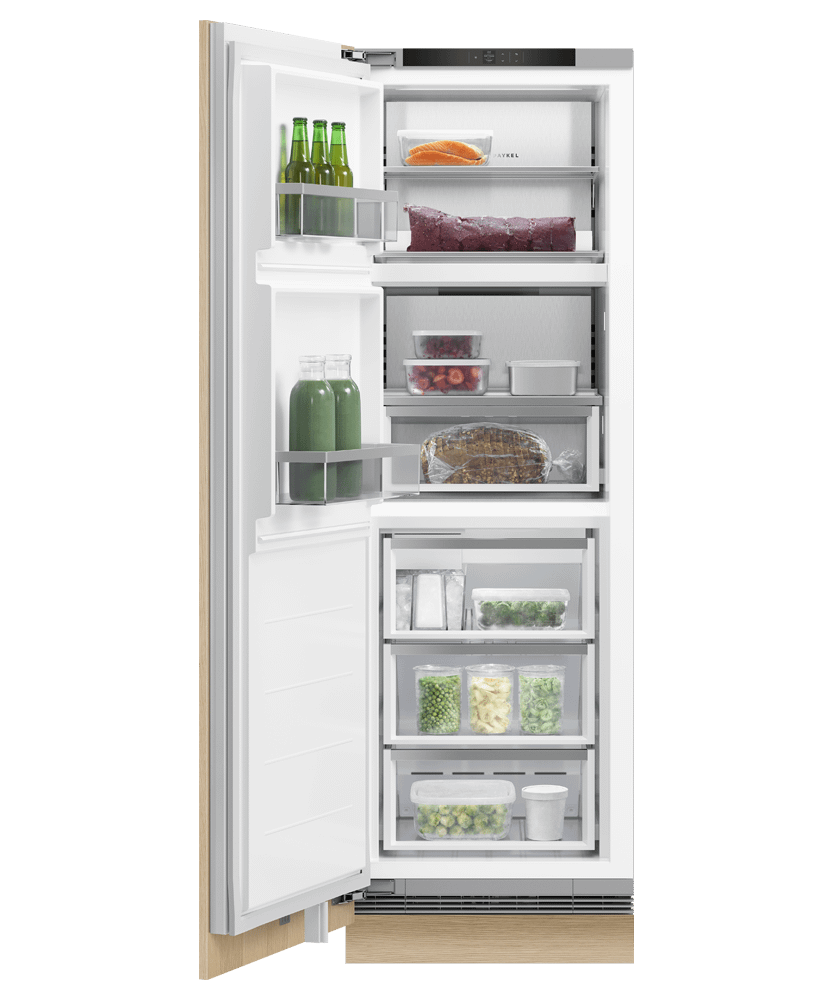

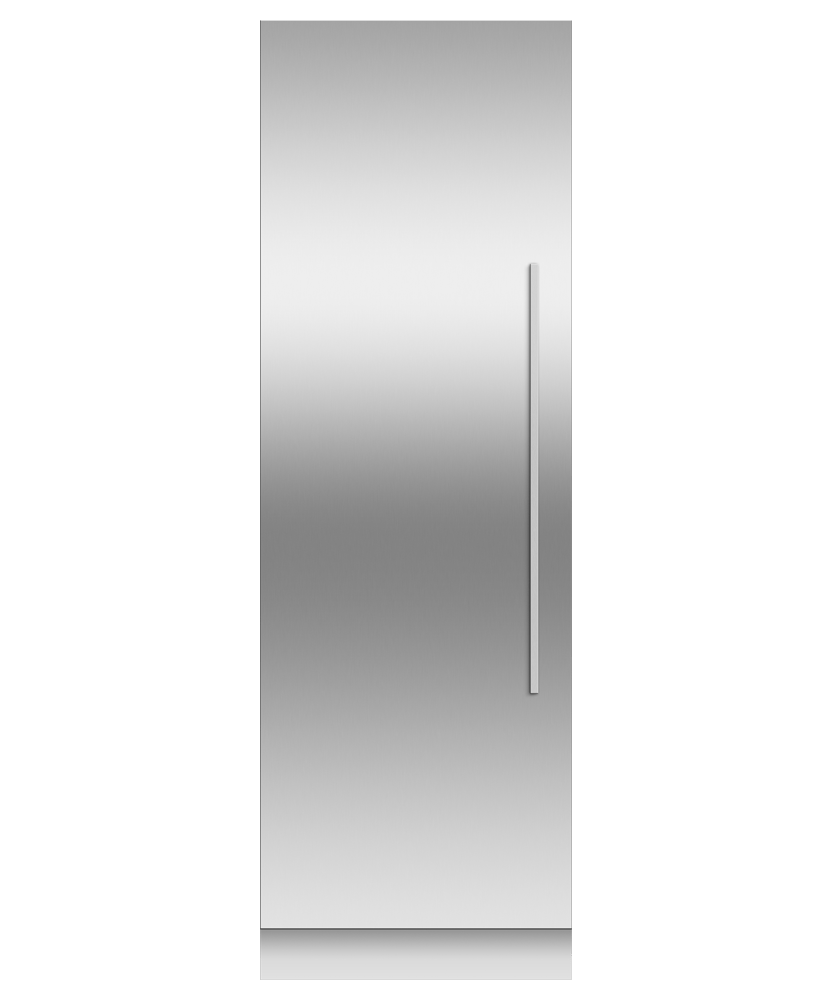

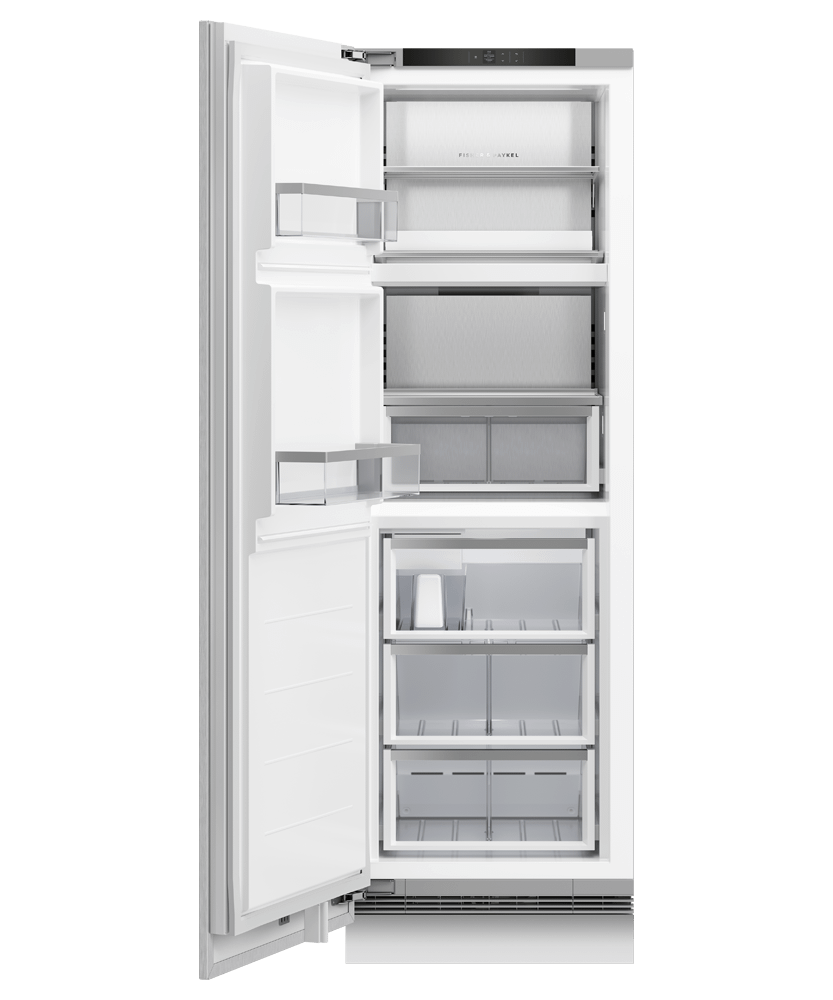

24" Series 9 Integrated Triple Zone Freezer
Model RS2474F3LJ1
24" Series 9 Integrated Triple Zone Freezer
Model RS2474F3LJ1Quick Specs
24" Series 9 Integrated Triple Zone Freezer is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Clever Energy
RESPECT FOR THE PLANET Clever Energy ActiveSmart(TM) Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
Mix & Match
DESIGNED TO FIT Mix & Match These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
Perfect Fit
DESIGNED TO FIT Perfect Fit These models fit flush, with only 3/16pathum gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
Simple Installation
DESIGNED TO FIT Simple Installation Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.
Chill Mode
PERFECT RESULTS Chill Mode Keep ready-to-eat food fresher for longer with Chill mode (29 to 32(degree)F). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It's also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature.
Ease Of Use
BEAUTIFUL TO USE Ease Of Use Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.
Three Levels Of Freshness
PERFECT RESULTS Three Levels Of Freshness When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -6 to 7(degree)F, while the top two compartments can be converted into a Chill (29 to 32(degree)F), Soft-Freeze (14 to 18(degree)F) or Freezer zone (-6 to 7(degree)F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
- Three Levels Of Freshness
- When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -6 to 7(degree)F, while the top two compartments can be converted into a Chill (29 to 32(degree)F), Soft-Freeze (14 to 18(degree)F) or Freezer zone (-6 to 7(degree)F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
- Perfect Fit
- These models fit flush, with only 3/16pathum gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
- Mix & Match
- These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
- Chill Mode
- Keep ready-to-eat food fresher for longer with Chill mode (29 to 32(degree)F). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It's also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature.
- Clever Energy
- ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
- Simple Installation
- Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.
- Ease Of Use
- Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.
- Three independent food zones, each with adjustable temperature to store different foods
- Panel ready, flush fit design with 3/16" gaps and custom height installation
- Internal ice maker with boost for busy times
- Easy-to-use touch-control panel and Wi-Fi capability
| Accessories (included) | |
| Joiner Kit | AJRS74LR |
| Accessories (sold separately) | |
| Door panel set stainless steel | (Right & left hinge) RD2474 |
| Handle kit Classic | AHCLRDSF |
| Handle kit Contemporary round, aluminium | AHSRDSF |
| Handle kit Contemporary square fine, aluminium | AHD5RDSF |
| Handle kit Contemporary square fine, black | AHD5RDSFB |
| Handle kit Professional round flush | AHP3RDSF |
| Handle kit Professional round flush, Brass off-stands | AHP3RDSFBA |
| Joiner kit | AJRS74LR |
| Toe kick stainless steel 23" | AKRS2304 |
| Toe kick stainless steel 47" | AKRS4704 |
| Toe kick stainless steel 71" | AKRS7104 |
| Water filter replacement | 847200 - FWC3 |
| Capacity | |
| Total gross capacity | 10.7cu ft |
| Volume freezer | 10.7cu ft |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 379kWh/year |
| In-use energy carbon emissions estimate Carbon Emissions Info | 133.7kgCO2e/year |
| Features | |
| Adjustable door shelves | 2 |
| Freezer Features | |
| Freezer bins | 4 |
| Ice making rate per day | 2.2lbs |
| Installation Dimensions | |
| Minimum inside width of cabinetry frame | 23 5 / 8 " |
| Minimum internal depth of cabinetry | 24 " |
| Minimum internal height of cabinetry | 74 " |
| Performance | |
| Variable food modes | Chill |
| Variable temperature zones | 3 |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 22 11 / 16 " |
| Height | 73 5 / 8 " |
| Width | 23 5 / 16 " |
- Three independent food zones, each with adjustable temperature to store different foods
- Panel ready, flush fit design with 3/16" gaps and custom height installation
- Internal ice maker with boost for busy times
- Easy-to-use touch-control panel and Wi-Fi capability
