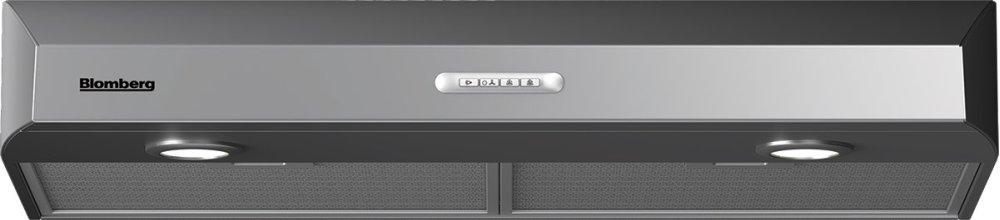

30" Under Cabinet Range Hood
Model BCHS30100SS
Authorized Dealer
Loading...
Authorized Dealer
30" Under Cabinet Range Hood
Model BCHS30100SSQuick Specs
Width
30
Depth
20
Height
4.75
Energy
NO
30" Under Cabinet Range Hood is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/25/2026
Regular price
$387.32
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30
Depth
20
Height
4.75
Energy Star Rated
NO
- Tag switches with LED controls
- 250CFM suction power
- 3 Different fan speed levels
- Vented or Ductless Option available
- Washable grease filters
- 2 Halogen 50 w Lights
- Stainless steel
30" under cabinet range hood, Tag switches with LED controls, 250CFM suction power, 3 Different fan speed levels, Direct ducting only, Washable grease filters, 2 Halogen Lights 50 W Each, Surface light on/off control, Recirculation Kit available, Stainless steel, Max height range for installation: 24" electric, 30" gas
| FEATURES | |
| Model | BCHS30100SS |
| Hood Type | Standard |
| Control Type | Mechanical Control - Push Button |
| Hood Width | 30 in. |
| PERFORMANCE | |
| No. of Power Levels | 3 |
| Number of Motors | 2 |
| Maximum Ventilation Capacity | 408 cu. meters / hour |
| Minimum Ventilation Capacity | 272 cu. meters / hour |
| Ventilation Capacities | 272 - 340 - 408 cu. meters / hour |
| Maximum Noise Level (Sound Power) | 62 dBA |
| Minimum Noise Level (Sound Power) | 54 dBA |
| Noise Level (Sound Power) | 54 - 59 - 62 dBA |
| Total Power Consumption | 360 W |
| HOOD FEATURES | |
| Type of Lighting | Halogen |
| No. of Lights | 2 |
| Power of Lights | 50 W |
| No. of Grease Filters | 2 |
| Type Of Grease Filters | Metal - Casette |
| Dishwasher Safe Filters | Yes |
| Air Diverter (Recirculated Operation) | Yes |
| Flape (Ducted Operation) | Yes |
| Recirculation Kit | Yes |
| Fitting Kit (Screws) | Yes |
| DESIGN | |
| Control Panel Design | Flat Panel |
| Control Panel Type | Metal |
| Display / LED Color | Blue |
| Body Color | Silver |
| Body Material | Painted Metal |
| TECHNICAL INFORMATION | |
| Voltage | 120 V |
| Frequency | 60 Hz |
| DIMENSIONS | |
| H x W x D | 4 3/4 x 30 x 20" (12.1 x 76 x 50.8 cm) |
| Product Weight | 22 lbs. (10 kg) |
| Packed H x W x D | 9 13/16 x 34 x 24 5/16" (24.9 x 86.4 x 61.8 cm) |
| Packed Weight | 29.5 lbs. (13.4 kg) |
- Tag switches with LED controls
- 250CFM suction power
- 3 Different fan speed levels
- Vented or Ductless Option available
- Washable grease filters
- 2 Halogen 50 w Lights
- Stainless steel
