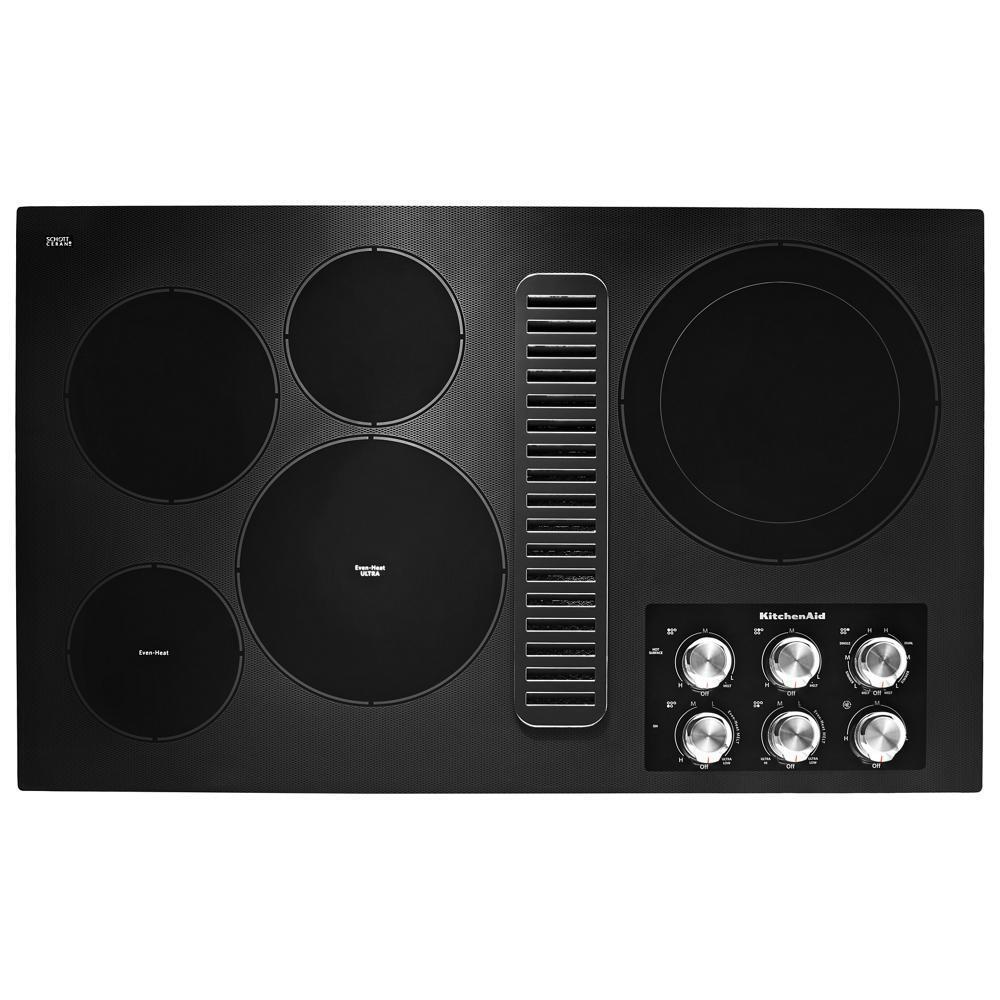

36" Electric Downdraft Cooktop with 5 Elements
Model KCED606GBL
Authorized Dealer
1
of
13
Loading...
Authorized Dealer
36" Electric Downdraft Cooktop with 5 Elements
Model KCED606GBLQuick Specs
Width
36.3125
Depth
22.0625
Height
3.625
Sabbath
NO
ADA
NO
Wifi
NO
Cooktop
5
Vent
YES
36" Electric Downdraft Cooktop with 5 Elements is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/02/2026
Sale Price
$2,249.00
$2,499.00
You save 10%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
36.3125
Depth
22.0625
Height
3.625
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Cooking oven number of cooktop element
5
Downdraft Ventilation
YES
Nominal Width
36.0
Cooking is Induction
NO
RPM
-1.0
Energy Star Rated
NO
8'' Round Element
Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
12''/9'' Double-Ring Element
Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you ll use only the 9-inch inner element.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
6'' Even-Heat(TM) Element with Melt Setting
Combines the benefits of Even-Heat(TM) Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
Downdraft Ventilation
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
Hot-Surface Indicator
Provides a clear indication that lets you know if any cooking surface is on or still hot.
Pure Color Ceramic-Glass Surface
Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.
10'' Even-Heat(TM) Ultra Element with Simmer Setting
Provides more versatility for high and low temperature cooking techniques. Even-Heat(TM) Technology maintains a constant supply of power and delivers a range of simmer settings.
- 10'' Even-Heat™ Ultra Element with Simmer Setting
- Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
- 12''/9'' Double-Ring Element
- Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you ll use only the 9-inch inner element.
- 3-Speed Fan Control
- Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- 300 CFM Exhaust Rating
- Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- 6'' Even-Heat™ Element with Melt Setting
- Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- 6'' Round Element
- Can reach a power output of up to 1200 watts to handle your daily cooking needs.
- 8'' Round Element
- Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
- Convertible to Duct-Free Ventilation
- Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- CookShield Finish for Glass Surface
- Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
- Downdraft Ventilation
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Hot-Surface Indicator
- Provides a clear indication that lets you know if any cooking surface is on or still hot.
- Power-On Indicator Light
- Lets you know at a glance when an element is on.
- Pure Color Ceramic-Glass Surface
- Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.
- Stainless Steel Knobs
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
- 10" EVEN-HEAT Ultra Element w/ EVEN-HEAT Simmer adds versatility
- 12"/9" Double-Ring element lets you use different cookware sizes
- Hot surface indicator light lets you know if an element is hot to the touch
- Power Indicator light lets you know at a glance when an element is on
- Glass surface provides a sophisticated appearance with saturated colors
- Stainless steel knobs add a premium feel with their sturdy construction
- 3-speed fan control can be adjusted to cooking needs
- 300 CFM meets the venting needs of even high-heat searing and stir-frying
- EVEN-HEAT with a low setting that can melt, not scorch, chocolate
- 6" element has a 1200-watt power output to easily handle daily cooking needs
- 8" element fits commonly-sized pans and offers up to 1800 watts of power
- Vent kit to filter and recirculate air inside, allowing flexible placement
- CookShield Finish for Glass helps protect cooktop surface from scratches
- Downdraft ventilation captures smoke/odors at the surface
| Certifications | |
| Ada Compliant | No |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | No |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Fuel Type | Electric |
| Installs Over Built-in Oven | No |
| Lp Convertible | No |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | No |
| Dimensions | |
| Product Height | 3.625 |
| Cutout Depth | 21.125 |
| Carton Height | 23.78 |
| Gross Weight | 78 |
| Carton Depth | 26.38 |
| Carton Width | 41.5 |
| Cutout Width | 34.563 |
| Product Depth | 22.0625 |
| Net Weight | 73 |
| Product Width | 36.3125 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Center Front Element-burner Power | 3,200W |
| Center Front Element-burner Size | 10in. |
| Center Front Element-burner Type | Even-Heat™ Ultra |
| Center Rear Element-burner Power | 1,200W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Single |
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 1,300W |
| Left Front Element-burner Size | 6in. |
| Left Front Element-burner Type | Even-Heat™ |
| Left Rear Element-burner Power | 1,800W |
| Left Rear Element-burner Size | 8in. |
| Left Rear Element-burner Type | Single |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Rear Element-burner Power | 3,000W |
| Right Rear Element-burner Size | 12in./9in. |
| Right Rear Element-burner Type | Dual-Stacked Burner |
| Exterior Details | |
| Knob Color | Color Coordinated |
| Knob Type | Metal |
| General | |
| Cooktop Features | Cookshield Finish; Downdraft Ventilation; Even-Heat Melt Burner |
| Ventilation Details | |
| Cfm Motor Class | 300 |
| Downdraft Vent | Yes |
- 10" EVEN-HEAT Ultra Element w/ EVEN-HEAT Simmer adds versatility
- 12"/9" Double-Ring element lets you use different cookware sizes
- Hot surface indicator light lets you know if an element is hot to the touch
- Power Indicator light lets you know at a glance when an element is on
- Glass surface provides a sophisticated appearance with saturated colors
- Stainless steel knobs add a premium feel with their sturdy construction
- 3-speed fan control can be adjusted to cooking needs
- 300 CFM meets the venting needs of even high-heat searing and stir-frying
- EVEN-HEAT with a low setting that can melt, not scorch, chocolate
- 6" element has a 1200-watt power output to easily handle daily cooking needs
- 8" element fits commonly-sized pans and offers up to 1800 watts of power
- Vent kit to filter and recirculate air inside, allowing flexible placement
- CookShield Finish for Glass helps protect cooktop surface from scratches
- Downdraft ventilation captures smoke/odors at the surface
