30" Wide Convertible Drawer Refrigerator/warming Cabinet
Model: SPHC30
30" Wide Convertible Drawer Refrigerator/warming Cabinet
Model: SPHC30Quick Specs
30" Wide Convertible Drawer Refrigerator/warming Cabinet is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 30" Wide Warming And Cooling Drawer
- Specially designed to switch functions between a standard refrigerator or warming cabinet
- Commercially approved
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Built-in capable
- Front-breathing design allows you to build the drawer into cabinetry
- Weatherproof design
- Durable construction allows safe installation in outdoor kitchens

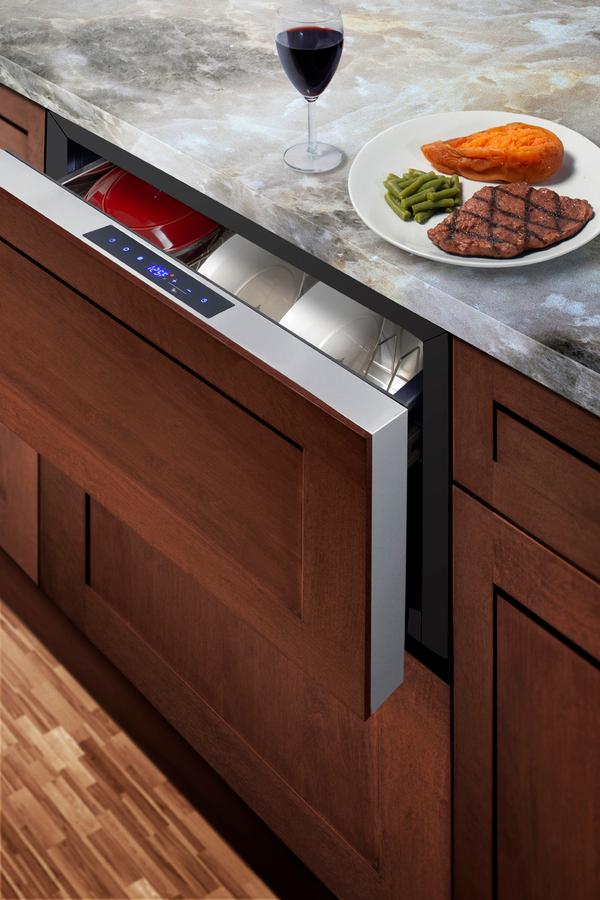

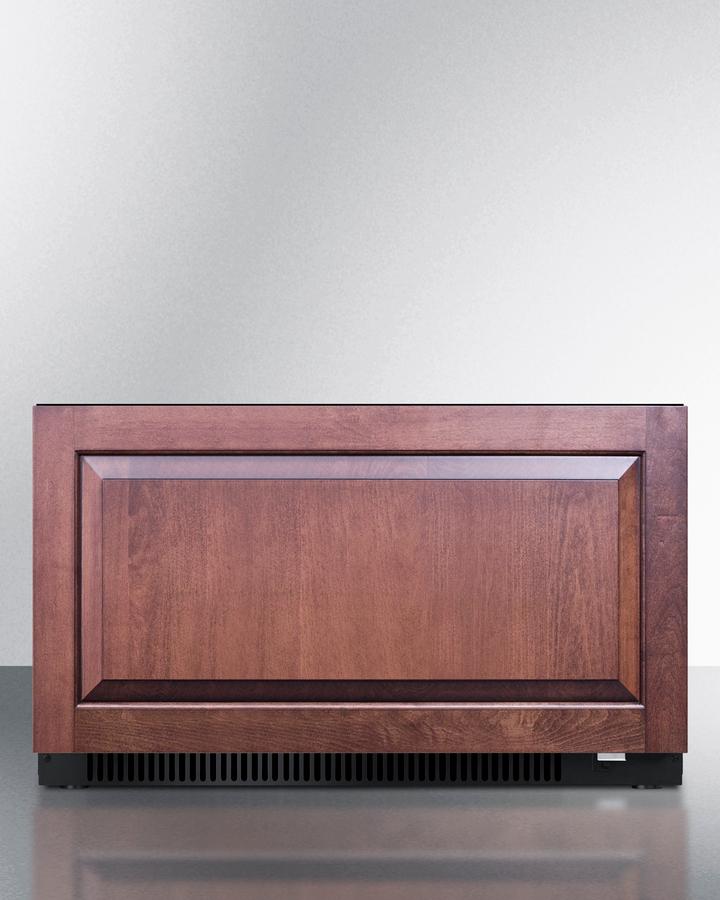

- Panel-ready drawer front
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design

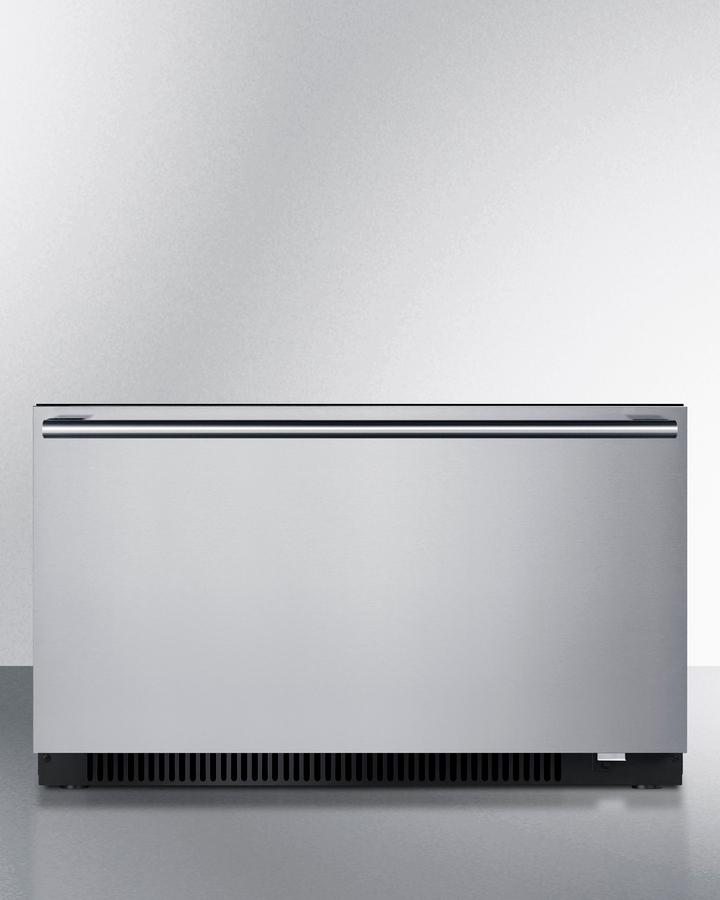

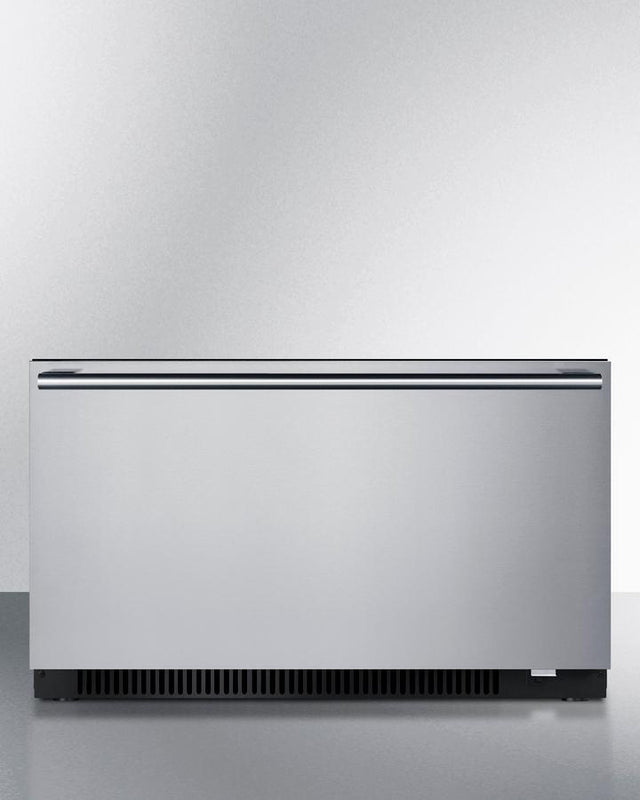

- 304 grade stainless steel drawer
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability

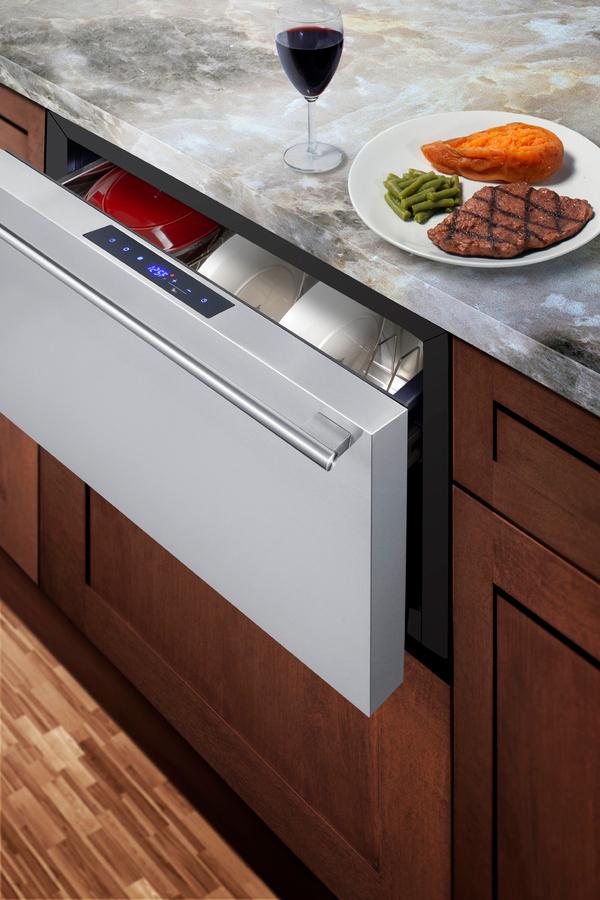

- Warming function
- Perfect for proofing bread with a temperature range of 80 F/20 C to 200 F/95 C

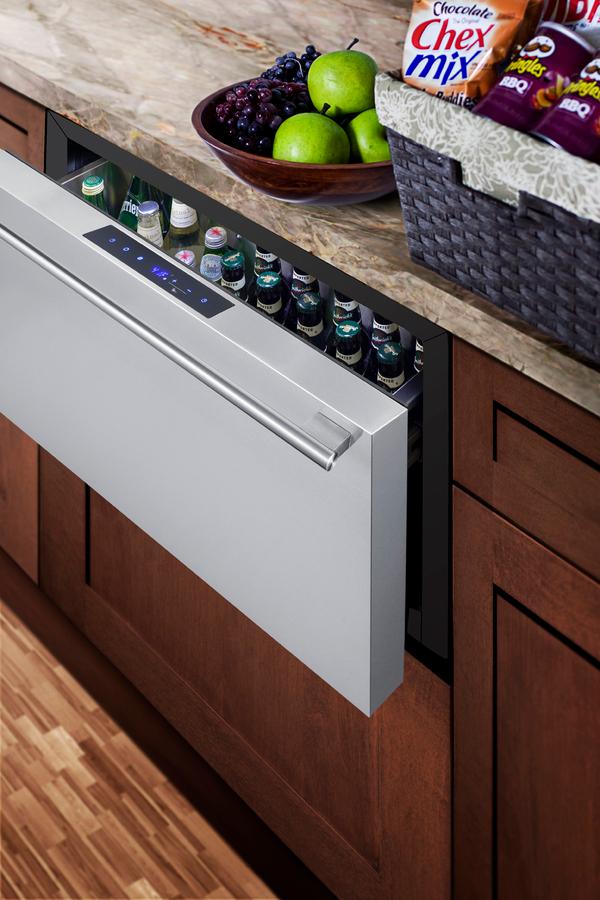

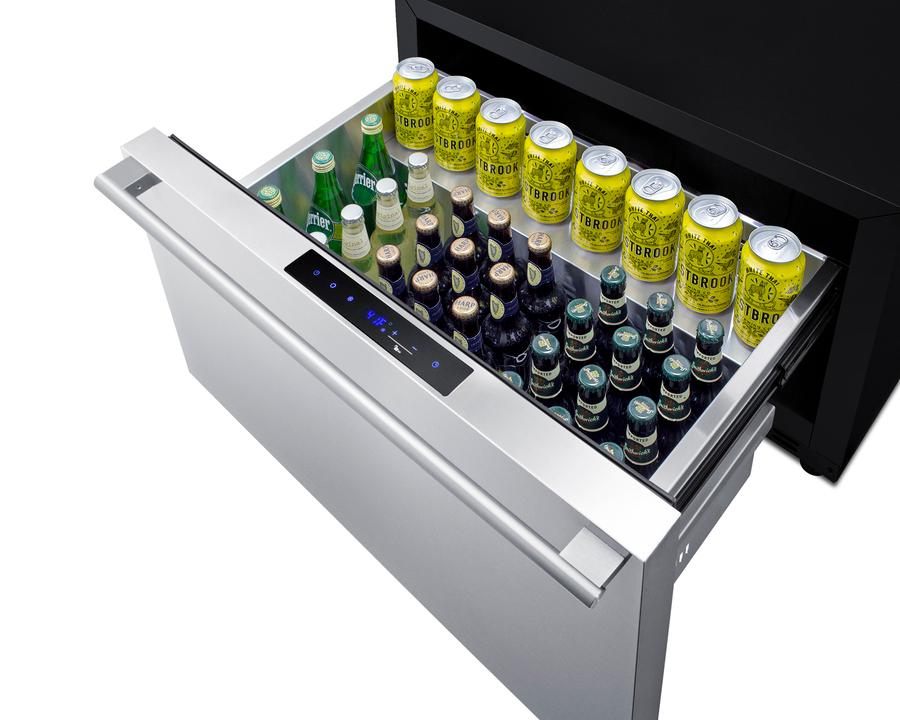

- Cooling function
- Perfect for chilling beverages with a temperature range of 36 F/2 C to 43 F/6 C
- Frost-free operation
- Minimum user maintenance with a fully no-frost operation system
- Digital thermostat
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled

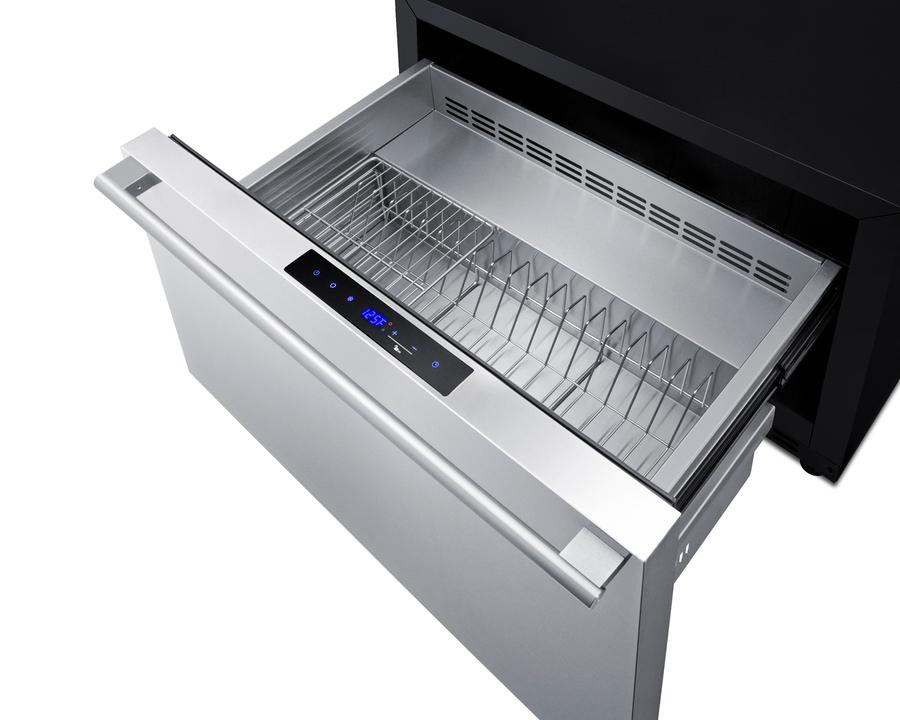

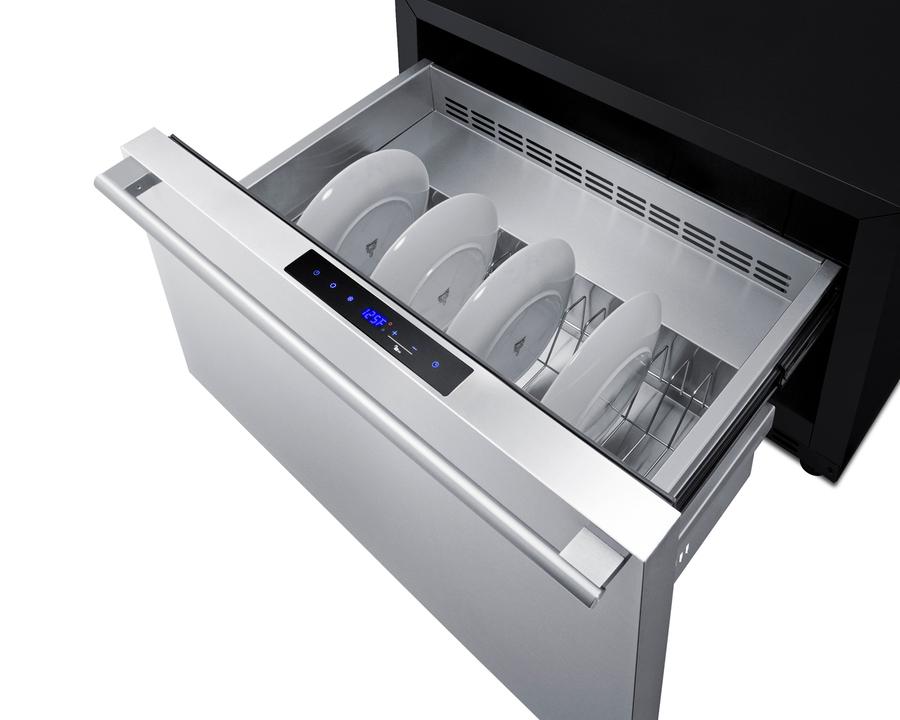

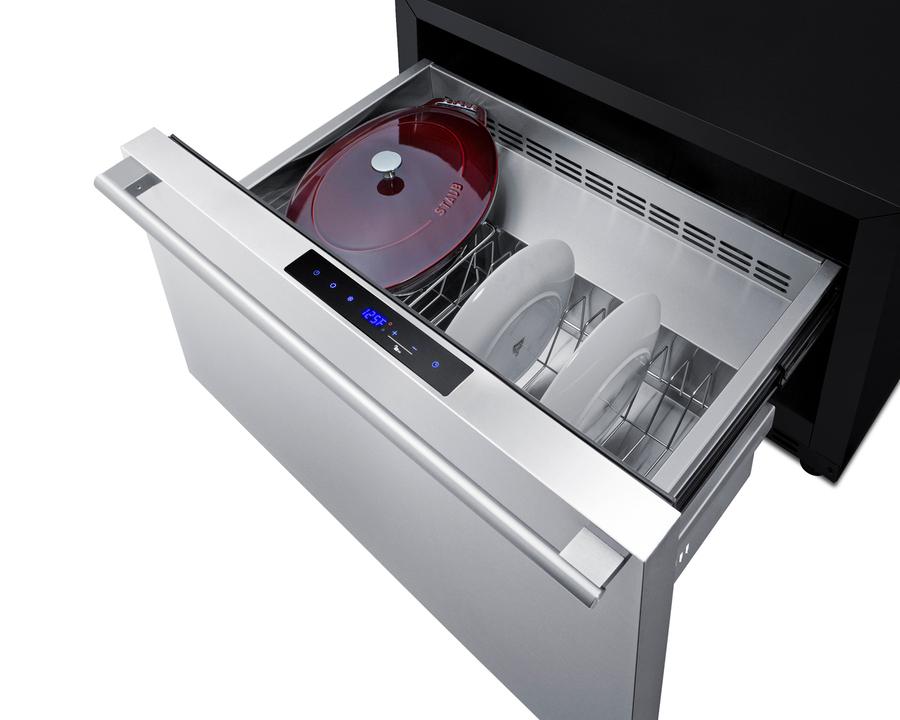

- Removable dish rack
- Steel rack included to maximize capacity by storing dishes upright
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Professional handle
- A sleek stainless steel handle adds an elegant touch to any setting\t
- Temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Open drawer alarm
- Audible alarm will sound if the drawer is left open longer than one minute
- Sabbath Mode
- Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- Child lock
- Disables digital controls after two minutes of activity for added safety
- Sealed back
- Space-saving design with no exposed coils for easier cleanability\t
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Specially designed to switch functions between a standard refrigerator or warming cabinet
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Fan-forced cooling ensures the unit is evenly cooled
- Steel rack included to maximize capacity by storing dishes upright
- Unit will retain its last settings when power is restored in the event of power loss
- A sleek stainless steel handle adds an elegant touch to any setting
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Audible alarm will sound if the drawer is left open longer than one minute
- Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- Disables digital controls after two minutes of activity for added safety
- Space-saving design with no exposed coils for easier cleanability
- Environmentally friendly design without ozone-damaging chemicals
- Front-breathing design allows you to build the drawer into cabinetry
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Durable construction allows safe installation in outdoor kitchens
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Perfect for proofing bread with a temperature range of 80(degree)F/20(degree)C to 200(degree)F/95(degree)C
- Perfect for chilling beverages with a temperature range of 36(degree)F/2(degree)C to 43(degree)F/6(degree)C
- Minimum user maintenance with a fully no-frost operation system
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
Summit is excited to introduce our SPHC30, the industry's first convertible warming and cooling drawer. The SPHC30 is sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The drawer is constructed from 304-grade stainless steel, with a pro-style handle and a fully finished front. The drawer can be customized with overlay panels to match or accent existing cabinetry design. With 2.4 cu.ft of storage space and true versatility, our SPHC30 can function as both a cooling drawer and a warming drawer with a simple touch of a button. When in Cooling Mode, the unit is perfect for keeping beverages and snacks chilled (temperatures range from 36(degree)F/2(degree)C to 43(degree)F/6(degree)C.) Meanwhile, Warming Mode is ideal for helping bread dough rise, and can even be used to keep dishes warm until serving (temperatures range from 80(degree)F/20(degree)C to 200(degree)F/95(degree)C.) For maximum convenience, this unit ships with a removable dish rack. The control panel includes a digital thermostat with an LED display (with Celsius or Fahrenheit readout) located atop the drawer. There's also a user-friendly timer, a temperature memory function in the event of a power interruption, a convenient sabbath mode, and even an automatic child lock to help prevent accidents. The SPHC30 is a 115v unit that ships with a power cord, though professional installation is required. With its weatherproof construction, the SPHC30 is safe for use in both indoor and outdoor settings. With a sealed back and a fully finished black cabinet to ensure all components are protected from the elements. This unit is ETL-S listed to NSF-7 standards. Though our SPHC30 is unique in functionality, we manufacture additional drawer-style refrigerators, freezers, and even wine cellars. Visit summitappliance.com to browse our complete collections.
| Overview | |
| Nominal Height | 18.0" (46 cm) |
| Height of Cabinet | 17.88" (45 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.13" (56 cm) |
| Depth with Handle | 23.88" (61 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 2.4 cu.ft. (68 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 15.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101102849 |
| Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Reversible | No |
| Shelf Type | Chrome |
| Shelf Qty | 1 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.2oz. |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 43 F/80 to 200 F |
| Dimensions | |
| Interior Height | 10.75" (27 cm) |
| Interior Width | 23.5" (60 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 5.13" (13 cm) |
| Compressor Step Width | 23.5" (60 cm) |
| Compressor Step Depth | 4.88" (12 cm) |
