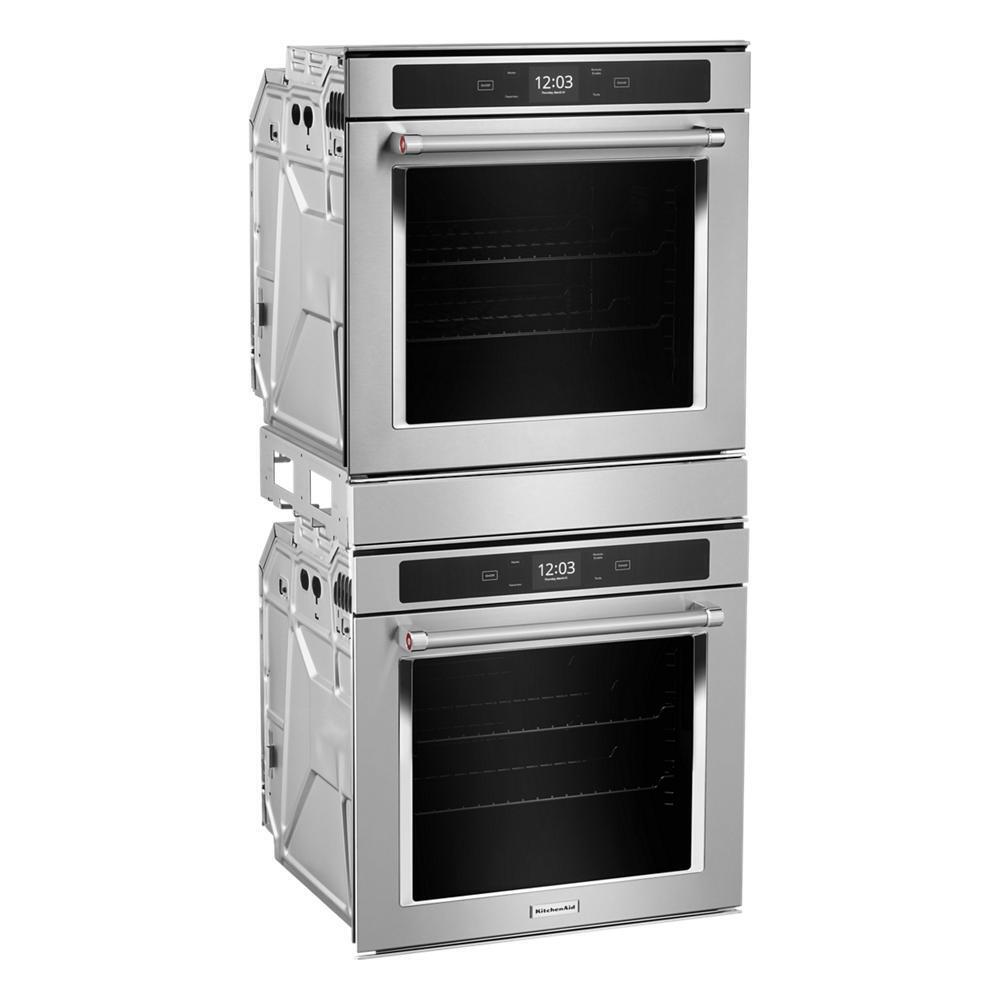

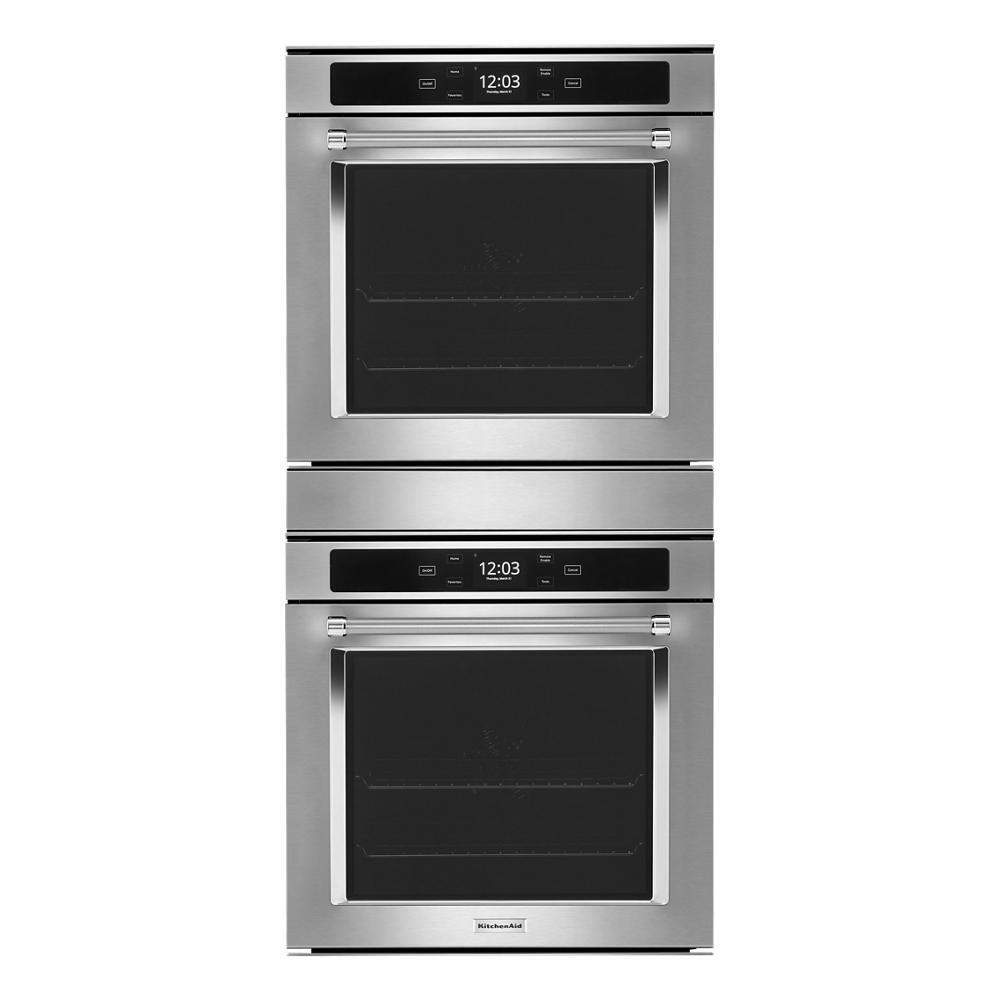

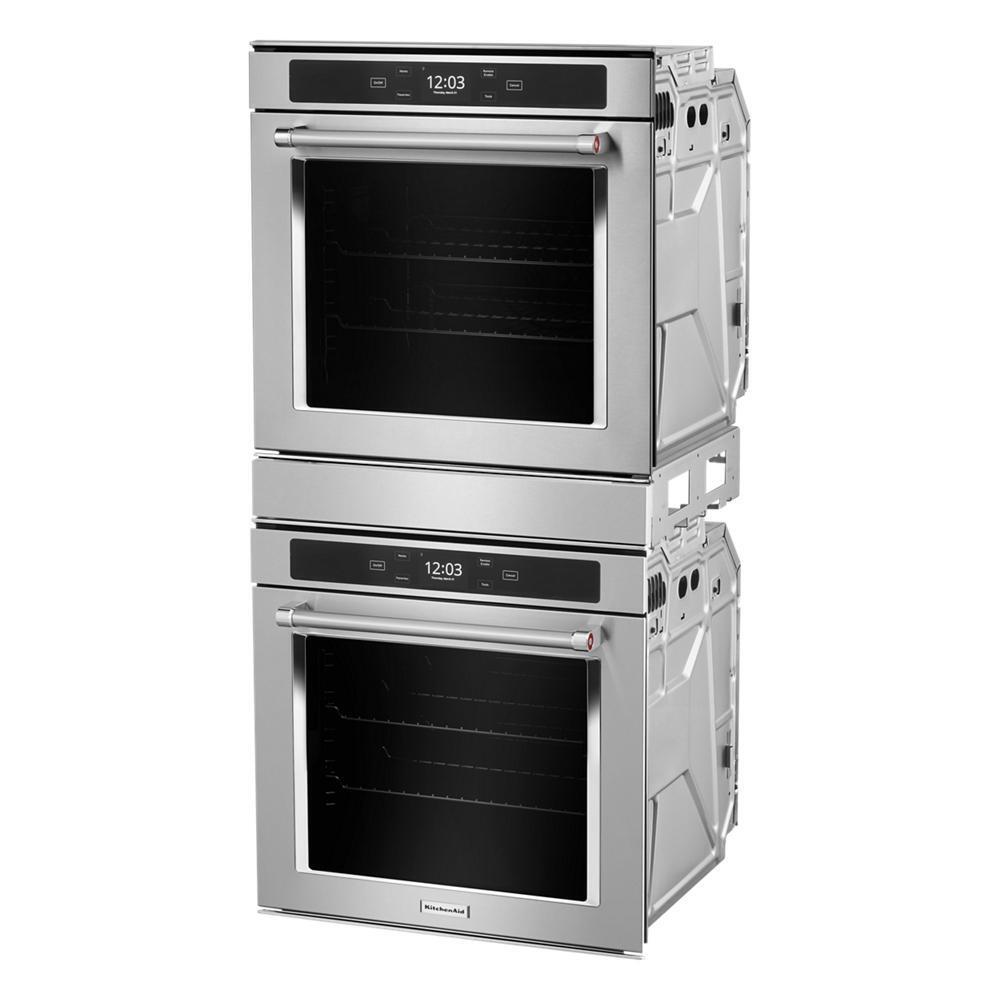

24" Smart Double Wall Oven with True Convection
Model KODC504PPS
Authorized Dealer
1
of
11
Loading...
Authorized Dealer
24" Smart Double Wall Oven with True Convection
Model KODC504PPSQuick Specs
Width
23.4375
Depth
22.5
Height
50.25
Sabbath
YES
ADA
NO
Wifi
YES
Storage
NO
Warming
NO
24" Smart Double Wall Oven with True Convection is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/30/2026
Sale Price
Sale price
$3,140.40
Regular price
$4,149.00
Unit price
/
Unavailable
You save 24%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
23.4375
Depth
22.5
Height
50.25
Sabbath Mode
YES
ADA
NO
Wifi Connected
YES
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking First Oven Capacity
2.6
Convection
YES
Self Clean
YES
Oven Rack Type
SLIDING
Nominal Width
24.0
RPM
-1.0
Drawer Proof Mode
NO
Energy Star Rated
NO

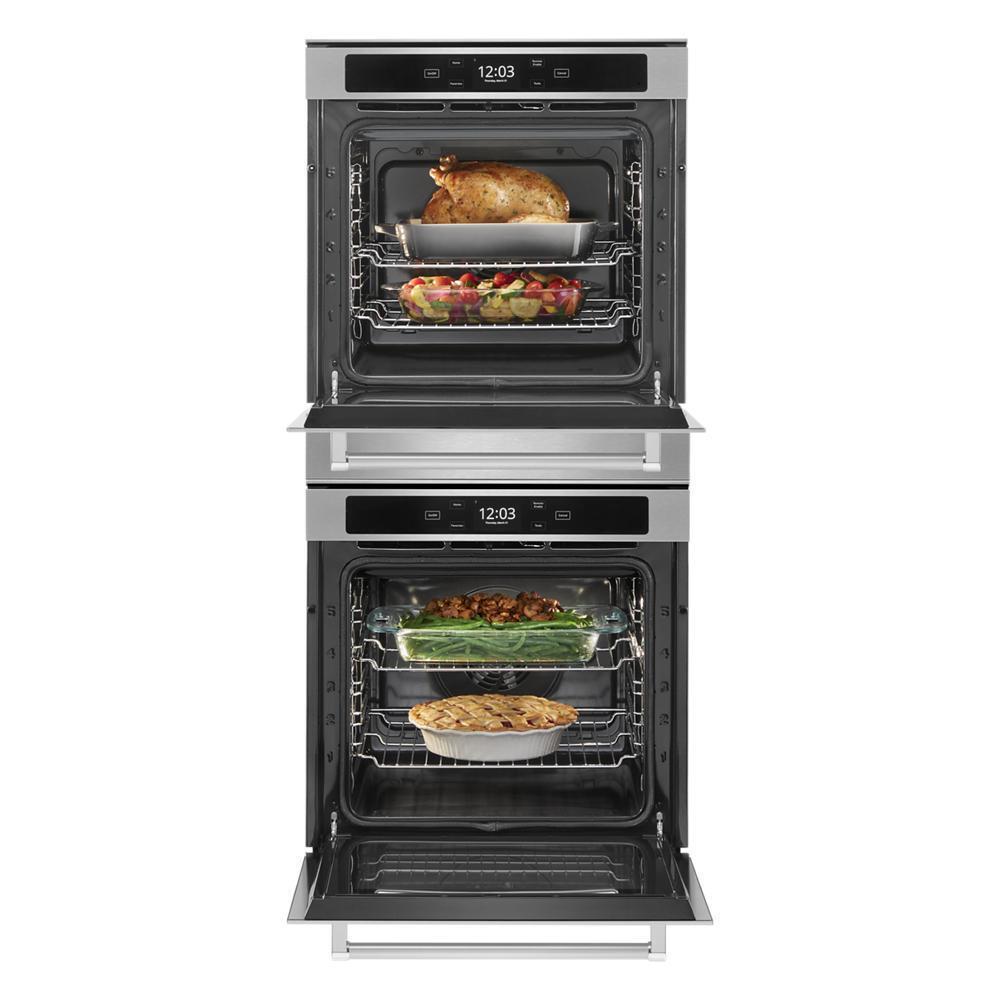

- 5.2 Cu. Ft. Total Capacity
- shared between two equal-sized ovens provides extra space and the flexibility to cook multiple dishes at different temperatures. At 2.6 cu. ft. capacity each, both ovens provide plenty of room to cook a large roast.

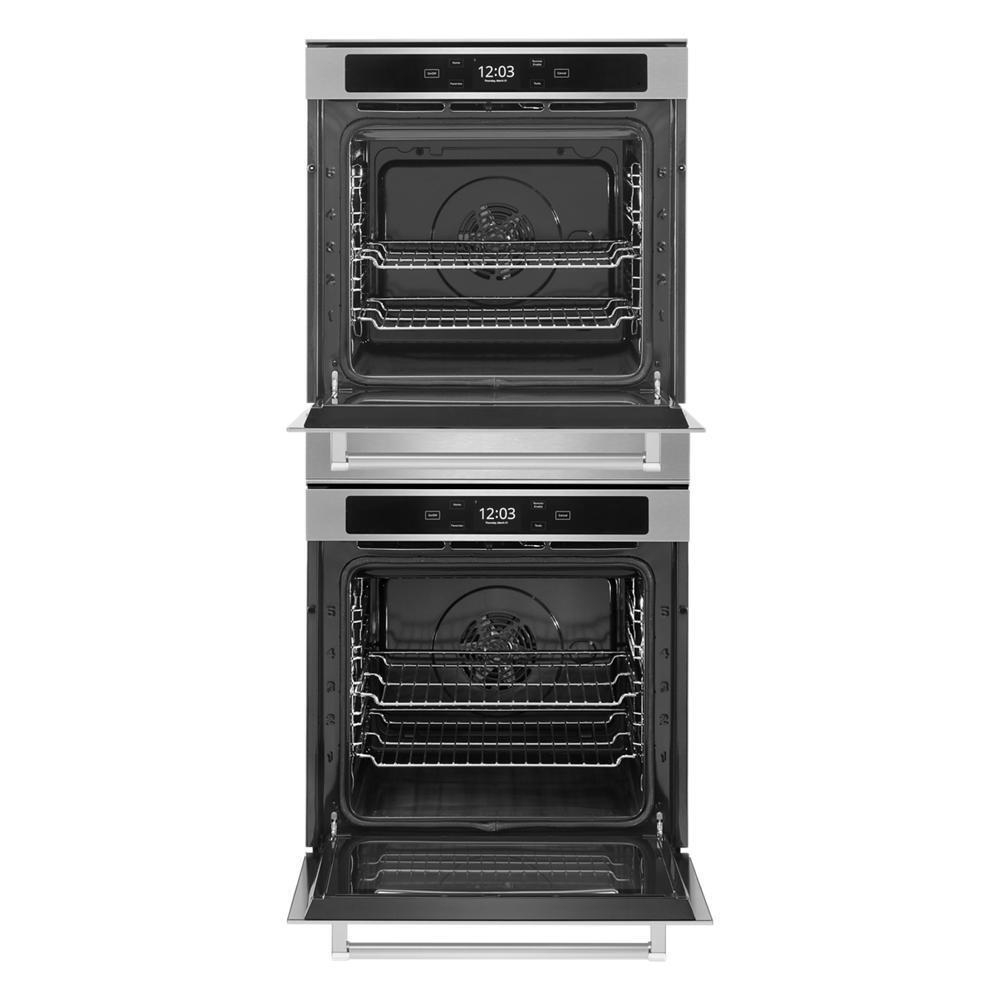

- Five-Level Rack Support (Both Ovens)
- inside both ovens makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. Sturdy ladder rack supports let you choose from five height positions.

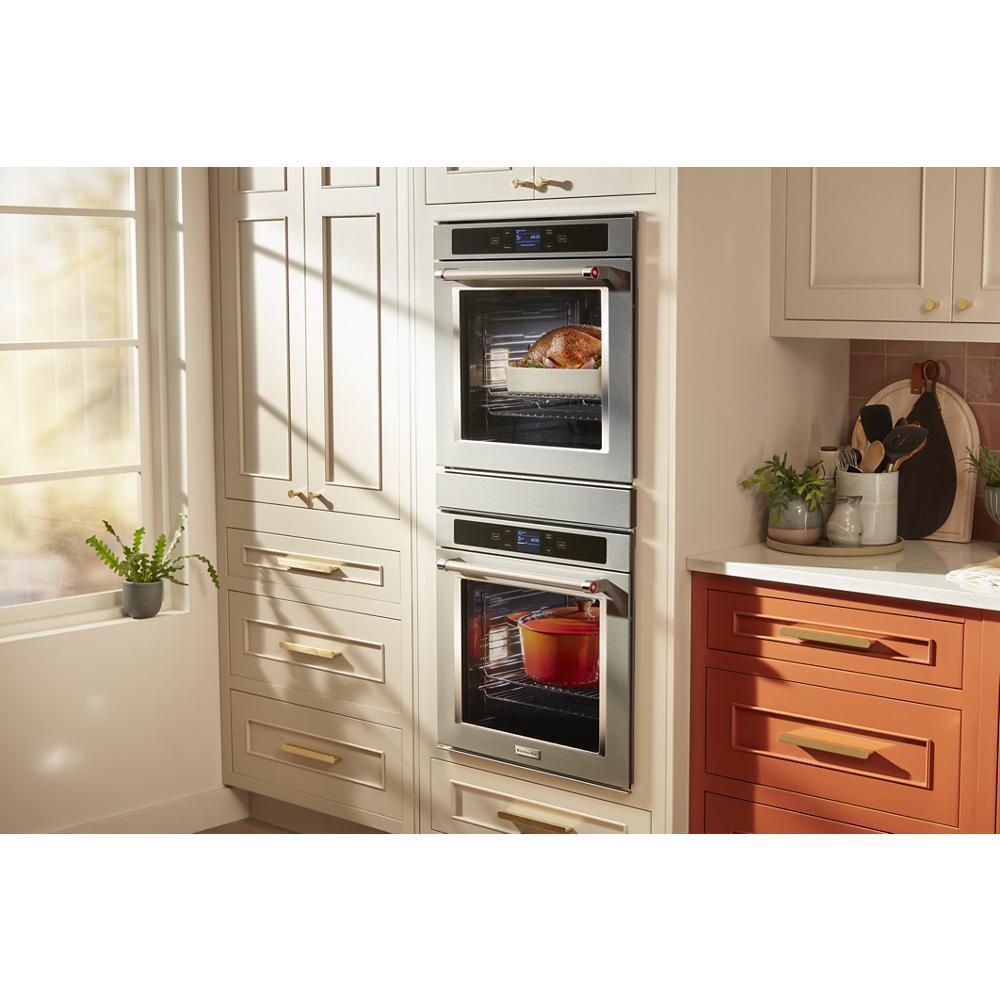

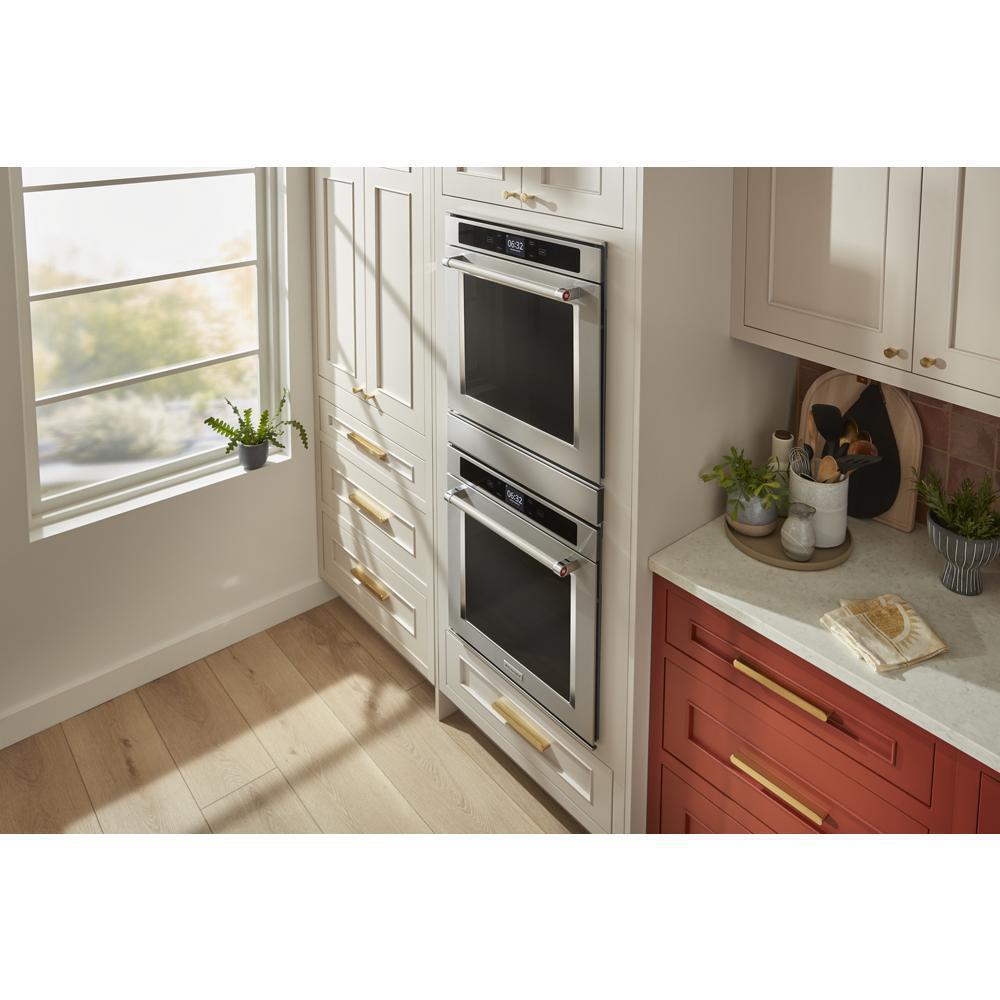

- Flush Installation Option
- provides a seamless built-in look, so your style stands out, not the appliance. This option allows the oven door to sit flush with surrounding cabinet fronts when closed.
- PrintShield™ Finish
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Self-Cleaning Cycle (Upper Oven Only)
- uses high temperatures to loosen baked-on food residue in the upper oven cavity without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
- Self-Close Doors
- feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
- Smart Appliance
- gives you control of your oven in or out of the kitchen. Remotely monitor and control this oven with the KitchenAid™ App* or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.**

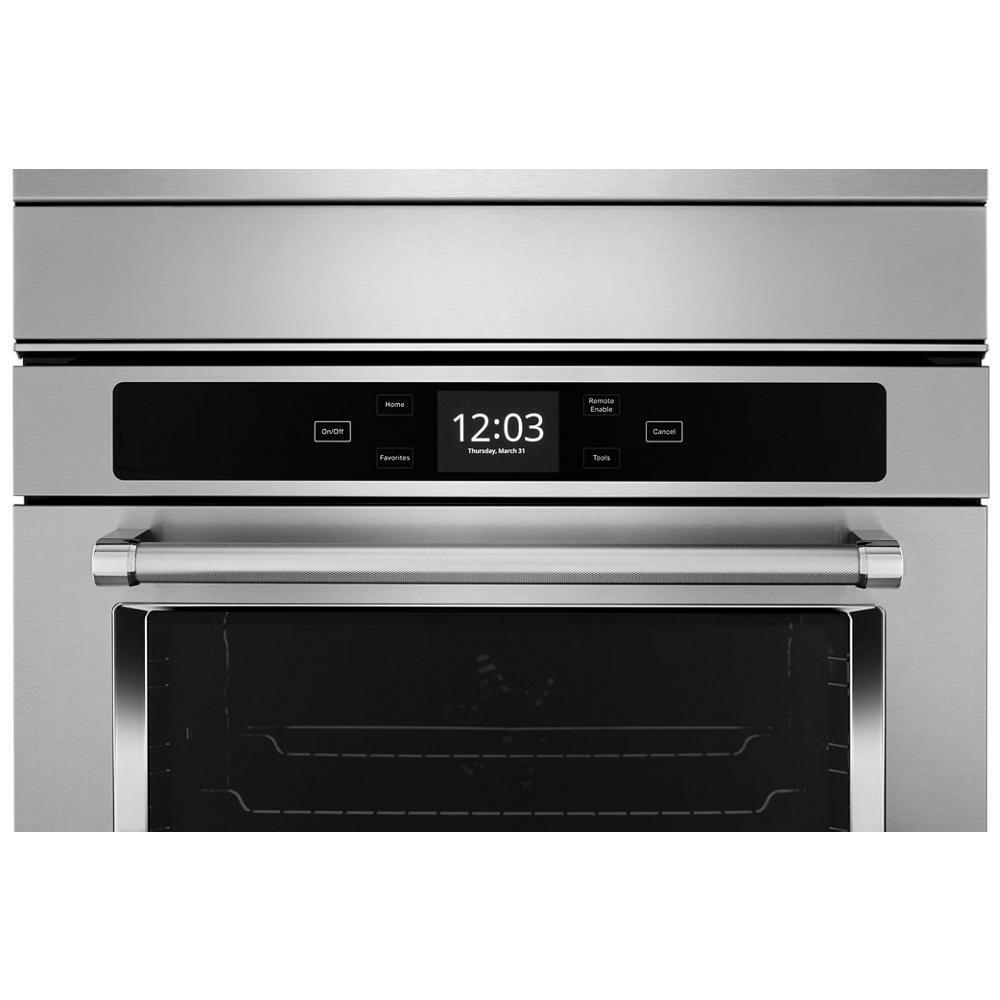

*Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada). - Touchscreen Controls
- feature a 3.5" full-color LCD display, making it easy to see and select cooking modes, set cook times and temperatures, connect your mobile device to control the oven from outside the kitchen and even download future feature updates.*

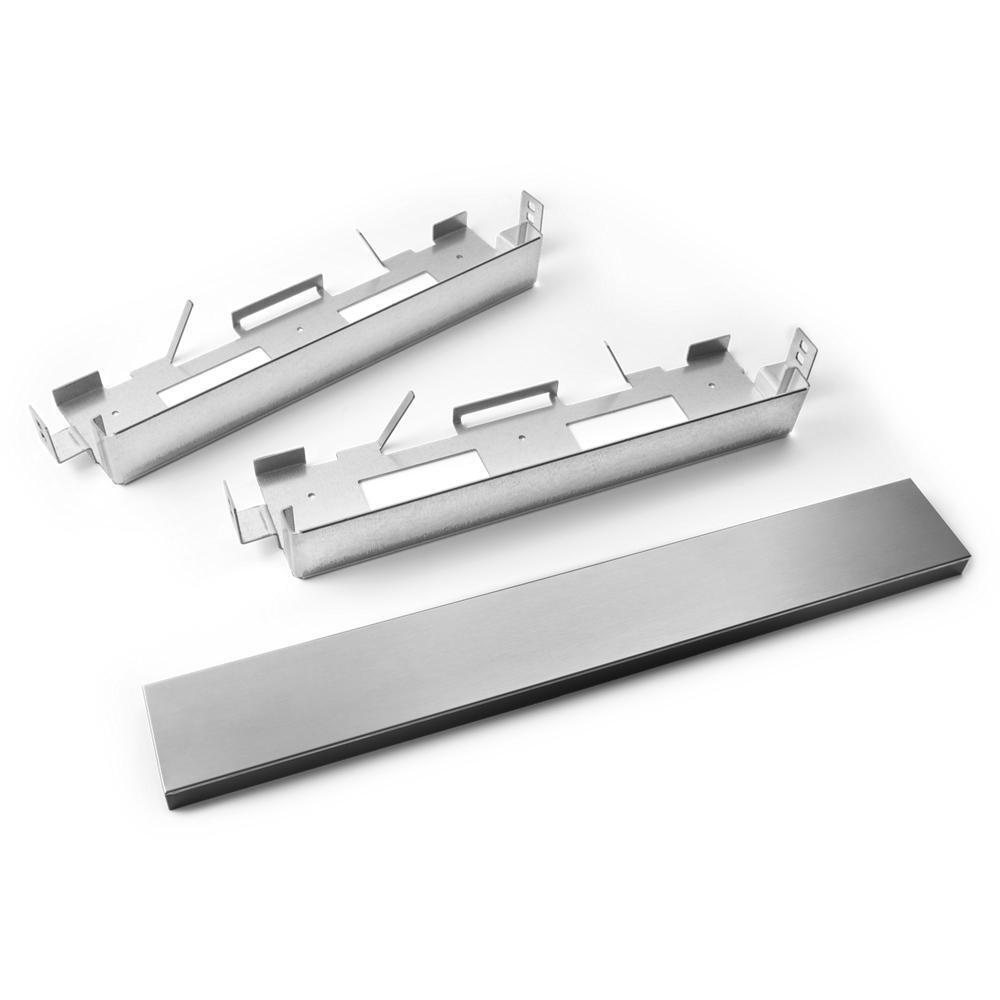

*Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada). - Trim Kit Included
- for easy replacement of an existing 24" KitchenAid® Wall Oven without changing your cutout.
- True Convection
- uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.
- Double oven with 5.2 cu. ft. total cooking capacity
- Five-Level Rack Support makes it easy to rearrange two oven racks
- Flush Installation Option for a seamless built-in look
- PRINTSHIELD Finish coating resists smudges and fingerprints
- Self-Cleaning Cycle uses high temperatures not harsh chemicals
- Self-Close Doors gently shut themselves when your hands are full
- Wi-Fi enabled model with smart features and mobile app
- Touchscreen Controls make it easy to see and select cooking modes
- Trim Kit included for easy replacement of existing 24" wall oven
- True Convection for consistent baking and roasting
The slim design of this KitchenAid® 24" Smart Double Wall Oven helps you fit your baking, broiling and roasting in any size kitchen. The Five-Level Rack Support makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. True Convection circulates hot air throughout the entire oven, providing consistent temperatures for pastries, roasts and more.
| Certifications | |
| Cul | Yes |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Type | Glass Touch Digital Display |
| Display Color | Full Color |
| Electronic Display Type | LCD Touch Screen |
| Details | |
| Delay Clean | Delay Clean (Upper Oven) |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Light Control | Oven Light Touch Pad |
| Oven Automatic Shut-off | Yes |
| Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Full Meal Cook; Keep Warm/Warm Hold; Language Conversion; Proofing; Start Time; Stop Time; Timer |
| Oven Type | Double |
| Power On Indicator Light | Yes |
| Temperature Conversion | Yes |

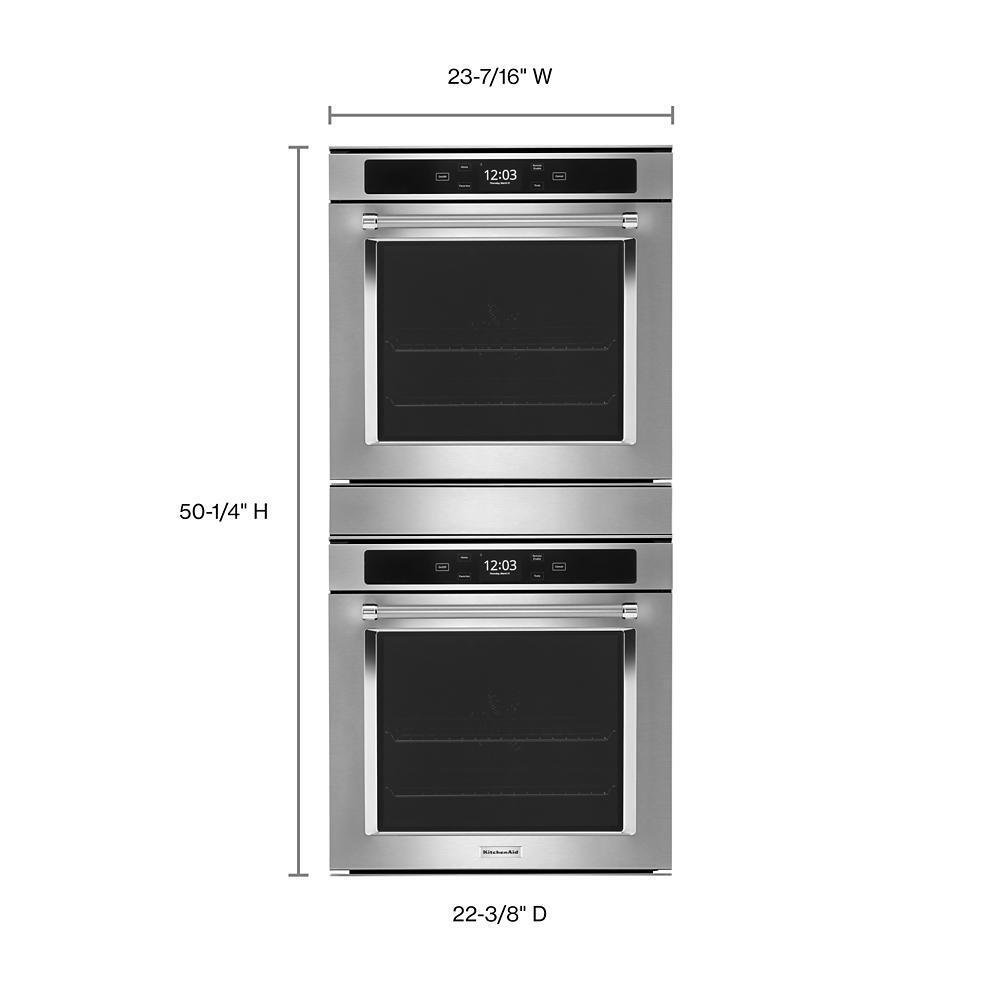

| Dimensions | |
| Product Height | 50.25 |
| Carton Height | 61.42 |
| Gross Weight | 178.6 |
| Carton Width | 25.2 |
| Lower Oven Interior Height | 14.563 |
| Upper Oven Interior Width | 18 |
| Product Depth | 22.5 |
| Depth With Door Open 90 Degree | 40.5 |
| Lower Oven Interior Width | 18 |
| Cutout Depth | 23.25 |
| Cutout Height | 49.75 |
| Depth Closed Excluding Handles | 22.5 |
| Depth Closed Including Handles | 24.75 |
| Upper Oven Interior Depth | 17 |
| Carton Depth | 27.17 |
| Cutout Width | 22.625 |
| Upper Oven Interior Height | 14.563 |
| Net Weight | 167.6 |
| Product Width | 23.4375 |
| Lower Oven Interior Depth | 17 |
| Electrical | |
| Power Cord Included | No |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| General | |
| Wall Oven Features | Smart Appliance |
| Microwave Details | |
| Language Conversion | English/French |
| Oven Details | |
| Bake Element Power | 1,150 W |
| Broiler Element Power | 2,045 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 2,000 |
| Convection Element Type | True Convection |
| Convection Functions | Bake; Broil |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 2 |
| Number of Upper Oven Racks | 2 |
| Number of Upper Rack Guides | 5 |
| Oven Cleaning Type | Self-Cleaning Upper/Manual Clean Lower |
| Upper Oven Number of Oven Lights | 2 |
| Smart Compatibility | |
| Connectivity | Amazon Alexa; Android; Google Assistant; iOS |
| Smart Appliance | Yes |
| Works With | App; Remote Access; Voice Controlled; WiFi |
- Double oven with 5.2 cu. ft. total cooking capacity
- Five-Level Rack Support makes it easy to rearrange two oven racks
- Flush Installation Option for a seamless built-in look
- PRINTSHIELD Finish coating resists smudges and fingerprints
- Self-Cleaning Cycle uses high temperatures not harsh chemicals
- Self-Close Doors gently shut themselves when your hands are full
- Wi-Fi enabled model with smart features and mobile app
- Touchscreen Controls make it easy to see and select cooking modes
- Trim Kit included for easy replacement of existing 24" wall oven
- True Convection for consistent baking and roasting
