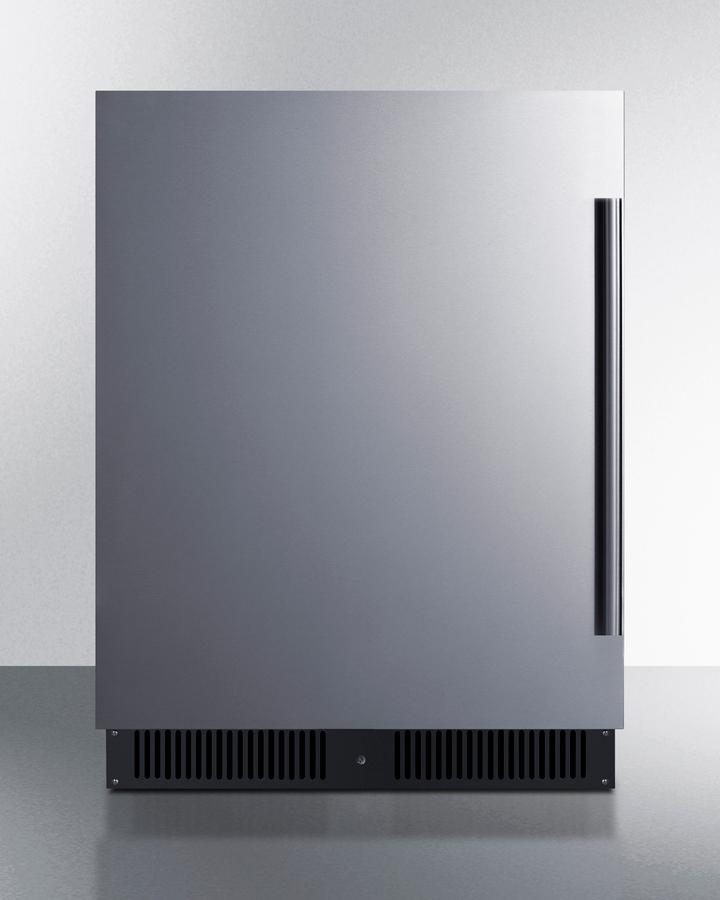

24" Wide Built-in All-freezer, ADA Compliant
Model ALFZ53LHD
24" Wide Built-in All-freezer, ADA Compliant
Model ALFZ53LHDQuick Specs
24" Wide Built-in All-freezer, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Undercounter All-Freezer
- 24" wide frost-free freezer sized to fit under lower ADA compliant counters
- ADA compliant design
- 32" height allows easy installation under lower ADA compliant counters
- Built-in capable
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Frost-free operation
- No-frost convenience eliminates the need to manually defrost the unit
- Stainless steel door
- Durable construction with a professional look
- Digital thermostat
- Electronic controls offer easy and intuitive temperature management
- Recessed LED light
- Elegant lighting with an on/off switch located on the control panel
- Left-hand door swing
- For this unit with the door opening from the other side, see model ALFZ53
- Adjustable shelves
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Factory installed lock
- Keyed lock for a secure interior
- Professional handle
- Attractive chrome handle adds a touch of modern style
- Open door alarm
- Audible alarm will sound if the door is left open longer than one minute
- Sabbath mode setting
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- High temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Sealed back
- Space-saving design with no exposed coils for easier cleanability
- Commercially approved
- ETL-S listed to NSF-7 commercial standards
- Fully finished cabinet
- Allows the freezer to be used as a freestanding model
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 24" wide frost-free freezer sized to fit under lower ADA compliant counters
- 32" height allows easy installation under lower ADA compliant counters
- Attractive chrome handle adds a touch of modern style
- Audible alarm will sound if the door is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability
- ETL-S listed to NSF-7 commercial standards
- Allows the freezer to be used as a freestanding model
- Environmentally friendly design without ozone-damaging chemicals
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- No-frost convenience eliminates the need to manually defrost the unit
- Durable construction with a professional look
- Electronic controls offer easy and intuitive temperature management
- Elegant lighting with an on/off switch located on the control panel
- For this unit with the door opening from the other side, see model ALFZ53
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Keyed lock for a secure interior
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. Model ALFZ53LHD is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. This freezer features a jet black cabinet and stainless steel door with a pro style handle. A factory-installed lock offers added security with two keys included. This unit comes with a front-breathing system that enables recessed built-in installation, while the fully finished exterior also allows freestanding use as needed. A right angle plug and sealed back design offers added space savings. Inside, the ALFZ53LHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management. The ALFZ53LHD freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional door finishes are available, including panel-ready, black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.67 cu.ft. (104 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 82.0 lbs. (37 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101091709 |
| Freezer | |
| Door Swing | LHD |
| Reversible | No |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
