24" Wide Built-in All-freezer, ADA Compliant (panel Not Included)
Model ALFZ53IFLHD24" Wide Built-in All-freezer, ADA Compliant (panel Not Included)
Model ALFZ53IFLHDQuick Specs
24" Wide Built-in All-freezer, ADA Compliant (panel Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 24" Wide ADA Height Freezer
- 24" wide frost-free freezer sized to fit under lower ADA compliant counters
- ADA compliant design
- 32" height allows easy installation under lower ADA compliant counters
- Custom style
- Door accepts overlay panel, allowing you to seamlessly blend the refrigerator into your space
- Built-in capable
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Panel-ready door
- Customize this unit using the included 2-piece bracket system (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
- Easy panel installation with included 2-piece bracket kit\t
- Enhanced panel execution allows the unit to be flush with cabinets
- Stainless steel door
- Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel
- Fully articulating hinge
- European style hinge design ensures a flush fit and allows for a smoother opening
- Frost-free operation
- No-frost convenience eliminates the need to manually defrost the unit
- Digital thermostat
- Electronic controls offer easy and intuitive temperature management
- Recessed LED light
- Elegant lighting with an on/off switch located on the control panel
- Left-hand door swing
- For this unit with the door opening from the other side, see model ALFZ53IF
- Adjustable shelves
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Open door alarm
- Audible alarm will sound if the door is left open longer than one minute
- Sabbath mode setting
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- High temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Factory-installed lock
- Keyed lock located in the kickplate for optional security
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Sealed back
- Space-saving design with no exposed coils for easier cleanability
- Matching refrigerator available
- Pair with the AL54PNR for a matching side-by-side set under lower ADA compliant counters
- Commercially approved
- ETL-S listed to NSF-7 commercial standards
- Fully finished cabinet
- Allows the freezer to be used as a freestanding model
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 24" wide frost-free freezer sized to fit under lower ADA compliant counters
- 32" height allows easy installation under lower ADA compliant counters
- Elegant lighting with an on/off switch located on the control panel
- For this unit with the door opening from the other side, see model ALFZ53IF
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Audible alarm will sound if the door is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Unit will retain its last settings when power is restored in the event of power loss
- Keyed lock located in the kickplate for optional security
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability
- Door accepts overlay panel, allowing you to seamlessly blend the refrigerator into your space
- Pair with the AL54PNR for a matching side-by-side set under lower ADA compliant counters
- ETL-S listed to NSF-7 commercial standards
- Allows the freezer to be used as a freestanding model
- Environmentally friendly design without ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Customize this unit using the included 2-piece bracket system (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
- Enhanced panel execution allows the unit to be flush with cabinets
- Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel
- European style hinge design ensures a flush fit and allows for a smoother opening
- No-frost convenience eliminates the need to manually defrost the unit
- Electronic controls offer easy and intuitive temperature management

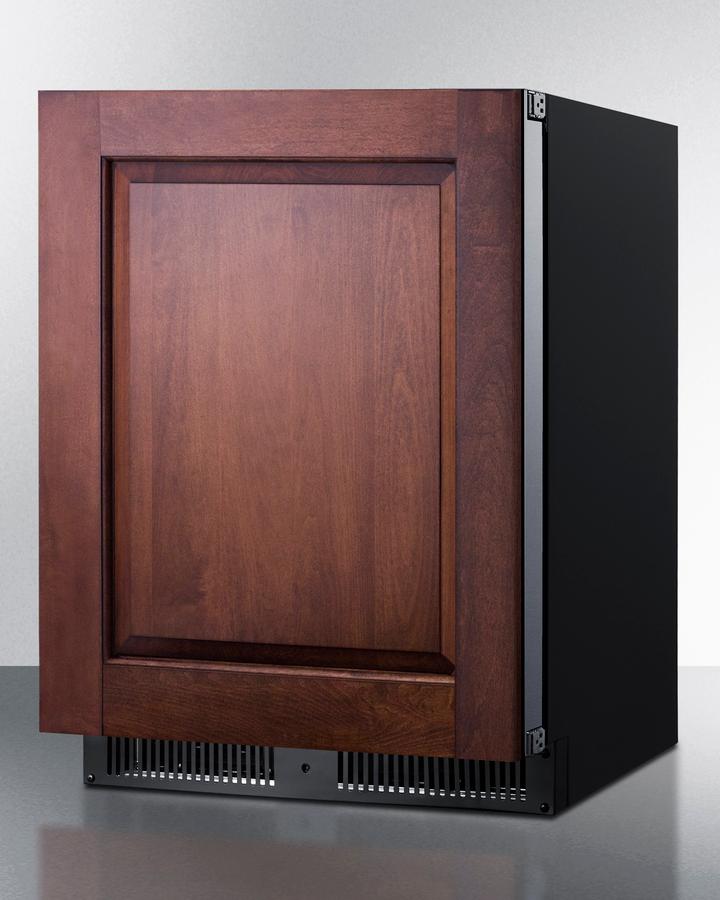

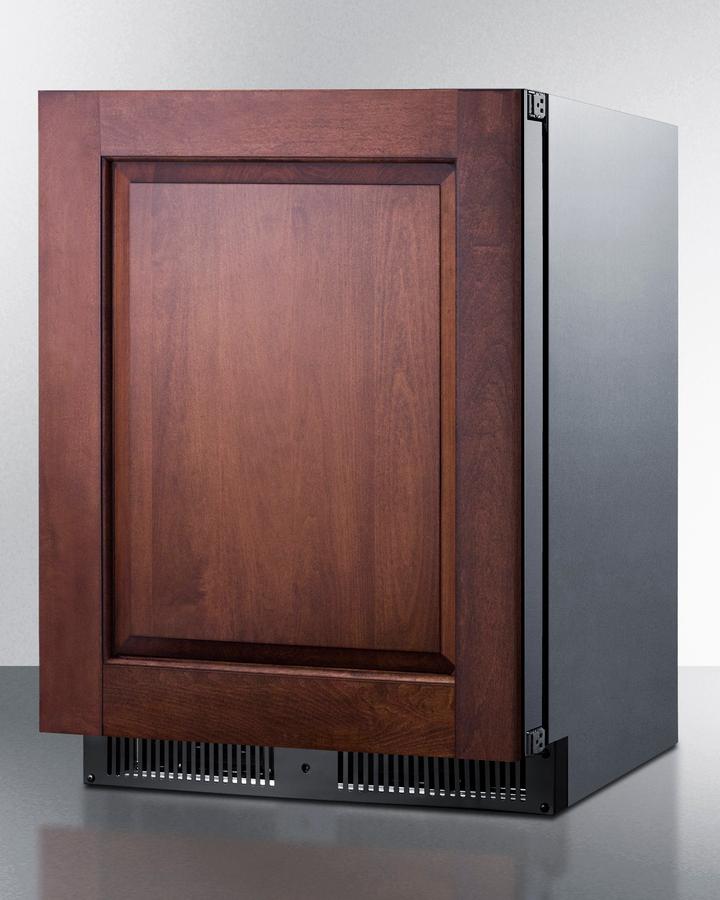

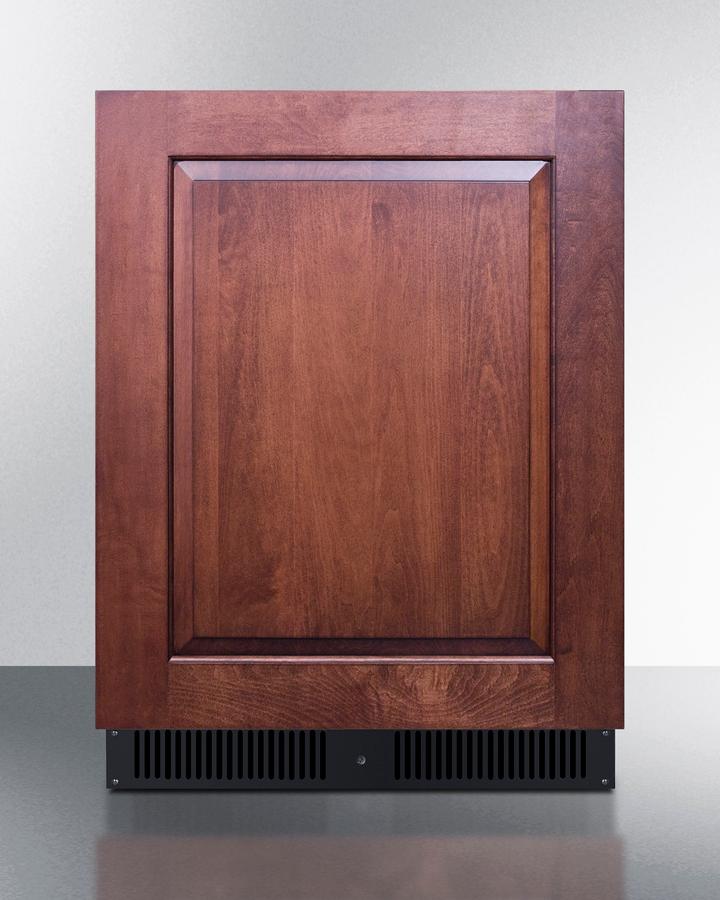

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. Model ALFZ53IFLHD is a 24" wide all-freezer that can be paired with our AL54PNR all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate. Inside, the ALFZ53IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management. The ALFZ53IFLHD freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54PNR all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer set under ADA compliant counters. Additional door finishes are available, including stainless and black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 90.0 lbs. (41 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101091747 |
| Freezer | |
| Door Swing | LHD |
| Reversible | No |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
