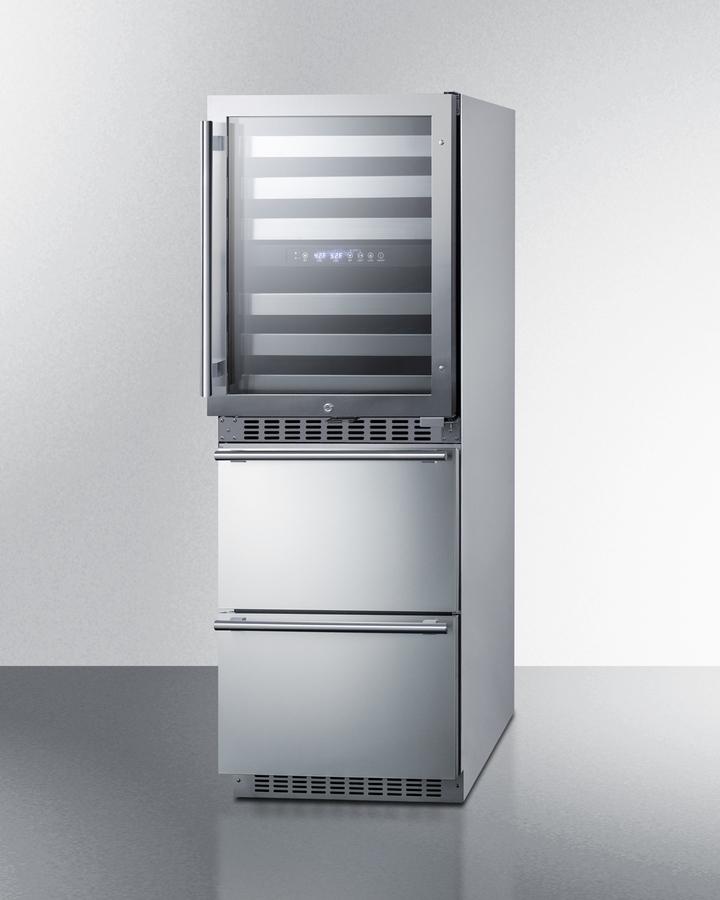

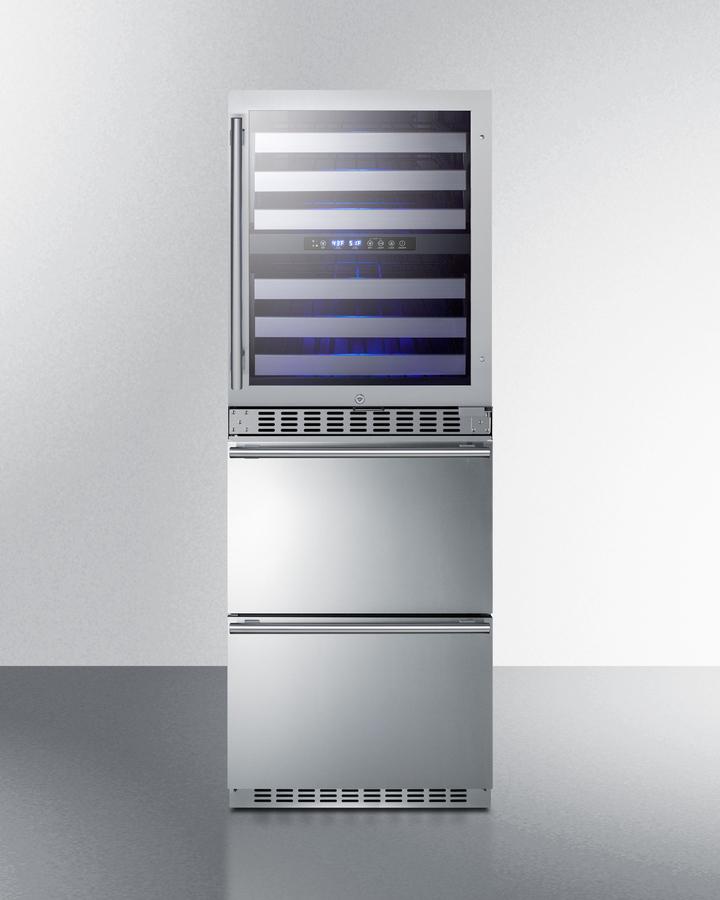

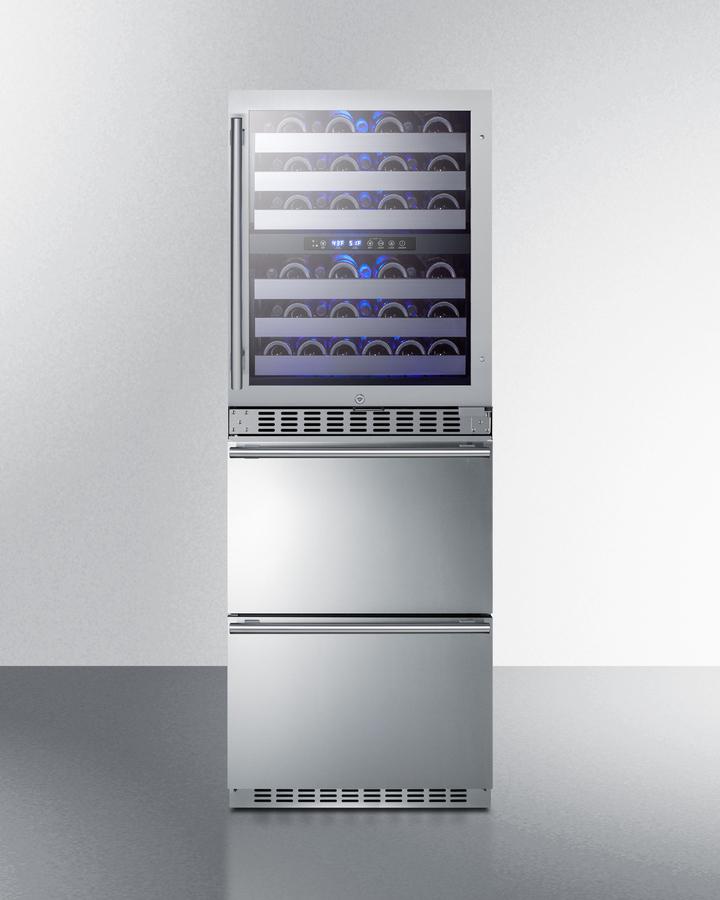

    24" Wide Combination Dual-zone Wine Cellar and 2-drawer Refrigerator-freezer

    Model SWCDRF24
    Authorized Dealer
    Free Shipping
    Top Rated Store
    Authorized Dealer

    24" Wide Combination Dual-zone Wine Cellar and 2-drawer Refrigerator-freezer

    Model SWCDRF24
    Free Shipping
    Top Rated Store
    Quick Specs
    Width
    23.63"
    Depth
    25.75"
    Height
    65.63"
    Sabbath
    YES
    Fresh
    3.9
    Cu Ft
    3.9
    Size
    3.9
    Shelves
    6
    Sale Price
    Sale price $3,632.39 Regular price $5,280.00
    You save 31%
    Out of stock
    Notify When Restocked

    SERVICES AVAILABLE

    Quick Specs
    Width
    23.63"
    Depth
    25.75"
    Height
    65.63"
    Sabbath Mode
    YES
    Fresh food Capacity
    3.9
    Capacity (cu ft.)
    3.9
    Refrigerator Size
    3.9
    Refrigerator number of Shelves
    6
    ADA
    NO
    Dispenser
    NO
    Icemaker
    NO
    Wifi Connected
    NO
    Counter Depth
    NO
    RPM
    -1.0
    Energy Star Rated
    NO
    • Combination wine cellar and refrigerator-freezer
    • Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer refrigerator-freezer (model SPRF34D, perfect for home bars, kitchens, and similar residential spaces
    • 24" wide
    • Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
    • Built-in capable
    • Front-breathing design allows this unit be built in for added space savings

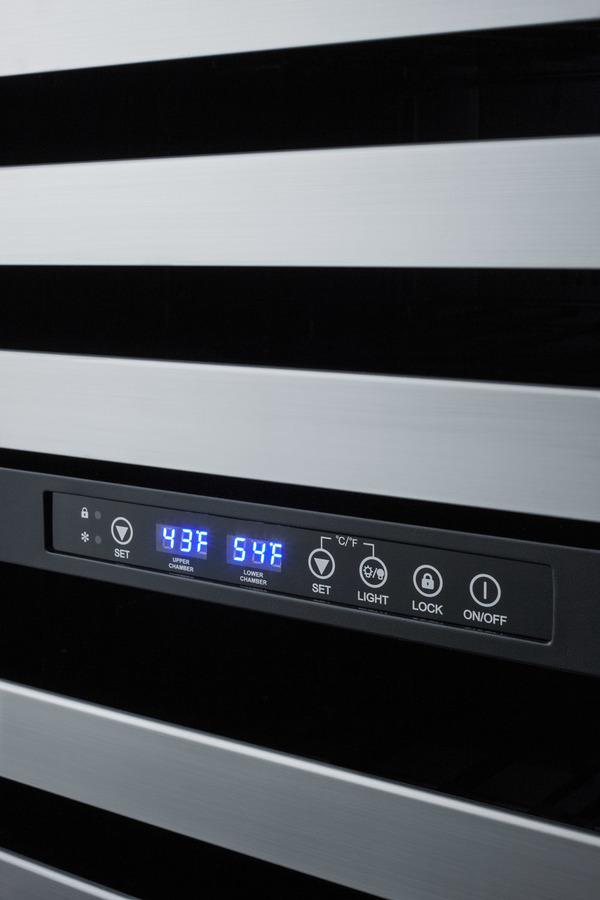

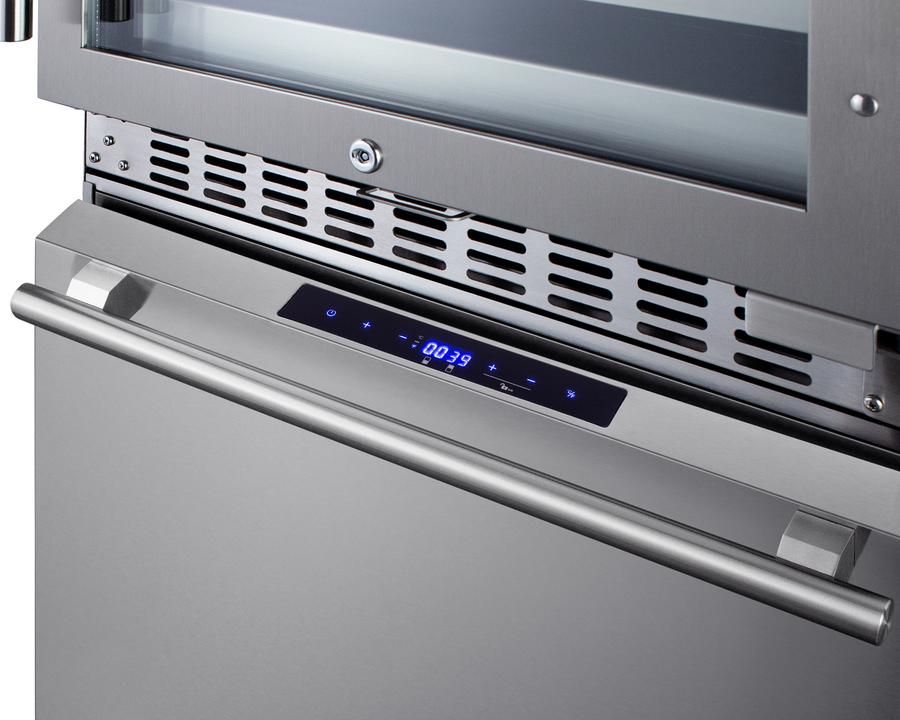

    • Digital controls (both units)
    • Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
    • LED lighting (both units)
    • LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of the refrigerator interior for easy access
    • Double pane tempered glass door (wine cellar)
    • Provides a full display of the interior, with two levels of glass for added protection
    • Seamless stainless steel door frame (wine cellar)
    • Single-piece door trim offers a more deluxe look
    • Professional handles (both units)
    • Solid stainless steel handles 1 in diameter afford style to any setting
    • Two temperature zones (wine cellar)
    • Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
    • Commercial shelving design (wine cellar)
    • Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

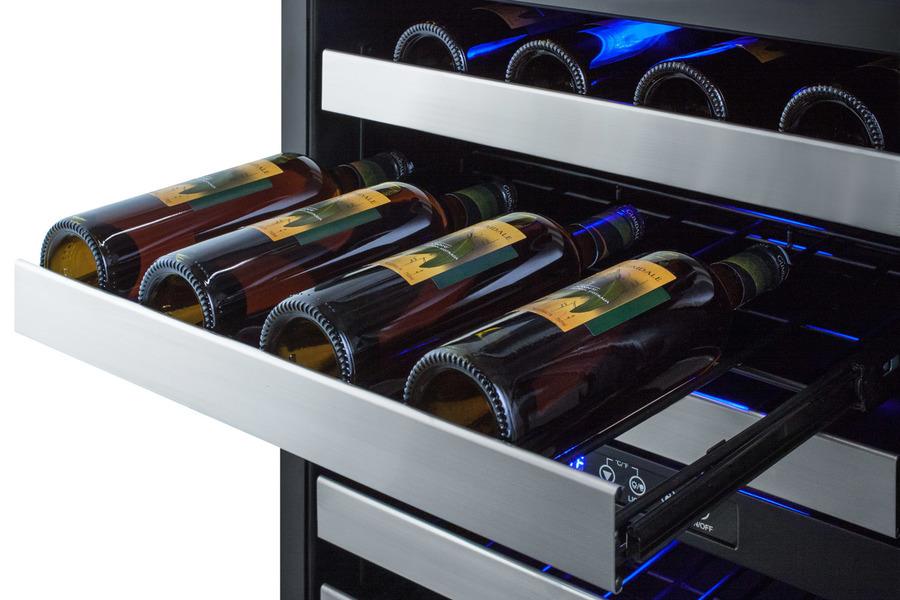

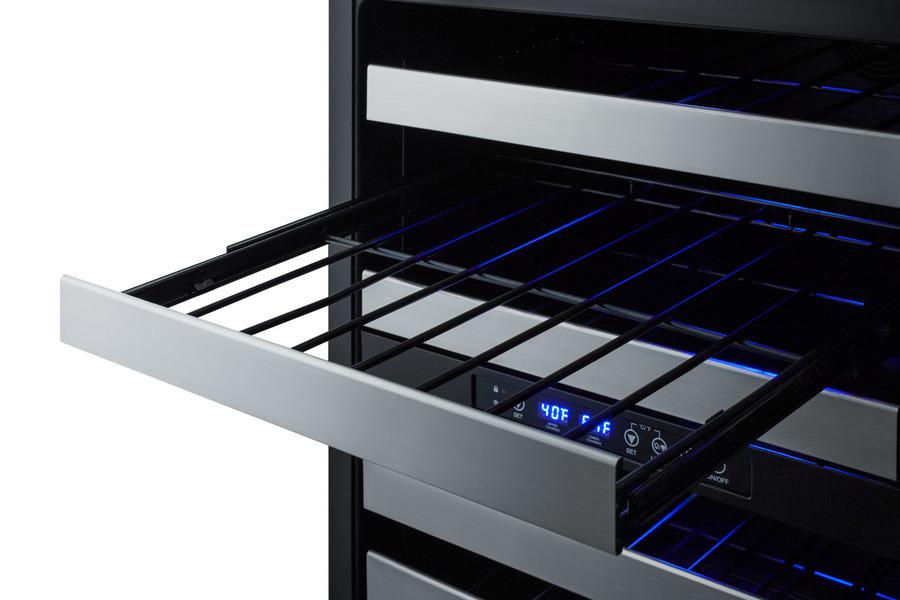

    • Full-extension shelving (wine cellar)
    • Shelves move smoothly on ball-bearing glides for easier loading and unloading
    • Automatic defrost (wine cellar)
    • Reduced maintenance with auto defrost system
    • Factory installed lock (wine cellar)
    • Keyed lock for secure interior, with two keys included
    • Reversible door (wine cellar)
    • User-reversible door swing makes it easy to best accommodate your setting

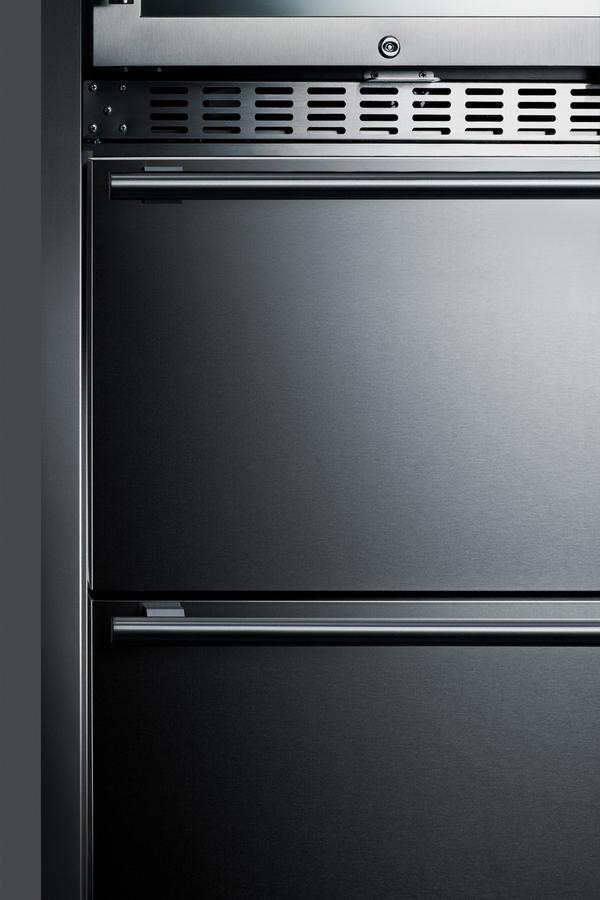

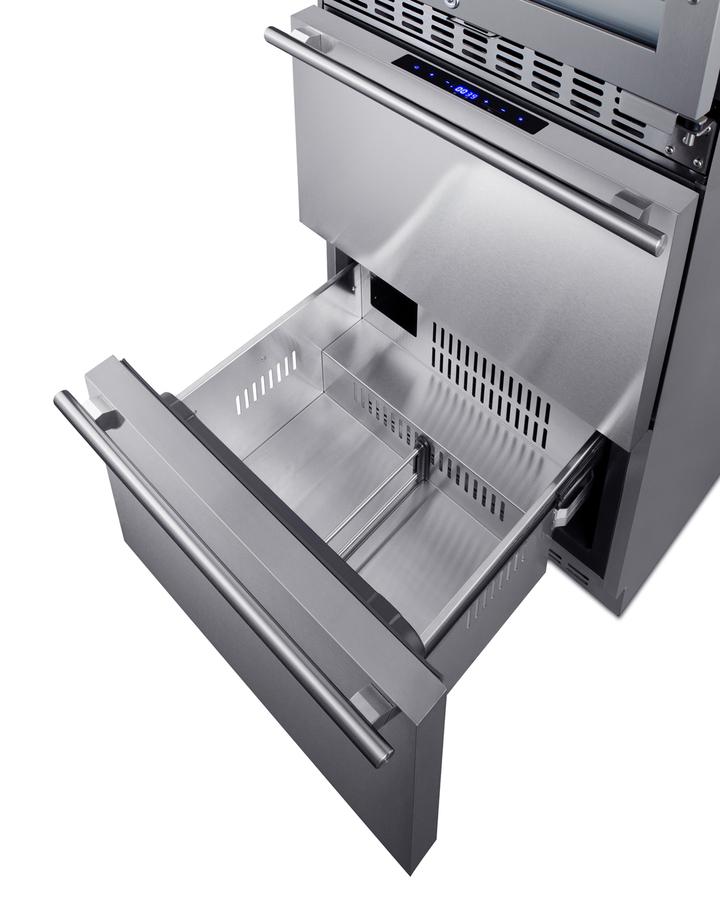

    • Two stainless steel drawers (refrigerator-freezer)
    • Slide-out drawers offer 3.4 cu.ft. of interior storage
    • Stainless steel construction (refrigerator-freezer)
    • Complete stainless steel construction offers added durability in an easy-cleaning design
    • Drawer dividers (refrigerator-freezer)
    • Two adjustable dividers make it simple to organize the drawer interiors

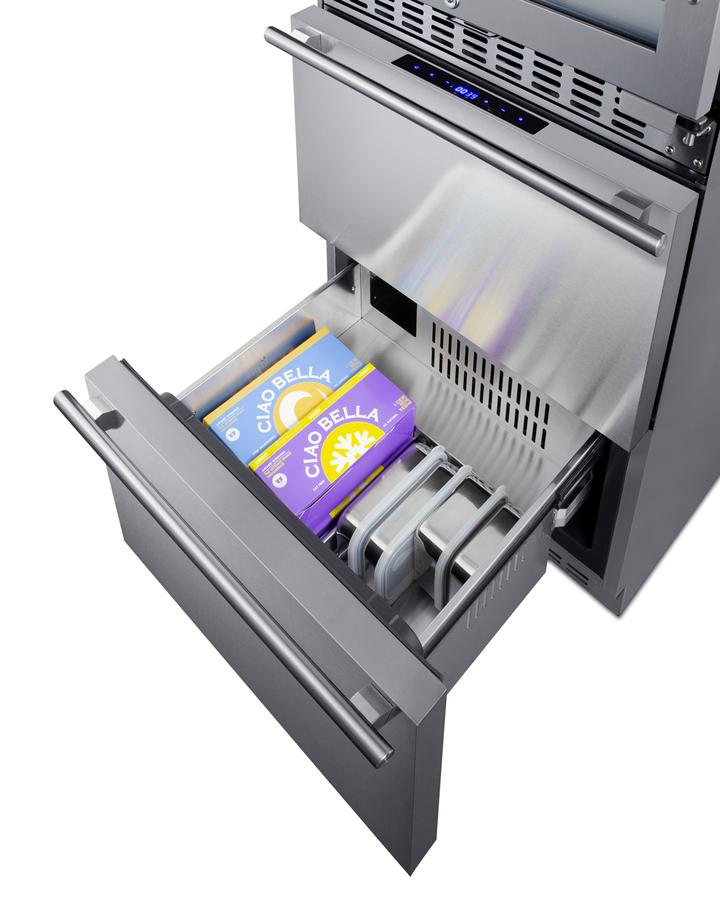

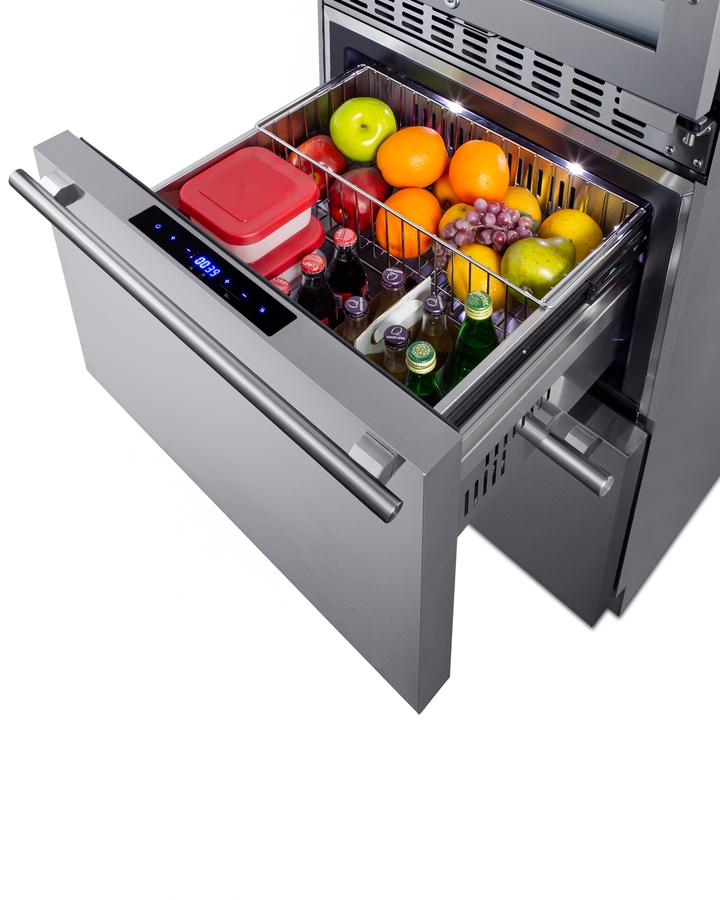

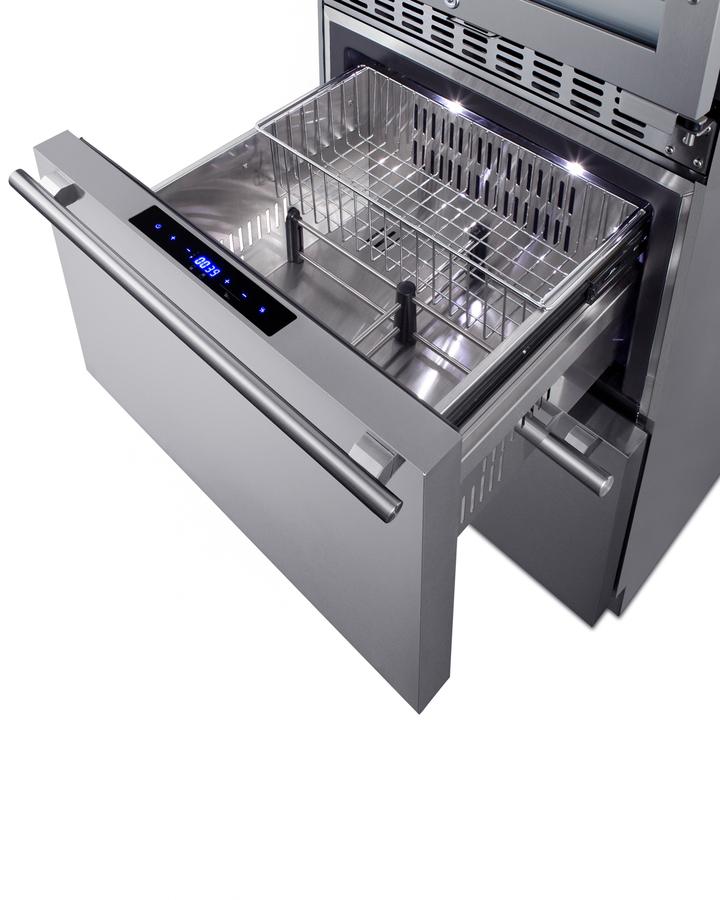

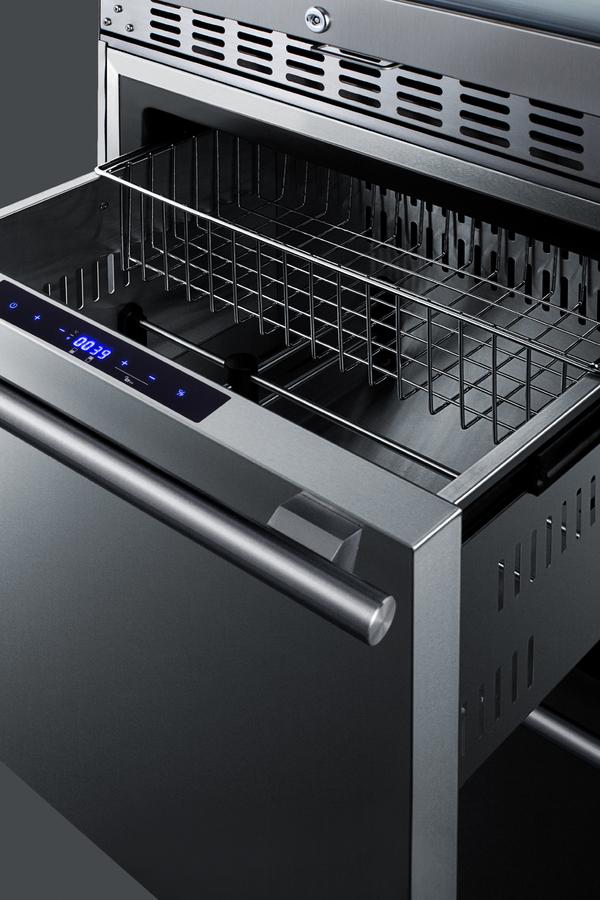

    • Sliding basket (refrigerator-freezer)
    • Removable chrome basket included for easier storage convenience
    • Frost-free operation (refrigerator-freezer)
    • No-frost operation for minimum user maintenance
    • Internal fan (refrigerator-freezer)
    • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
    • Stainless steel kickplate (refrigerator-freezer)
    • Protects from everyday wear and tear in a durable, elegant design
    • Open drawer alarm\t(refrigerator-freezer)
    • Audible alarm will sound if the drawers are left ajar for over a minute
    • Temperature alarm (refrigerator-freezer)
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Temperature Memory Function (refrigerator-freezer)
    • Unit will retain its last settings when power is restored in the event of power loss
    • Child lock (refrigerator-freezer)
    • Disables digital controls after two minutes of activity for added safety
    • Sabbath Mode (refrigerator-freezer)
    • Optional setting lets you disable the lighting and alarm for up to 48 hours

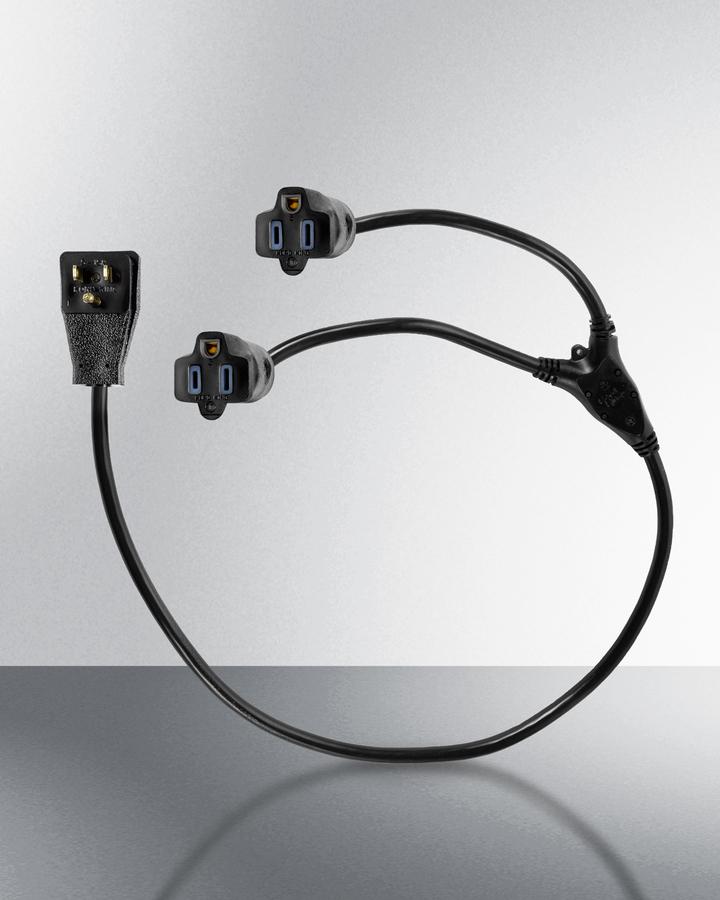

    • Y-cord with single 3-prong right angle plug included
    • Included 6 ft. cord allows users to operate both the wine cellar & refrigerator-freezer using a single plug for added convenience
    • Anti-tip bracket
    • Included and recommended for user-installation to reduce the risk of tipping
    • Fully finished stainless steel cabinet
    • Allows the unit to be used freestanding
    • Ships fully assembled
    • Unit comes fully assembled for user convenience
    • Additional choices available
    • This unit is also available with a bottom refrigerator (see the SWCDAR24) or a bottom freezer (see the SWCDAF24)
    • 100% CFC Free
    • Environmentally friendly design with no ozone-damaging chemicals
    • CARB Compliant
    • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    • Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer refrigerator-freezer (model SPRF34D, perfect for home bars, kitchens, and similar residential spaces
    • Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
    • Shelves move smoothly on ball-bearing glides for easier loading and unloading
    • Reduced maintenance with auto defrost system
    • Keyed lock for secure interior, with two keys included
    • User-reversible door swing makes it easy to best accommodate your setting
    • Slide-out drawers offer 3.4 cu.ft. of interior storage
    • Complete stainless steel construction offers added durability in an easy-cleaning design
    • Two adjustable dividers make it simple to organize the drawer interiors
    • Removable chrome basket included for easier storage convenience
    • No-frost operation for minimum user maintenance
    • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
    • Front-breathing design allows this unit be built in for added space savings
    • Protects from everyday wear and tear in a durable, elegant design
    • Audible alarm will sound if the drawers are left ajar for over a minute
    • High temperature alarm sounds if the unit's interior goes out of the recommended range
    • Unit will retain its last settings when power is restored in the event of power loss
    • Disables digital controls after two minutes of activity for added safety
    • Optional setting lets you disable the lighting and alarm for up to 48 hours
    • Included 6 ft. cord allows users to operate both the wine cellar & refrigerator-freezer using a single plug for added convenience
    • Included and recommended for user-installation to reduce the risk of tipping
    • Allows the unit to be used freestanding
    • Unit comes fully assembled for user convenience
    • Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
    • This unit is also available with a bottom refrigerator (see the SWCDAR24) or a bottom freezer (see the SWCDAF24)
    • Environmentally friendly design with no ozone-damaging chemicals
    • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    • LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of the refrigerator interior for easy access
    • Provides a full display of the interior, with two levels of glass for added protection
    • Single-piece door trim offers a more deluxe look
    • Solid stainless steel handles 1 in diameter afford style to any setting
    • Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
    • Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

    Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator-freezer - the perfect entertainment station for the home. Sized at just under 24" wide, the SWCDRF24 combines the 46 bottle capacity two-zone wine cellar (model ALWC532) with the 3.9 cu.ft. two-drawer refrigerator-freezer (model SPRF34D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. Pro-style handles in brushed stainless steel complete the modern look, while the sealed back offers added space savings when placing the unit. The included six-foot Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. For user convenience, this model ships fully assembled. The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41(degree)F and 50 F for white wine, while the lower zone is designed to store red wine between 50(degree)F and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. The bottom two-drawer refrigerator-freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers make it easy to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding, removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. Offering complete refrigeration convenience in a slim-fitting design, the SWCDRF24 is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. This unit can also be ordered to accept custom panels over the drawers and door frame (see model SWCDRF24PNR). Additional options are available with a bottom refrigerator (model SWCDAR24) or a bottom freezer (model SWCDAF24). Note: This unit comes with an anti-tip bracket which should be installed to prevent tipping forward.

    Overview
    Nominal Height 66.0" (168 cm)
    Height of Cabinet 65.63" (167 cm)
    Nominal Width 24.0" (61 cm)
    Width 23.63" (60 cm)
    Nominal Depth 24.0" (61 cm)
    Depth 23.75" (60 cm)
    Depth with Handle 25.75" (65 cm)
    Depth with door at 90° 45.75" (116 cm)
    Capacity 3.9 cu.ft. (110 L)
    Bottles 46 bottles
    Defrost Type Automatic
    Door Glass/SS
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Energy Usage/Year 380.0kWh/year
    Other Energy Info ALWC532: 1.25Ams; SPRF34D: 1.0 Amp
    Amps 2.25
    Voltage/Frequency 115 V AC/60 Hz
    Weight 221.0 lbs. (100 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101082844
    Wine Cellar
    Number of Zones 2
    Door Swing RHD
    Reversible Yes
    Shelf Type Wire
    Shelf Qty 6
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.23 oz.
    High Side PSI 150.0
    Low Side PSI 50.0
    Interior Height 1 11.88" (30 cm)
    Interior Width 1 20.5" (52 cm)
    Interior Depth 1 18.0" (46 cm)
    Interior Height - Drawer 1 10.0" (25 cm)
    Interior Width - Drawer 1 18.75" (48 cm)
    Interior Depth - Drawer 1 15.5" (39 cm)
    Interior Height - Drawer 2 9.25" (23 cm)
    Interior Width - Drawer 2 18.75" (48 cm)
    Interior Depth - Drawer 2 15.5" (39 cm)
    Temperature Range ALWC532: 41°F to 64°F; SPRF34D: 36°F to 43°F/Freezer: -11°F to 11°F
    Interior Height 2 11.63" (30 cm)
    Interior Width 2 20.5" (52 cm)
    Interior Depth 2 18.0" (46 cm)
