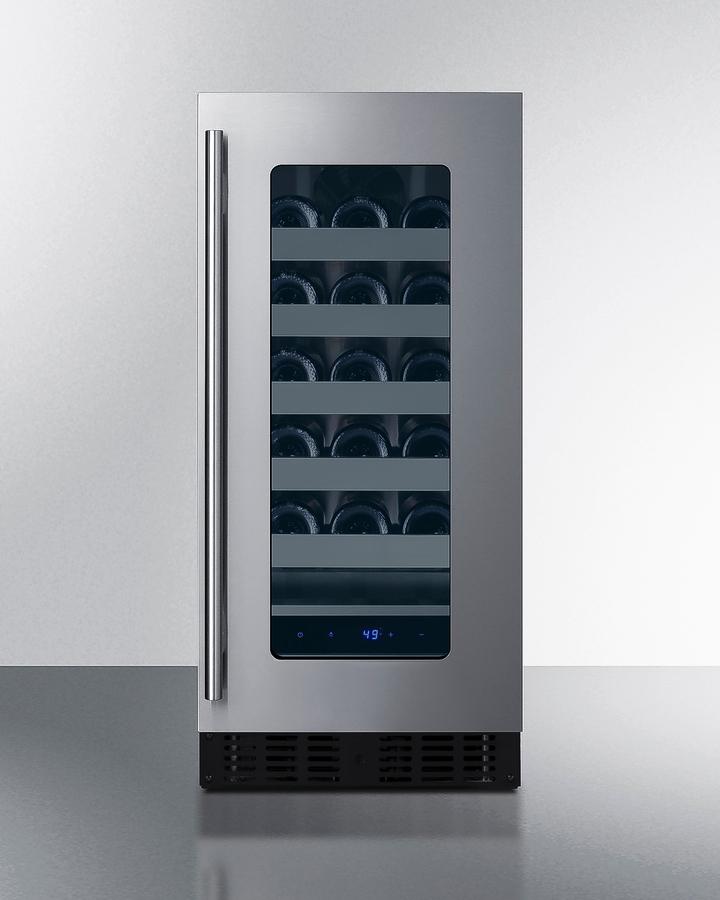

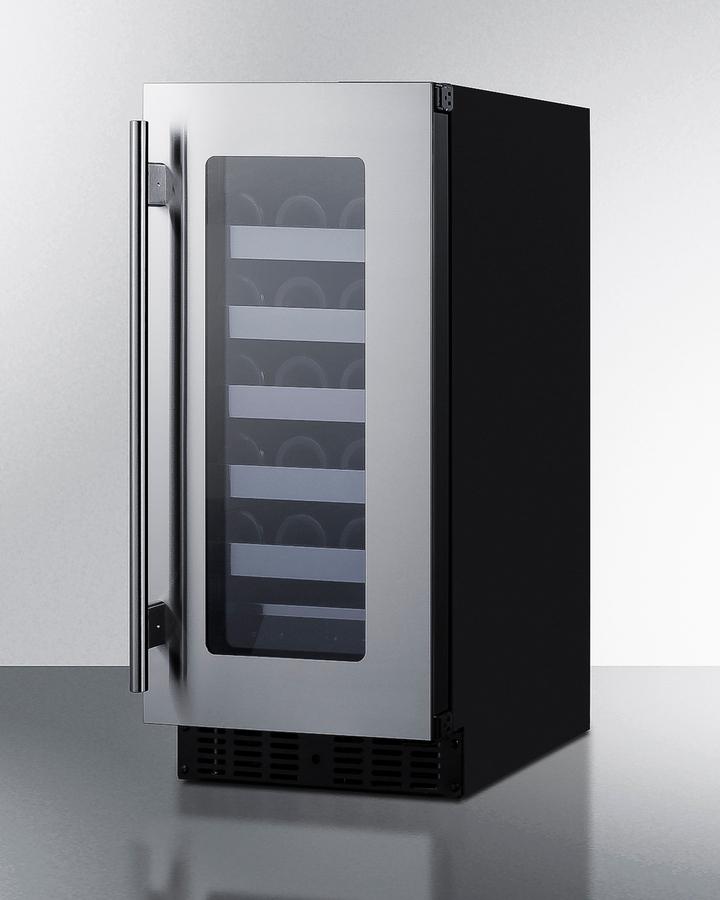

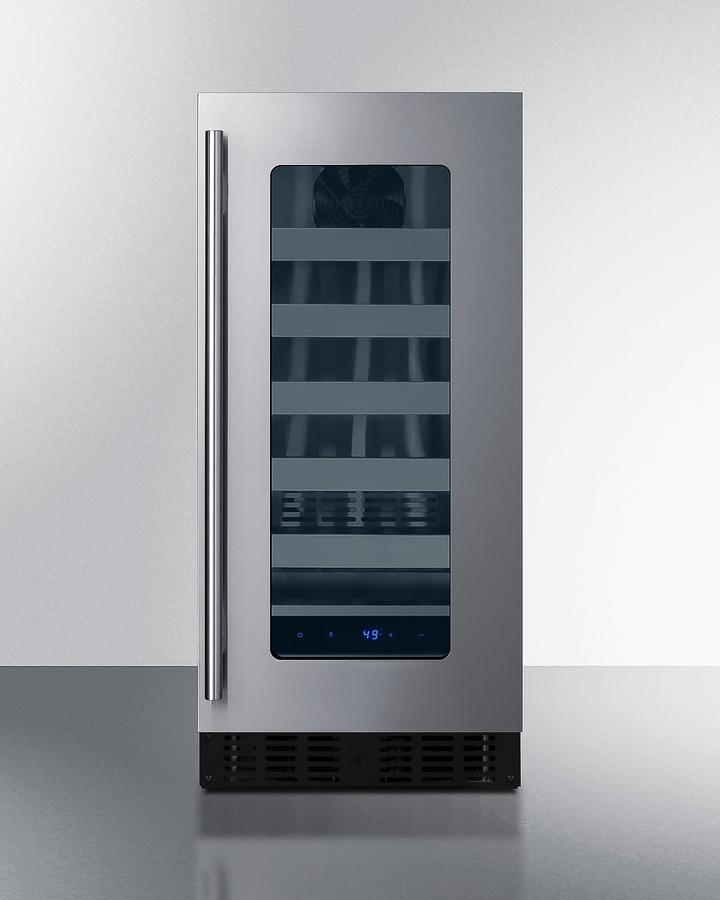

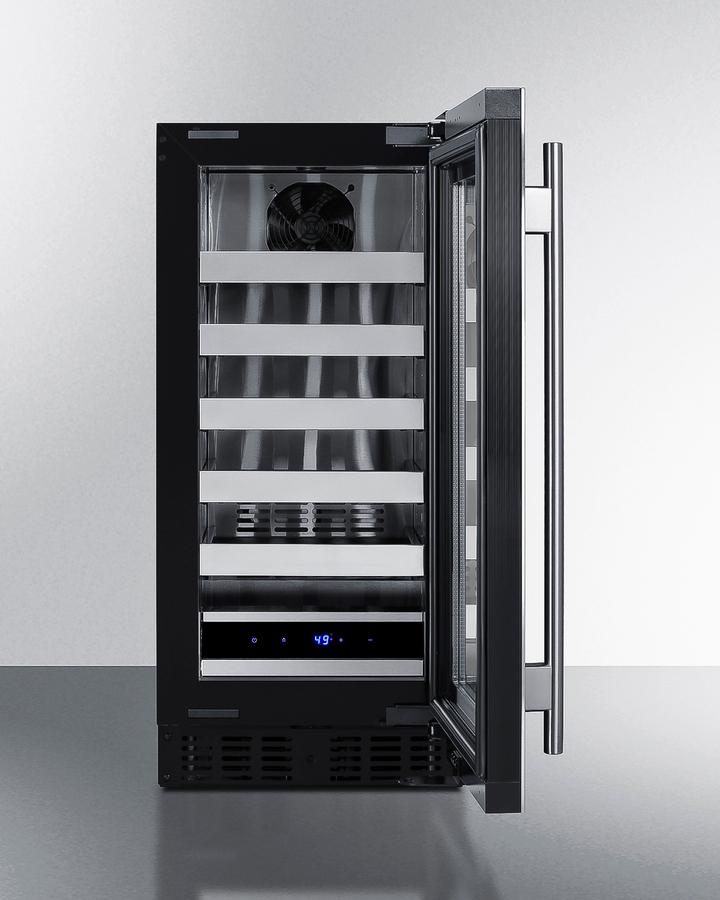

    15" Wide Built-in Wine Cellar, ADA Compliant

    Model ASDW1522
    Authorized Dealer
    Free Shipping
    Top Rated Store
    Authorized Dealer

    15" Wide Built-in Wine Cellar, ADA Compliant

    Model ASDW1522
    Free Shipping
    Top Rated Store
    Quick Specs
    Width
    14.75"
    Depth
    19.63"
    Height
    32"
    Sabbath
    YES
    Fresh
    1.8
    Cu Ft
    1.8
    Size
    1.8
    Shelves
    5

    15" Wide Built-in Wine Cellar, ADA Compliant is backordered and will ship as soon as it is back in stock.

    *Delivery may take longer than usual. We'll keep you informed throughout the process.
    Sale Price
    Sale price $1,425.65 Regular price $2,035.00
    You save 29%
    Available to Order (*Extended Delivery)

    SERVICES AVAILABLE

    Quick Specs
    Width
    14.75"
    Depth
    19.63"
    Height
    32"
    Sabbath Mode
    YES
    Fresh food Capacity
    1.8
    Capacity (cu ft.)
    1.8
    Refrigerator Size
    1.8
    Refrigerator number of Shelves
    5
    ADA
    YES
    Dispenser
    NO
    Icemaker
    NO
    Wifi Connected
    NO
    RPM
    -1.0
    Energy Star Rated
    NO
    • 15" wide wine cellar
    • Single zone wine cooler for residential or commercial cold storage\t
    • Less than 18" deep\t
    • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space\t
    • ADA compliant
    • Sized at 32" high for use under lower ADA compliant counters
    • Adjustable height
    • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets\t
    • Built-in capable
    • Front-breathing design lets you make the best use of space by installing your appliance under the counter\t
    • Stainless steel interior
    • Walls and floor are constructed from stainless steel for added strength and easy cleanup\t
    • Double pane tempered glass door
    • Elegant design offers a clear but protected view of your interior\t
    • Seamless stainless steel door trim\t
    • Glass is framed by with a flush one-piece stainless steel trim for an elevated look\t
    • Factory installed lock
    • Keyed lock for a secure interior (2 keys included)\t

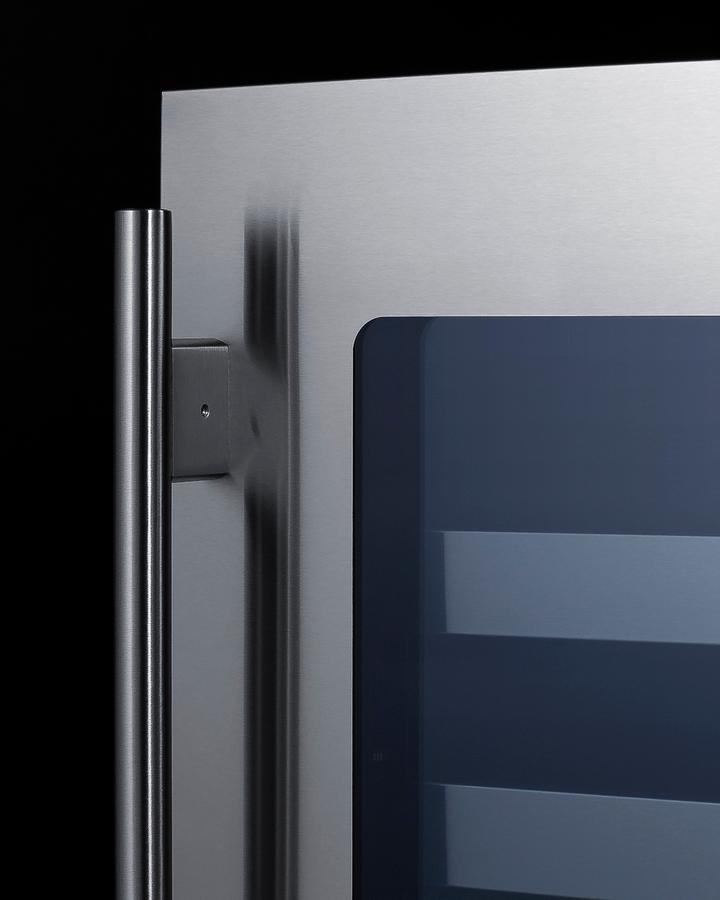

    • Professional handle
    • Stainless steel handle completes the look\t
    • Digital thermostat
    • Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button\t

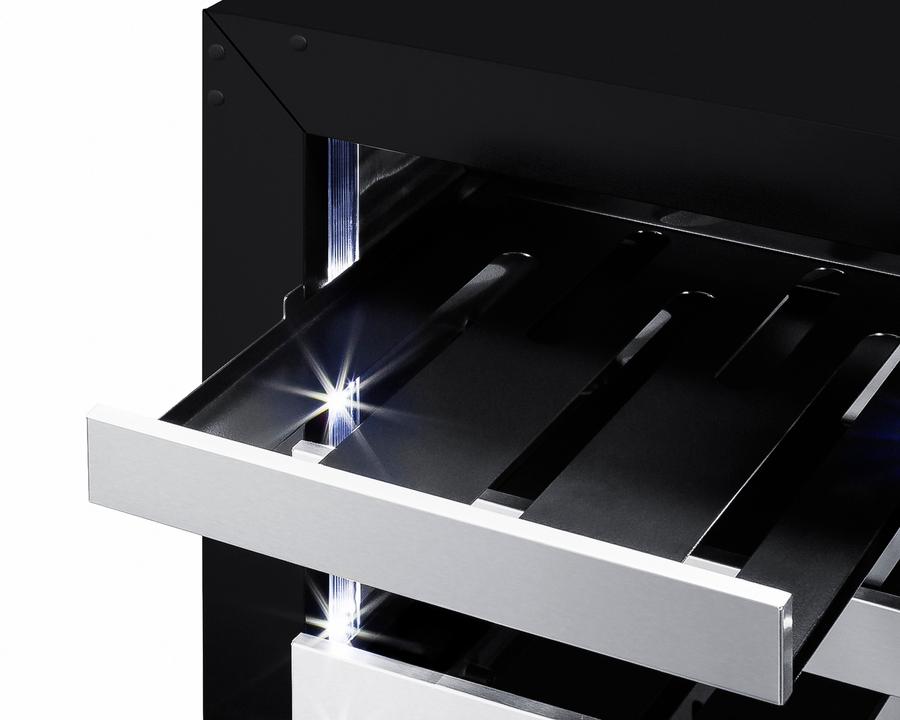

    • Dimmable LED lighting
    • Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness\t
    • Frost-free operation\t
    • No-frost operation for minimum user maintenance
    • Internal fan
    • Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom\t

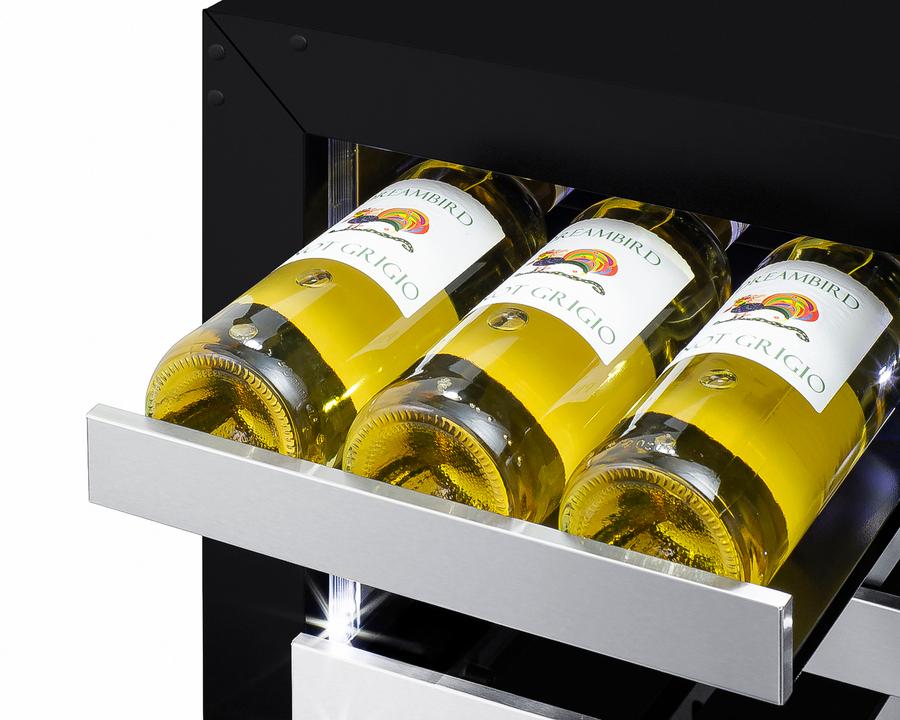

    • Commercial wine shelving
    • Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
    • Open door alarm
    • Alarm sounds if the door is left open for more than 60 seconds
    • High temperature alarm
    • Audible alarm sounds if the interior temperature rises out of set range
    • Sabbath mode setting
    • Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance\t
    • Temperature Memory Function\t
    • Unit will retain its last settings when power is restored in the event of power loss\t
    • Right angle plug
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Sealed back
    • Space-saving design with no exposed coils that offers easier cleanability\t

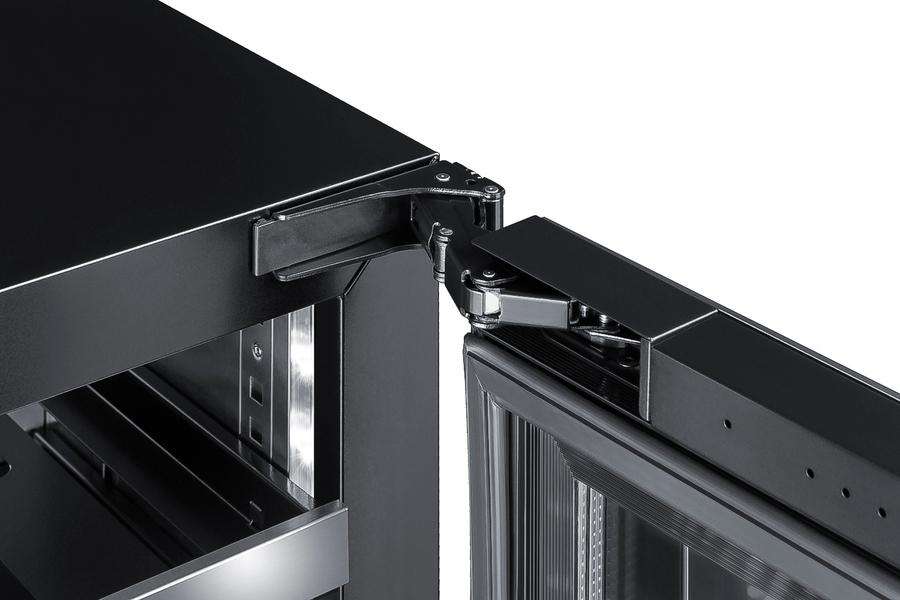

    • Fully articulating European style hinge
    • Smoother opening and a better fit with an integrated European hinge\t
    • Reversible door
    • User-reversible door swing on the refrigerator for added flexibility
    • Fully finished black cabinet
    • Allows the unit to be used freestanding
    • Commercially approved
    • ETL-S listed to NSF-7 Standards for use in commercial establishments
    • 100% CFC Free
    • Environmentally friendly design with no ozone-damaging chemicals
    • CARB Compliant
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

    • Single zone wine cooler for residential or commercial cold storage
    • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
    • Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
    • Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
    • No-frost operation for minimum user maintenance
    • Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
    • Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
    • Alarm sounds if the door is left open for more than 60 seconds
    • Audible alarm sounds if the interior temperature rises out of set range
    • Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
    • Unit will retain its last settings when power is restored in the event of power loss
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Sized at 32" high for use under lower ADA compliant counters
    • Space-saving design with no exposed coils that offers easier cleanability
    • Smoother opening and a better fit with an integrated European hinge
    • User-reversible door swing on the refrigerator for added flexibility
    • Allows the unit to be used freestanding
    • ETL-S listed to NSF-7 Standards for use in commercial establishments
    • Environmentally friendly design with no ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
    • Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Walls and floor are constructed from stainless steel for added strength and easy cleanup
    • Elegant design offers a clear but protected view of your interior
    • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
    • Keyed lock for a secure interior (2 keys included)
    • Stainless steel handle completes the look

    Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW1522 is a 15" wide single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW1522 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41 and 64 F to accommodate red, white, or sparkling wine. Store bottles on the removable steel shelves complete with stainless steel front trim. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW1522 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDG1521 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

    Overview

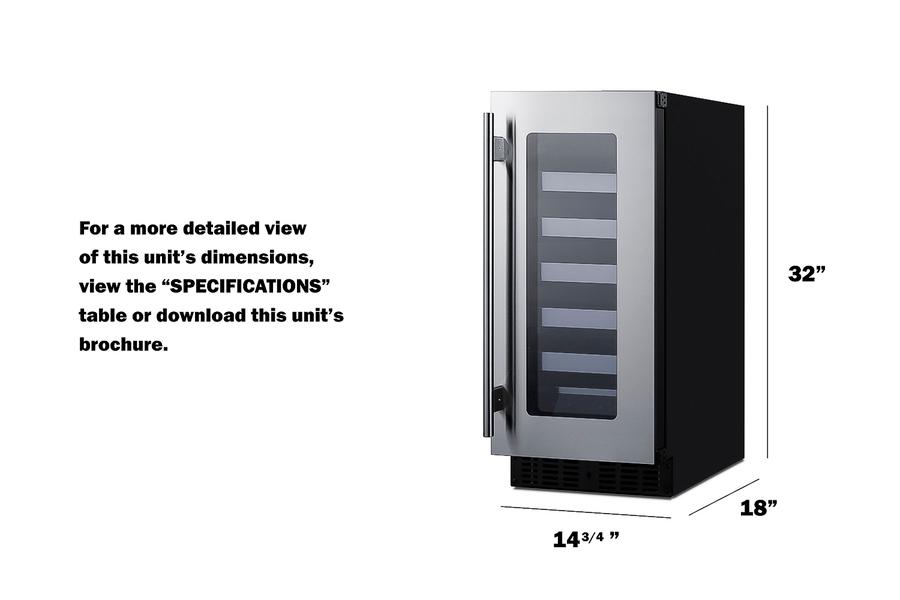

    Nominal Height 32.0" (81 cm)
    Height of Cabinet 32.0" (81 cm)
    Nominal Width 15.0" (38 cm)
    Width 14.75" (37 cm)
    Nominal Depth 18.0" (46 cm)
    Depth 17.75" (45 cm)
    Depth with Handle 19.63" (50 cm)
    Depth with door at 90° 31.0" (79 cm)
    Capacity 1.8 cu.ft. (51 L)
    Bottles 18 bottles
    Defrost Type Automatic
    Door Glass
    Cabinet Black
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.0
    Voltage/Frequency 115 V AC/60 Hz
    Weight 68.0 lbs. (31 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101079516
    Wine Cellar
    Number of Zones 1
    Door Swing RHD
    Reversible Yes
    Height Adjustable Yes
    Adjustable Shelves Yes
    Shelf Type Steel
    Shelf Qty 5
    Thermostat Type Digital
    Interior Light Yes
    Fan Type Interior and Exterior
    Refrigerant Type R600a
    Refrigerant Amount 0.64 oz.
    High Side PSI 270.0
    Low Side PSI 105.0
    Interior Height 1 20.5" (52 cm)
    Interior Width 1 10.75" (27 cm)
    Interior Depth 1 12.25" (31 cm)
    Compressor Step Height 3.75" (10 cm)
    Compressor Step Width 10.75" (27 cm)
    Compressor Step Depth 5.0" (13 cm)
    Level Legs 4
    Temperature Range 41 to 64 F
    Sabbath Mode Yes
    Sound Level 33 dB
    • Single zone wine cooler for residential or commercial cold storage
    • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
    • Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
    • Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
    • No-frost operation for minimum user maintenance
    • Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
    • Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
    • Alarm sounds if the door is left open for more than 60 seconds
    • Audible alarm sounds if the interior temperature rises out of set range
    • Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
    • Unit will retain its last settings when power is restored in the event of power loss
    • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Sized at 32" high for use under lower ADA compliant counters
    • Space-saving design with no exposed coils that offers easier cleanability
    • Smoother opening and a better fit with an integrated European hinge
    • User-reversible door swing on the refrigerator for added flexibility
    • Allows the unit to be used freestanding
    • ETL-S listed to NSF-7 Standards for use in commercial establishments
    • Environmentally friendly design with no ozone-damaging chemicals
    • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
    • Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Walls and floor are constructed from stainless steel for added strength and easy cleanup
    • Elegant design offers a clear but protected view of your interior
    • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
    • Keyed lock for a secure interior (2 keys included)
    • Stainless steel handle completes the look
