14 CU.FT. Dipping Cabinet (unassembled)
Model NOVA45GDC
14 CU.FT. Dipping Cabinet (unassembled)
Model NOVA45GDCQuick Specs
14 CU.FT. Dipping Cabinet (unassembled) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- European dipping cabinet
- Ice cream freezer made in Denmark with glass sneezeguard included for the optimum serving and storing conditions
- Commercially listed
- UL-S listed to NSF-7 Standards for use in commercial establishments
- Glass sneezeguard included
- 3-piece glass sneezeguard made in Denmark with a curved front for optimum visbility
- Aluminum work surface
- Sneezeguard surface is finished in brushed aluminum to hold up to heavy duty use in busy commercial settings\t

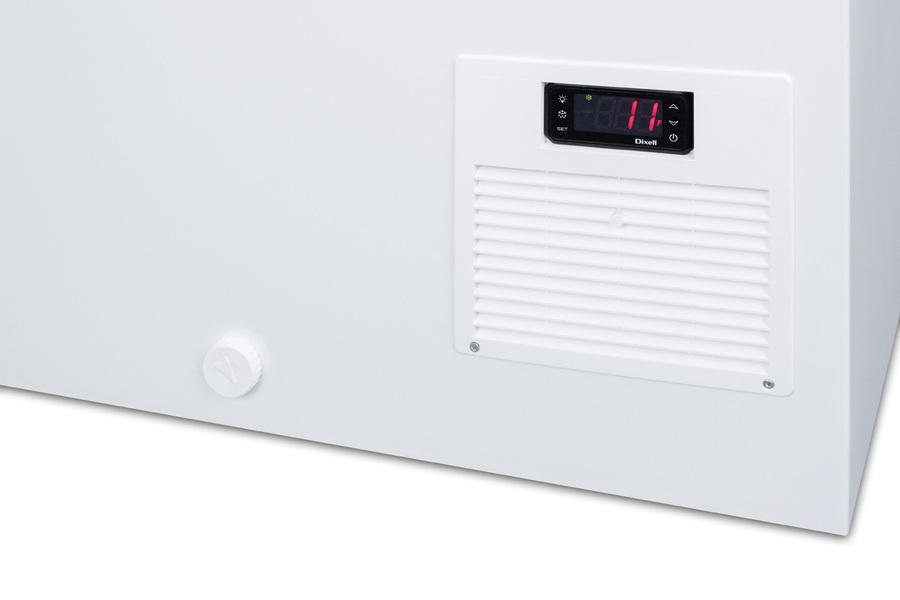

- Digital thermostat
- Electronic controls for more precise temperature management
- Wide temperature range
- Digital thermostat can be set between -13 and +23 F to accommodate a variety of frozen treats

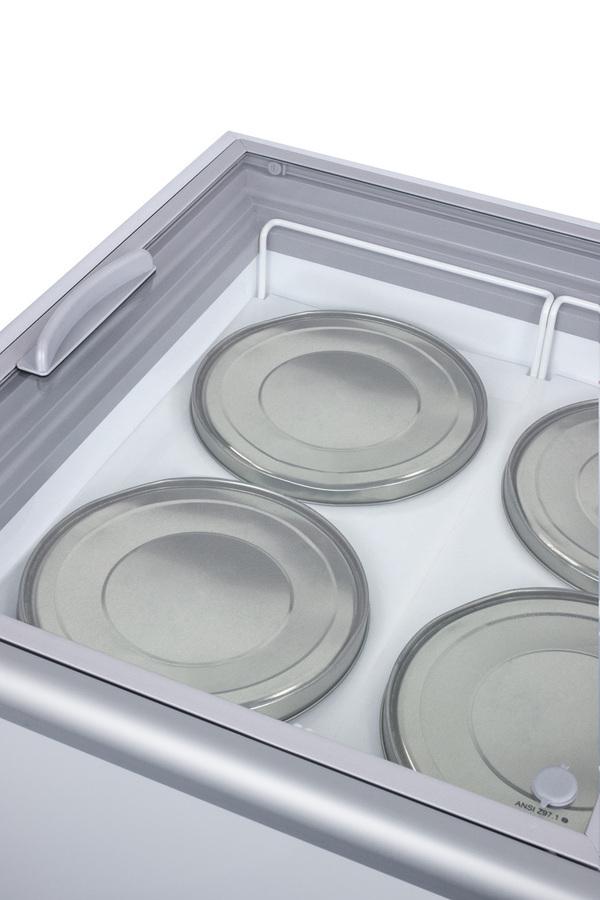

- Ice cream tub holders
- Four epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
- Holds 14 standard 3 gallon tubs
- Unit can store 6 tubs on the floor and display an additional 8 using the provided baskets\t

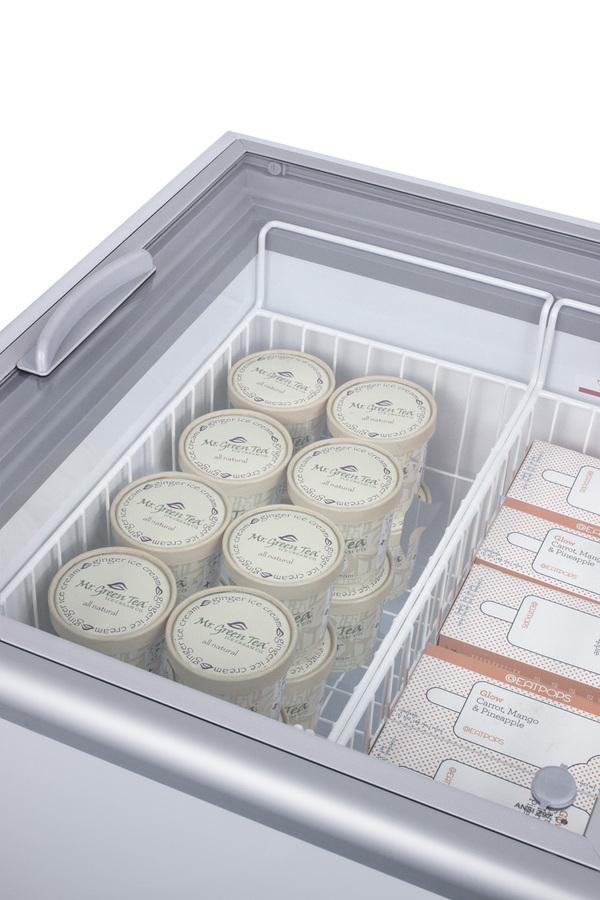

- Novelty baskets included
- Three extra epoxy-coated wire baskets packaged inside freezer for standard novelty treats
- Sliding glass lid
- Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
- Strong insulation
- 3" thick insulation helps to ensure items stay cold\t
- Casters
- Heavy duty wheels for smooth mobility (ship unassembled)\t

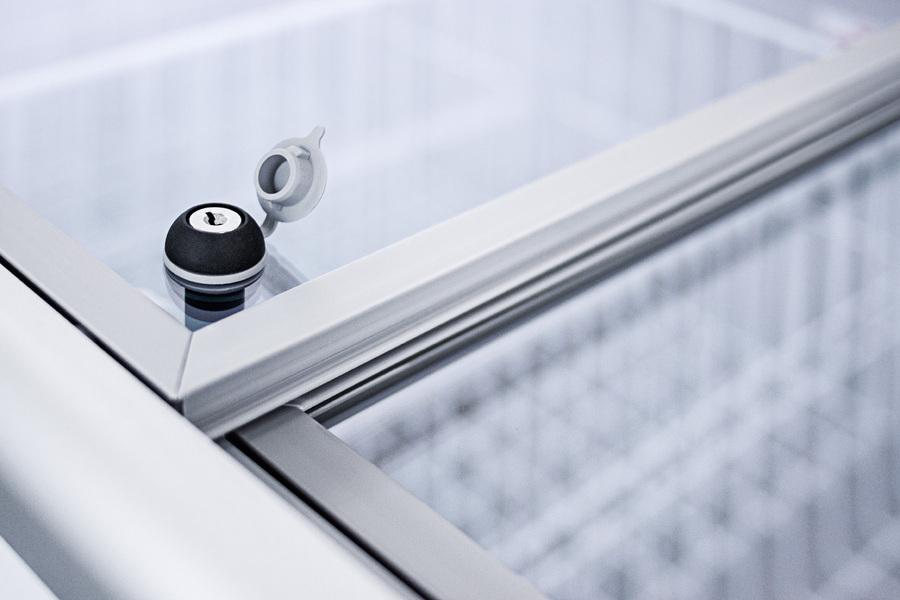

- Removable lock
- A keyed lock is included for optional use\t
- Manual defrost
- Static cooling system for improved temperature stability\t
- Defrost drain
- Front located for easier defrosting\t
- Fan-cooled compressor
- Offers improved temperature performance throughout the interior\t
- Steel interior
- Durable construction in a white finish for easy visibility
- Easy assembly
- Sneezeguard ships unassembled for safer transportation and can be installed in just a few easy steps
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations\t
- Ice cream freezer made in Denmark with glass sneezeguard included for the optimum serving and storing conditions
- UL-S listed to NSF-7 Standards for use in commercial establishments
- 3" thick insulation helps to ensure items stay cold
- Heavy duty wheels for smooth mobility (ship unassembled)
- A keyed lock is included for optional use
- Static cooling system for improved temperature stability
- Front located for easier defrosting
- Offers improved temperature performance throughout the interior
- Durable construction in a white finish for easy visibility
- Sneezeguard ships unassembled for safer transportation and can be installed in just a few easy steps
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 3-piece glass sneezeguard made in Denmark with a curved front for optimum visbility
- Sneezeguard surface is finished in brushed aluminum to hold up to heavy duty use in busy commercial settings
- Electronic controls for more precise temperature management
- Digital thermostat can be set between -13 and +23 F to accommodate a variety of frozen treats
- Four epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
- Unit can store 6 tubs on the floor and display an additional 8 using the provided baskets
- Three extra epoxy-coated wire baskets packaged inside freezer for standard novelty treats
- Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

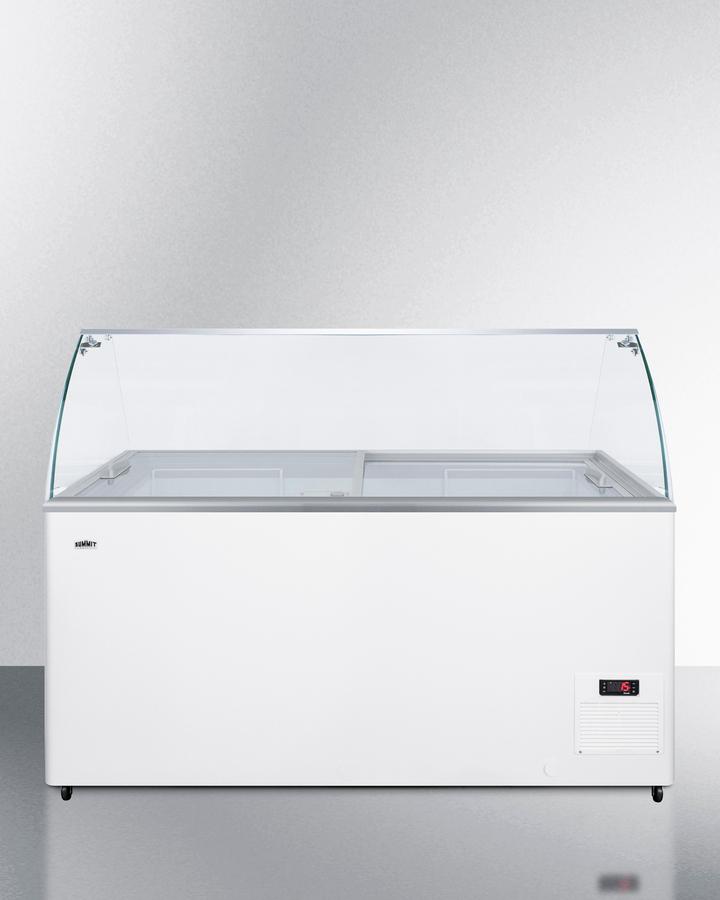

Summit Commercial's line offers the industry's best value on European ice cream storage and display, with a full series of chest freezers and matching glass sneezeguards. Made for us by Elcold in Denmark, the NOVA45GDC is a 53" wide flat top ice cream freezer and compatible glass sneezeguard with a curved design and aluminum work surface. The sneezeguard is packaged unassembled with the freezer for safer shipping and is easy to install for fast use. The NOVA45 freezer features 14.1 cu.ft. of storage. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23 F to accommodate a variety of desserts. We pre-set the unit to -4 F. Inside, the NOVA45 freezer features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 4 wire tub holder baskets with plastic lids to hold 8 11" round/3 gallon ice cream tubs, with room to store an additional 6 under the baskets. Extra novelty baskets are also packaged inside for alternate storage. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA45GDC is UL-S listed to NSF-7 commercial standards. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.
| Overview | |
| Nominal Height | 50.0" (127 cm) |
| Height of Cabinet | 49.5" (126 cm) |
| Nominal Width | 53.0" (135 cm) |
| Width | 53.0" (135 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.25" (69 cm) |
| Capacity | 14.1 cu.ft. (399 L) |
| Defrost Type | Manual |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | UL-S |
| Amps | 7.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 250.0 lbs. (113 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065021 |
| Freezer | |
| Door Swing | Sliding |
| Interior Height | 26.0" (66 cm) |
| Interior Width | 46.75" (119 cm) |
| Interior Depth | 21.0" (53 cm) |
| Thermostat Type | Digital |
| Refrigerant Type | R290 |
| Refrigerant Amount | 3.03 oz. |
| High Side PSI | 345.0 |
| Low Side PSI | 140.0 |
| Wheels | 4 |
| Compressor Step Height | 9.75" (25 cm) |
| Compressor Step Width | 7.88" (20 cm) |
| Compressor Step Depth | 21.0" (53 cm) |
| Temperature Range | -13 to 23 F |
