24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included)
Model AL55IF
24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included)
Model AL55IFQuick Specs
24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- ADA compliant\t
- 32 height allows for installation within ADA-compliant spaces\t
- Commercially approved\t
- ETL-S listed to NSF-7 commercial standards\t
- Built-in capable\t
- Front-breathing design allows the unit to be built-in under counters\t

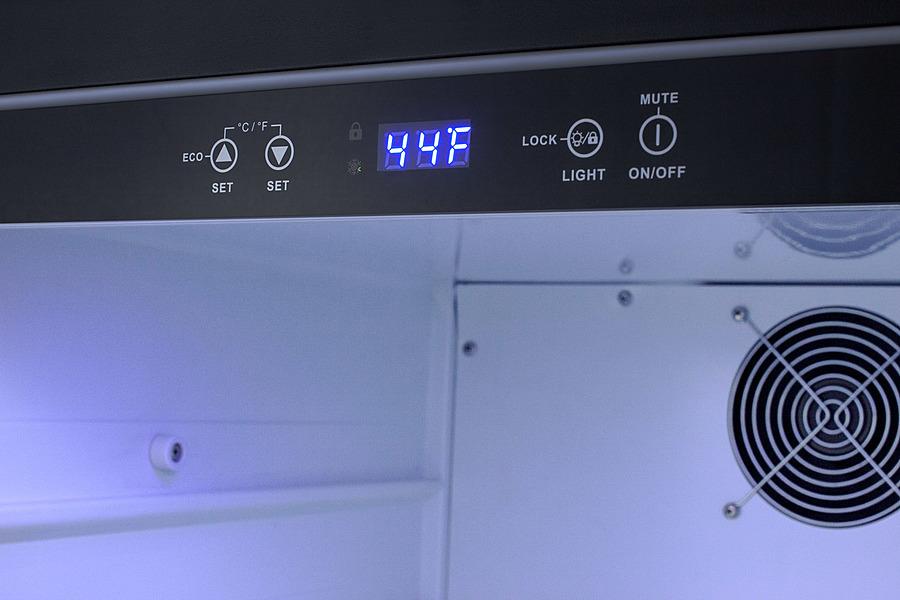

- Digital control panel\t
- Makes for easy temperature reading/management with electronic controls inside\t

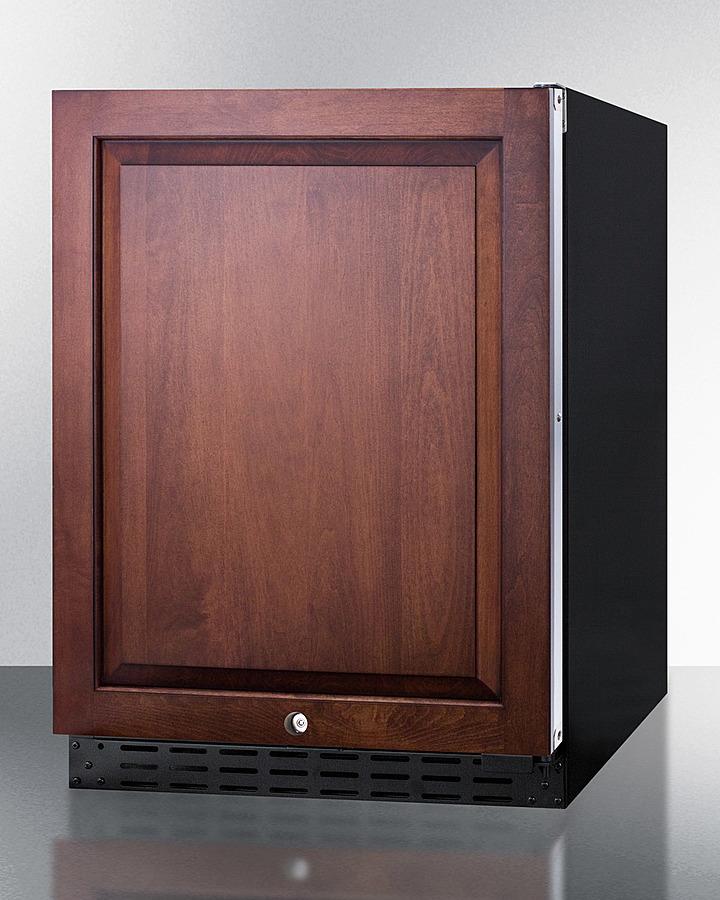

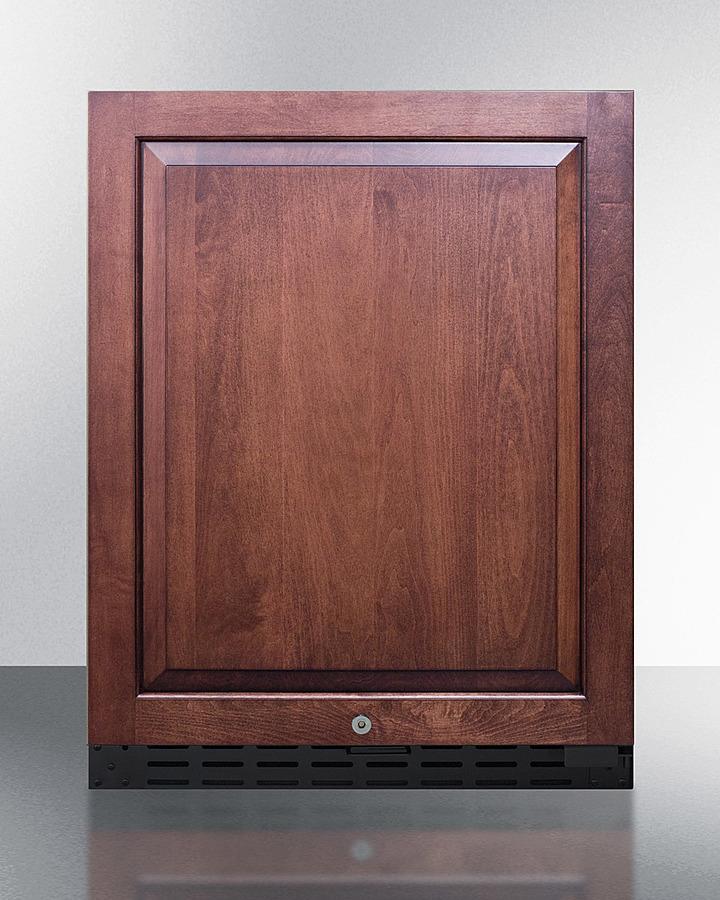

- Panel-ready door
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- White interior
- Classic interior allows for easy cleaning and viewing of products

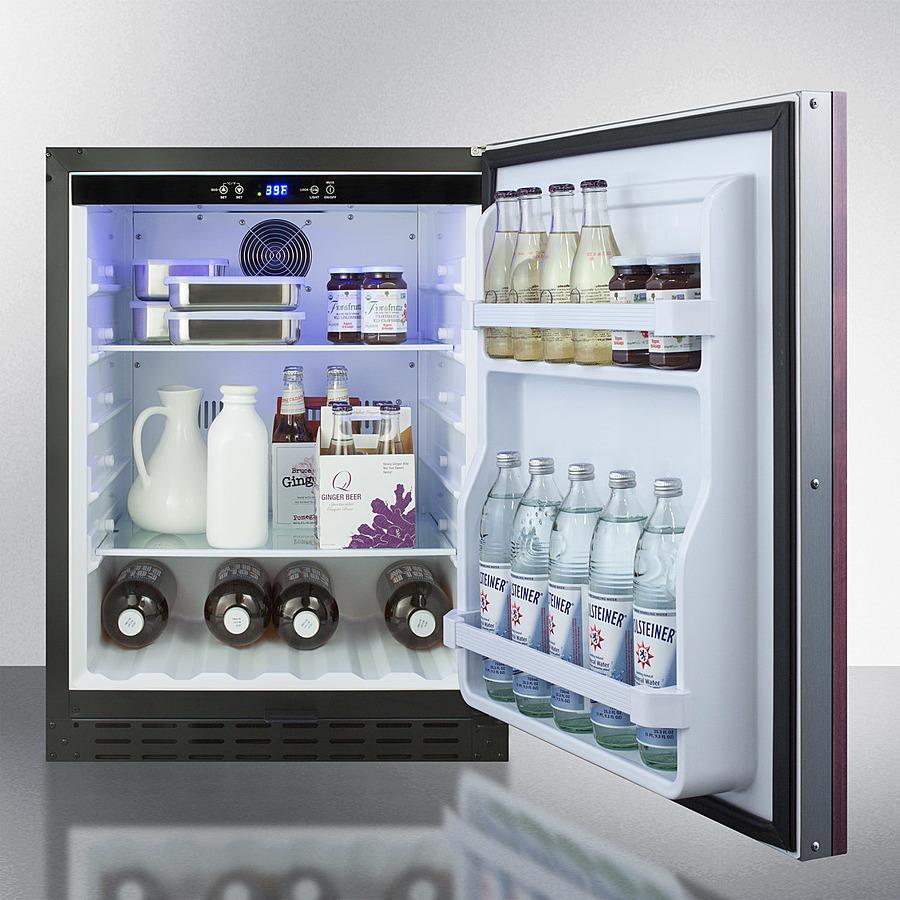

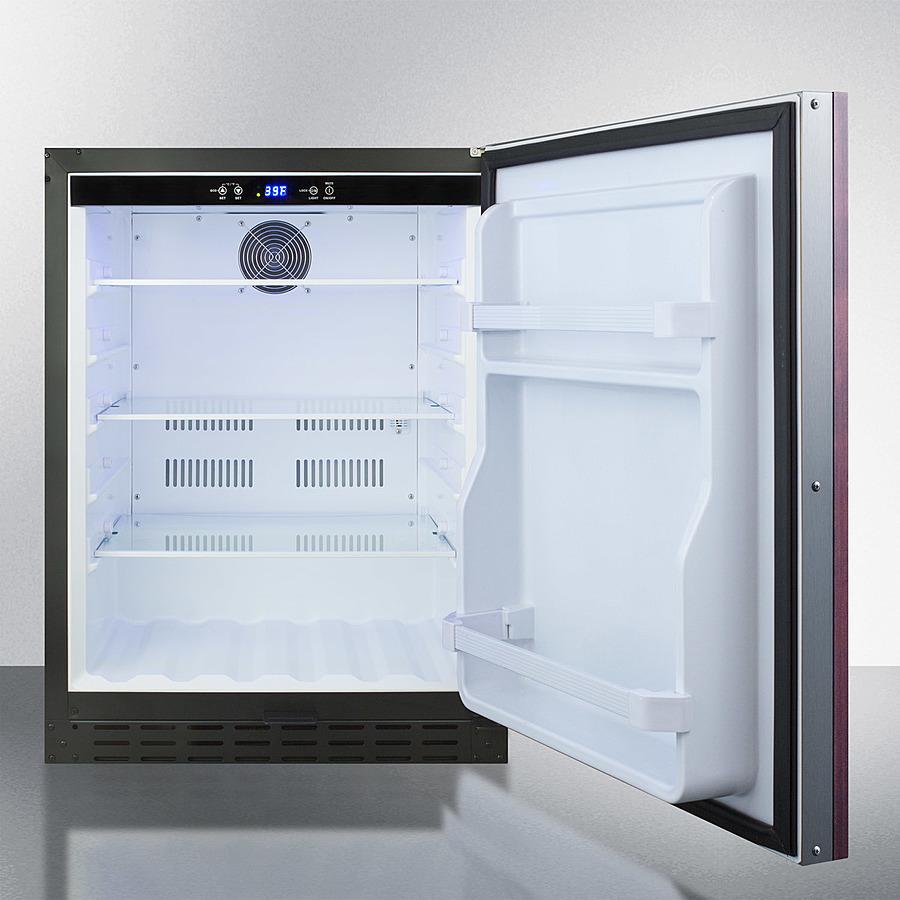

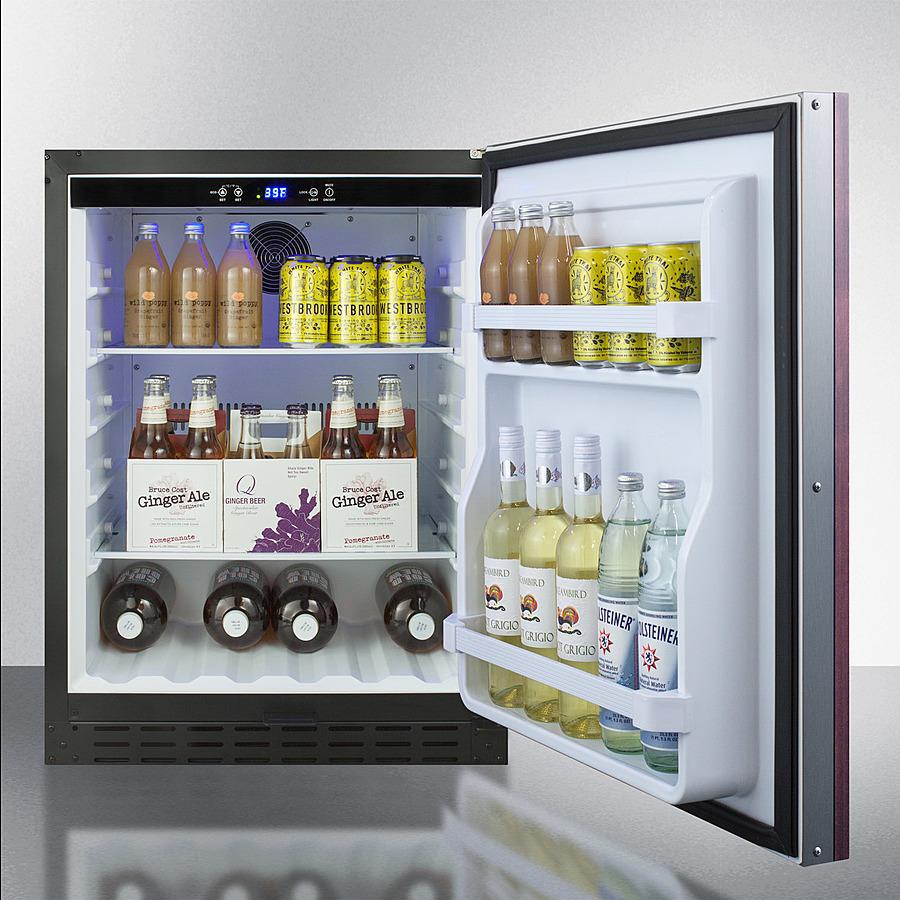

- Adjustable shelving\t
- Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior s contents
- Brake shelving system
- Provides added safety when loading and unloading the unit's 3 shelves \t
- Slotted floor\t
- Allows for easy storage of bottles\t
- Automatic defrost\t
- Reduced maintenance with auto defrost system\t
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom\t

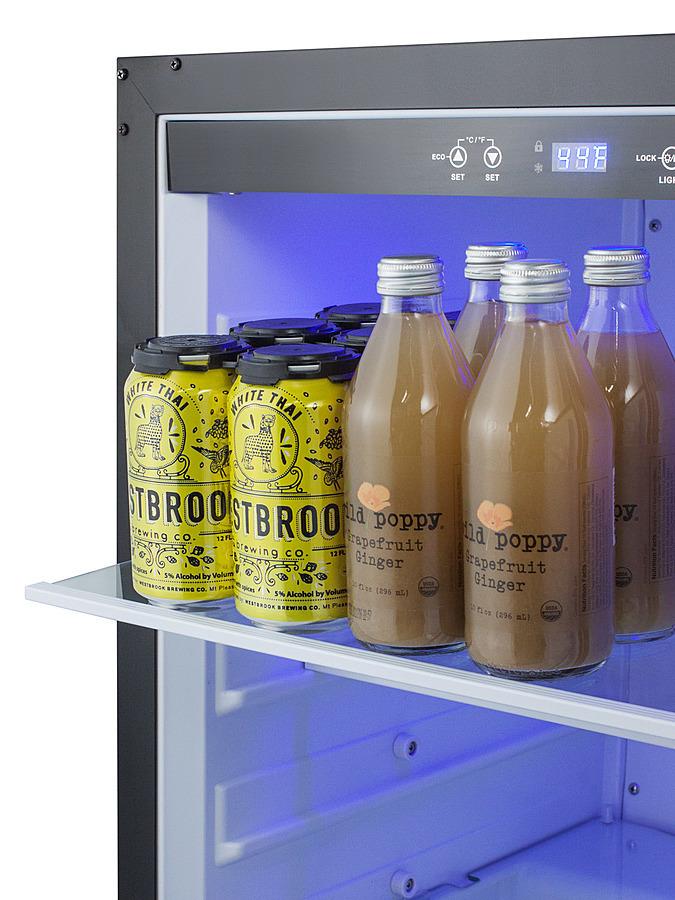

- Interior lighting
- Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel
- Temperature alarm\t
- Alarm sounds if temperature goes out of recommended range after 2 hours\t
- Sabbath mode\t
- Optional feature disables alarms, interior light, and displays for up to 96 hours\t
- Factory-reversible door swing
- Factory-reversible door swing makes it easy to best accommodate your setting (unit comes with RHD but can be converted to LHD upon request at the time of purchase)
- Integrated hinge
- Flat stainless steel hinge ensures no added height is needed when installing under a counter
- Fully finished black cabinet\t
- Allows unit to be used freestanding\t
- Matching freezer
- Pair with Summit ALFZ51IF to create a matching set
- \t100% CFC free
- Environmentally friendly design with no ozone-damaging chemicals\t
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 32 height allows for installation within ADA-compliant spaces
- ETL-S listed to NSF-7 commercial standards
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel
- Alarm sounds if temperature goes out of recommended range after 2 hours
- Optional feature disables alarms, interior light, and displays for up to 96 hours
- Factory-reversible door swing makes it easy to best accommodate your setting (unit comes with RHD but can be converted to LHD upon request at the time of purchase)
- Flat stainless steel hinge ensures no added height is needed when installing under a counter
- Allows unit to be used freestanding
- Pair with Summit ALFZ51IF to create a matching set
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Front-breathing design allows the unit to be built-in under counters
- Makes for easy temperature reading/management with electronic controls inside
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- Classic interior allows for easy cleaning and viewing of products
- Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior s contents
- Provides added safety when loading and unloading the unit's 3 shelves
- Allows for easy storage of bottles
- Reduced maintenance with auto defrost system
SUMMIT features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The AL55IF refrigerator meets both residential and commercial standards for versatile use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled. Inside, the AL55IF has a digital control panel which allows you to manage the unit s temperature with ease. An adjustable temperature range between 36 and 46 F ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior. With its advanced user features and versatile design, the AL55IF is an excellent addition to any ADA compliant setting looking for a refrigerator with a modern, elegant look. For a matching frost-free freezer, see the ALFZ51IF.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.63" (80 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.5" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 4.2 cu.ft. (119 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 250.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067049 |
| Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 46 F |
| Sound Level | 33.7 dB |
| Dimensions | |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 19.0" (48 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 19.0" (48 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
