17 CU.FT. Dipping Cabinet
Model NOVA53PDC
17 CU.FT. Dipping Cabinet
Model NOVA53PDCQuick Specs
17 CU.FT. Dipping Cabinet is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Commercially listed
- UL-S listed to NSF-7 Standards for use in commercial establishments

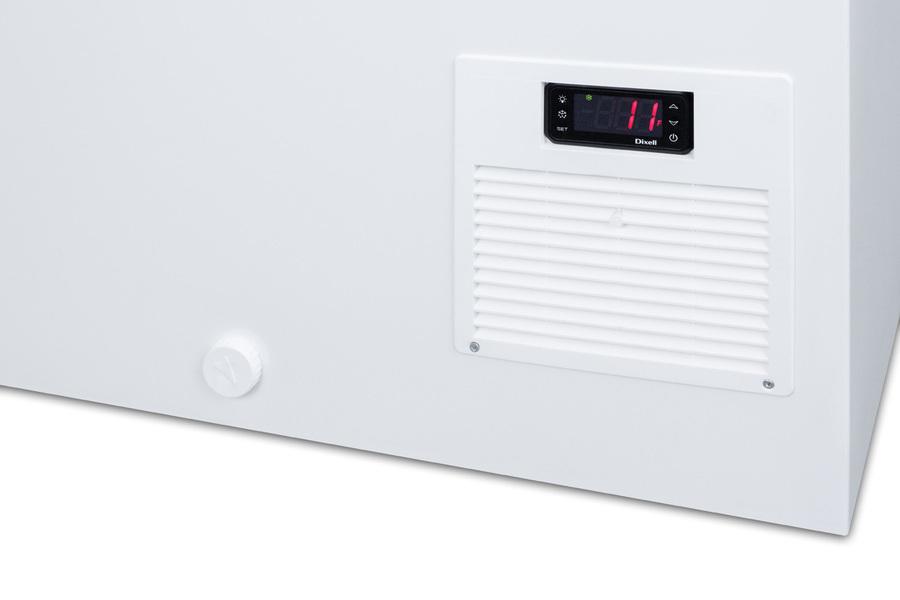

- Digital thermostat
- Electronic controls for precise temperature management
- Wide temperature range
- Digital thermostat can be set between -13 and +23 F to accommodate a variety of frozen treats
- Sneezeguard
- Durable polycarbonate sneezeguard is pre-installed

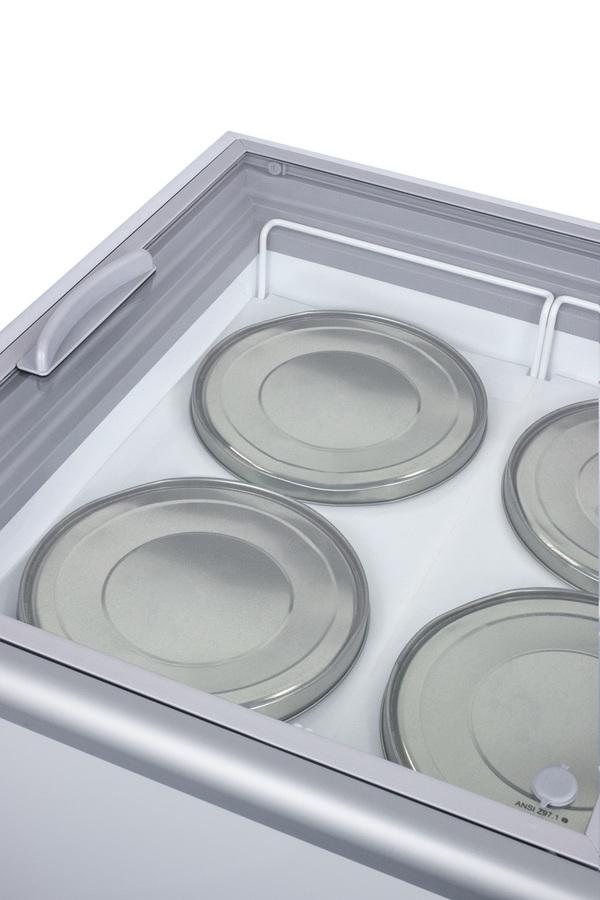

- Ice cream tub holders
- Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
- Holds 18 standard 3 gallon tubs
- Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets
- Strong insulation
- 3" thick insulation helps to ensure items stay cold\t
- Casters
- Heavy duty wheels for smooth mobility (ship unassembled)\t
- Sliding glass lid
- Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

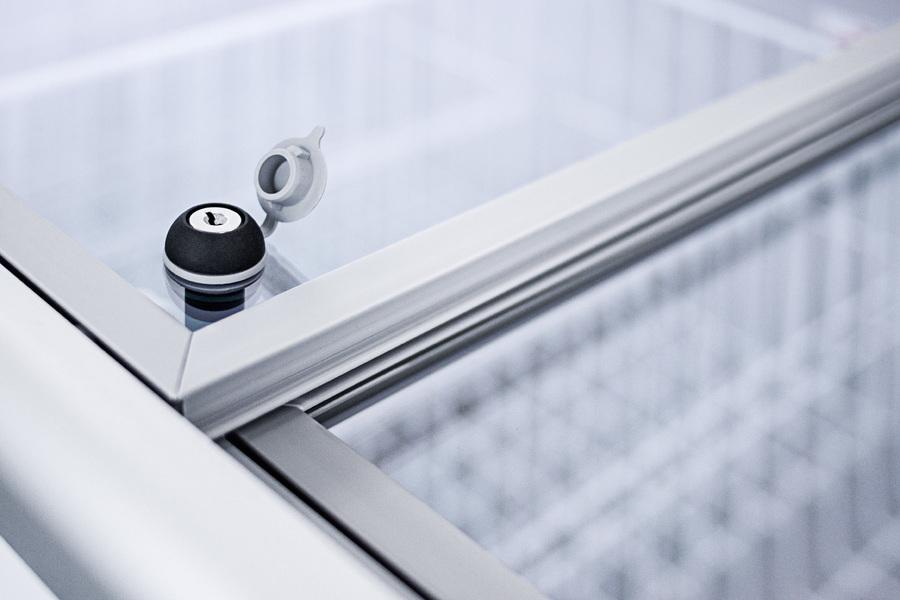

- Removable lock
- A keyed lock is included for optional use\t
- Manual defrost
- Static cooling system for improved temperature stability\t
- Fan-cooled compressor
- Offers improved temperature performance throughout the interior\t
- Steel interior
- Durable construction in a white finish for easy visibility
- Light
- Sneezeguard light for added visibility
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- UL-S listed to NSF-7 Standards for use in commercial establishments
- Electronic controls for precise temperature management
- Static cooling system for improved temperature stability
- Offers improved temperature performance throughout the interior
- Durable construction in a white finish for easy visibility
- Sneezeguard light for added visibility
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Digital thermostat can be set between -13 and +23 F to accommodate a variety of frozen treats
- Durable polycarbonate sneezeguard is pre-installed
- Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
- Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets
- 3" thick insulation helps to ensure items stay cold
- Heavy duty wheels for smooth mobility (ship unassembled)
- Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
- A keyed lock is included for optional use

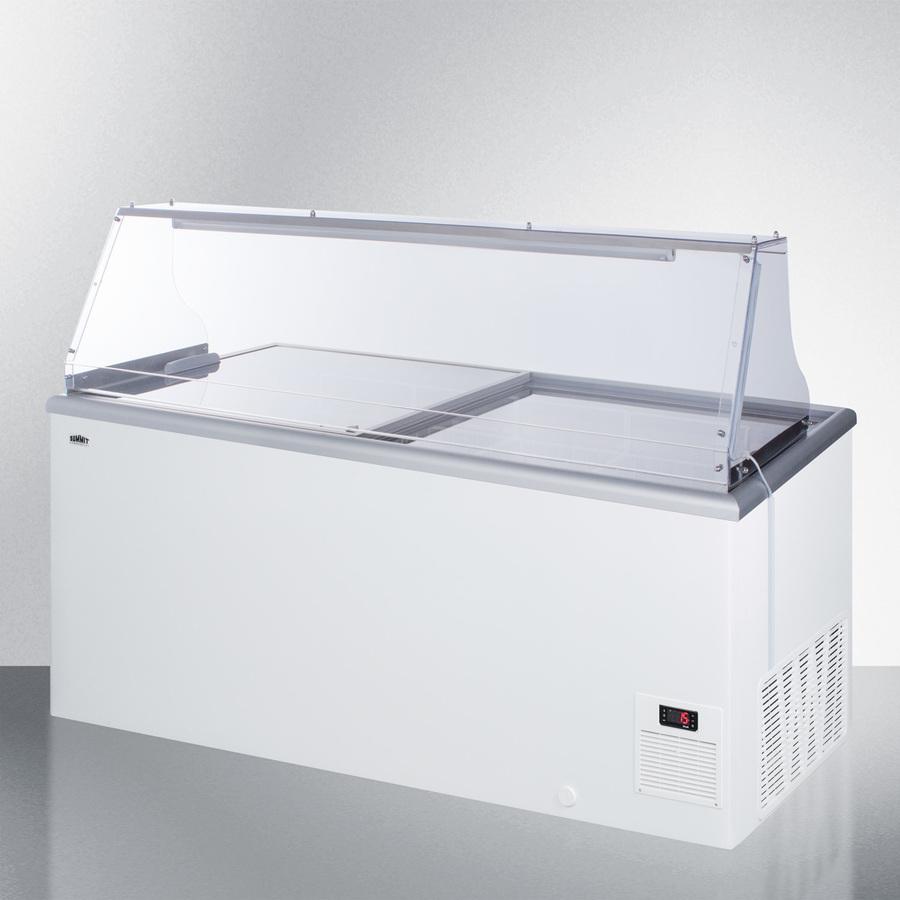

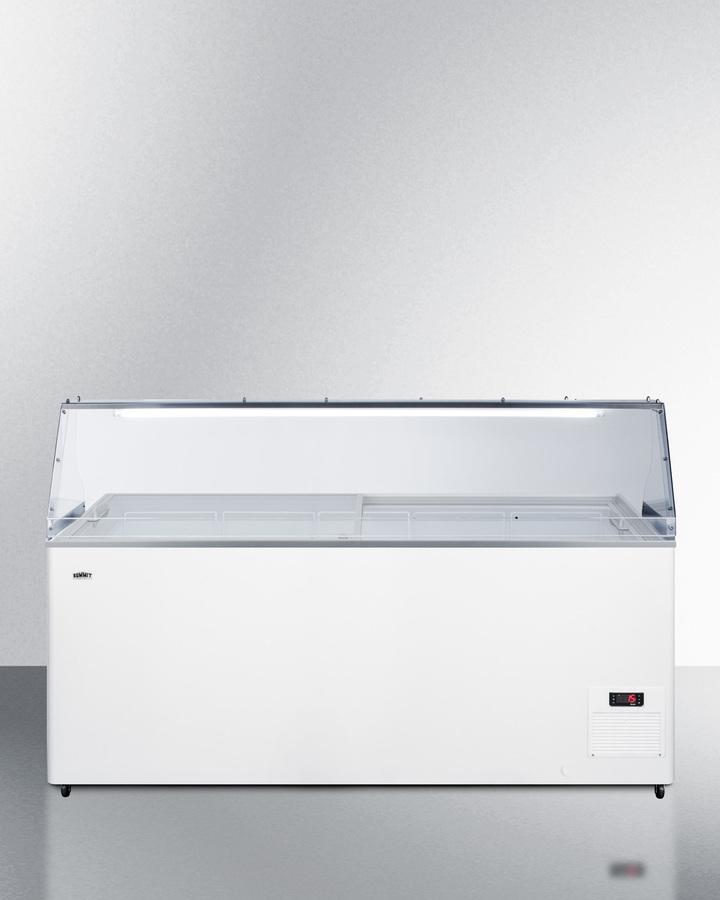

Summit Commercial offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving. Made for us by Elcold in Denmark, the NOVA53PDC is a 61" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23 F to accommodate a variety of desserts. We pre-set the unit to -4 F. Inside, the NOVA53 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA53PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.
| Overview | |
| Nominal Height | 46.0" (117 cm) |
| Height of Cabinet | 45.5" (116 cm) |
| Nominal Width | 61.0" (155 cm) |
| Width | 60.75" (154 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.25" (69 cm) |
| Capacity | 17.8 cu.ft. (504 L) |
| Defrost Type | Manual |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | UL-S |
| Amps | 4.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 190.0 lbs. (86 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101060187 |
| Freezer | |
| Door Swing | Sliding |
| Interior Height | 26.0" (66 cm) |
| Interior Width | 54.5" (138 cm) |
| Interior Depth | 21.0" (53 cm) |
| Thermostat Type | Digital |
| Refrigerant Type | R290 |
| Refrigerant Amount | 3.17 oz. |
| High Side PSI | 345.0 |
| Low Side PSI | 140.0 |
| Wheels | 4 |
| Compressor Step Height | 9.75" (25 cm) |
| Compressor Step Width | 7.88" (20 cm) |
| Compressor Step Depth | 21.0" (53 cm) |
| Temperature Range | -13 to 23 F |
- UL-S listed to NSF-7 Standards for use in commercial establishments
- Electronic controls for precise temperature management
- Static cooling system for improved temperature stability
- Offers improved temperature performance throughout the interior
- Durable construction in a white finish for easy visibility
- Sneezeguard light for added visibility
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Digital thermostat can be set between -13 and +23 F to accommodate a variety of frozen treats
- Durable polycarbonate sneezeguard is pre-installed
- Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
- Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets
- 3" thick insulation helps to ensure items stay cold
- Heavy duty wheels for smooth mobility (ship unassembled)
- Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
- A keyed lock is included for optional use
