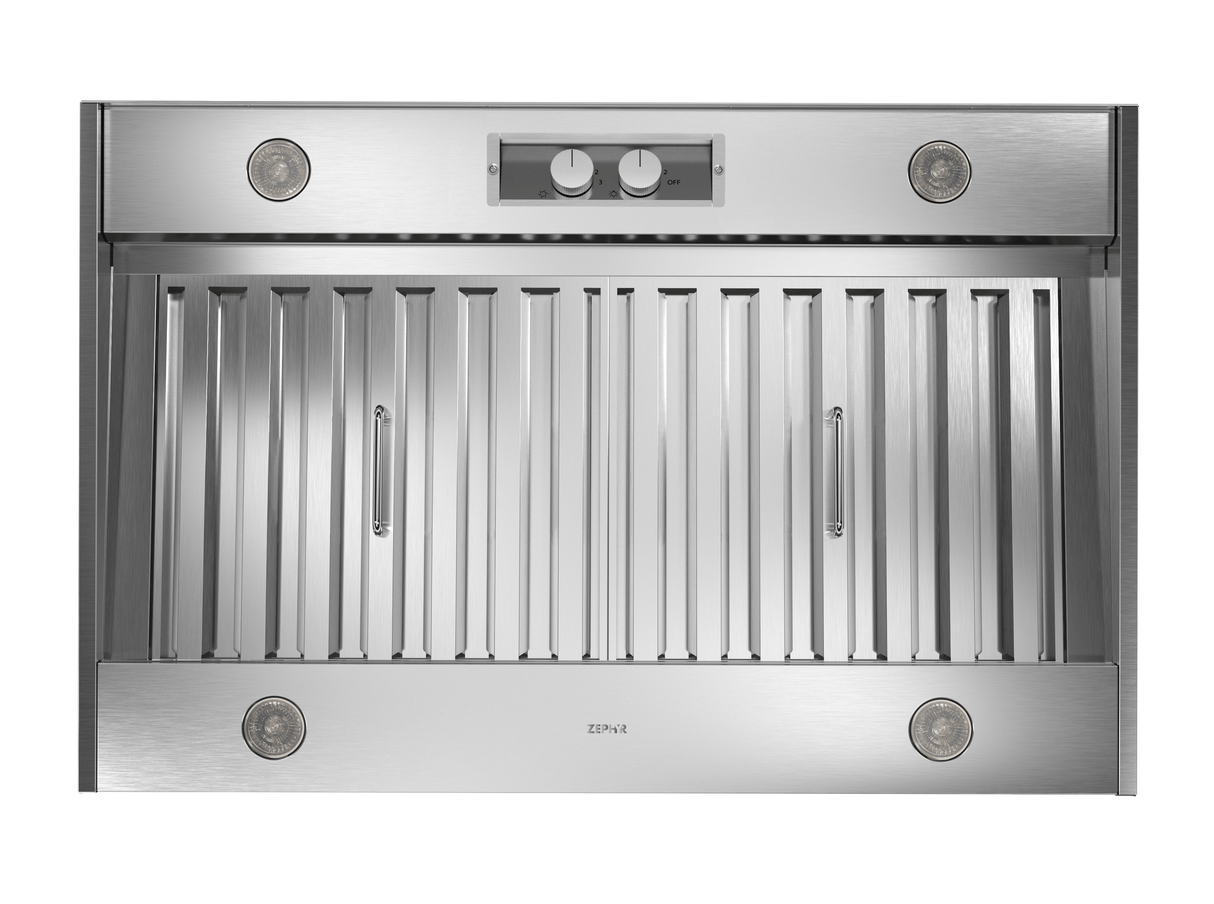

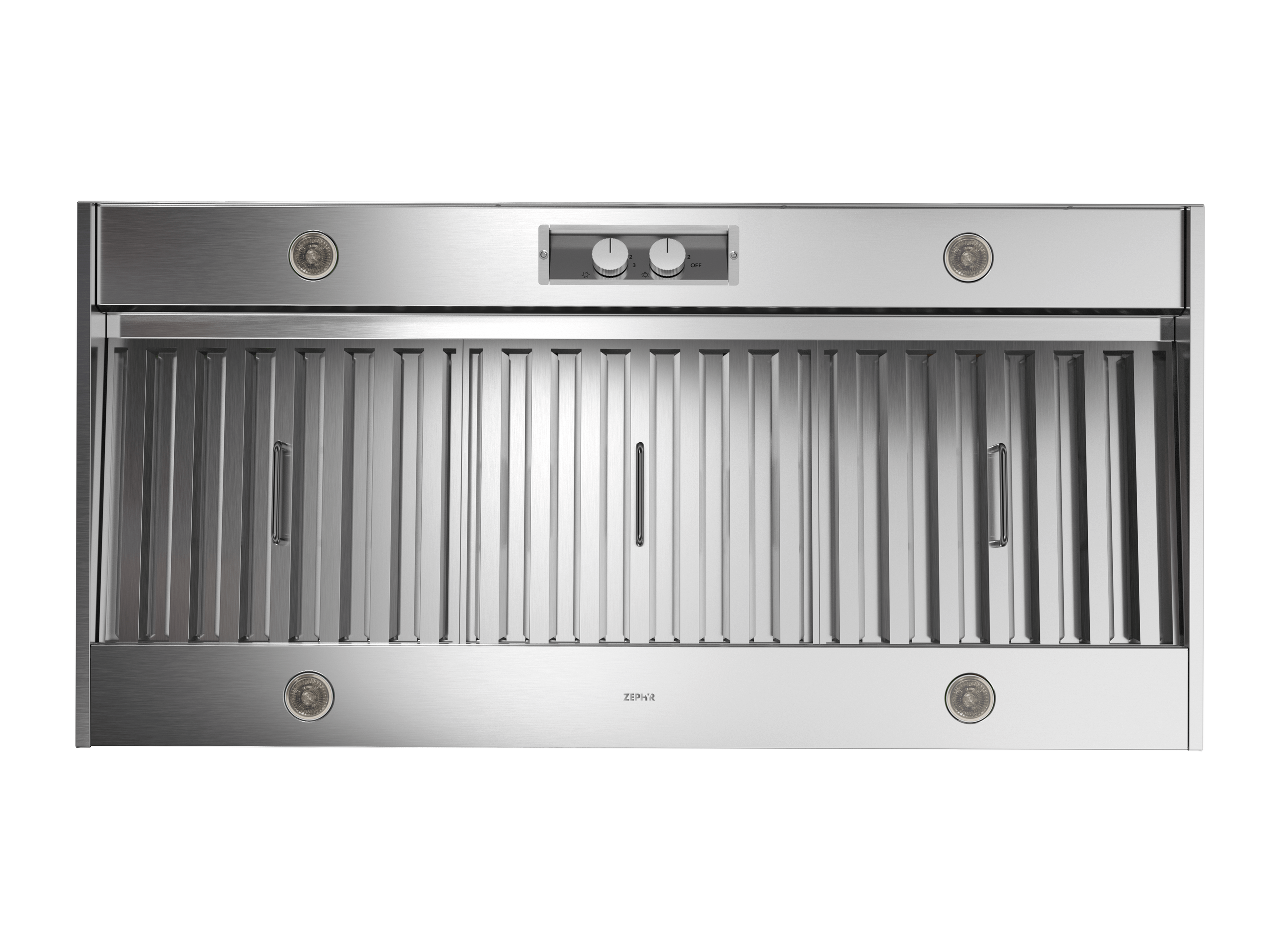

Spruce Outdoor Insert, 40in, SS, 1200 CFM
Model AK9840AS
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Spruce Outdoor Insert, 40in, SS, 1200 CFM
Model AK9840ASQuick Specs
Depth
22.5"
Height
12"
Energy
NO
Spruce Outdoor Insert, 40in, SS, 1200 CFM is backordered and will ship as soon as it is back in stock.
Regular price
$1,580.91
Unit price
/
Unavailable
Available to Order (*Extended Delivery)
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.5"
Height
12"
Energy Star Rated
NO
- High Quality 304S Stainless Steel
- Built with durable high-grade stainless steel.
- Outdoor Rated
- Zephyr range hoods are tested for use in outdoor environments and feature a full corrosion-resistant, 304-grade-stainless-steel exterior.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- 3 Speed Metallic Knob Dial
- Directional Halogen Lighting
- Powerful 1200-CFM Blowers
- The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Vertical 10 in. Round Ducting
- High Quality 304S Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- 3 Speed Metallic Knob Dial
- Directional Halogen Lighting
- Powerful 1200-CFM Blowers
- Vertical 10 in. Round Ducting
Spruce Outdoor Insert, 40in, SS, 1200 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328006531 |
| GTIN | 00646328006531 |
| Country of Origin | Taiwan |
| Model Group | AK98-A |
| Model Name | Spruce Insert Outdoor |
| Collection | Pro Collection |
| Replacement Model | AK9840BS |
| Blower Included | Yes |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 3.5 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 450 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | Yes |
| Color | Stainless Steel |
| Controls Type | Control Knob |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 4 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 10 |
| Mounting Height Above Cooktop; IN | 30 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | None |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 780 |
| Certification | UL |
| Nominal Width; IN | 42 |
| Net Width; IN | 40.375 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 12 |
| Weight; LBS | 64 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 43.7 |
| Shipping Width; IN | 16.73 |
| Shipping Height; IN | 28.46 |
| Shipping Weight; LBS | 61.6 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
- High Quality 304S Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- 3 Speed Metallic Knob Dial
- Directional Halogen Lighting
- Powerful 1200-CFM Blowers
- Vertical 10 in. Round Ducting
 | |
|---|---|
