24" Designer Undercounter ADA Height Beverage Center - Panel Ready
Model XOU24BCGOA
24" Designer Undercounter ADA Height Beverage Center - Panel Ready
Model XOU24BCGOAQuick Specs
24" Designer Undercounter ADA Height Beverage Center - Panel Ready is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

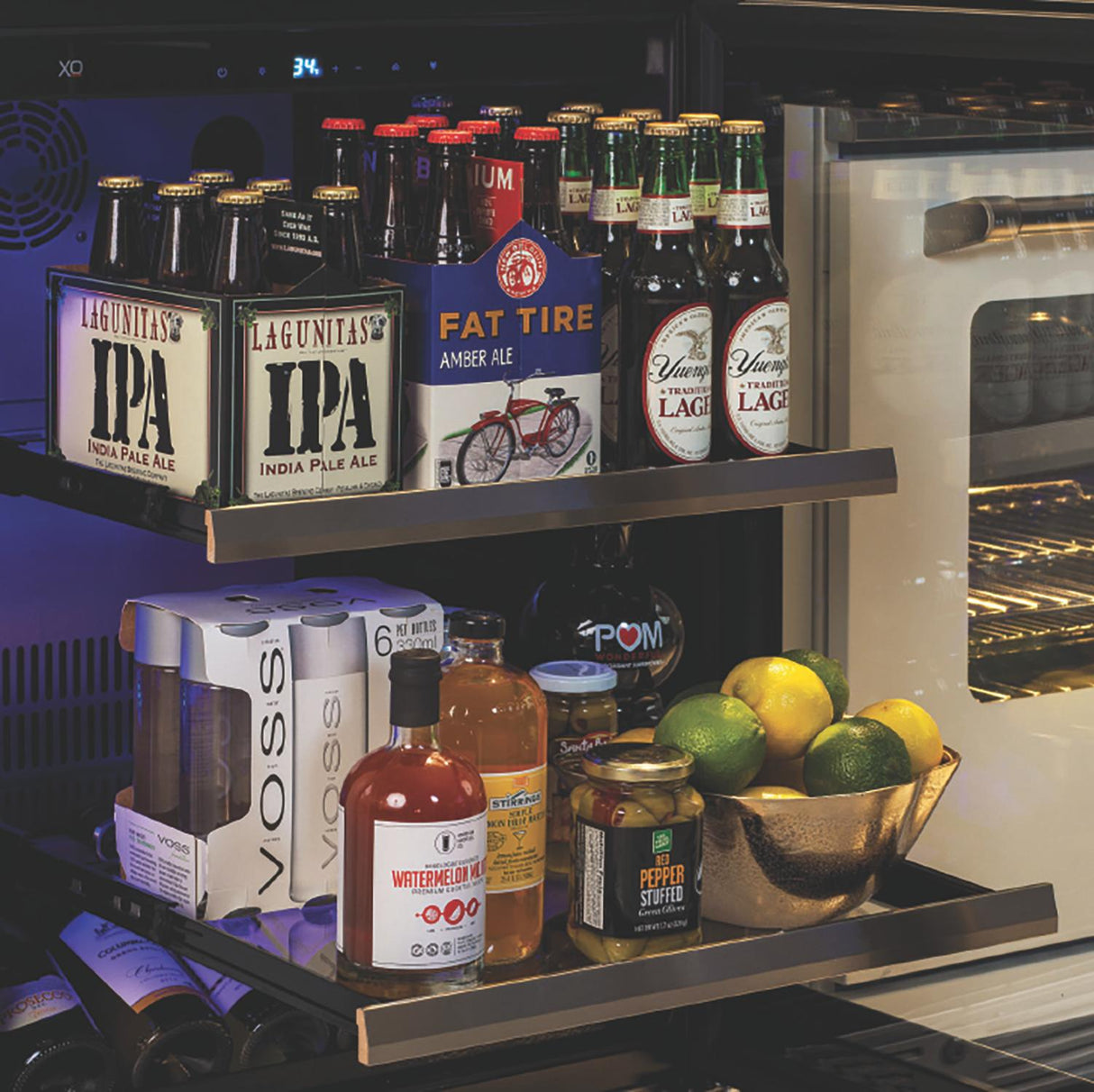

EASY TO STORE EASY TO FIND
Clear glass shelves extend fully while fully loaded allowing you to see everything at a glance.

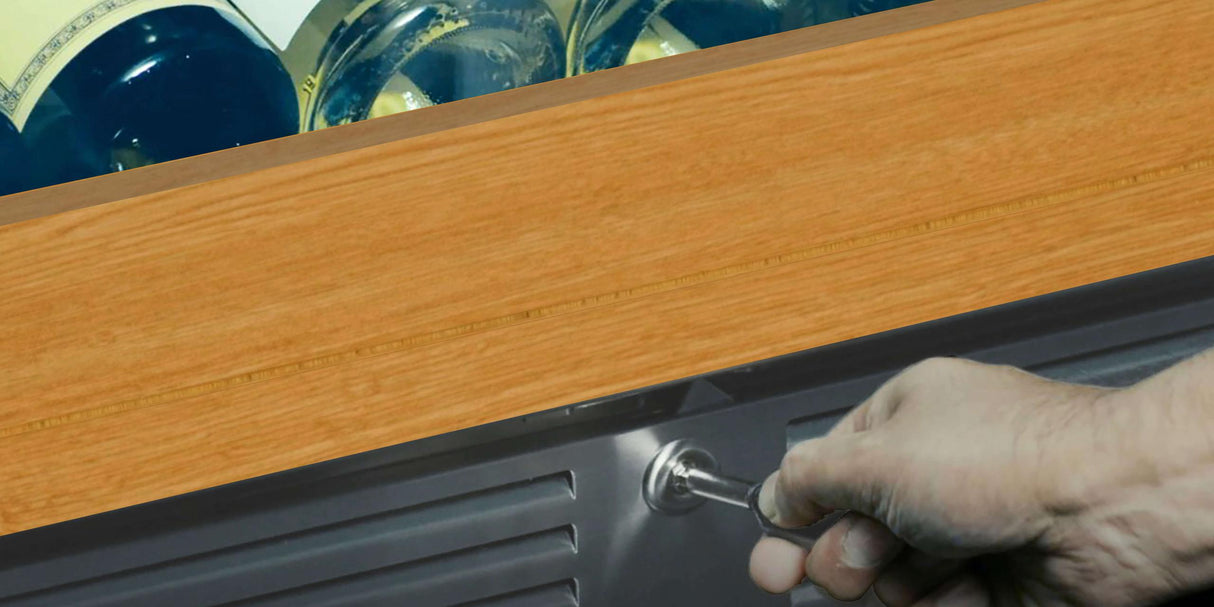

ADAPTS FOR EUROPEAN PLINTH/TOE KICKS
The sturdy leveling legs and foot sliders enable you to raise the unit for Plinth/Toe Kicks up to 6" (150mm).

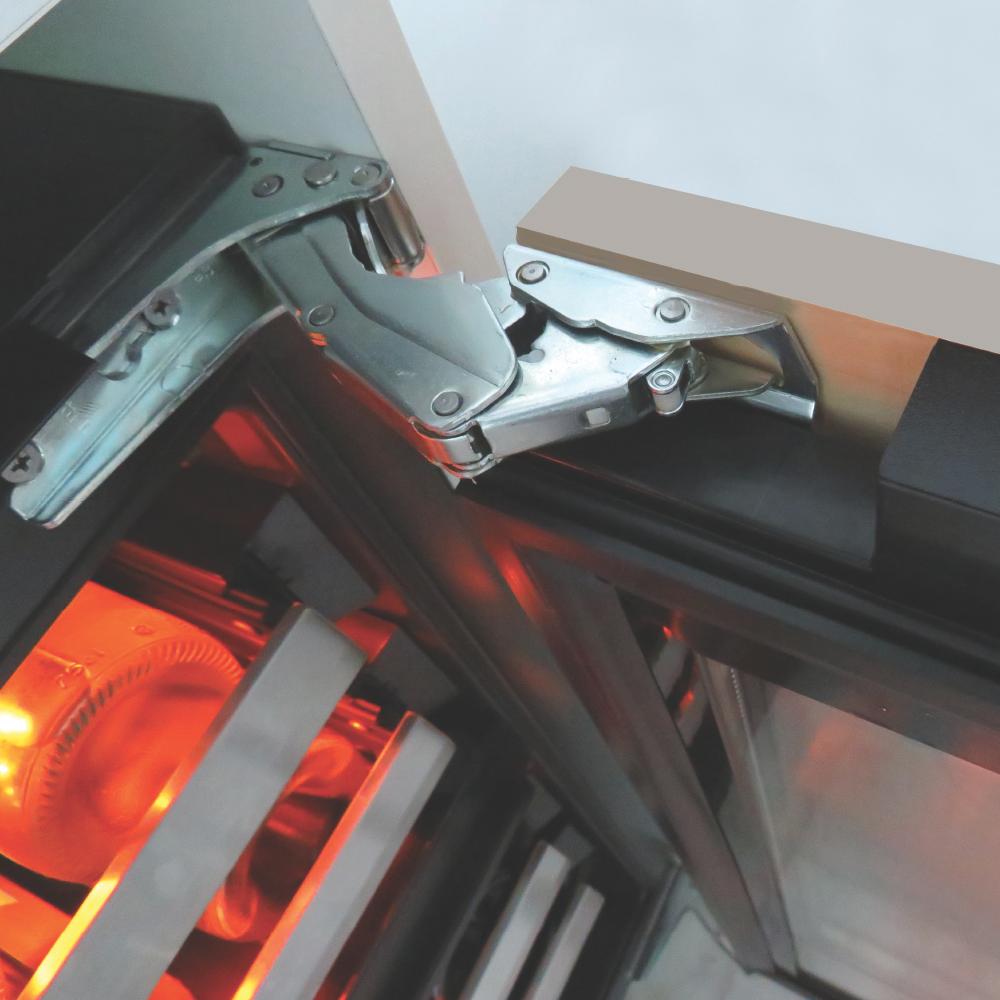

ARTICULATING HINGE
The articulated hinges ensure a seamless integration with your cabinets and allow use of panels longer than 30".

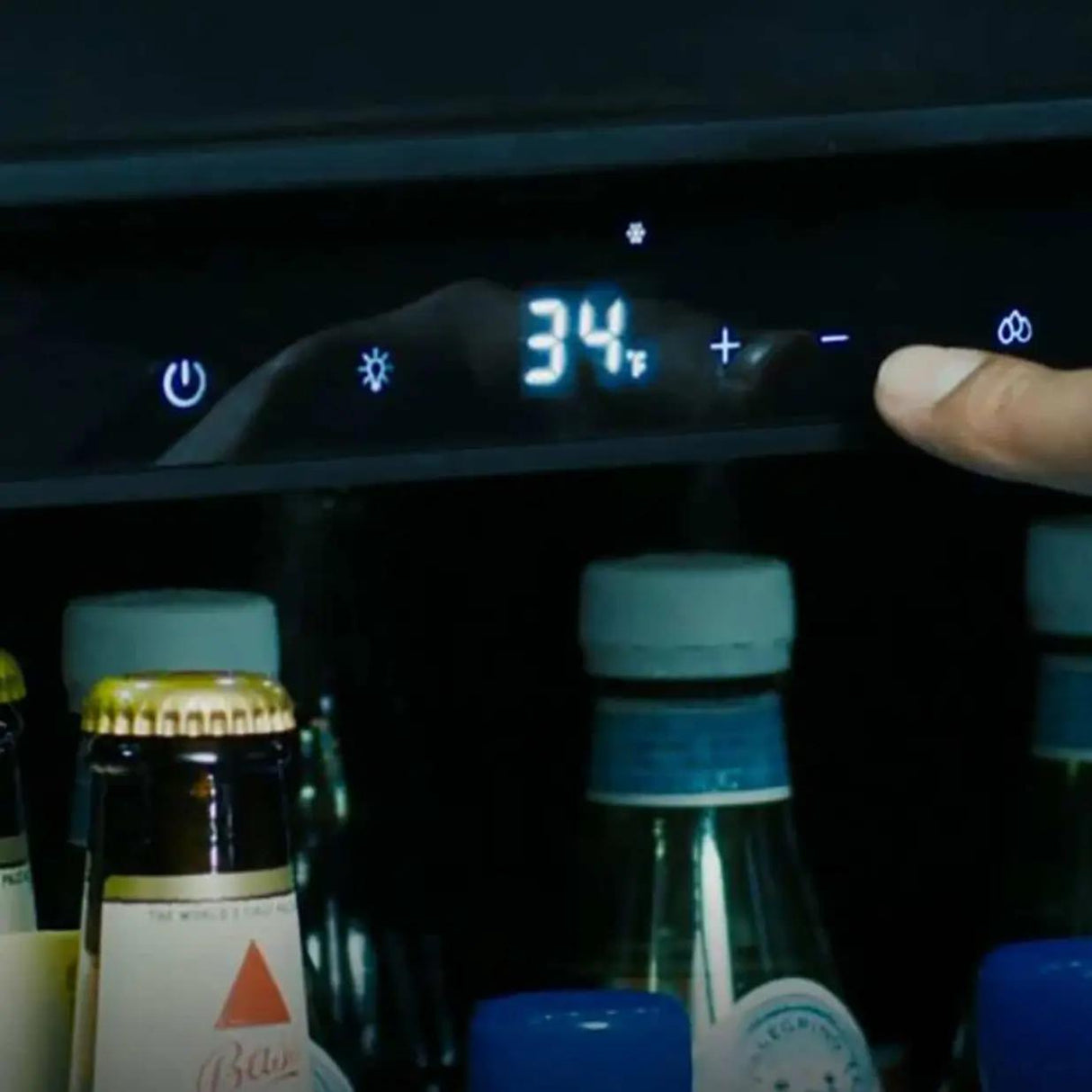

34(degree) AT YOUR FINGERTIPS
with easily adjusted electronic controls you can store your favorite beverages down to a frosty 34(degree) .
OPTIONAL SS ADA DOOR PANEL
If your ADA install calls for a stainless finish use the optional stainless steel overlay panel which includes two different style handles._x005F_x000D_ Product ID: XOU24ADASG

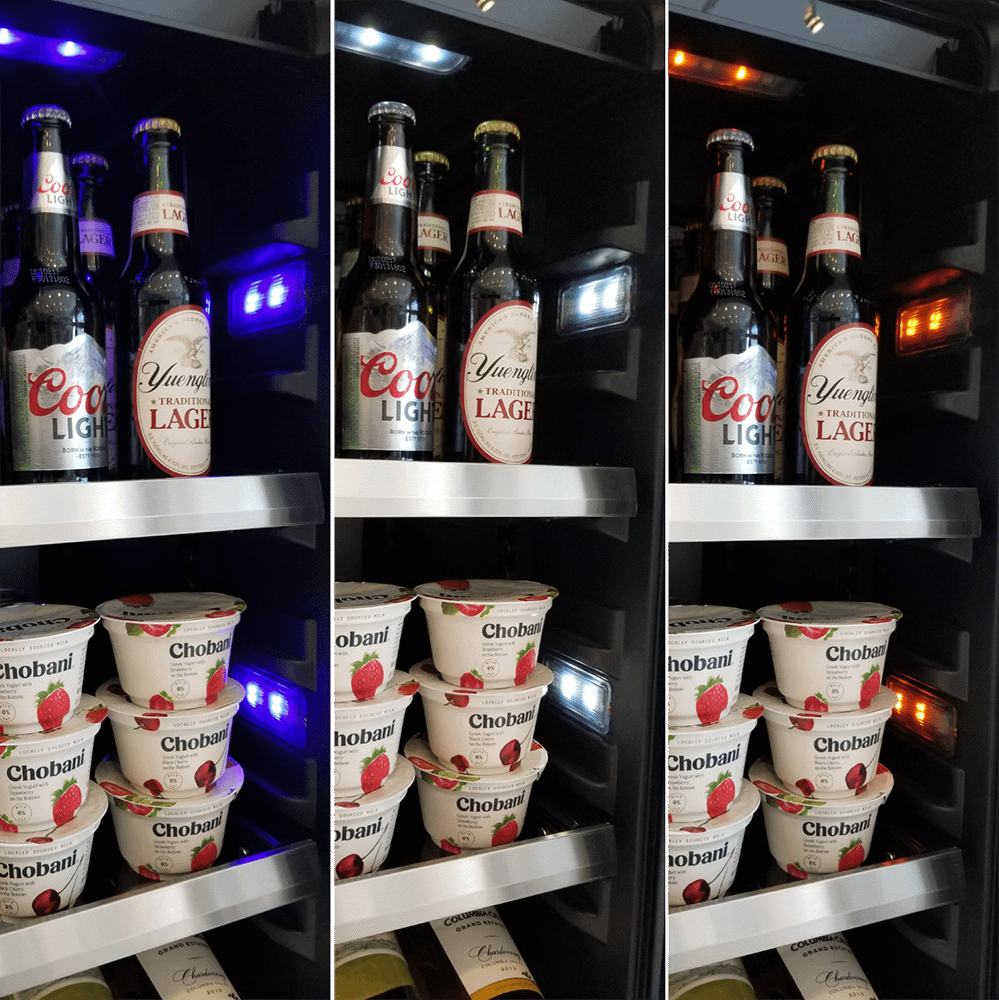

ELEGANT TRI-COLOR LIGHTING
Cool running LEDS are change with the push of a button from theater white to midnight blue or honey amber.
UNIFORM TEMPERATURE
activated carbon filters and whisper quiet fans ensure the positive circulation of air for uniform temperatures.
LOW-E GLASS WITH UV BLOCKER
On all glass door units, double pane, low-e glass coated to block harmful ultraviolet light is standard for energy efficient operation and protection from damaging light.

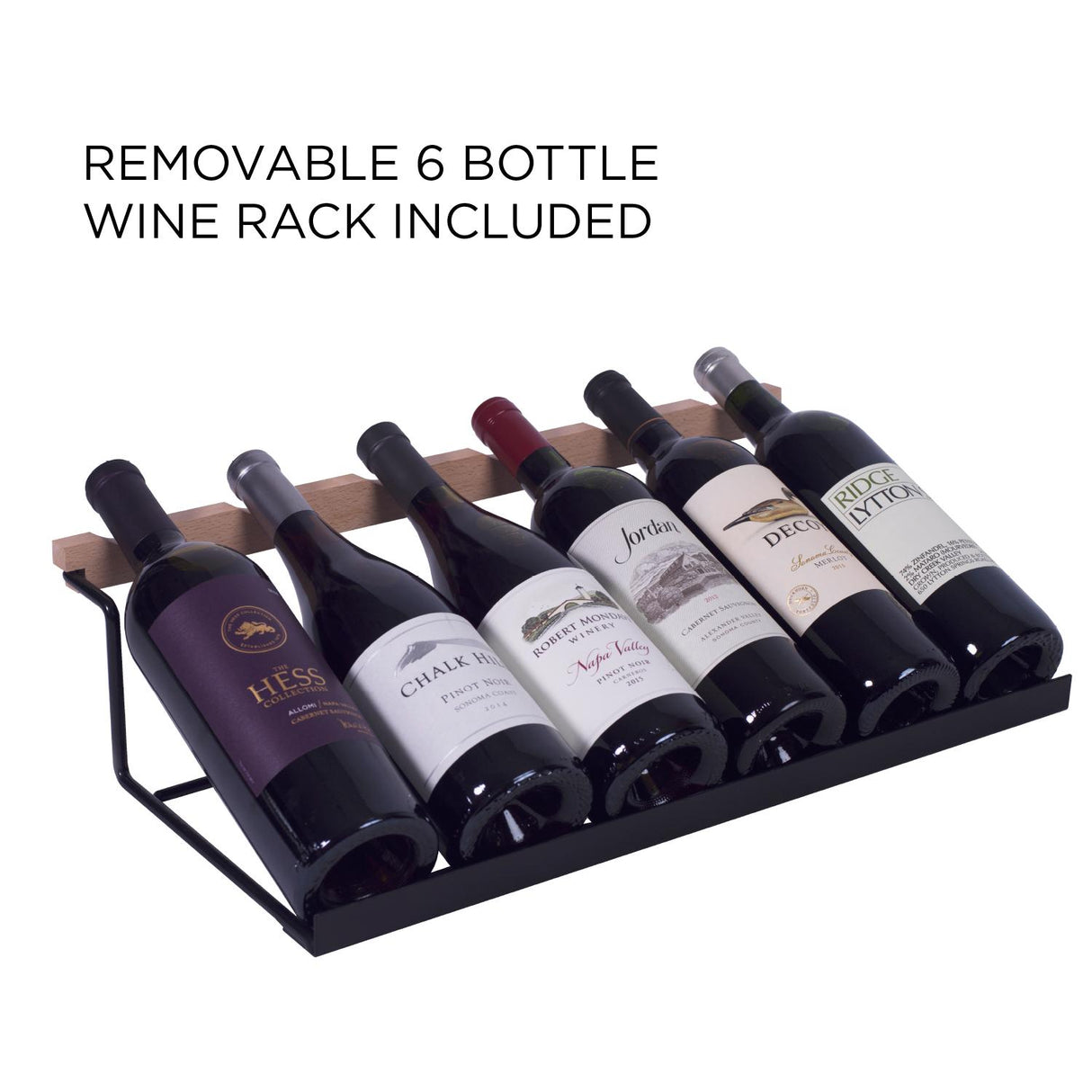

REMOVABLE WINE DISPLAY RACK
the 15" beverage centers include a 3 bottle display, while the 24" beverage centers include a 6 bottle display which are easily removed for additional storage or for use as a serving piece separately
HANDLELESS
Have a handleless door design? The XO GOA model accepts the panel with ease.

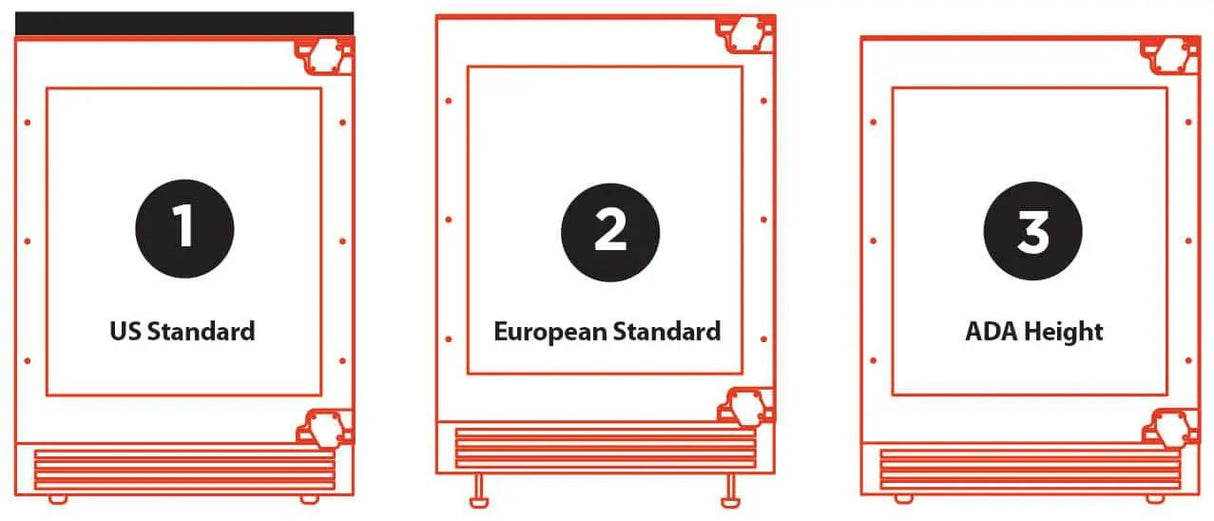

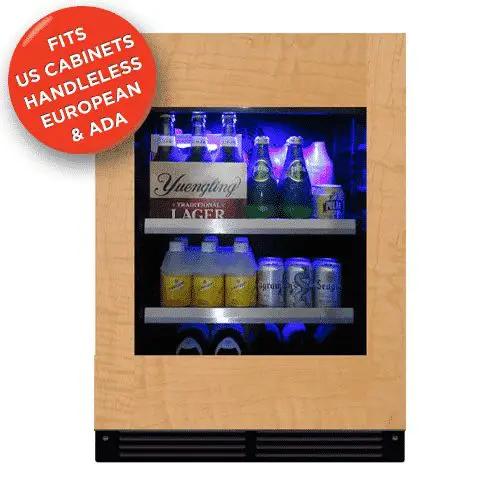

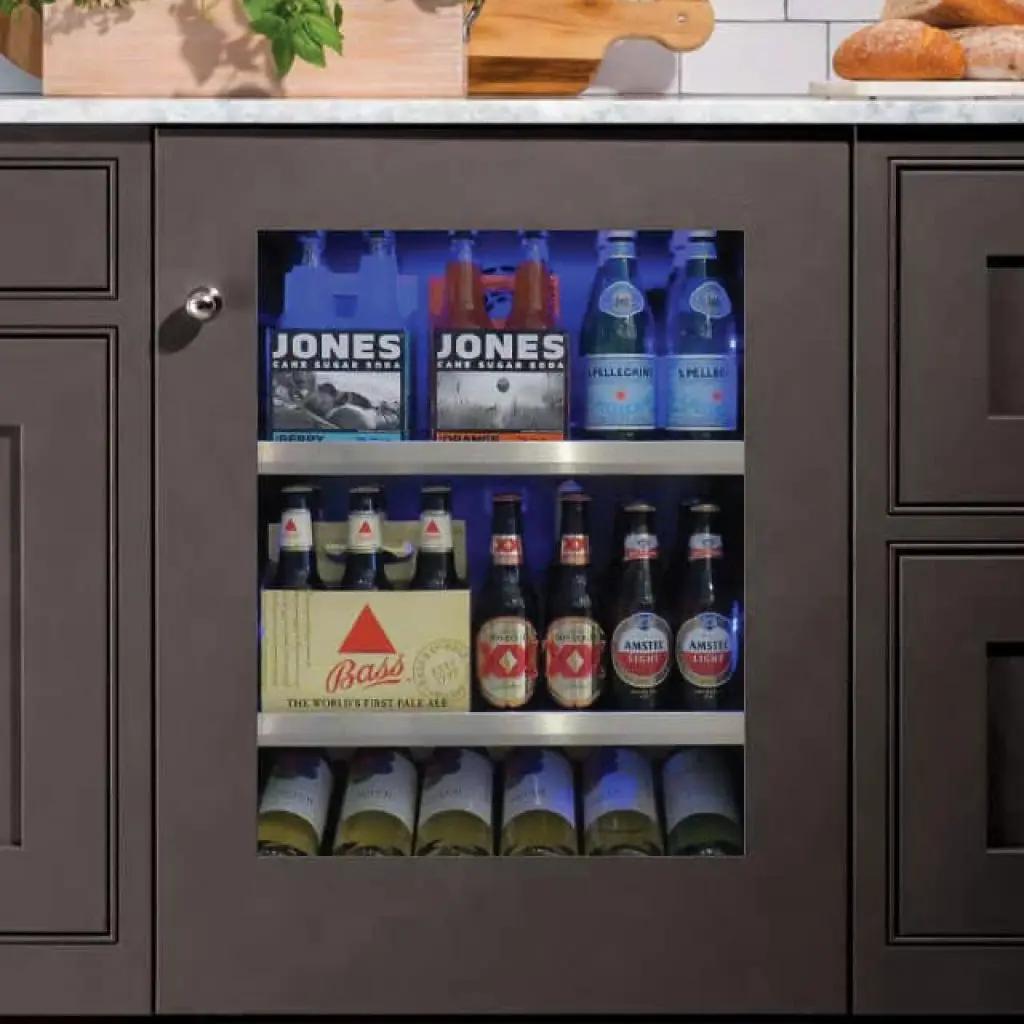

- Seamlessly integrates with US Standard, ADA height and European cabinets
- Clear glass shelves fully extend to reveal their contents and adjust to 12 different heights
- Cool running interior Tri-Color LEDs dramatically illuminate your bottles while saving energy. Choose Theater White, Midnight Blue, and Honey Amber.
- Articulating hinges enable use of longer panels and handleless doors
- Field Reversible Panel Ready Door with UV Blocking Low-E Glass
- Stores up to (118) 12oz cans from 34 to 50 F
- Filtered, conditioned air is circulated to help ensure a stable, uniform temperature
- Zero Clearance hinge and flat plug design ensure flush installation
- Accommodates 4" or 6" toekicks
| Origin | China |
| UPC | 814830012412 |
| Height | 32 1/2 to 34 1/8 |
| Width | 23 7/16" |
| Depth | 21 5/8" |
| Cut-Out Depth (in.) | 24" |
| Cut-Out Height (in.) | 32 1/2" to 34 1/4" |
| Cut-Out Width (in.) | 24" |
| Depth (Excluding Handles) | 22 7/16" includes 3/4" panel |
| Depth (Less Door) | 19 15/16" |
| Depth With Door Open 90 Degrees (In) | 44 11/16" |
| Height to Top of Door Hinge (in.) | 32 1/2 to 34 1/8 |
| Dimensions D x W x H | 21 5/8" x 23 7/8" x 32 1/2 to 34 1/8" |
| Product Weight | 125 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 year limited parts and labor warranty for the original owner |
| Warranty 3 Explained | 5 year limited compressor parts only warranty for the original owner |
| ADA Compatible | Yes |
| Certification | CSA |
| Prop 65 | Yes |
| Freight Class | 92.5 |
| Shipping Weight | 125 |
| Carton Height | 37" |
| Carton Width | 27" |
| Carton Depth | 29" |
| Shipping Method | LTL |
| Amperage | 1.2 amps |
| Electrical | 115V-60Hz-1.2 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 115V |
| Wattage (watts) | 138 watts |
| Ambient Temperature | 60 to 90 degrees F |
| Appliance Type | Beverage Center |
| Can Storage Capacity | 118 (12oz) |
| Color/Finish | Panel Ready & Glass |
| Control Type | Intuitive Touch Digital Controls |
| Cooling Unit Type | Air Cooled Compressor |
| Cubic Foot Capacity | 3.85 cu ft |
| Defrost Type | Automatic Defrost |
| Door Features | Panel Ready - UV Blocking Low-E Glass |
| Door Swing | Reversible |
| Filter Type | Activated carbon air filter |
| Install Type | Fully Integrated Undercounter |
| Installation Type | Fully Integrated Undercounter |
| Interior Finish Type | Molded ABS |
| Interior Lighting | Tri-Color LED Interior Illumination |
| Leveling Legs | Included |
| LIght Colors | Midnight Blue, Theater White, Honey Amber |
| Light Type | Tri-Color LED Interior Illumination |
| Lighting Features | Three lighting modes |
| Max Temperature Zone 1 | 50 degrees F |
| Min Temperature Zone 1 | 34 degrees F |
| Number of Doors | 1 |
| Number of Shelves | 2 |
| Number of Temperature Zones | 1 |
| Open Door Alarm | Yes |
| Operational Features | Energy Saver Mode |

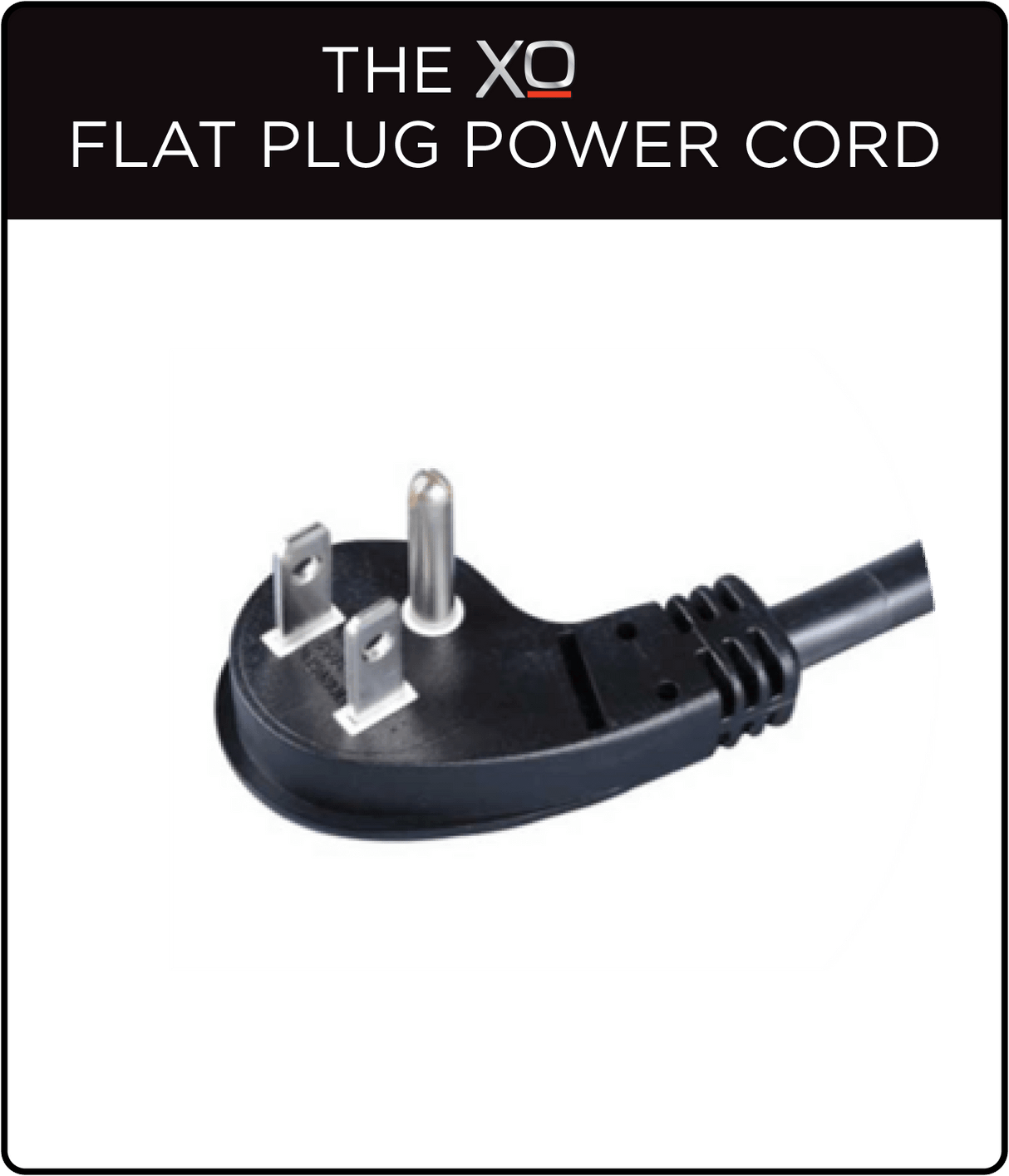

| Power Cord Included | 6' with Flat Plug |
| Programmed Features | Power, Lighting & Alarms |
| Required Plug Type | 5-15P Plug Type |
| Returnable | No |
| Sabbath Mode | Yes |
| Shelf Material Type | Glass |
| Storage Features | 12 Position Full Extension, Fully Loaded |
| Toe Kick Color | Black |
| Vent Location | Bottom Front |
| Wheels/Casters | No |
| Wireless Compatibility | No |
| Control Lighting | Backlit LCD |
| Controls | Electronic Touch |
| Location | Indoor |
| Refrigerant | R600a |
| Sound Level | 37 dBA |
| Assembled Depth (in.) | No |
| Force Multiples | 1 |
