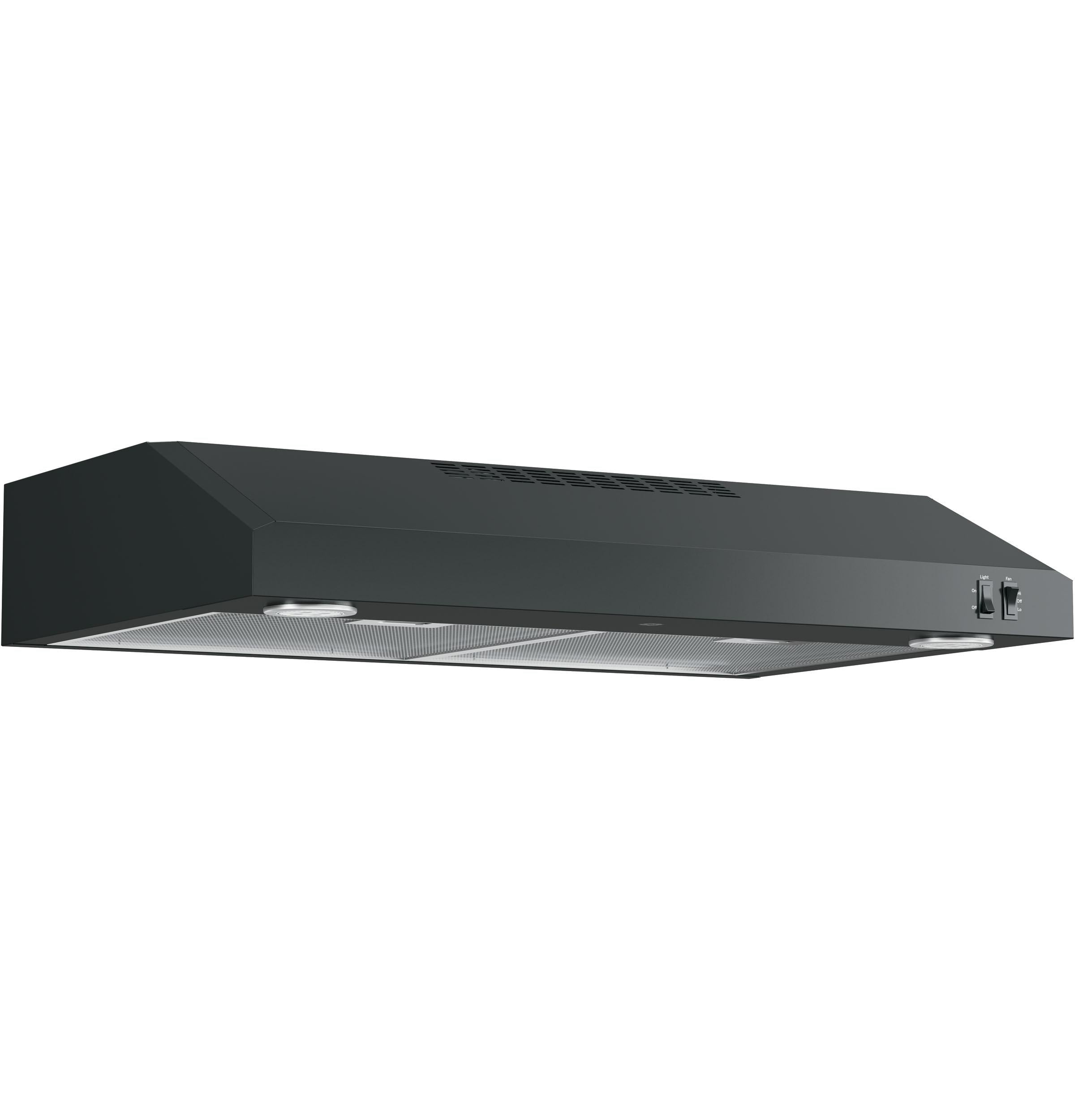

GE® 30" ENERGY STAR Certified Under The Cabinet Hood
Model JVX5305DJBB
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
GE® 30" ENERGY STAR Certified Under The Cabinet Hood
Model JVX5305DJBBQuick Specs
Width
29 7/8
Depth
20
Height
5 1/2
ADA
NO
Wifi
NO
RPM
-1.0
Energy
YES
GE® 30" ENERGY STAR Certified Under The Cabinet Hood is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/06/2026
Regular price
$334.70
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
29 7/8
Depth
20
Height
5 1/2
ADA
NO
Wifi Connected
NO
RPM
-1.0
Energy Star Rated
YES
Front controls
Enjoy easy access and a subtle appearance
Easy installation
10 minutes or less by one person
- Easy installation
- 10 minutes or less by one person
- Two-speed, 270-CFM venting system
- Removes smoke, grease, odors and moisture
- Front controls
- Enjoy easy access and a subtle appearance
- Dual LED lighting
- Choose bright light while cooking - bulbs included
- Convertible venting options
- Select recirculating or external venting
- Vertical and rear exhaust
- Exhausts from the top or rear of the hood
- Appearance (Fully enclosed bottom)
- Enjoy a sleek appearance from every angle
- Dishwasher safe filter
- Filters grease and is dishwasher-safe
- Easy installation
- Two-speed, 270-CFM venting system
- Front controls
- Dual LED lighting
- Convertible venting options
- Vertical and rear exhaust
- Appearance (Fully enclosed bottom)
- Dishwasher safe filter
| FILTER | |
| App Filter - Hood Type | Under Cabinet Hoods |
| App Filter - Venting Type | Convertible |
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
| APPEARANCE | |
| Blower / Light Switch Color | Black |
| Material | Metal |
| Color Appearance | Black |
| POWER / RATINGS | |
| Watts | 87 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 1.0A |
| Amp Rating at 120V | 1.0 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Convertible |
| ACCESSORIES | |
| Optional Accessories | JXCF55 - Charcoal Filter JXHC1 - Power Cord Kit |
| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 30 in |
| Net Weight | 20 lb |
| Overall Depth | 20 in |
| Approximate Shipping Weight | 27 lb |
| Overall Height | 5.5 in |
| Overall Width | 29.875 in |
| FEATURES | |
| Cooktop Lighting | 2 LED |
| Fan Speed Control | 2-Speed |
| Max CFM | 270 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 100/1.5 (Low Speed) 270/4.5 (High Speed) |
| Exhaust Options | Recirculating Vented to Outside |
| Product Type | Under Cabinet Hood |
| Control Type | Rocker Switch |
| Control Location | Front |
| Blower Type | Internal |
| Removable Grease Filter(s) | Yes |
- Easy installation
- Two-speed, 270-CFM venting system
- Front controls
- Dual LED lighting
- Convertible venting options
- Vertical and rear exhaust
- Appearance (Fully enclosed bottom)
- Dishwasher safe filter
 | |
|---|---|
