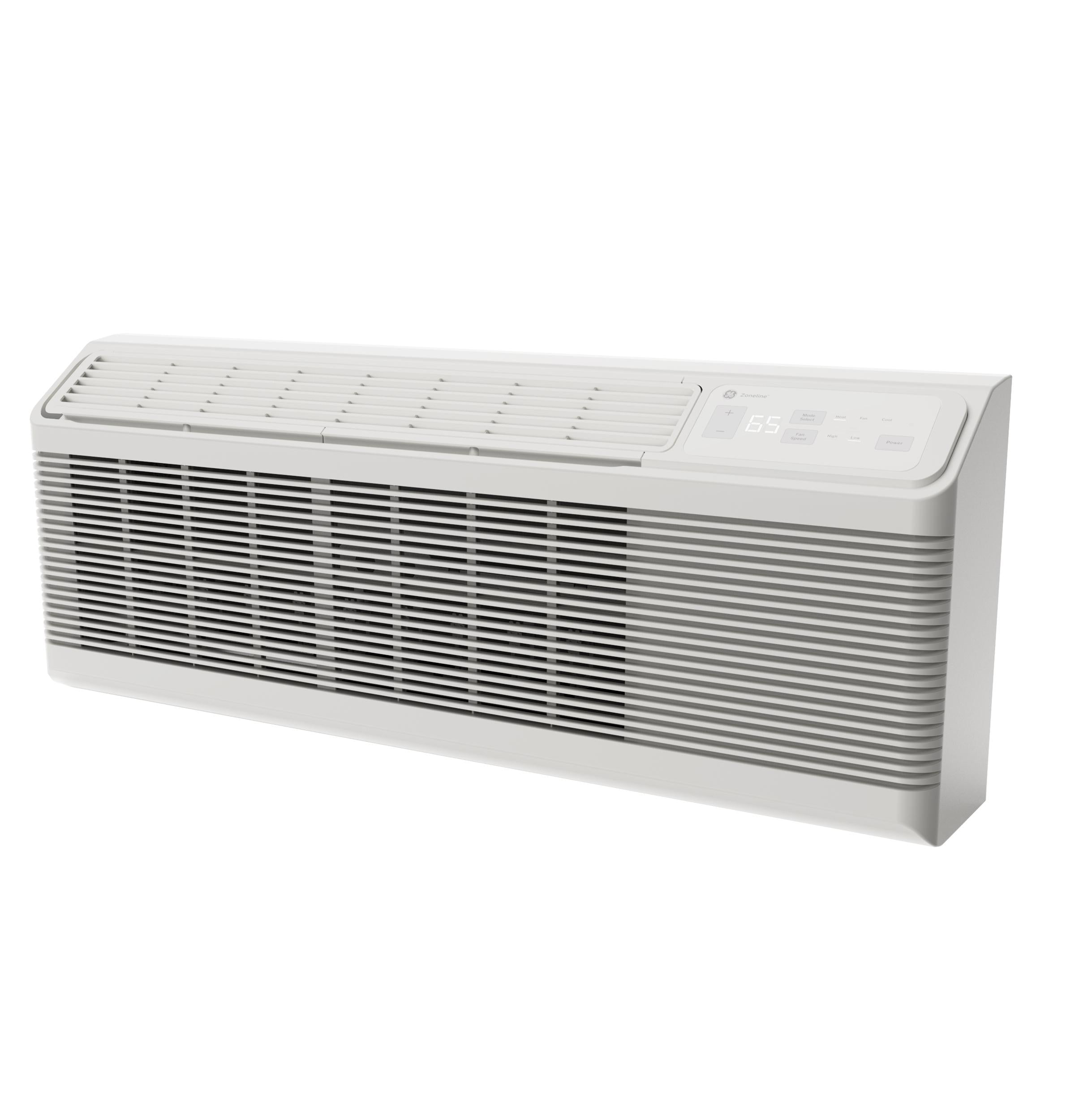

    GE Zoneline® Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt

    Model AZES12DCXXA
    Authorized Dealer
    Top Rated Store
    Authorized Dealer

    GE Zoneline® Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt

    Model AZES12DCXXA
    Top Rated Store
    Quick Specs
    Depth
    20.8125
    Height
    16
    ADA
    NO
    Wifi
    YES
    Cool Cap
    12100
    Cool Power
    12100.0
    Ships Out Within: 2 - 4 Business Days
    Shipping Date By: 07/06/2026
    Sale Price
    $1,033.23 $1,442.00
    You save 28%

    SERVICES AVAILABLE

    Quick Specs
    Depth
    20.8125
    Height
    16
    ADA
    NO
    Wifi Connected
    YES
    Cooling Capacity
    12100
    Cooling Power
    12100.0
    Designed & Assembled in America

    Designed & Assembled in America

    Date of Manufacture - 2025 or later

    • R454B - Most environmentally friendly refrigerant on the market
    • Electronic touch controls with LED display
    • Quiet Operation - baked on mastic sound barrier
    • Corrosion protection package
    • SMC basepan and bulkhead
    • Electronic temperature limiting
    • Fresh air vent
    • Designed & Assembled in America
    • Date of Manufacture - 2025 or later
    • R454B - Most environmentally friendly refrigerant on the market
    • Electronic touch controls with LED display
    • Quiet Operation - baked on mastic sound barrier
    • Corrosion protection package
    • SMC basepan and bulkhead
    • Electronic temperature limiting
    • Fresh air vent
    • Designed & Assembled in America
    CAPACITY
    Cooling BTUH (MAX) 12100 Btu
    CFM Indoor Fan Low 275
    CFM Indoor Fan High 410
    Cooling EER (BTUH / Watt) 11.6/11.7
    Dehumidification (pts./hr.) 3.3 (High Speed)
    Vent CFM (high fan at zero ESP) 41.5
    Cooling BTUH (MIN) 12000 Btu
    APPEARANCE
    Color Appearance Grey White
    POWER / RATINGS
    Cooling - Amperes; L.R. 29.5
    Hertz 60
    Cooling - Amperes; F.L. - Cooling 4.4/4.7
    Cooling - Amperes 4.7/5.1
    Cooling - Watts 1035/1020
    Voltage (MIN) 208 V
    Voltage (MAX) 230 V
    WARRANTY
    Warranty Notes See written warranty for full details
    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed system
    Parts Warranty Limited 2-year entire appliance
    ACCESSORIES
    Accessories Required for Installation Outdoor Grille
    RAB42 - Wall Case
    WEIGHTS & DIMENSIONS
    Overall Width 42 in
    Approximate Shipping Weight 116 lb
    Overall Height 16 in
    Overall Depth 20.8125 in
    Net Weight 106 lb
    FEATURES
    Zoneline Features "Smart Fan" Fan Cycle Control
    Auto Power Recovery
    Automatic Indoor Frost Control
    Central Desk Control Compatibility
    Freeze Sentinel
    Heat Sentinel
    Random Twist/Length Segment Tangential Blower
    Remote Thermostat Compatibility
    Universal Heaters
    Louver Style Reversible
    Refrigerant Charge (oz.) 32
    Control Type Standard Microcomputer
    Tactile touch pad with LED Display
    Discharge Grille 2-position
    Fan Speed Selections Hi/Low Cooling
    Hi/Low Fan Only
    Hi/Low Heating
    Sensible Heat Ratio 0.75
    Power Factor 95
    Refrigerant Type R454B
    Product Type Packaged Terminal Air Conditioners (PTAC)
    Filter Type Rigid Frame
    Slide-Out
    Manual Vent Control Hidden
    Chassis Type Slide-In
    Fan Motor 2
    Temperature Limiting Electronic 24-Step
    Heat Sentinel Yes
    Fan Speed Control Yes
    Freeze Sentinel Yes
    Temperature Range 60 - 85 F
    Corrosion Treated Yes
    Heat - Cool Yes
    Electronic Micro Computer Control Yes
    Fan Cycle Switch Yes
    Central Desk Control Compatibility Yes
    Rotary Compressor Yes
    Vent Control 3-position
    Venting Features Concealed Manual Vent Control
    Outdoor Vent Control - 3 Positions
    Vent Air Filter
    Heating System Resistance only
    • R454B - Most environmentally friendly refrigerant on the market
    • Electronic touch controls with LED display
    • Quiet Operation - baked on mastic sound barrier
    • Corrosion protection package
    • SMC basepan and bulkhead
    • Electronic temperature limiting
    • Fresh air vent
    • Designed & Assembled in America
