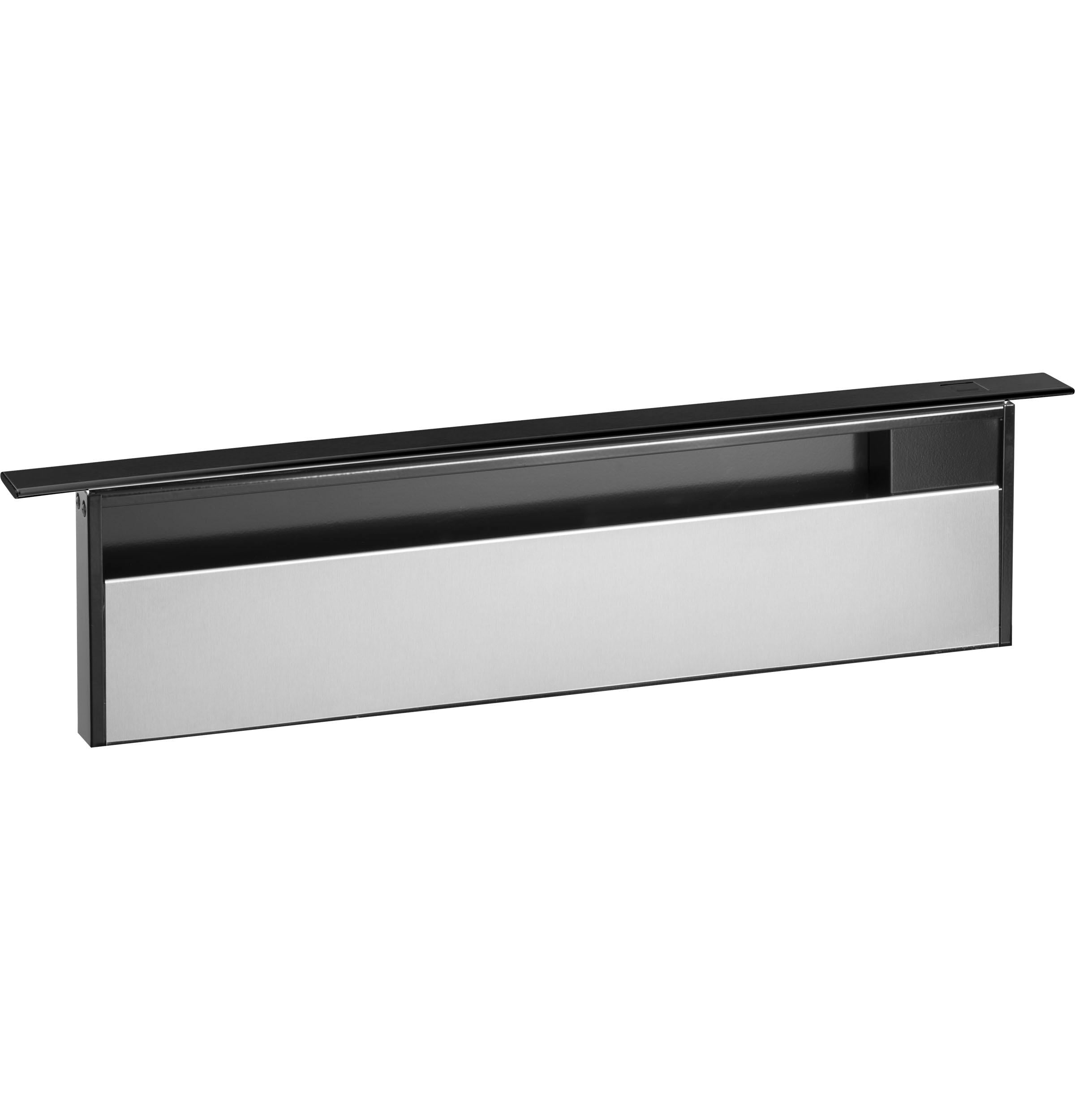

Universal 30" Telescopic Downdraft System
Model: UVD6301DPBB
Universal 30" Telescopic Downdraft System
Model: UVD6301DPBBQuick Specs
Universal 30" Telescopic Downdraft System is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 500 CFM Exhaust Fan
- Efficiently remove smoke, grease, odors and moisture from the air thanks to a downdraft kitchen exhaust vent with a 500-CFM venting system
- Adjustable Fan Speed
- Adjust your ventilation with the turn of a knob thanks to a kitchen exhaust fan that can be set to any speed between 0-500 CFM, depending on what you're cooking
- Kitchen Exhaust Fan Filters
- Minimize clean-up and prevent unpleasant kitchen odor with a removable grease filter that helps cut down on scrubbing
- Aluminum Mesh Filters
- Cut down on clean up thanks to mesh filters that are quick and easy to remove and are completely dishwasher safe
- Hidden Design
- Streamline the look of your kitchen with a downdraft range vent that raises over the cooktop surface when needed and then retracts when not in use
- 500 CFM Exhaust Fan
- Adjustable Fan Speed
- Kitchen Exhaust Fan Filters
- Aluminum Mesh Filters
- Hidden Design
(B)500 CFM Exhaust Fan(/B)(BR)Efficiently remove smoke, grease, odors and moisture from the air thanks to a downdraft kitchen exhaust vent with a 500-CFM venting system(BR)(BR)(B)Adjustable Fan Speed(/B)(BR)Adjust your ventilation with the turn of a knob thanks to a kitchen exhaust fan that can be set to any speed between 0-500 CFM, depending on what you're cooking(BR)(BR)(B)Kitchen Exhaust Fan Filters(/B)(BR)Minimize clean-up and prevent unpleasant kitchen odor with a removable grease filter that helps cut down on scrubbing(BR)(BR)(B)Aluminum Mesh Filters(/B)(BR)Cut down on clean up thanks to mesh filters that are quick and easy to remove and are completely dishwasher safe(BR)(BR)(B)Hidden Design(/B)(BR)Streamline the look of your kitchen with a downdraft range vent that raises over the cooktop surface when needed and then retracts when not in use(BR)(BR)
| FILTER | |
| App Filter-Multi Brand | Cafe GE Monogram |
| App Filter - Hood Type | Telescopic downdraft |
| App Filter - Venting Type | External |
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
| APPEARANCE | |
| Color Appearance | Black |
| POWER / RATINGS | |
| Watts | 375 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 4.0A |
| Amp Rating at 120V | 4.0 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Externally Vented |
| ACCESSORIES | |
| Duct Extension | 100 ft. |

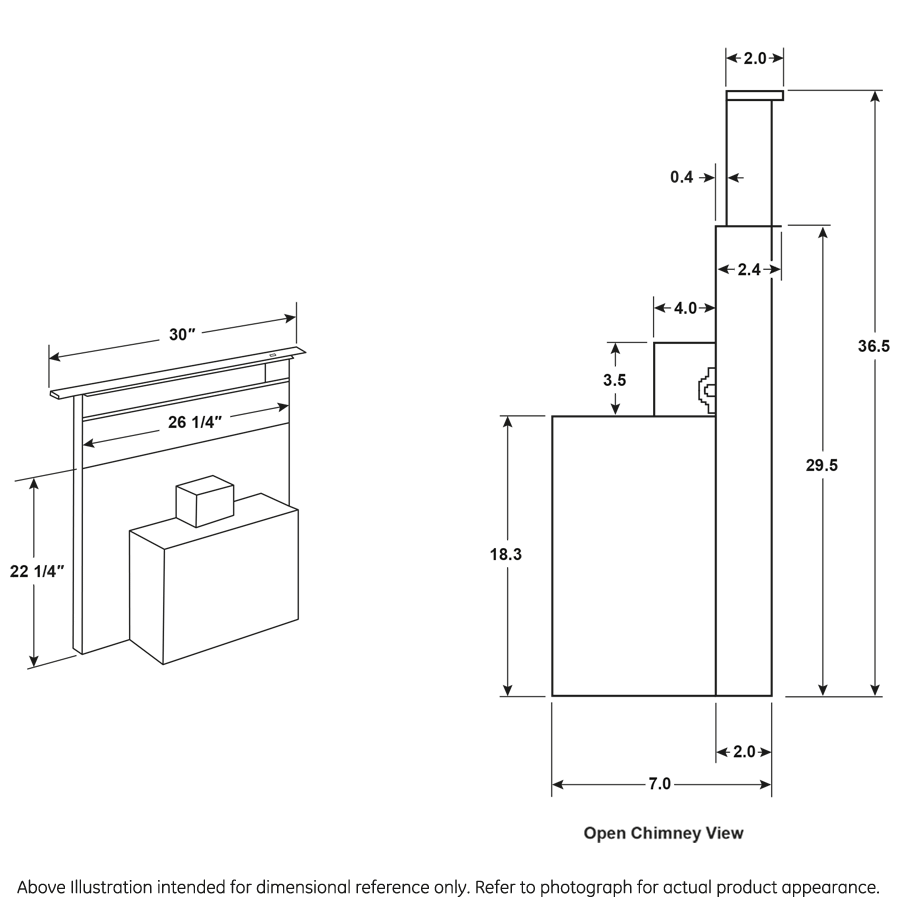

| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 30 in |
| Net Weight | 63 lb |
| Overall Depth | 7 in |
| Approximate Shipping Weight | 67 lb |
| Telescoping Height | 7 in |
| Overall Height | 7 in |
| Overall Width | 30 in |
| FEATURES | |
| Fan Speed Control | Variable |
| Max CFM | 500 |
| Optional Blower Mount Capabilities | Yes |
| CFM/ Sones Rating | 500/11.0 |
| Downdraft Exhaust (CFM) | 500 |
| Exhaust Options | 3-1/4" x 10" Rectangular Duct Downdraft Vented to Outside |
| Product Type | Telescopic Downdraft |
| Control Type | Rotary-Mechanical |
| Telescopic Assembly | Stainless Steel |
| Cover Plate | Black |
| Blower Type | Internal |
| Removable Grease Filter(s) | Mesh Yes |
