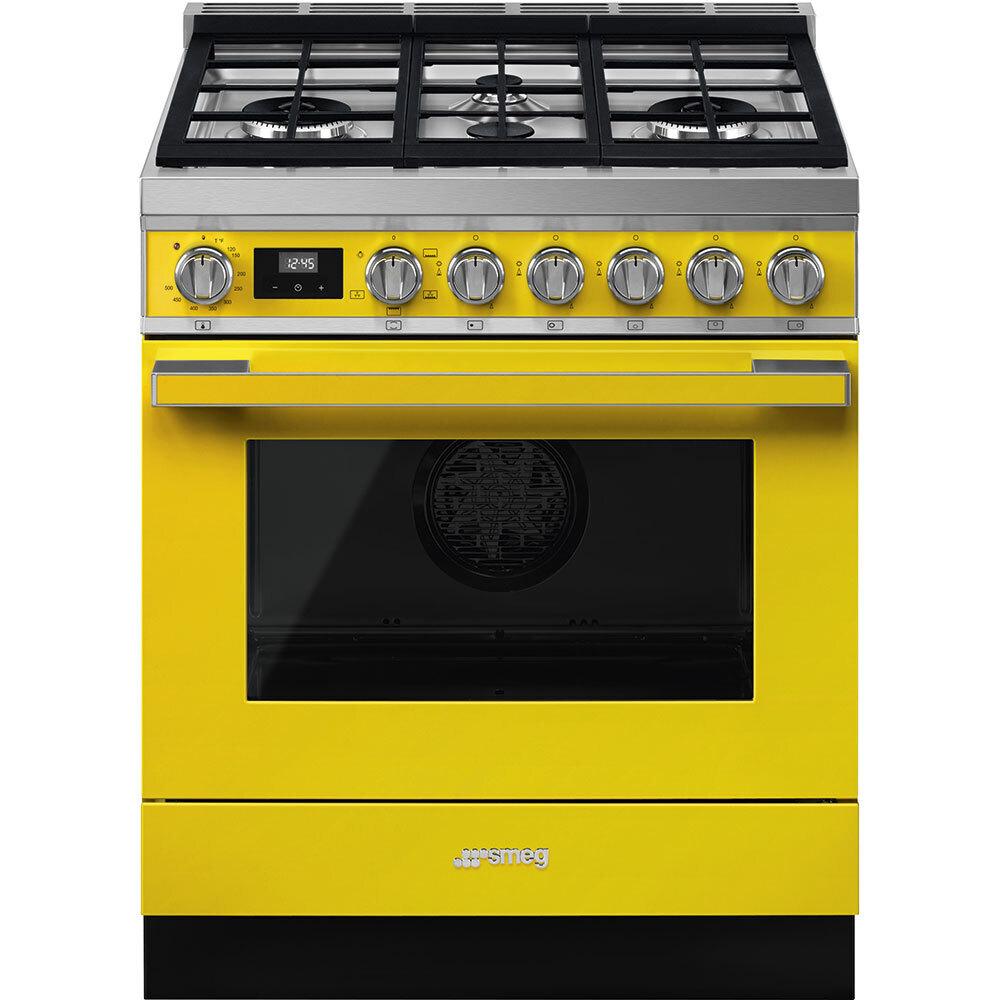

Range Yellow CPF30UGGYW
Model CPF30UGGYW
Range Yellow CPF30UGGYW
Model CPF30UGGYWQuick Specs
Color
Range Yellow CPF30UGGYW is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Product family: Range
- Range size: 30"
- Aesthetics: Portofino
- Color: Yellow
- Main oven: Gas with grill
(P)(B)PORTOFINO STYLE(/B)(/P)(P)Stainless steel control knobs(/P)(P)(B)Soft Close oven door(/B)(/P)(P)Full-width continuous grates(/P)(P)Storage compartment(/P)(P)(B)GAS OVEN:(/B)(/P)(P)3 cooking modes(/P)(P)Programmable timer with touch display(/P)(P)Adjustable thermostat 120(degree) - 500(degree) F(/P)(P)Air-cooled triple-glazed removable door(/P)(P)(B)Removable inner glass for easy cleaning(/B)(/P)(P)Oven capacity: 3.6 cu ft(/P)(P)(B)EverClean enameled interior cavity(/B)(/P)(P)4 shelf positions(/P)(P)2 halogen oven lights(/P)(P)(B)GAS RANGETOP:(/B)(/P)(P)4 gas burners(/P)(P)Diamond configuration burner layout(/P)(P)Center-rear: 4,500 BTUs(/P)(P)Center-front: 8,000 BTUs(/P)(P)Right super burner: 20,000 BTUs(/P)(P)(B)Left double-inset super burner: 20,000 BTUs(/B)(/P)(P)Heavy-duty cast-iron grates(/P)(P)Automatic electric ignition(/P)(P)LP gas conversion kit included(/P)(P)(B)SAFETY:(/B)(/P)(P)Gas safety valves(/P)(P)Air-cooled door to prevent overheating(/P)(P)Connected load nominal power: 200W - 2 Amps(/P)(P)Voltage rating: 120V 60Hz(/P)(P)(B)ACCESSORIES INCLUDED:(/B)(/P)(P)1 wok ring(/P)(P)1 deep oven tray(/P)(P)1 partial-extraction telescopic guide(/P)(P)2 chrome shelves(/P)(P)1 black toe kick(/P)
| Type | |
| Product family | Range |
| Range size | 30" |
| Range fuel | Gas |
| Main oven | Gas with grill |
| EAN code | 8017709270346 |
| Aesthetic | |
| Color | Yellow |
| Aesthetics | Portofino |
| Design | Flush mounted |
| Material | Painted metal |
| Door | With frame |
| Control panel finish | Metal enameled |
| Cooktop color | Stainless steel |
| Handle | Portofino |
| Controls color | Stainless steel |
| Upstand | Yes |
| Display | Touch |
| Grates | Cast Iron |
| Door glass type | Gray |
| Handle color | Colored |
| Control knobs | Portofino |
| No. of controls | 7 |
| Feet | Stainless steel |
| Plinth | Black |
| Storage compartment | Storage drawer |
| Main oven options | |
| Timer | Yes |
| End-of-cooking alarm | Yes |
| Minimum Temperature | 120 °F |
| Maximum temperature | 500 °F |
| Cooktop technical features | |
| Cooking zones | 4 |
| Zone 1 - Type | Gas - Dual ultra-rapid |
| Zone 2 - Type | Gas - Semi-rapid |
| Zone 3 - Type | AUX |
| Zone 4 - Type | Gas - Ultra-rapid |
| Zone 1 - Power | 5.86 kW |
| Zone 1 - Power | 20000 BTU |
| Zone 2 - Power | 2.34 kW |
| Zone 2 - Power | 8000 BTU |
| Zone 3 - Power | 1.31 kW |
| Zone 3 - Power | 4500 BTU |
| Zone 4 - Power | 5.86 kW |
| Zone 4 - Power | 20000 BTU |
| Burners type | Standard |
| Burner caps | Enameled matte black |
| Automatic gas ignition | Yes |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 0.13 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 4 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Light type | Halogen |
| Light Power | 40 W |
| Fan number | 1 |
| Time setting | Start and end |
| Door opening | Drop-down |
| Light on when door is open | Yes |
| Removable door | Yes |
| Full-glass inner door | Yes |
| Removable inner door | Yes |
| Total no. of door glasses | 3 |
| No.of thermo-reflective door glasses | 2 |
| Safety thermostat | Yes |
| Cooling system | Tangential |
| Grill type | Gas |
| Soft Close system | Yes |
| Temperature control | Electro-mechanical |
| Electrical Connection | |
| Electrical connection rating | 200 W |
| Current | 2 A |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Power cord length | 55 1/8 " |
| Gas Connection | |
| Gas Type | G20/G25 - 20/25 mbar |
| Logistic Information | |
| Dimensions | 900x760x640 mm |
| Width | 29 15/16 " |
| Height | 35 7/16 " |
| Depth | 25 3/16 " |
| Packaged dimensions | 1010X870X750 mm |
| Gross weight | 262 lbs |
| Net weight | 233 lbs |
| Packaged width | 34 1/4 " |
| Packaged depth | 29 1/2 " |
| Packaged height | 39 3/4 " |
| Maximum stackability | 4 |
| Packaging | Cardboard box |
| Packaging composition - Paper | 10 lbs |
| Packaging composition - Polystyrene | 12 lbs |
| Packaging composition - Wood | 5 lbs |
| Packaging composition - Plastics | 1 lbs |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
| Accessories included for main oven and cooktop | |
| Cast iron wok support | 1 |
| Oven grid with back-stop, tray support | 1 |
| TOP Oven grid with back stop | 2 |
| Grill mesh | 1 |
| 1.6"-deep tray | 1 |
| Telescopic Guide rails, partial Extraction | 1 |
- Product family: Range
- Range size: 30"
- Aesthetics: Portofino
- Color: Yellow
- Main oven: Gas with grill
