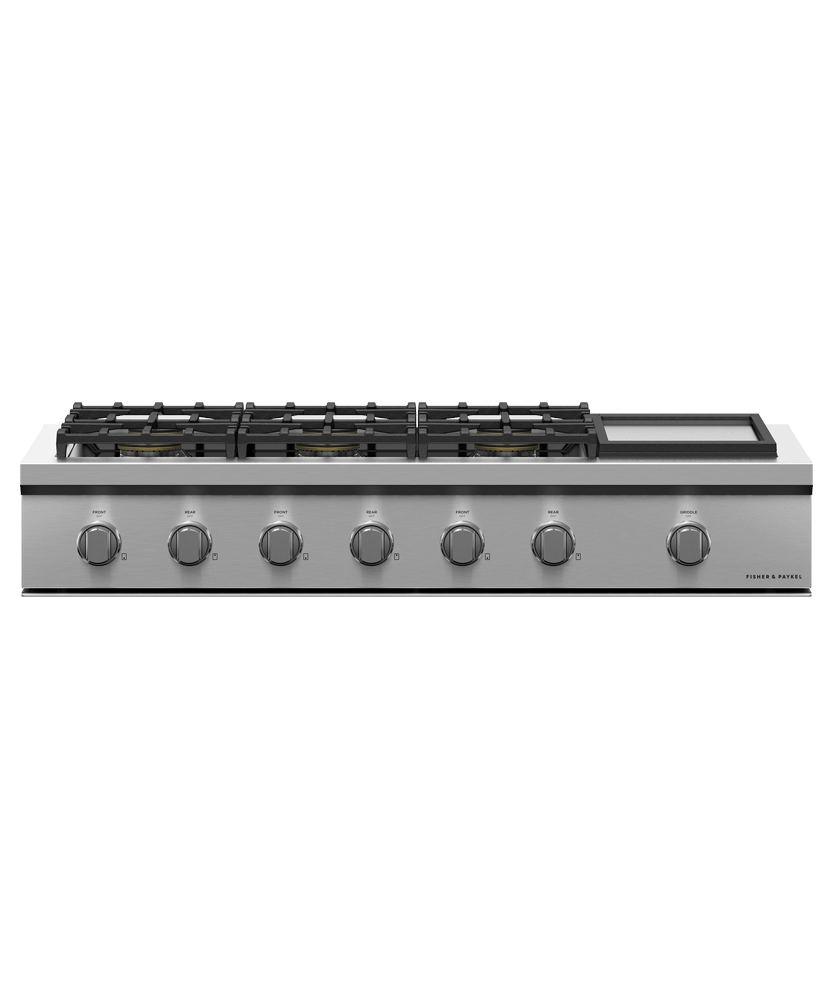

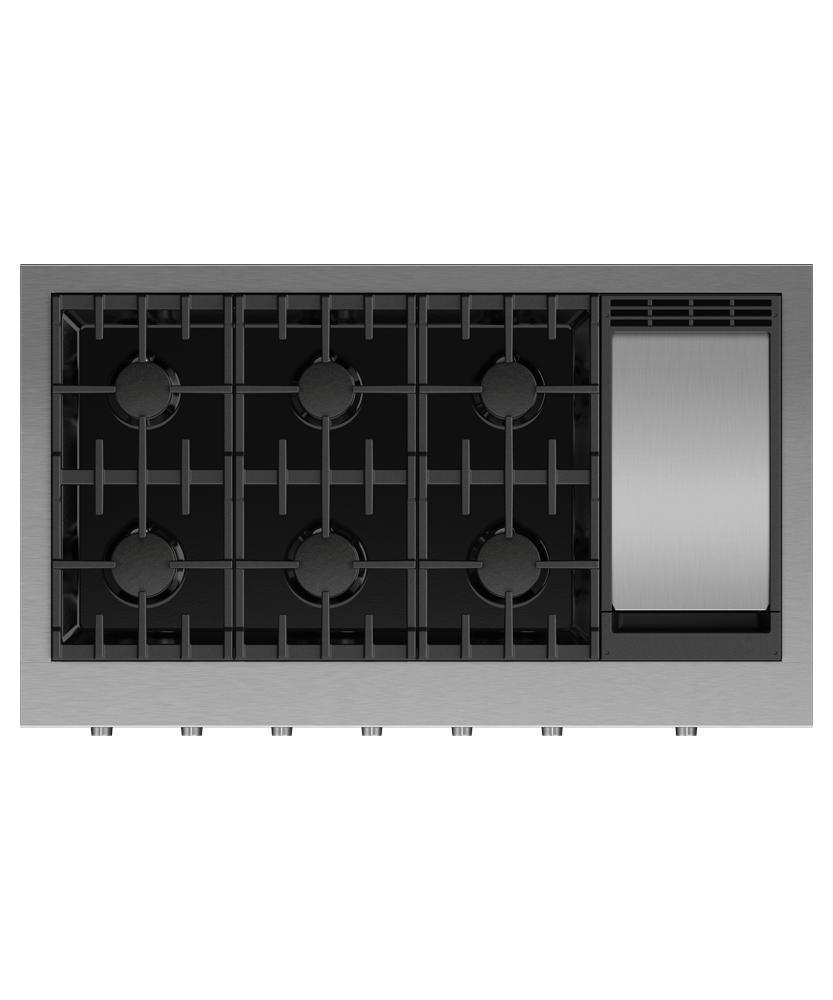

48" Series 9 6 Burner with Griddle Gas Rangetop
Model CPV3486GDL
48" Series 9 6 Burner with Griddle Gas Rangetop
Model CPV3486GDLQuick Specs
48" Series 9 6 Burner with Griddle Gas Rangetop is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specs
Information At A Glance
BEAUTIFUL TO USE Information At A Glance LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Cooking Flexibility
BEAUTIFUL TO USE Cooking Flexibility The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
Precise Control
PERFECT RESULTS Precise Control From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
Design Quality
BUILT TO LAST Design Quality This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.
Easy To Clean
BEAUTIFUL TO USE Easy To Clean These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
Cooktop Power
PERFECT RESULTS Cooktop Power Sealed Dual Flow Burners(TM) deliver rangetop power up to 19,000 BTU for seriously fast boiling right down to a precise 140(degree)F full surface simmer with the gentlest of flames.
- Cooktop Power
- Sealed Dual Flow Burners™ deliver rangetop power up to 19,000 BTU for seriously fast boiling right down to a precise 140(degree)F full surface simmer with the gentlest of flames.
- Precise Control
- From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
- Cooking Flexibility
- The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
- Easy To Clean
- These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
- Information At A Glance
- LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
- Design Quality
- This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.
- Griddle with burners that deliver up to 19,000 BTU heat per burner, for seriously fast boiling
- Continuous surface grates designed for pots and pans to move safely across the cooktop
- The stainless steel griddle is great for cooking anything from grilled cheese to quesadillas
- Made from quality materials and real stainless steel
| Burner ratings | |
| Max burner power | Yes |
| Power back centre | 13000BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front centre | 15000BTU |
| Power front left | 19000BTU |
| Power front right | 15000BTU |
| Power griddle | 15000BTU |
| Total cooktop power | 103000BTU |
| Burners | |
| Number of burners | 6 |
| Cleaning | |
| Controls | |
| Gas Requirements | |
| Fitting and pipe | 1/2 NPT, min. 5/8 " flex line |
| Supply Pressure (LPG) | 11 " to 14" W.C |
| Performance | |
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
| Power requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 28 " |
| Height | 8 5 / 16 " |
| Width | 47 7 / 8 " |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
| Safety | |
| Zones | |
| Number of elements | 6 |
- Griddle with burners that deliver up to 19,000 BTU heat per burner, for seriously fast boiling
- Continuous surface grates designed for pots and pans to move safely across the cooktop
- The stainless steel griddle is great for cooking anything from grilled cheese to quesadillas
- Made from quality materials and real stainless steel
