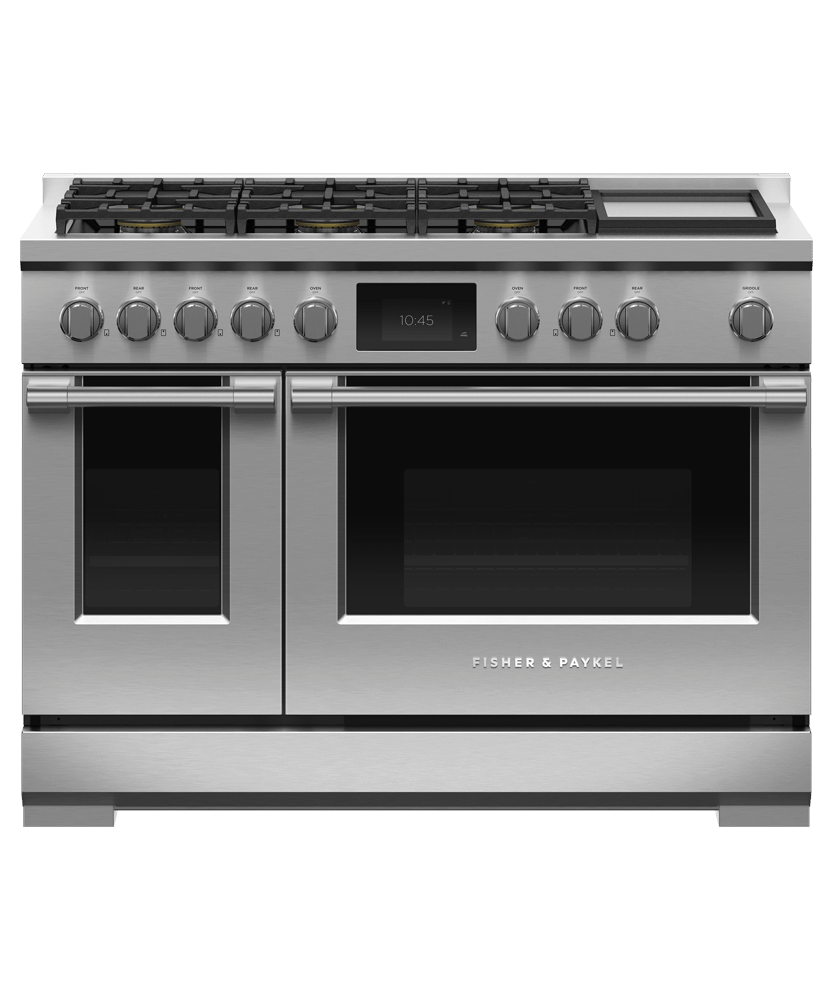

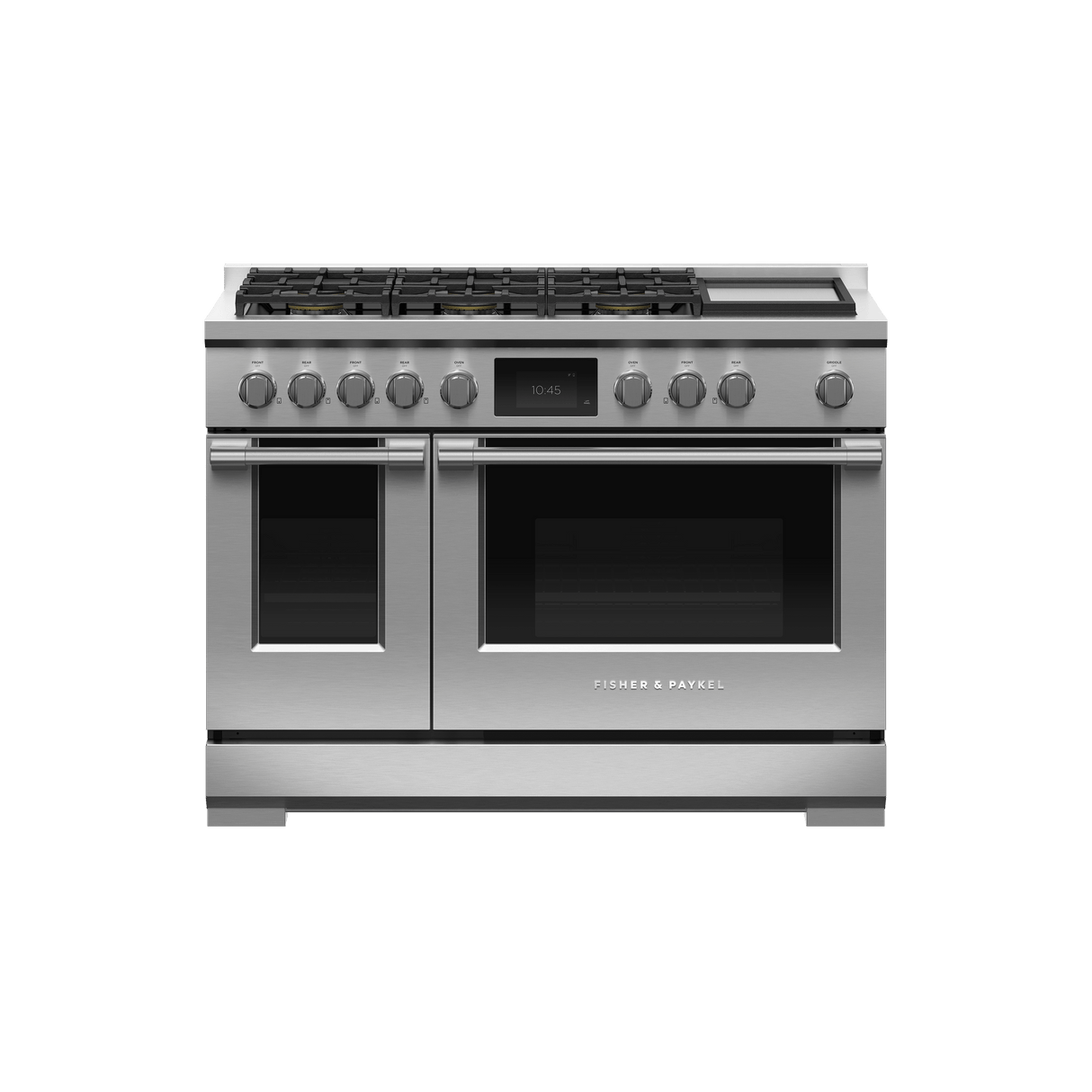

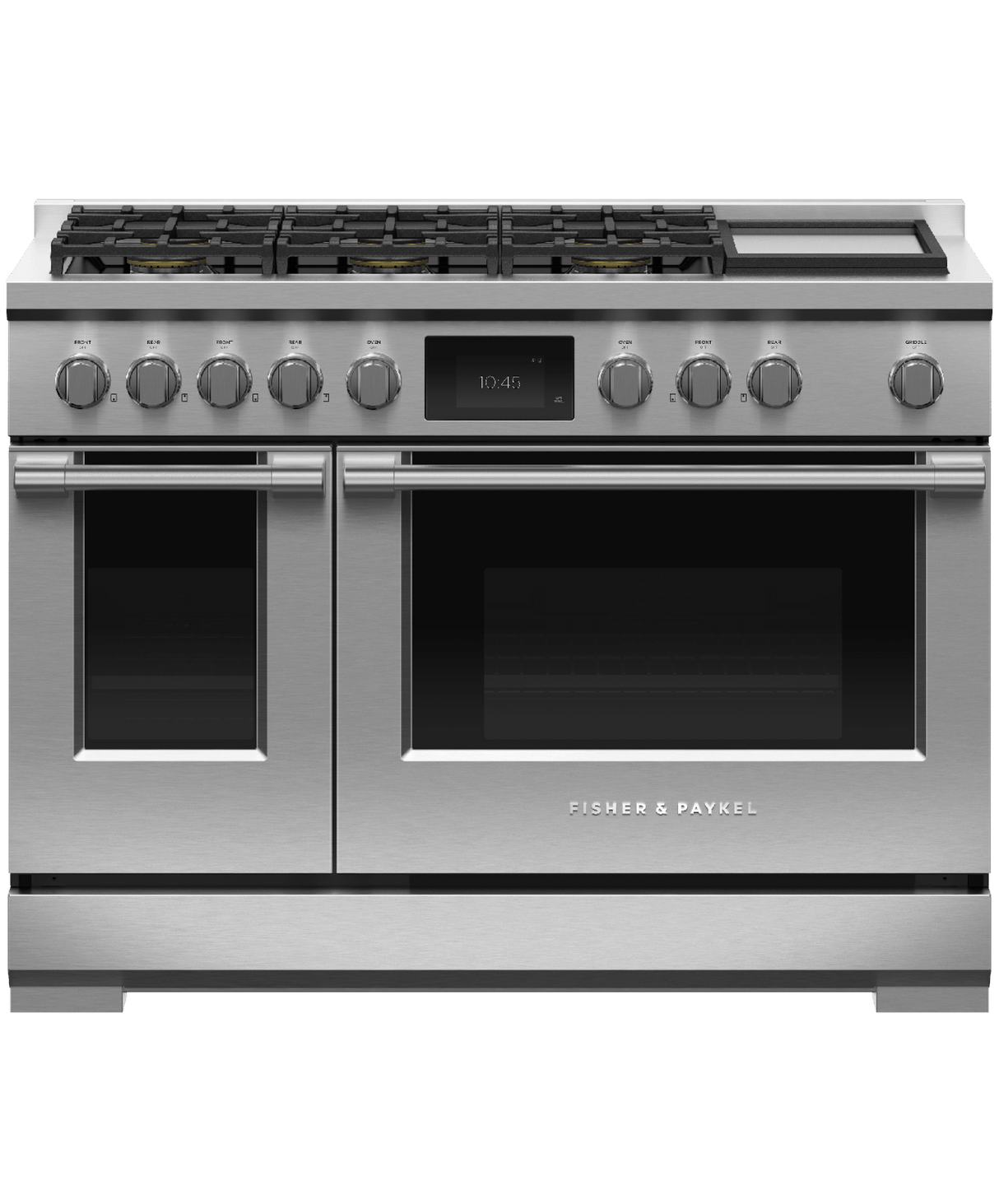

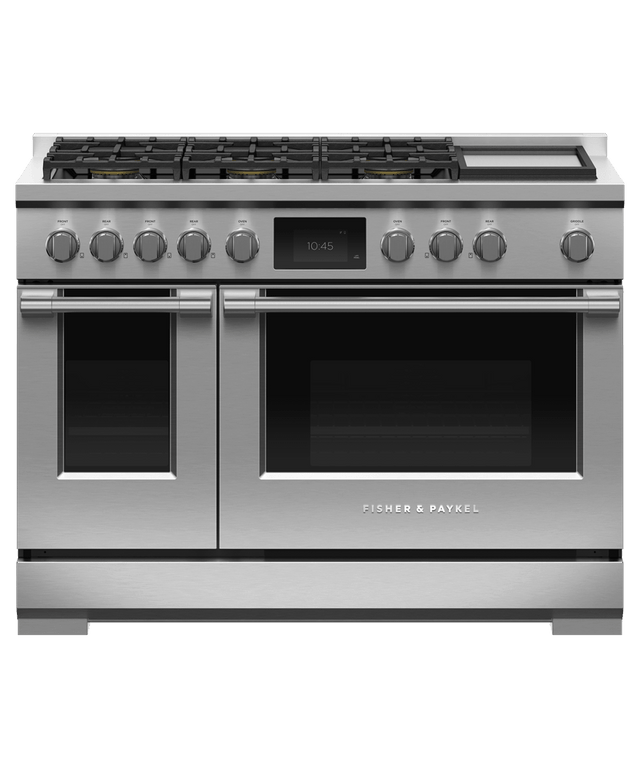

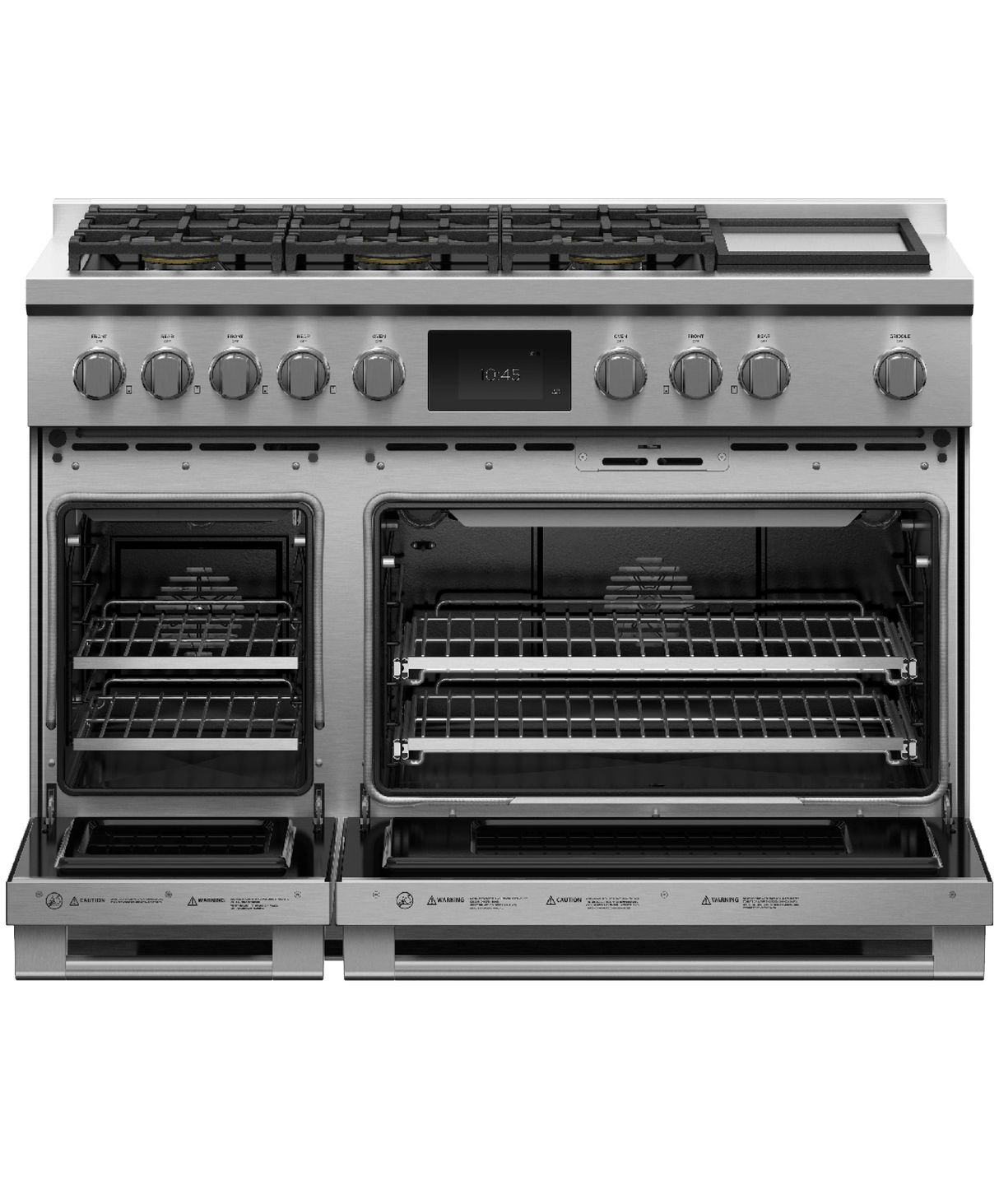

48" Series 9 Professional Dual Fuel 6 Burner with Griddle Range
Model RDV3486GDL
48" Series 9 Professional Dual Fuel 6 Burner with Griddle Range
Model RDV3486GDLQuick Specs
48" Series 9 Professional Dual Fuel 6 Burner with Griddle Range is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Easy To Clean
BEAUTIFUL TO USE Easy To Clean The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
Cooktop Power
PERFECT RESULTS Cooktop Power Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140(degree)F full surface, low temperature cooking with the gentlest of flames.
Cooking Flexibility
PERFECT RESULTS Cooking Flexibility No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Design Quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Generous Capacity

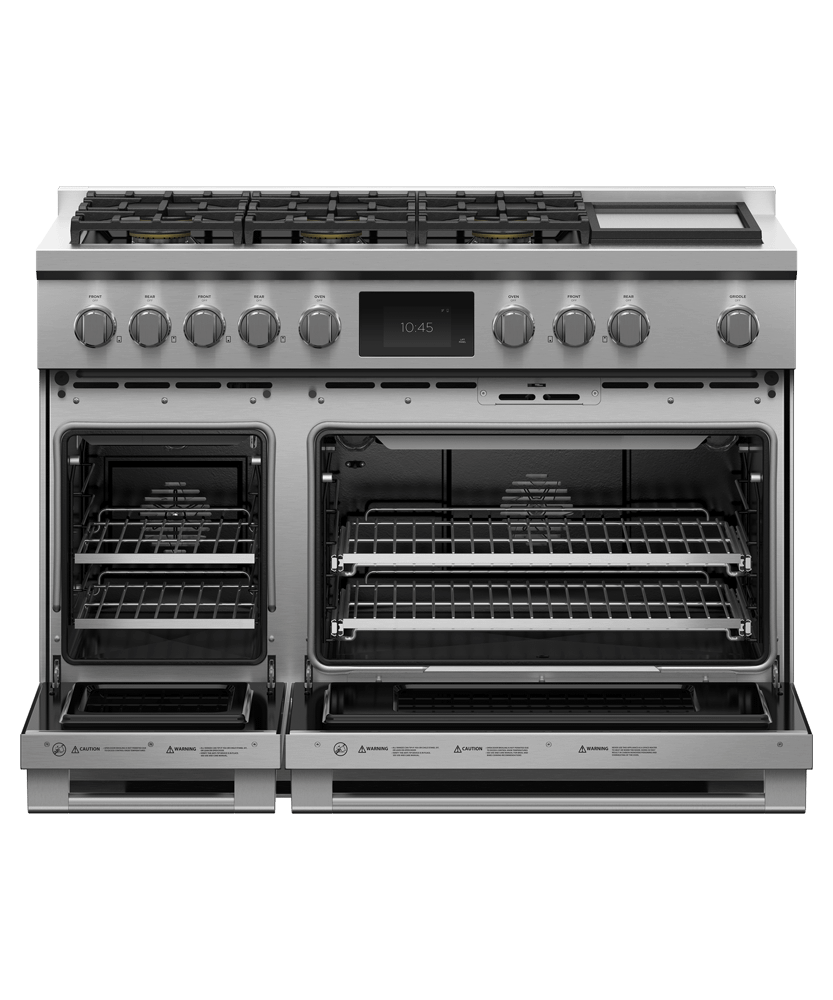

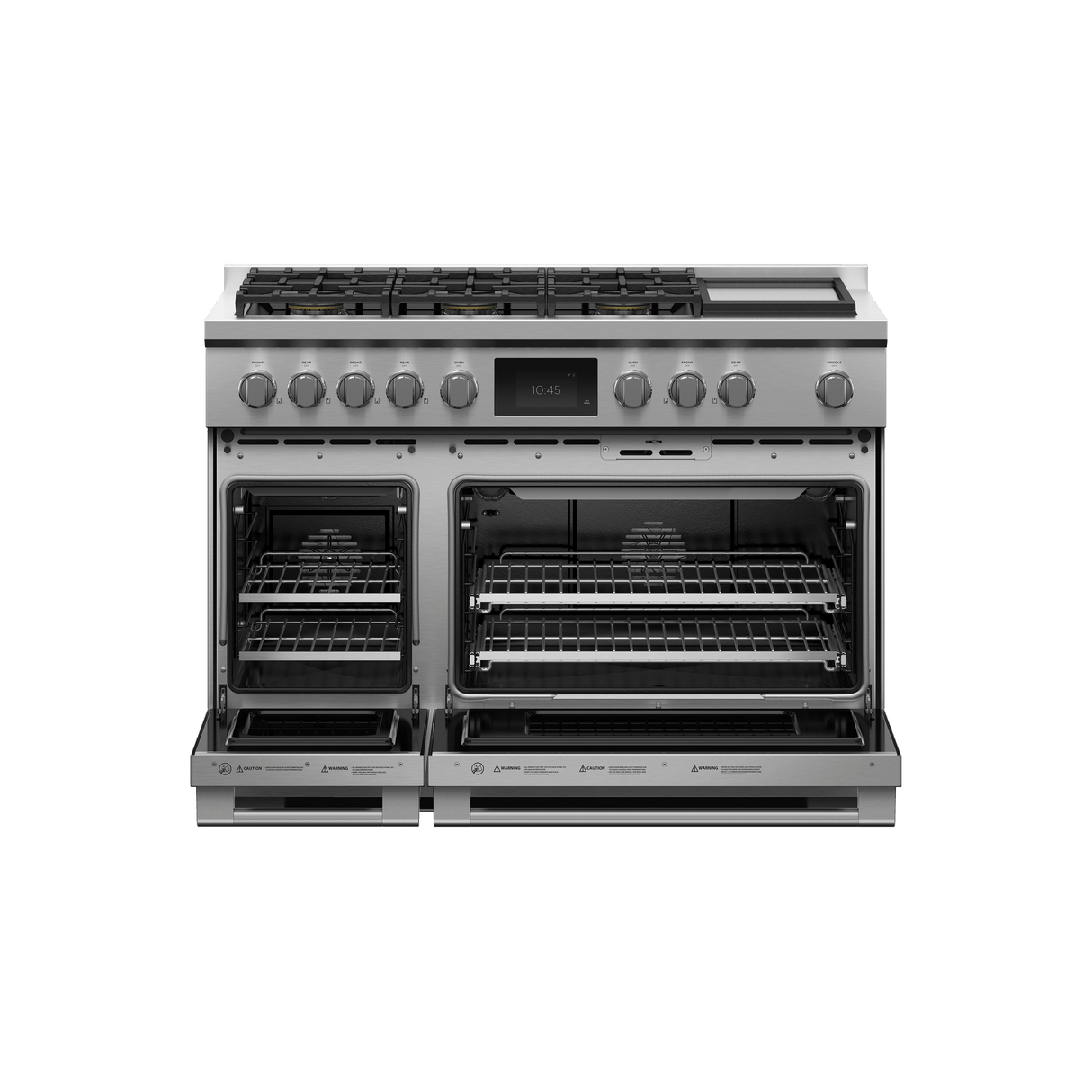

PERFECT RESULTS Generous Capacity Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That's enough room for a 32 lb turkey in one oven, and your sides in the other.
- Cook With Confidence
- Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you've been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
- Generous Capacity
- Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That's enough room for a 32 lb turkey in one oven, and your sides in the other.
- Cooking Flexibility
- No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
- Cooktop Power
- Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140(degree)F full surface, low temperature cooking with the gentlest of flames.
- Design Quality
- This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
- Easy To Clean
- The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe

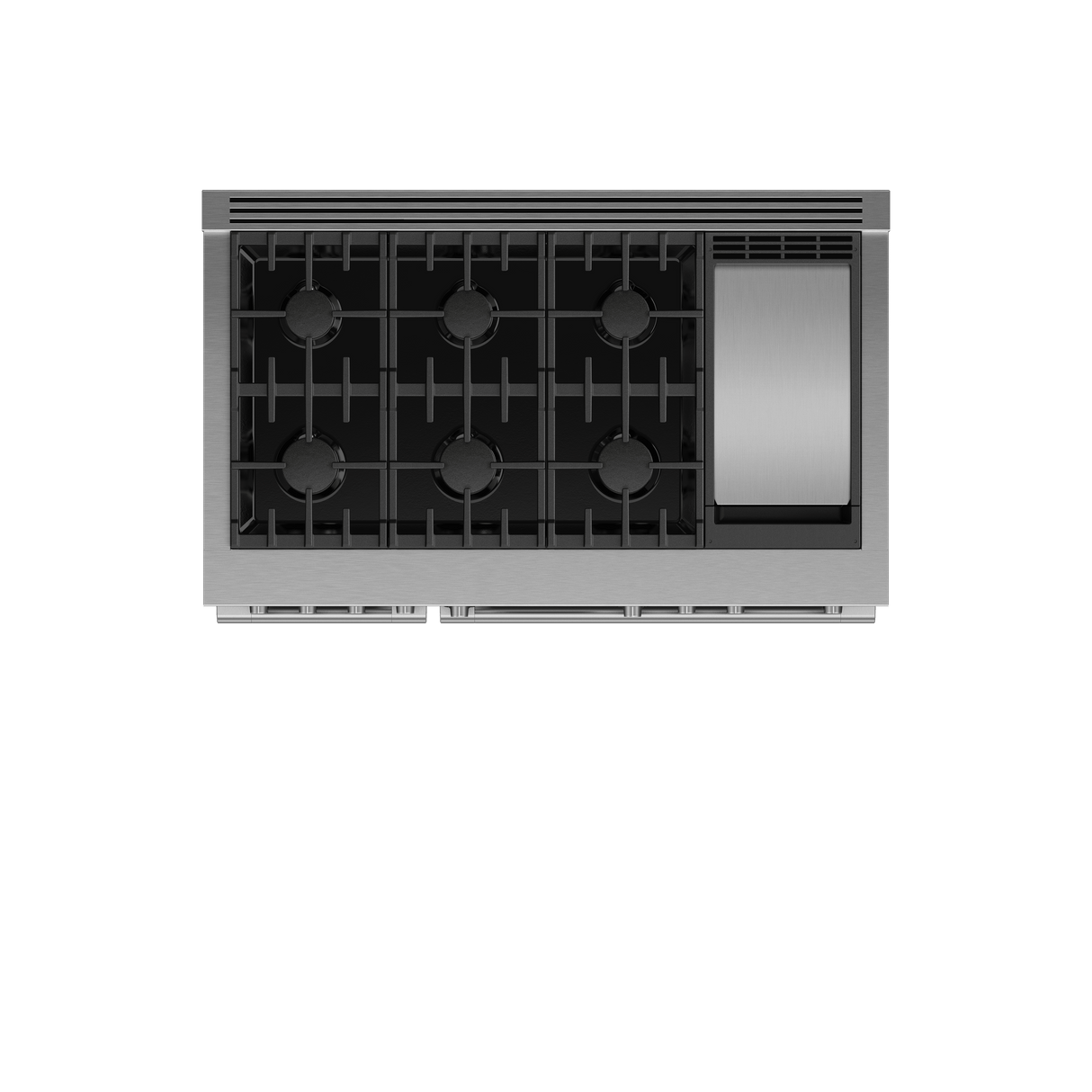

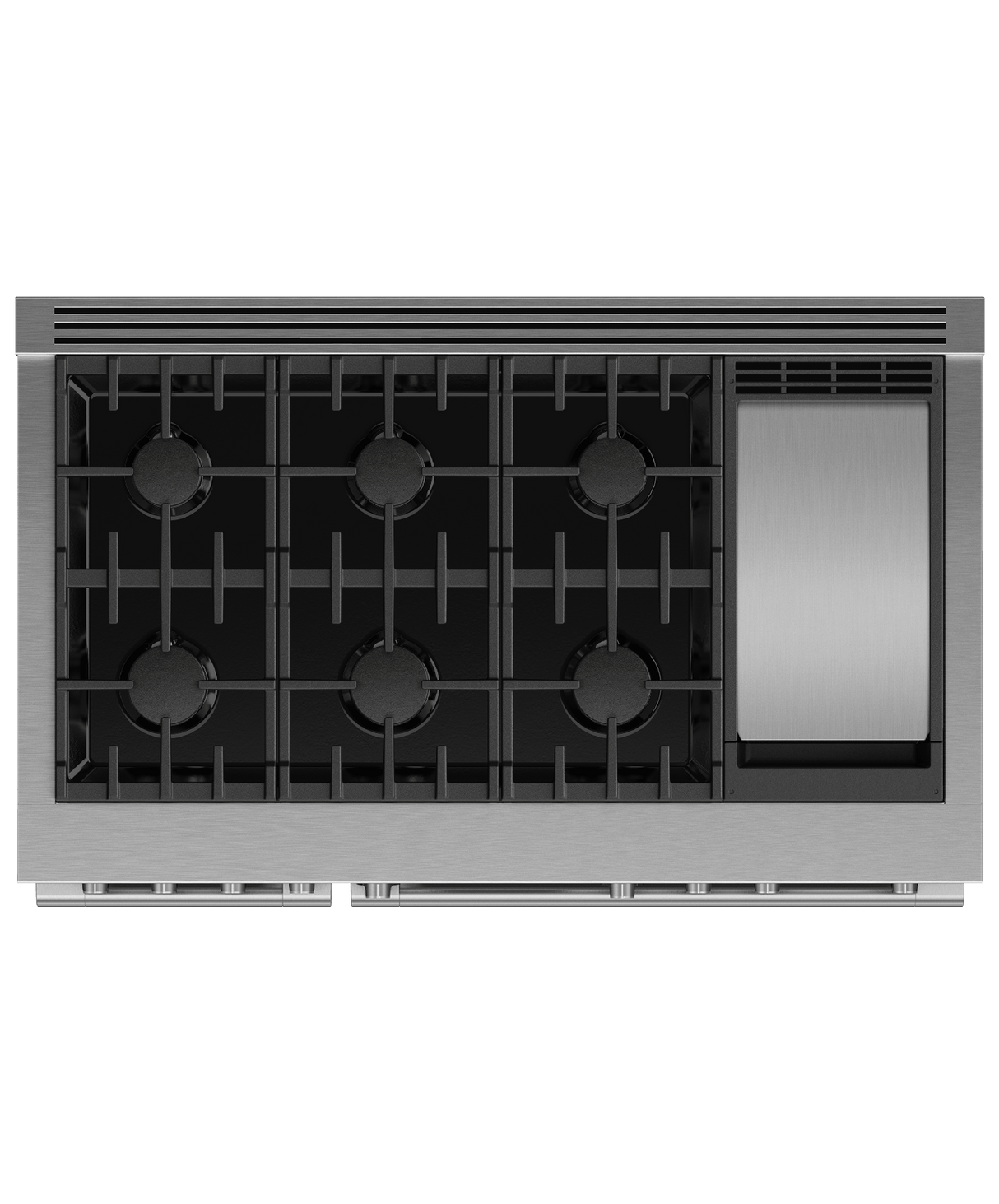

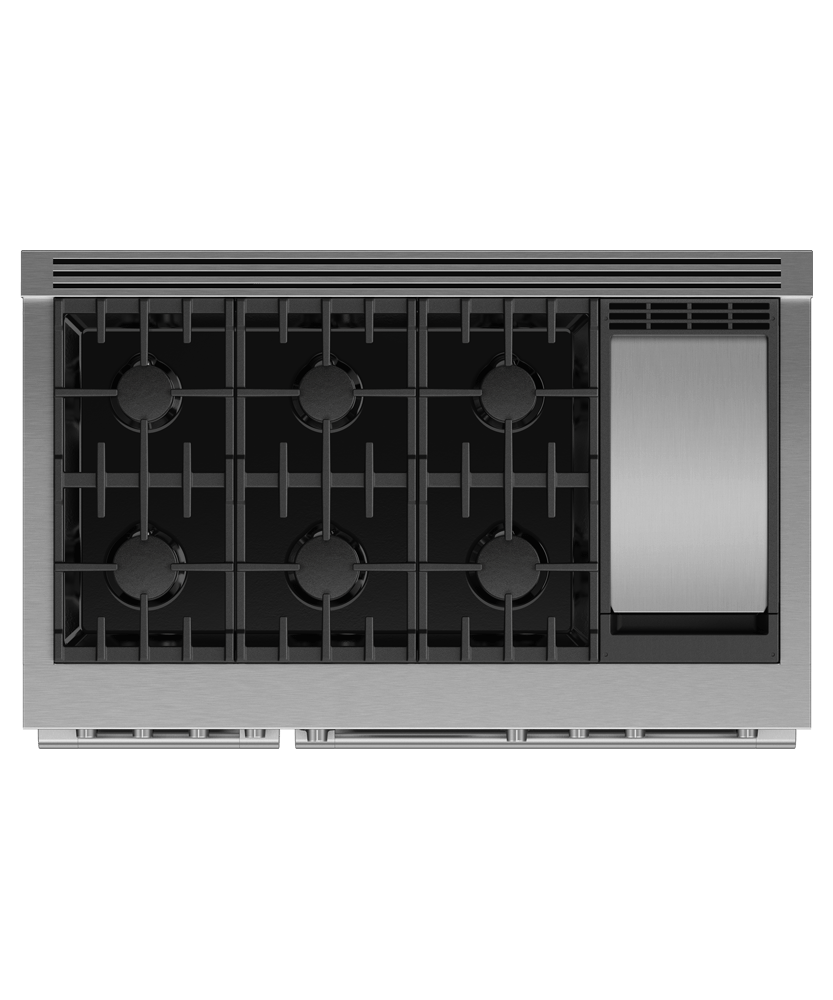

- Gas cooktop with a griddle and six burners that deliver up to 19,000 BTU for fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Use the food probe to monitor your cooking real time
| Accessories (included) | |
| Burner ratings | |
| Maximum burner power | 19000 BTU |
| Power back centre | 13000BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front centre | 15000BTU |
| Power front left | 19000BTU |
| Power front right | 15000BTU |
| Power griddle | 15000BTU |
| Total cooktop power | 103000 BTU |
| Capacity | |
| Shelf positions (main oven) | 5 |
| Shelf positions (second oven) | 5 |
| Total capacity (main oven) | 4.8cu ft |
| Total capacity second oven | 2.1cu ft |
| Usable capacity (main oven) | 3.8cu ft |
| Cleaning | |
| Controls | |
| Gas Requirements | |
| Fitting and pipe | 1/2 NPT, min. 5/8 " flex line |
| Supply Pressure (LPG) | 11 " to 14" W.C |
| Oven features | |
| Oven functions | |
| Number of functions | 15 |
| Power requirements | |
| Connection | 4-prong grounding type [NEMA 14-50P plug] |
| Power supply | 120 / 240 V, 60 Hz |
| Service | 50 A |
| Product dimensions | |
| Depth | 29 1 / 8 " |
| Height | 35 3 / 4 - 36 3 / 4 " |
| Width | 47 7 / 8 " |
| Rangetop features | |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48 " Professional Range Hood, Dual Blower) |
| Safety | |
| Secondary oven features | |
| 3/4 Extension racks | 2 |
| Secondary oven functions | |
| Number of secondary oven functions | 11 |
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe
- Gas cooktop with a griddle and six burners that deliver up to 19,000 BTU for fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Use the food probe to monitor your cooking real time
