Monogram 36" Slide-Out Hood
Model ZV800SJSS
Authorized Dealer
1
of
8
Loading...
Authorized Dealer
Monogram 36" Slide-Out Hood
Model ZV800SJSSQuick Specs
Width
35 7/8"
Depth
13 11/16"
Height
1 1/2"
Energy
NO
Monogram 36" Slide-Out Hood is backordered and will ship as soon as it is back in stock.
Regular price
$1,968.75
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35 7/8"
Depth
13 11/16"
Height
1 1/2"
Energy Star Rated
NO
Recirculating kit
Included for applications that do not allow outside venting
Multilevel halogen lighting
Six levels of intensity, from accent to ambient settings, allow you to choose the lighting to match the cooking task or occasion
Low-profile design, high-impact style

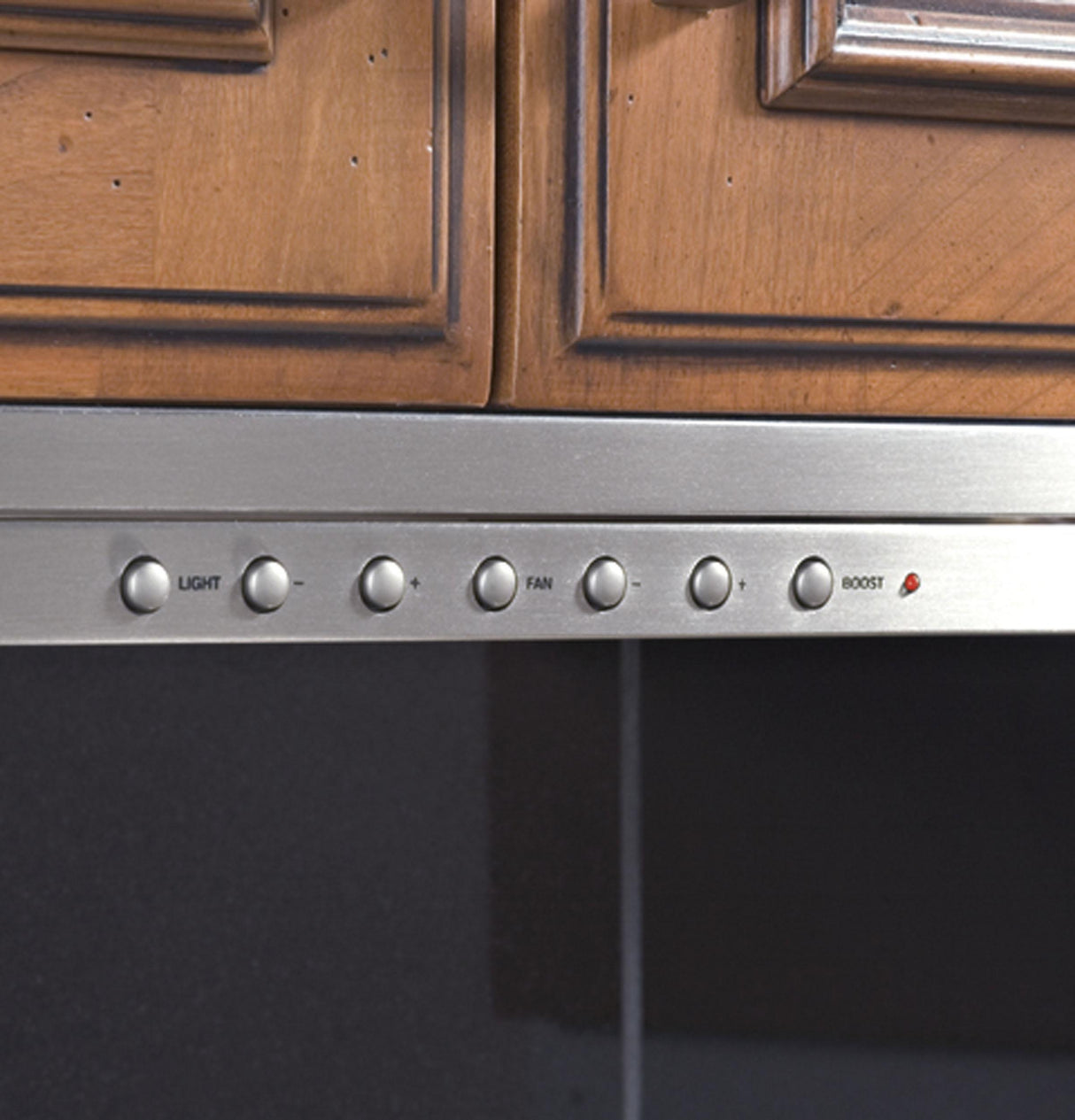

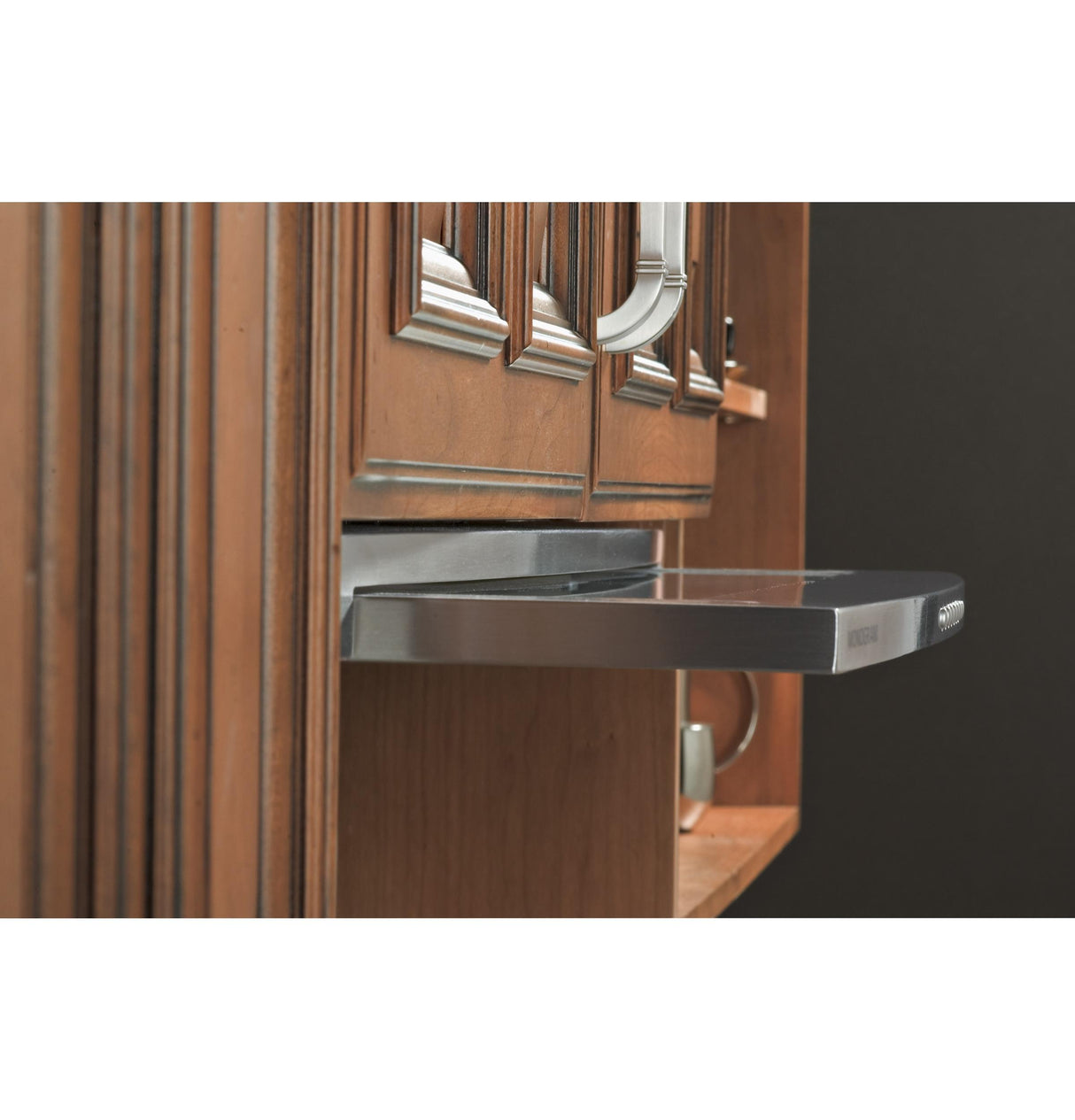

The retractable, glass canopy is sleekly styled with a streamlined design, seamlessly finished edges and front-mounted touch controls
- Under-cabinet or stand-alone installation

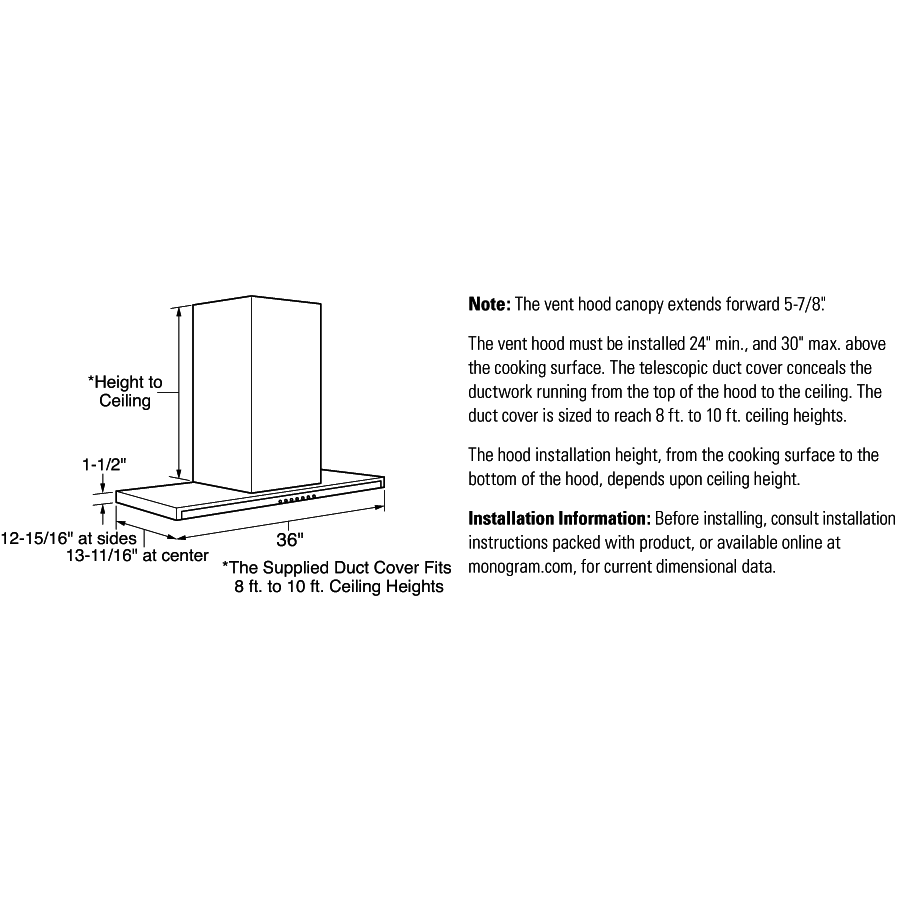

- The chimney hood installs flush under a cabinet, above most cooktops and ranges. For a more contemporary look, the system can be wall-mounted with matching 8-to-10-foot duct cover
- Low-profile design, high-impact style
- The retractable, glass canopy is sleekly styled with a streamlined design, seamlessly finished edges and front-mounted touch controls
- Powerful ventilation
- A four-speed, 460-CFM fan blower with boost option captures the smoke and steam produced by high-performance cooking equipment
- Multilevel halogen lighting
- Six levels of intensity, from accent to ambient settings, allow you to choose the lighting to match the cooking task or occasion
- Easy maintenance
- Stainless steel filters can be easily removed for safe cleaning in your dishwasher
- Recirculating kit
- Included for applications that do not allow outside venting
- Under-cabinet or stand-alone installation
- Low-profile design, high-impact style
- Powerful ventilation
- Multilevel halogen lighting
- Easy maintenance
- Recirculating kit
| APPEARANCE | |
| Design Style | Chimney |
| Color Appearance | Stainless Steel |
| Installation | Under Cabinet Wall Mounted |
| POWER / RATINGS | |
| Watts | 377 |
| Hertz | 60 |
| Electrical Requirements | 120V |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Externally Vented |
| ACCESSORIES | |
| Recirculating Charcoal Filter Kit | Included |
| 8"-10" Ceiling Duct Cover | Included |
| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 36 in |
| Net Weight | 60 lb |
| Overall Depth | 13.6875 in |
| Approximate Shipping Weight | 81 lb |
| Overall Depth (hood retracted) | 13.6875 in |
| Overall Depth (hood extended) | 18.9375 in |
| Overall Height | 1.5 in |
| Overall Width | 35.875 in |
| FEATURES | |
| Fan Speed Control | 4-Speed |
| Cooktop Lighting | 2 Halogen |
| Max CFM | 460 |
| Damper in Transition | Yes |
| Short Description | 36" Slide-Out Hood |
| CFM/ Sones Rating | 460/7.0 |
| Automatic Light/Fan Activation | Yes |
| Exhaust Options | 6" Round Duct |
| Product Type | Slide-Out Hoods |
| Welded / Finished Seams | Yes |
| Variable Speed Fan | Yes |
| Control Type | Electronic Pushbutton |
| Vertical Exhaust-Round (Cubic Feet / Minute) | 460 |
| Lighting Levels | 6 |
| Indicator Lights | "ON" |
| Stainless Steel Mesh Filters | Yes |
| Blower Type | Internal |
| Recirculating Capable | Yes |
