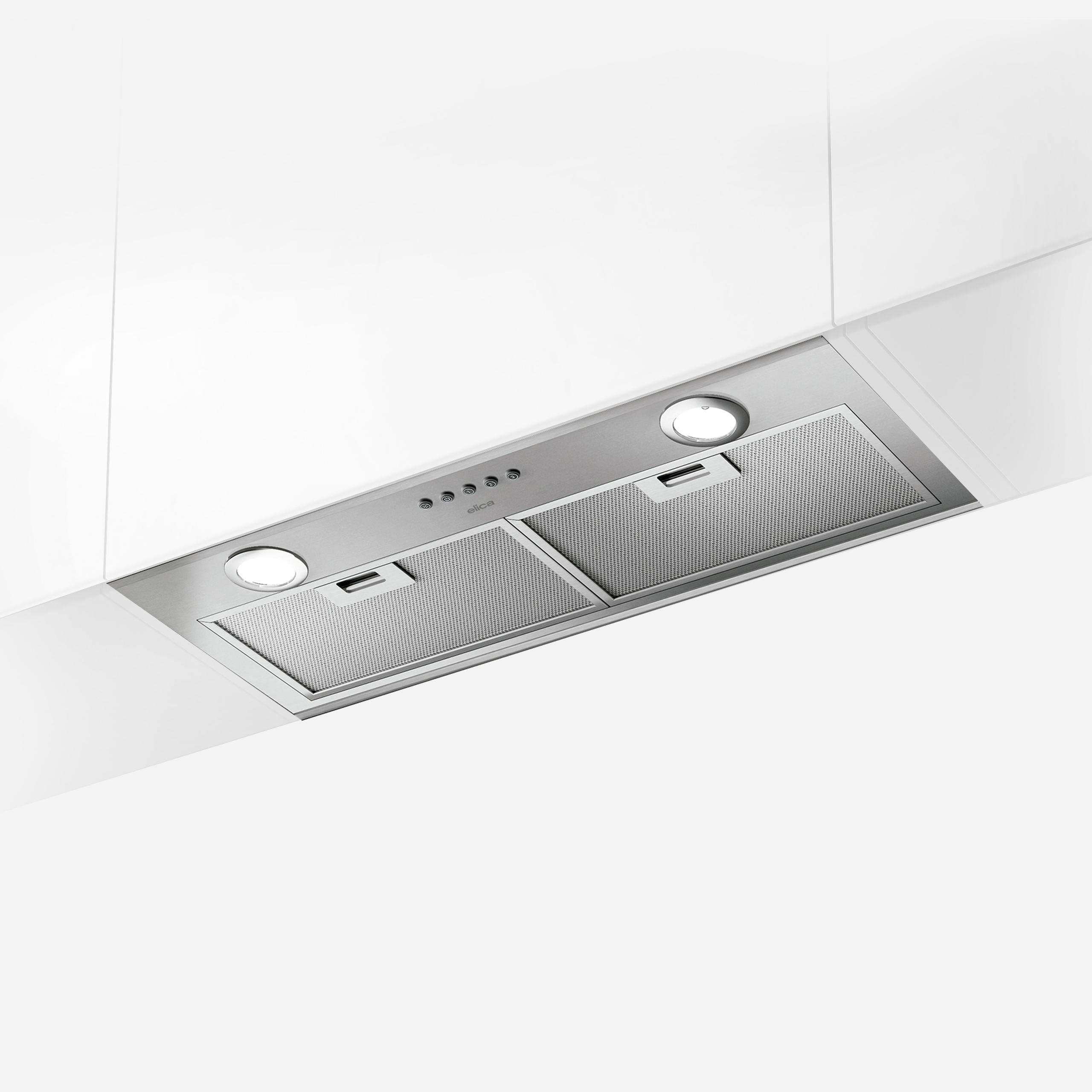

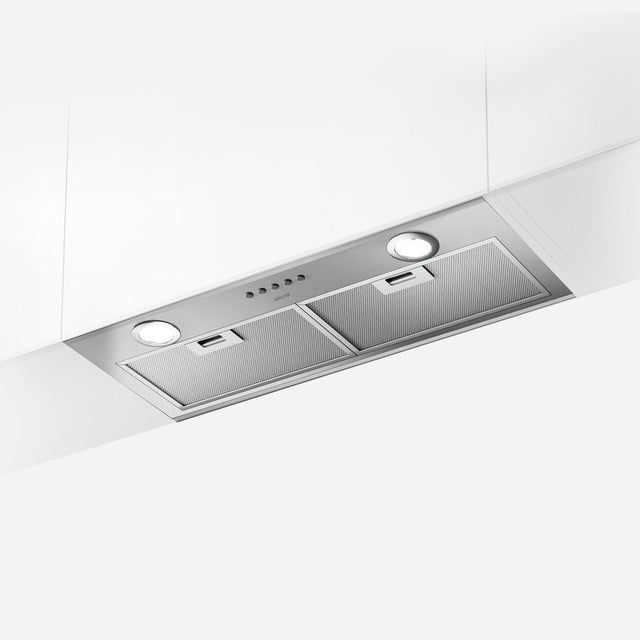

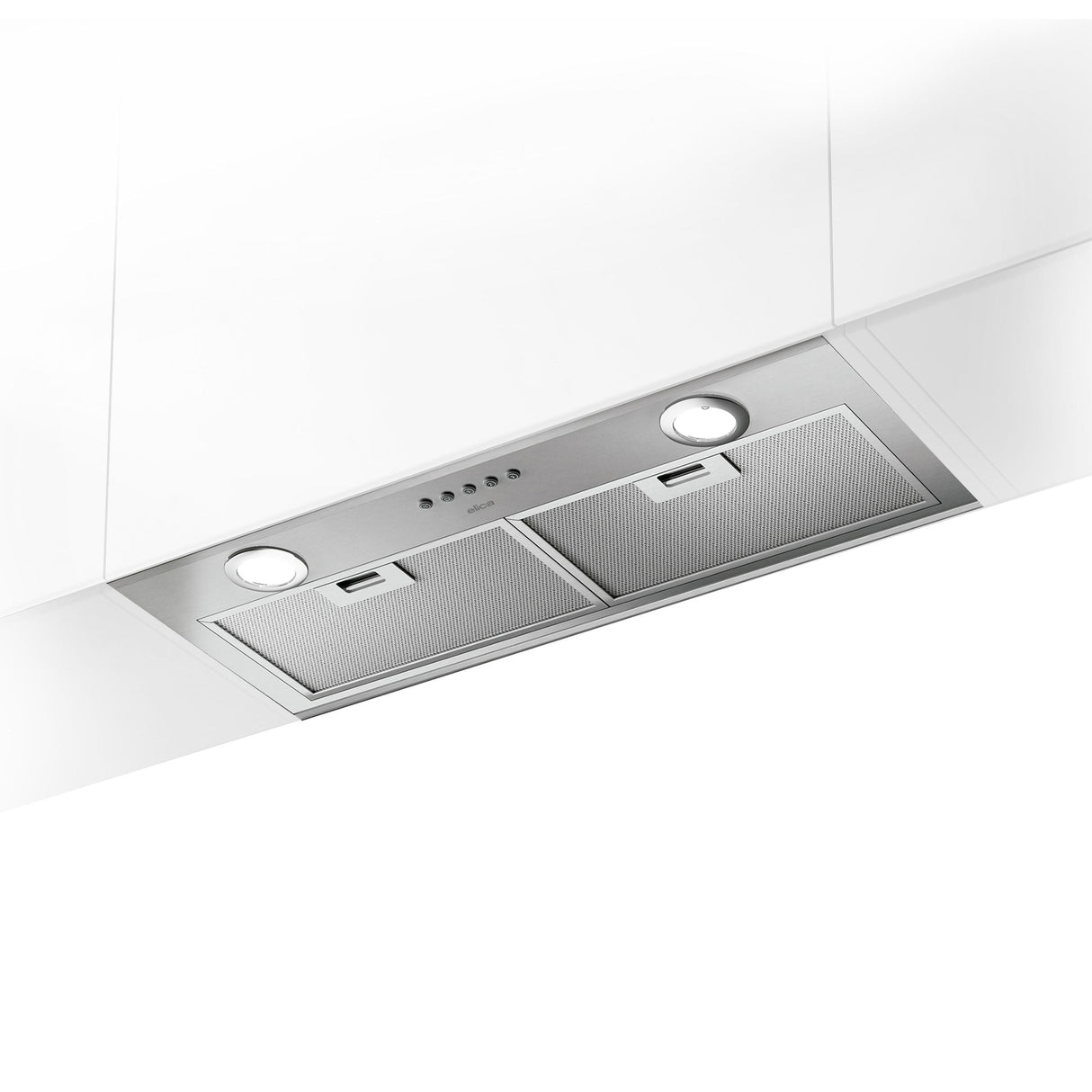

ASTI SS/400 CFM/22-Top&Rear
Model EAS422S1
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
ASTI SS/400 CFM/22-Top&Rear
Model EAS422S1Quick Specs
Width
22.5"
Depth
10.75"
Height
9.5"
ADA
YES
Wifi
NO
ASTI SS/400 CFM/22-Top&Rear is backordered and will ship as soon as it is back in stock.
Sale Price
Sale price
$414.67
Regular price
$539.00
Unit price
/
Unavailable
You save 23%
Available to Order (*Extended Delivery)
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
22.5"
Depth
10.75"
Height
9.5"
ADA
YES
Wifi Connected
NO
- 3x layer mesh
- Led light
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 12.60 |
| NET WEIGHT (kg) | 8.60 |
| CARTON LENGHT (mm) | 837.00 |
| CARTON HEIGHT (mm) | 426.00 |
| CARTON WIDTH (mm) | 389.00 |
| VOLUMEN (M3) | 0.14 |
| SHIPPING WEIGHT (lb) | 27.78 |
| NET WEIGHT (lb) | 18.96 |
| CARTON LENGHT | 32.95 |
| CARTON HEIGHT | 16.77 |
| CARTON WIDTH | 15.31 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh, Led light |
| WIDTH (IN) | 22" |
| WIDTH (CM) | 0.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 14.70 |
| db (max) | 51.00 |
| SONES | 0.4 - 5.0 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 2.3 A |
| HERTZ | 60.00 |
| WATTS | 289.00 |
| LIGHTING | LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Backlit Electronic Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS (CM) | 57 x 27 x 24 |
| DIMENSIONS (INCH) | 22 1/2" x 10 3/4 x 9 1/2 |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 9 1/2" |
| Maximum Overall Height - Top to Bottom | 14 9/ |
| Overall Height - Top to Bottom | 9 1/2" |
| Overall Width - Side to Side2 | 22 1/2" |
| Overall Depth - Front to Back | 10 3/4 |
| Hood Height | 9 1/2" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | NA |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | NA |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02770 |
| CHIMNEY EXTENTION NUMBER | NA |
| LONG CHIMNEY EXTENSION NUMBER | 0.00 |
| LONG CHIMNEY EXTENSION ( W/ GRATES) | 0.00 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| RECIRCULATION DUCT COVERS | 0.00 |
| RECIRCULATION DEFLECTOR | 0.00 |
| RECIRCULATION FILTERS | 0.00 |
| CFM REDUCTION KIT | KIT0175561 |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
- 3x layer mesh
- Led light
