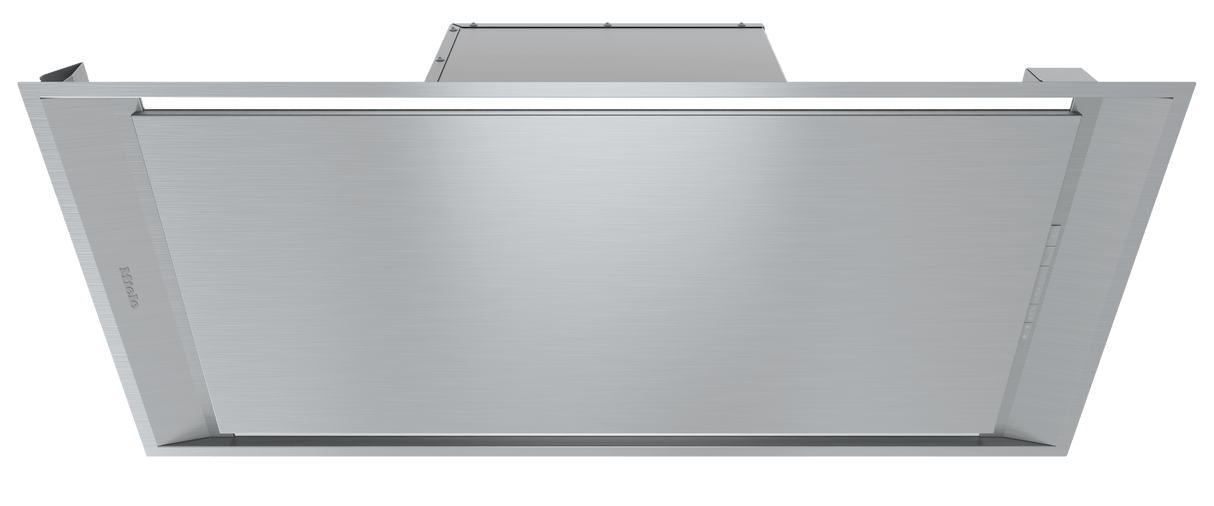

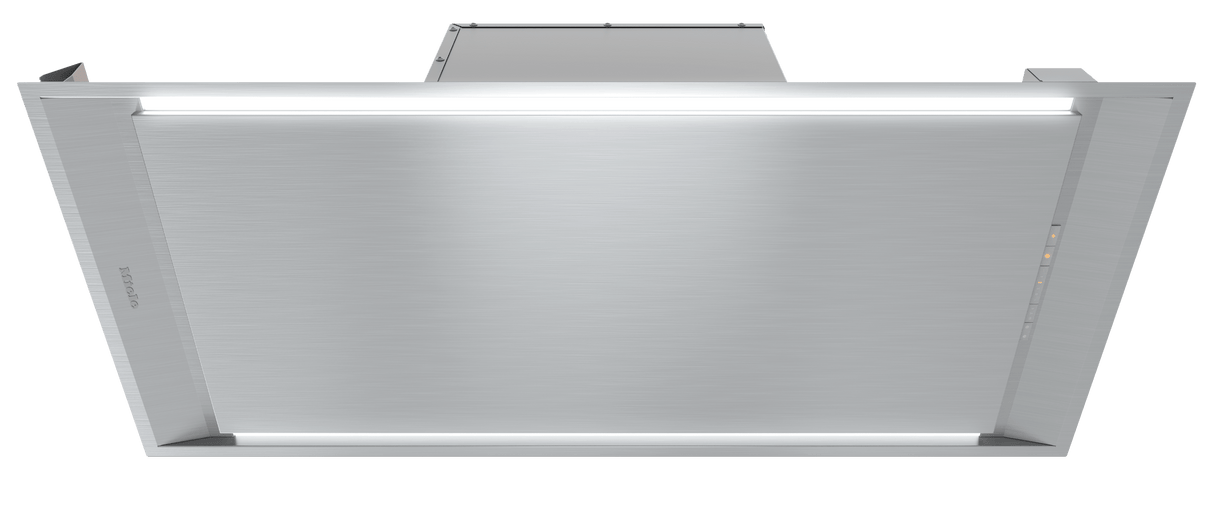

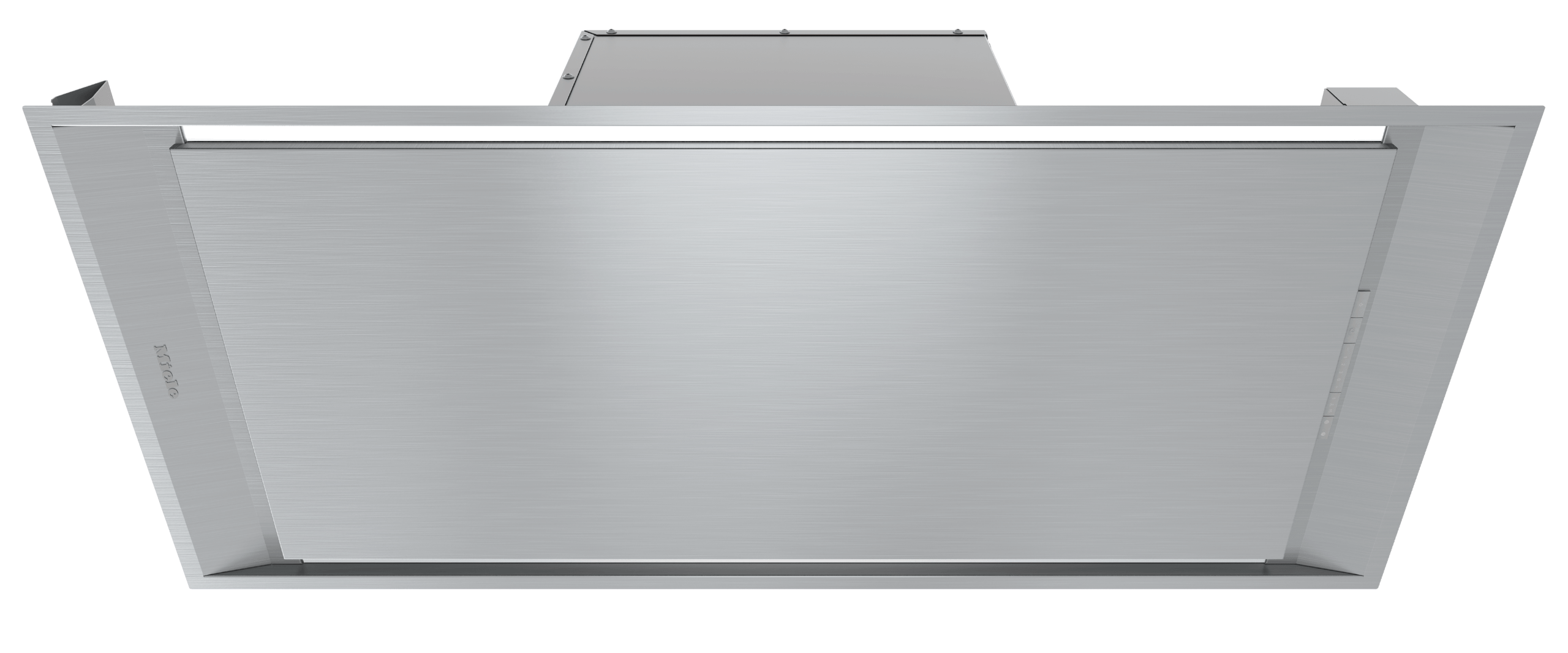

DAC 2247 Stella Stainless steel - Ceiling extractor in compact design in 45 7/8 (1165) in (mm) width
Model: DAC2247
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
DAC 2247 Stella Stainless steel - Ceiling extractor in compact design in 45 7/8 (1165) in (mm) width
Model: DAC2247Quick Specs
Width
45.875"
Depth
19.6875"
Height
11.625"
ADA
NO
Wifi
YES
Energy
NO
DAC 2247 Stella Stainless steel - Ceiling extractor in compact design in 45 7/8 (1165) in (mm) width is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-2 weeks
Available to Order
Regular price
$2,999.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
45.875"
Depth
19.6875"
Height
11.625"
ADA
NO
Wifi Connected
YES
Energy Star Rated
NO
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Economy-Motor
Powerful and economical: The DC motor saves up to 50% electricity compared with conventional motors.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
- Con@ctivity
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Economy-Motor
- Powerful and economical: The DC motor saves up to 50% electricity compared with conventional motors.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Edge vented
- Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Suitable for every home - vented or recirculating
- Convenient operation - with Con@ctivity and remote control included
- Powerful - in Booster level
- Efficient filtration- 10-ply stainless steel grease filters
- Panel can be customized
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Ceiling fan | Yes |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| OdorFree charcoal filter (order separately) | DKF 35-P |
| Design | |
| Color | Stainless steel |
| Edge extraction | Yes |
| User convenience | |
| Miele@home | Yes |
| Automatic function Con@ctivity | Yes |

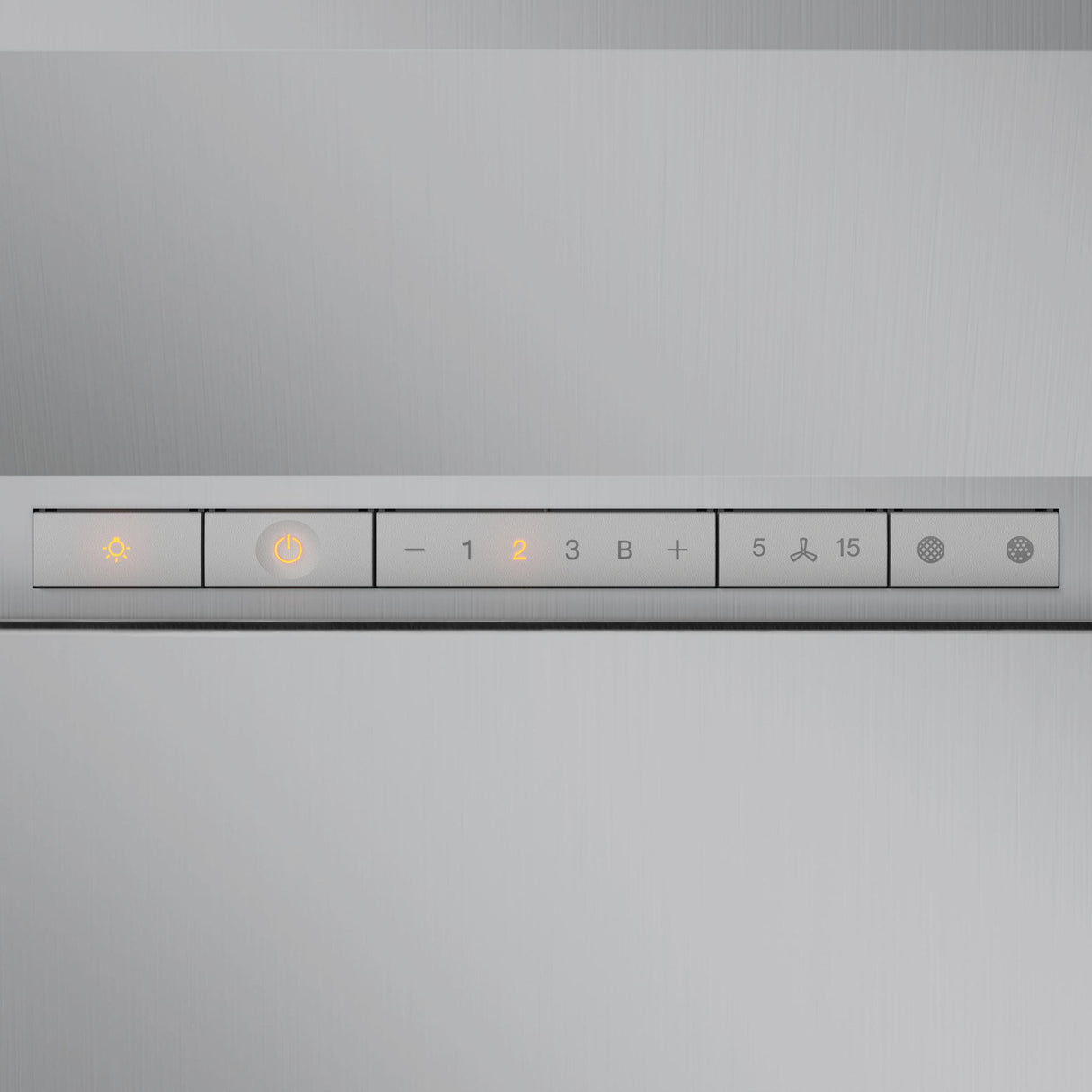

| Electronic controls | Yes |
| EasySwitch | Yes |
| Operation | EasySwitch |
| ON/OFF switch | Yes |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Active charcoal filter saturation indicator | Yes |
| CleanCover | Yes |
| Efficiency and sustainability | |
| PowerManagement system | Yes |
| Cleaning convenience | |
| Easy-to-clean canopy interior - CleanCover | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 4 |
| Lighting | |
| Number x W | 2 x 7,2 W |
| Light intensity in Lx | 450 lx |
| Color temperature in K | 3500 Kelvin |
| Blower | |
| Dual-action blower | Yes |
| DC motor | Yes |
| Exhaust air | |
| Maximum air throughput in cfm according to HVI | 356 |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | Yes |
| Technical data | |
| Overall hood height for vented mode and external in inches (mm) | 11 3/4 (296) |
| Overall height for recirculation mode ventilation hoods in mm | 11 3/4 (296) |
| Overall min. height for vented and external in in. (mm) | 11 3/4 (296) |
| Overall max. height for vented and external in in. (mm) | 11 3/4 (296) |
| Overall min. height for recirculation in in. (mm) | 11 3/4 (296) |
| Overall max. height for recirculation in in. (mm) | 11 3/4 (296) |
| Canopy width in in. (mm) | 45 7/8 (1165) |
| Canopy height in in. (mm) | 11 3/4 (296) |
| Depth of hood canopy in in. (mm) | 19 3/4 (500) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 50 (22.3) |
| Length of electrical wire in ft. (m) | 2 (0.7) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.194 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection on side | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Standard accessories | |
| Non-return flap | Yes |
| Reducer from 150 to 125 mm | Yes |
| Remote control | Yes |
| EAN | |
| EAN | 4002516805946 |
- Suitable for every home - vented or recirculating
- Convenient operation - with Con@ctivity and remote control included
- Powerful - in Booster level
- Efficient filtration- 10-ply stainless steel grease filters
- Panel can be customized
- Manufactured with great care by Miele & Cie. KG
- Safety information
 | |
|---|---|
