Quick Specifications
Quick Specifications
- Type : ELECTRIC RANGES
- Style : 20" FREESTANDING COIL ELECTRIC RANGE
- Width : 20
- Height : 40
- Depth : 24
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Self Clean : NO
- Convection : NO
- Drawer Proof Mode : NO
- Sabbath Mode : NO
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Made in the USA
- Designed and constructed domestically
- Slim 20 inch width
- Apartment-sized width offers all the functionality you need in a smaller footprint
- 24 inch depth
- Shallower fit is ideal for L-shaped and galley kitchens\t
- Four coil elements
- Three standard 6" and one large 8" element\t
- Safety burners with low wattage outputs
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off\t
- Chrome drip pans
- Each element includes a removable chrome pan for easier cleaning

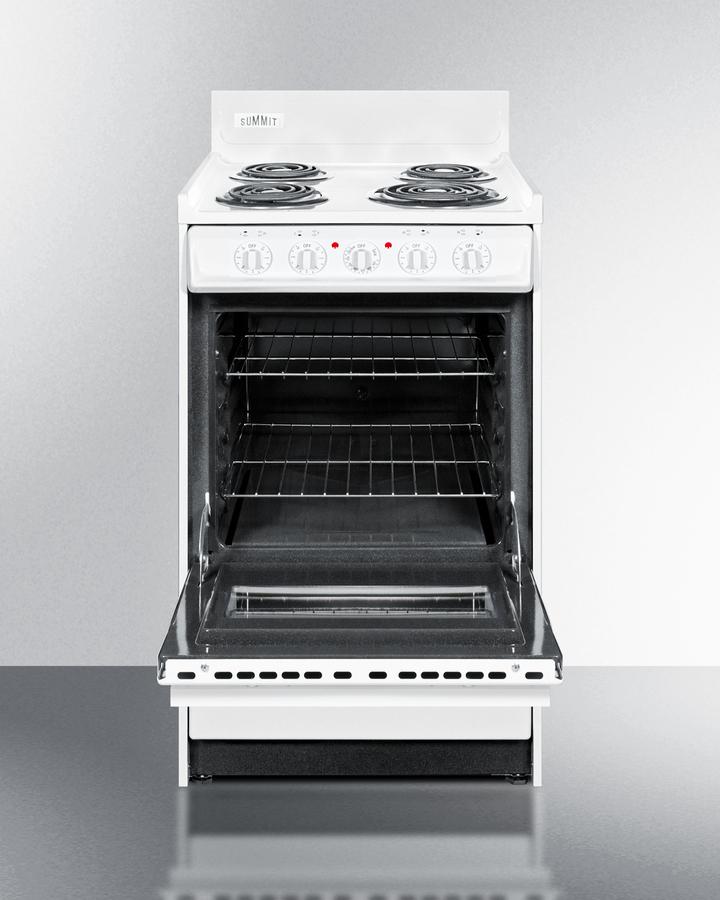

- Oven window and interior lighting
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door\t
- Storage compartment
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Waist-high broiler
- Broiler is located inside the oven, making it easier to use
- Adjustable oven racks
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Recessed oven door
- Smart design limits the depth and protects adjacent cabinets
- Porcelain and steel construction
- Solid construction built to hold up to everyday use
- Upfront controls
- Allows for easier cleaning as needed\t
- Push-to-turn burner knobs
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Indicator lights
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Removable oven door and range top
- Allows for easier cleaning as needed\t
- Broiler tray included
- Two-piece porcelain broiler tray with grease well\t
- Anti-tip bracket
- Install to prevent accidents from tipping oven over
- Cord not included
- Compatible with standard 40 amp 3 or 4-wire range cords\t
- ADA compliant
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines\t
- Designed and constructed domestically
- Apartment-sized width offers all the functionality you need in a smaller footprint
- Smart design limits the depth and protects adjacent cabinets
- Solid construction built to hold up to everyday use
- Allows for easier cleaning as needed
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Two-piece porcelain broiler tray with grease well
- Install to prevent accidents from tipping oven over
- Compatible with standard 40 amp 3 or 4-wire range cords
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
- Shallower fit is ideal for L-shaped and galley kitchens
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Each element includes a removable chrome pan for easier cleaning
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Broiler is located inside the oven, making it easier to use
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Overview | |
Nominal Height | 40.0" (102 cm) |
Height of Cabinet | 40.0" (102 cm) |
Nominal Width | 20.0" (51 cm) |
Width | 20.0" (51 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 24.0" (61 cm) |
Door | White |
Cabinet | White |
US Electrical Safety | CSA |
Voltage/Frequency | 220 V AC/60 Hz |
Weight | 140.0 lbs. (64 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101013404 |
Electric Range | |
Oven Capacity | 2.46 cu.ft. (70 L) |
Cooktop Surface | Porcelain |
Element Type | Coils |
Number of Elements | 4 |
Element #1 Size | 6.0" (15 cm) |
Element #1 Wattage | 675.0 |
Element #2 Size | 6.0" (15 cm) |
Element #2 Wattage | 675.0 |
Element #3 Size | 6.0" (15 cm) |
Element #3 Wattage | 675.0 |
Element #4 Size | 8.0" (20 cm) |
Element #4 Wattage | 950.0 |
Burner Controls | Dial |
Oven Controls | Dial |
Oven Light | Yes |
Backguard | Yes |
Cleaning Type | Manual |
Oven Rack Qty | 2 |
Oven Window | Yes |
Oven Interior Height | 14.0" (36 cm) |
Oven Interior Width | 16.0" (41 cm) |
Oven Interior Depth | 19.0" (48 cm) |
Storage Compartment | Yes |
Broiler Location | Inside Oven |
Oven Door | White |
