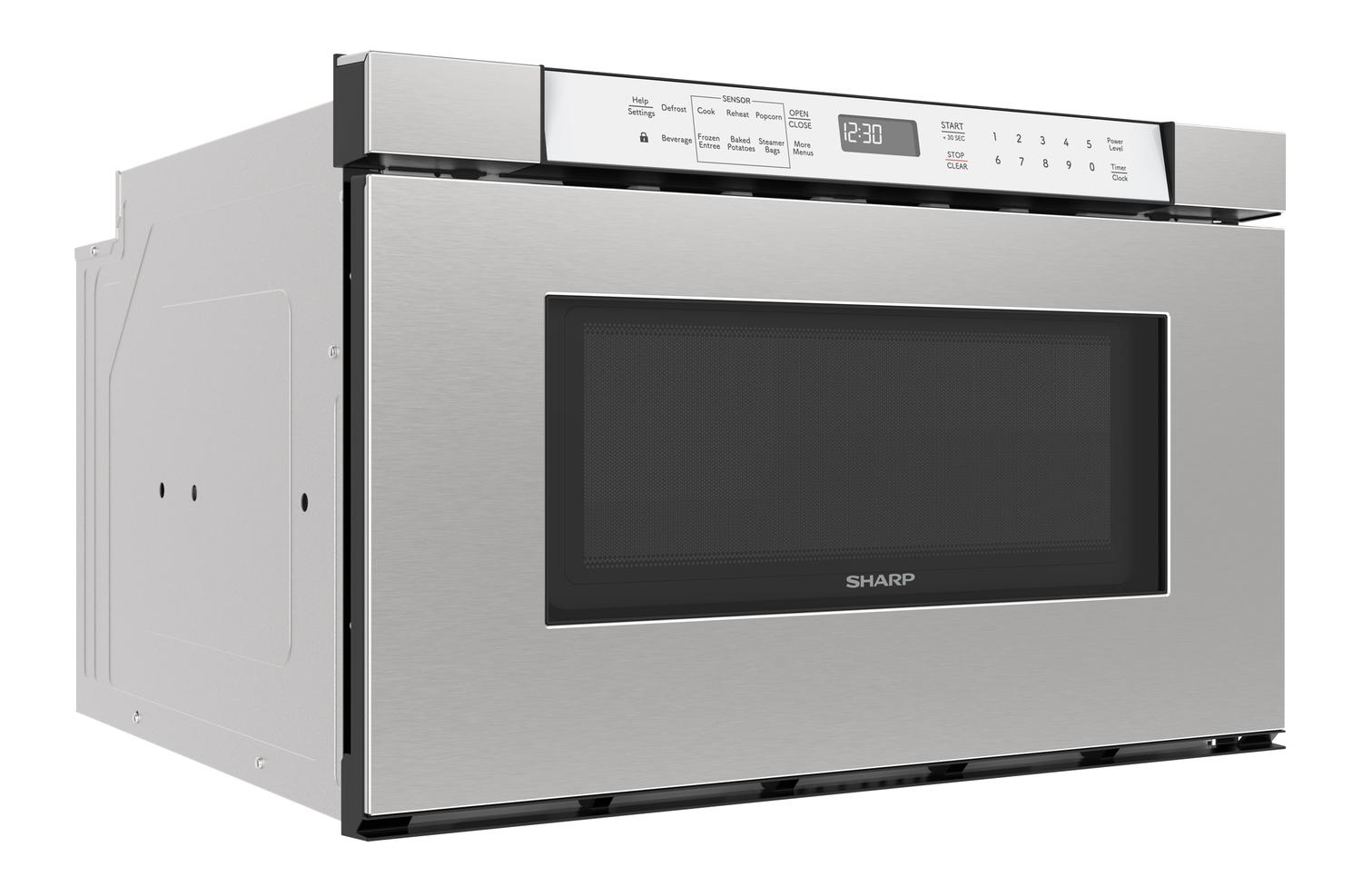

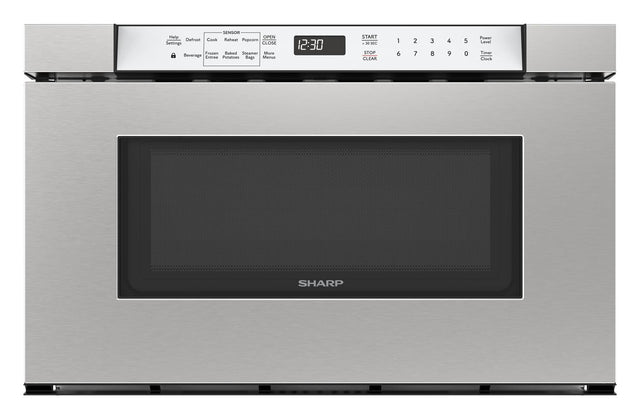

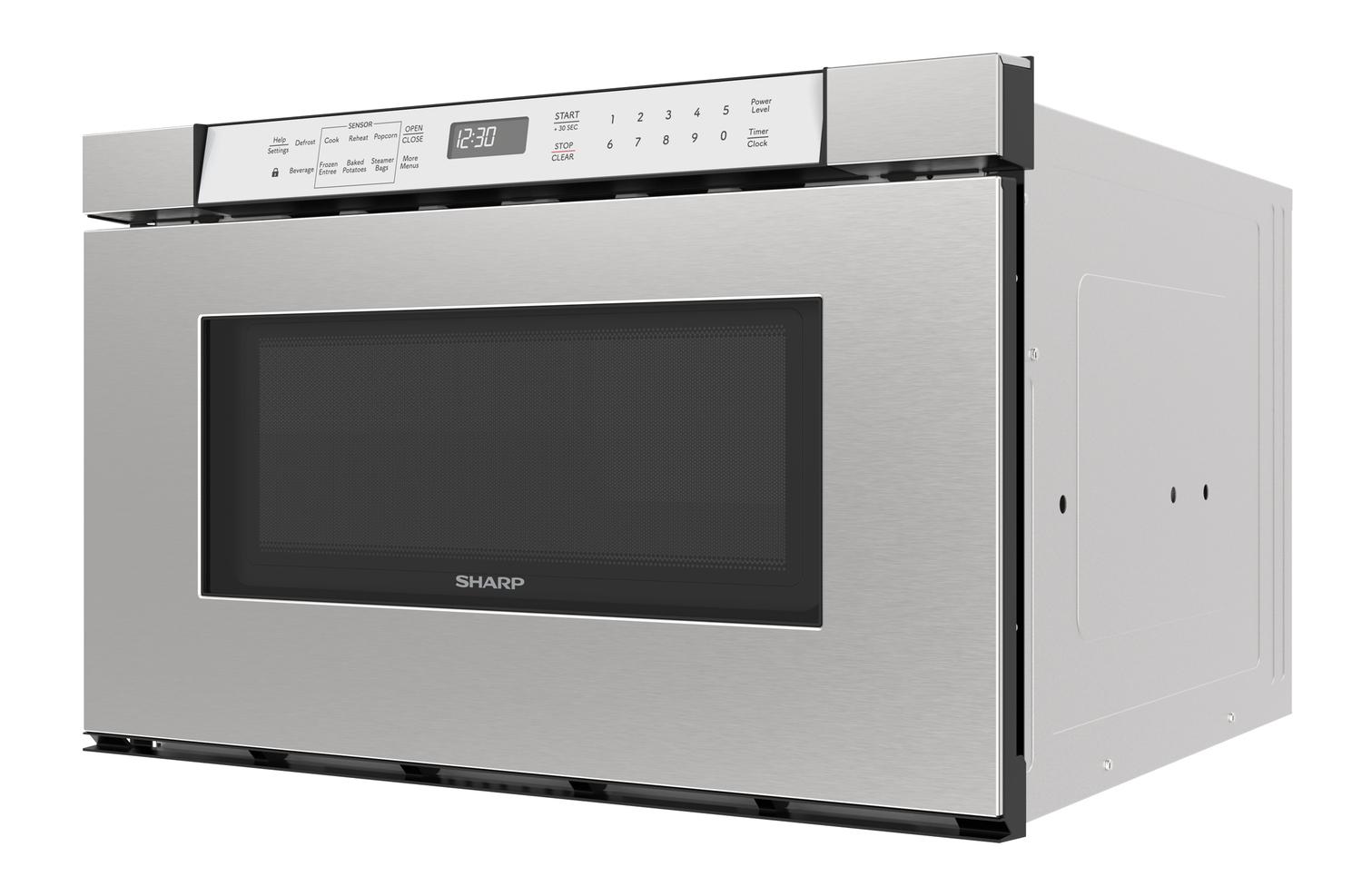

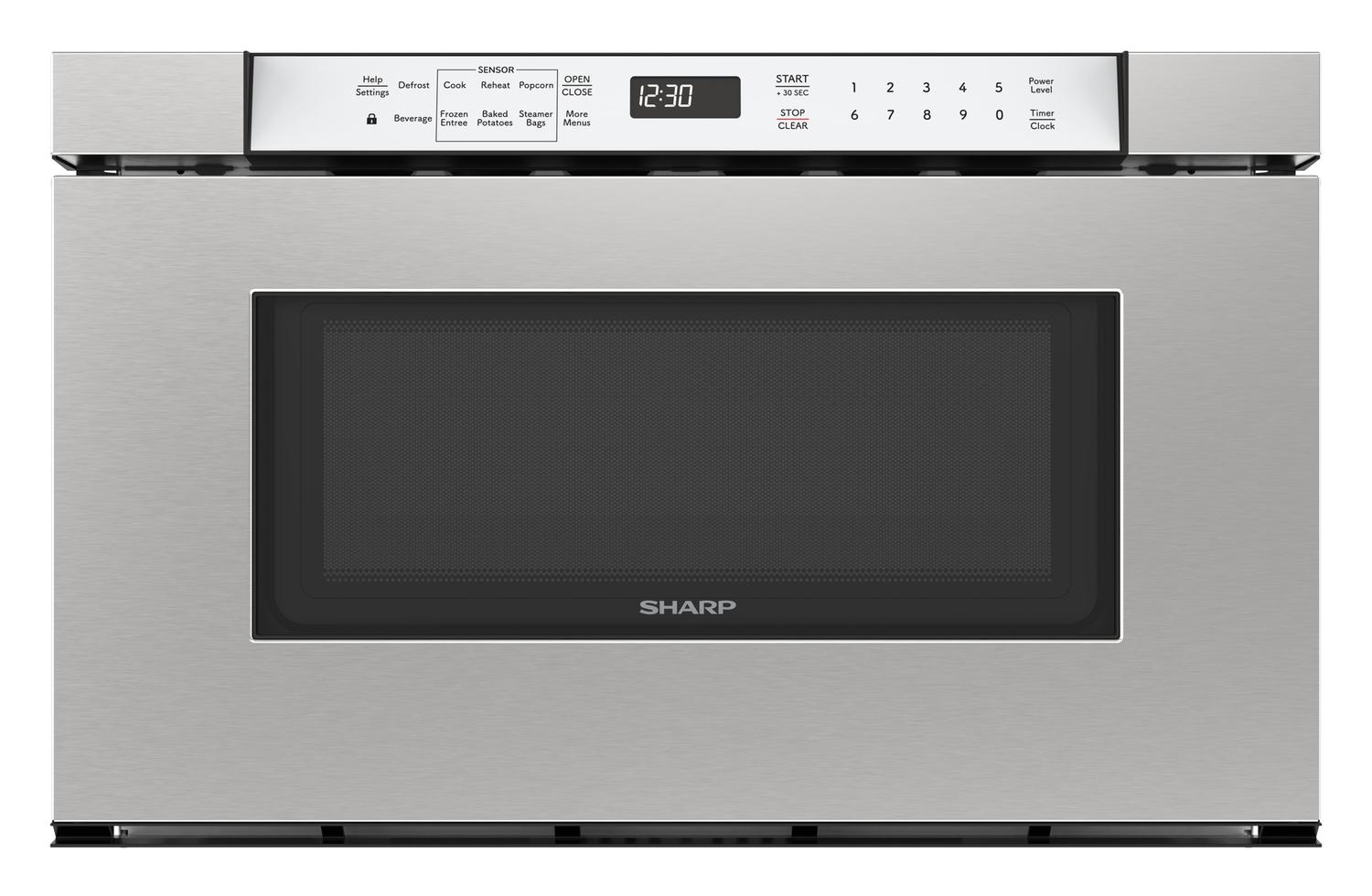

Sharp 24 in. 1.2 cu. ft. Built-In Microwave Drawer™ Oven in Stainless Steel
Model SMD2430MS
Sharp 24 in. 1.2 cu. ft. Built-In Microwave Drawer™ Oven in Stainless Steel
Model SMD2430MSQuick Specs
Sharp 24 in. 1.2 cu. ft. Built-In Microwave Drawer™ Oven in Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specs

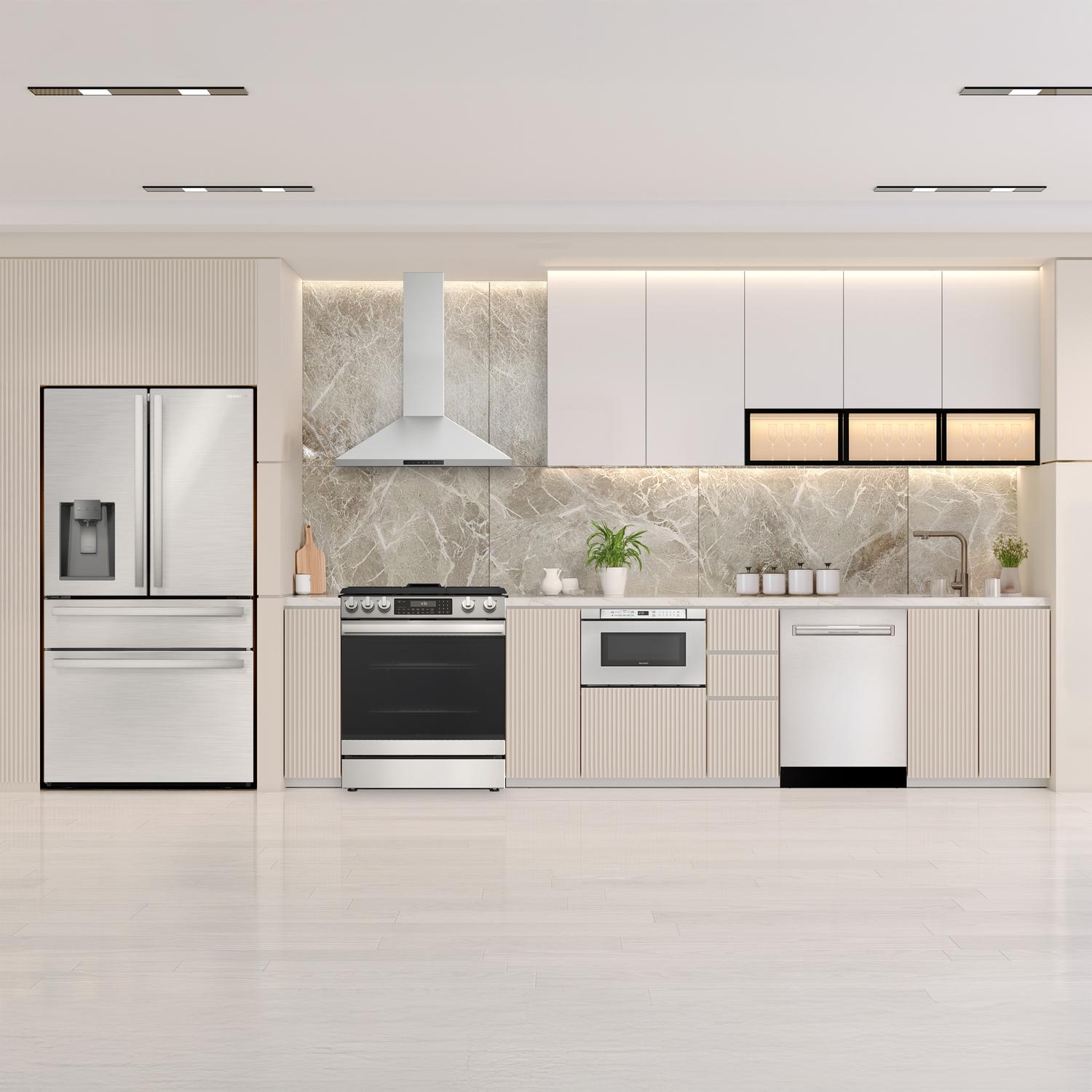

Designed for Your Dream Kitchen
The Sharp (R) SMD2430MS Microwave Drawer TM Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and stainless-steel finish beautifully complement any kitchen.
Easy To Use
Sensor Cook (R) Menu for precise cooking and reheating Smart & Easy TM settings to cook favorites like baked potatoes, popcorn, and steamer bags Automatic Drawer System, opens with a press of a button and gently closes with a soft nudge Control lock to prevent accidental operation
Designed for Your Dream Kitchen
Sharp's Microwave Drawer Oven allows you to focus on your kitchen's design and workflow by offering flexible installation options in an island, peninsula, or below your wall oven
Simply Better Living
Simply Better Living is an online community that encourages a mindful lifestyle with the use of Sharp home appliances through simple recipes and lifestyle tips. This lifestyle blog is dedicated to creative, ingenious solutions that make your life simpler, healthier, and better than ever before. Welcome home.
Ada Compliant Home Appliances
Sharp Home Appliances can help to make your home accessible to people with disabilities. The Americans with Disabilities Act establishes accessibility guidelines for many products. Sharp offers an array of appliances that can be integrated into an ADA compliant kitchen. A Microwave Drawer(TM) Oven installed in accordance with ADA guidelines provides convenient access for people of various ages and physical abilities.
Installation Options

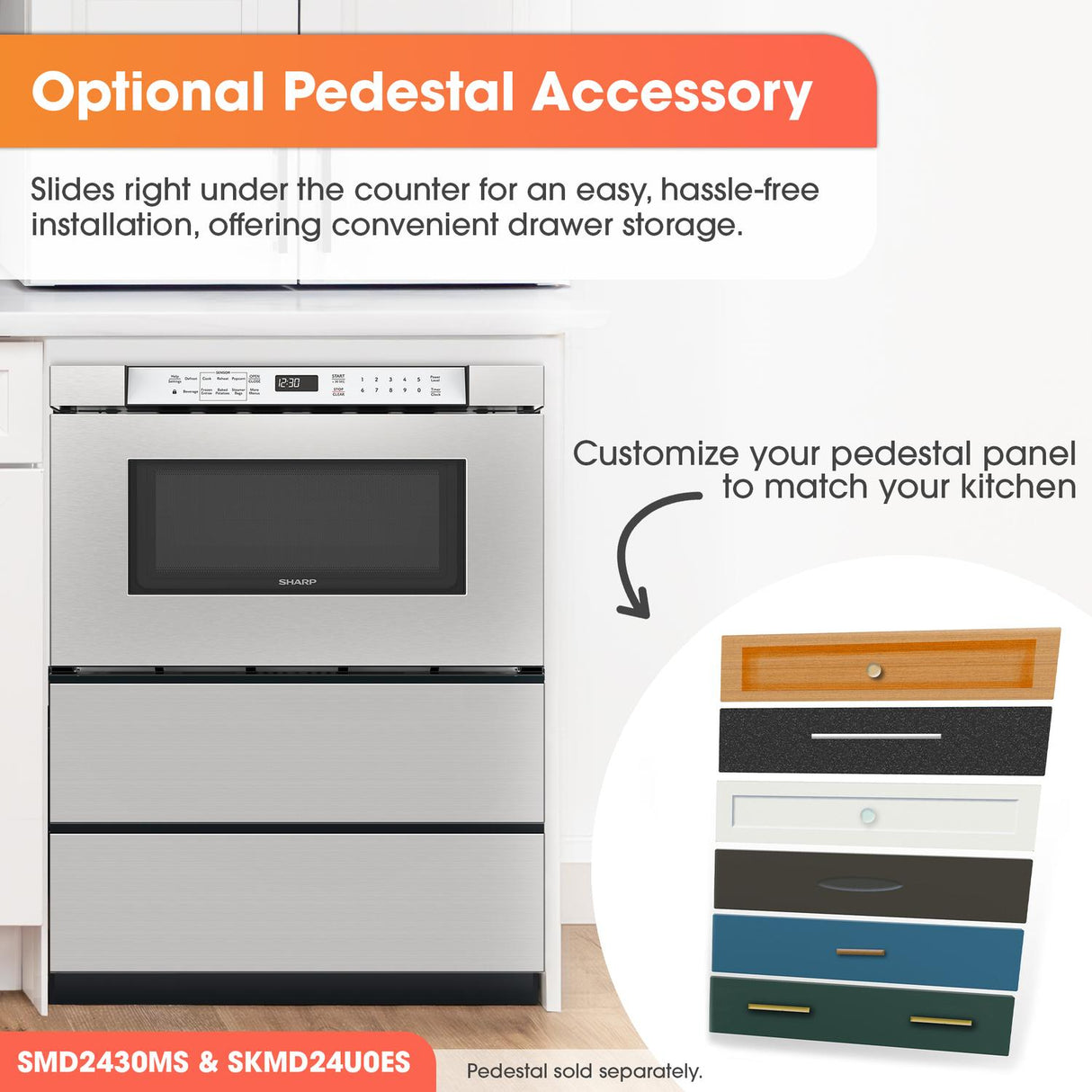

Install into an island, peninsula, standard cabinetry, beneath other 24-in. built-in appliances, or utilize the optional pedestal accessory to slide into a standard dishwasher cutout for a built-in look, without the need for custom cabinetry.

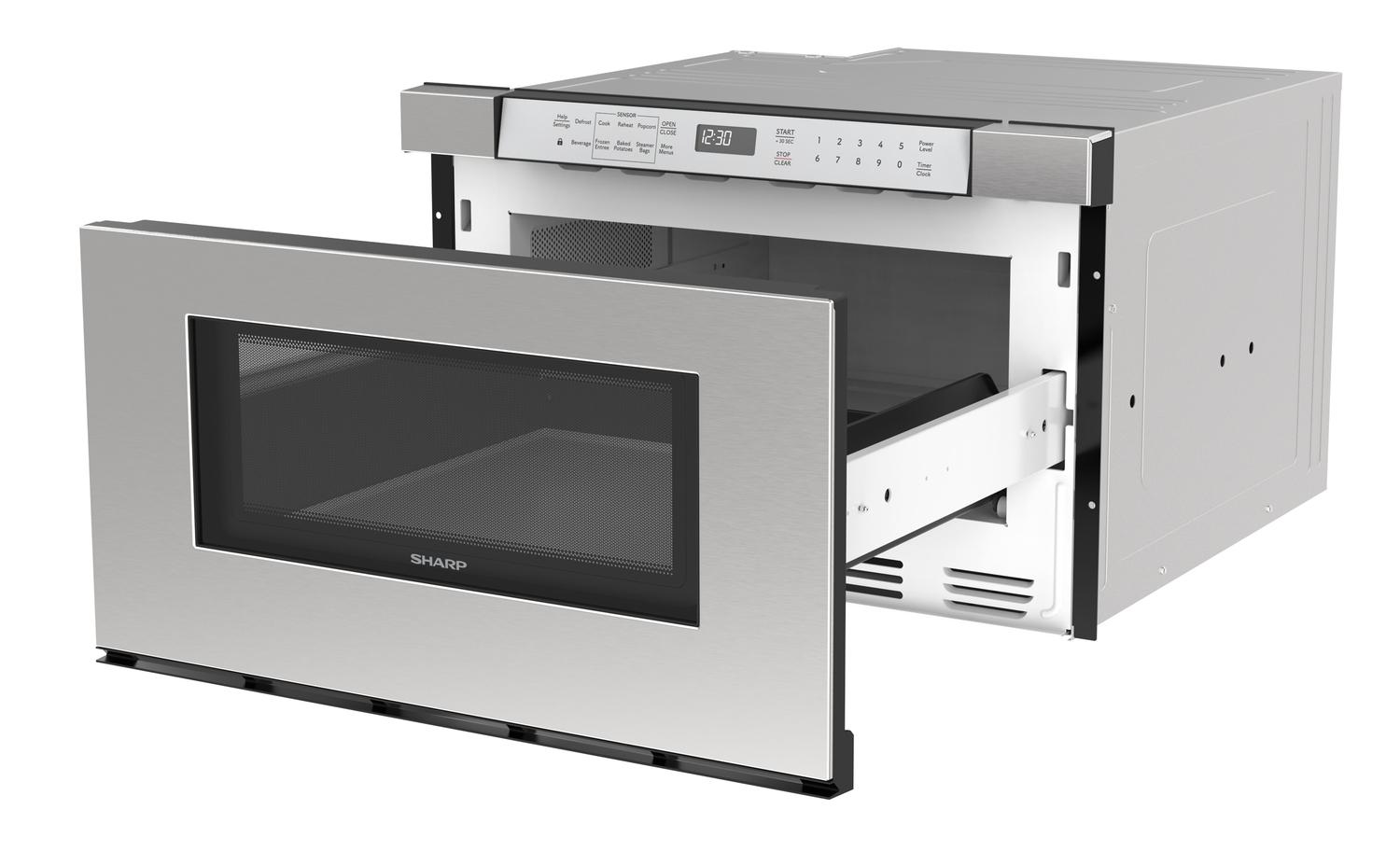

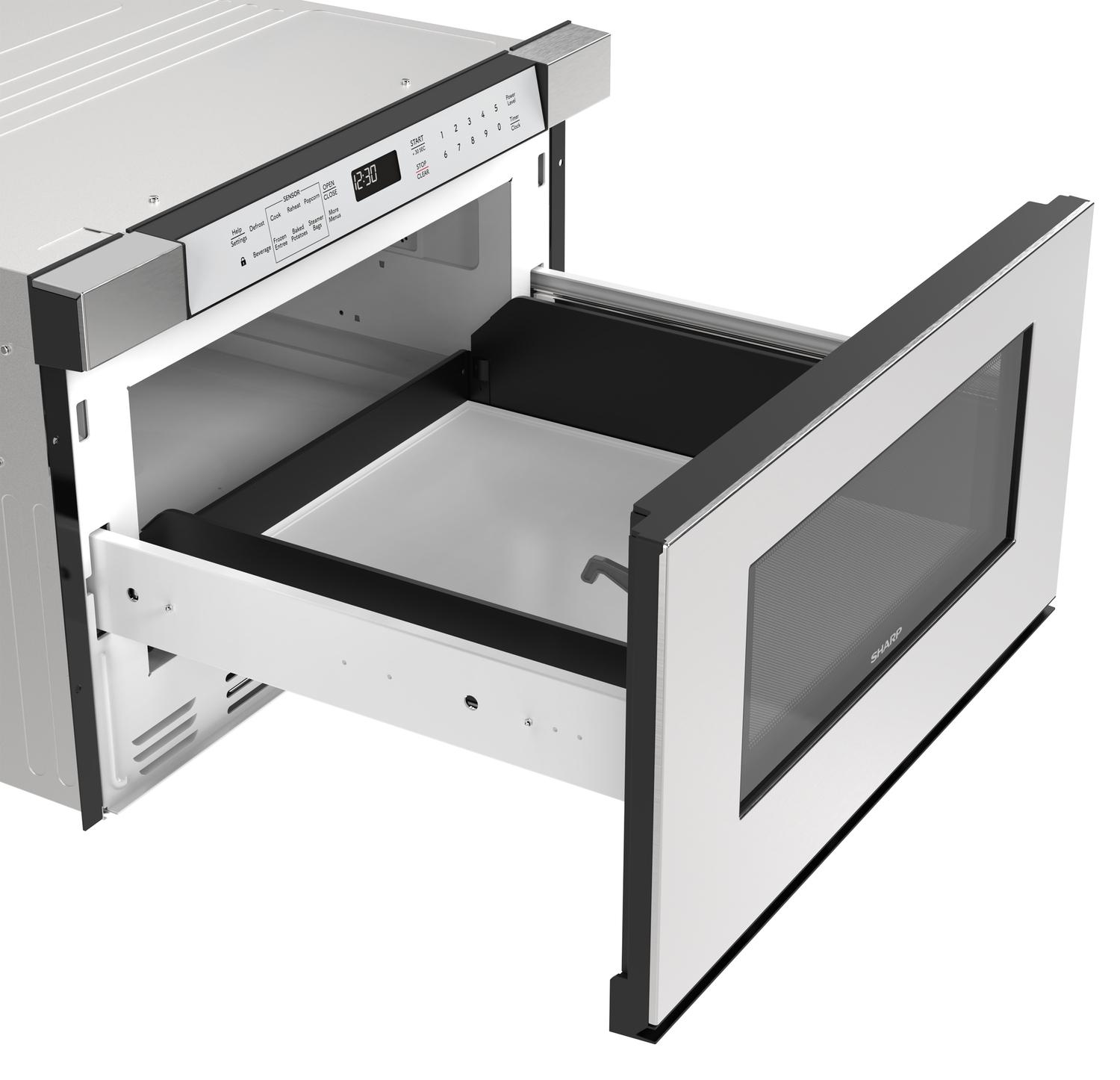

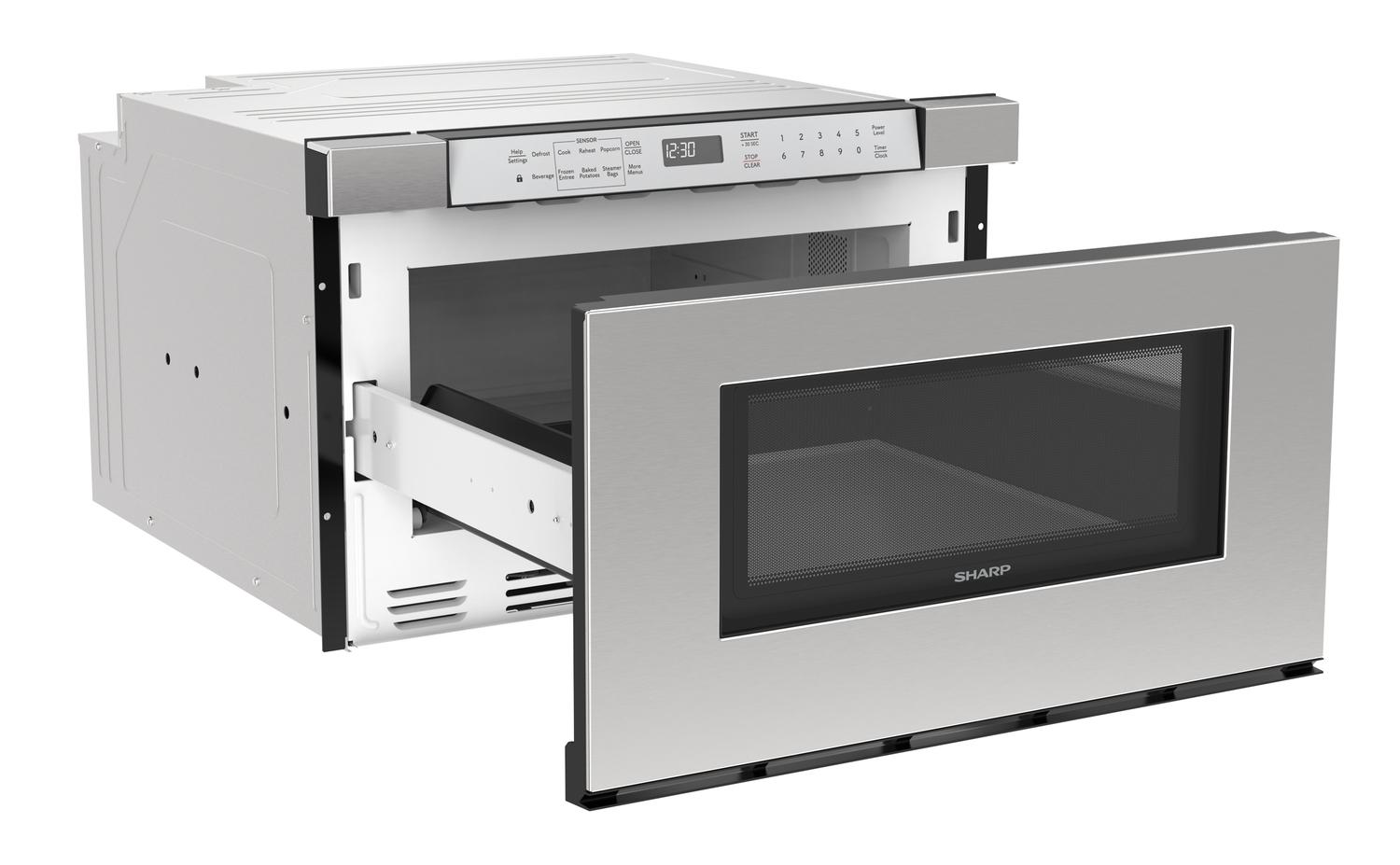

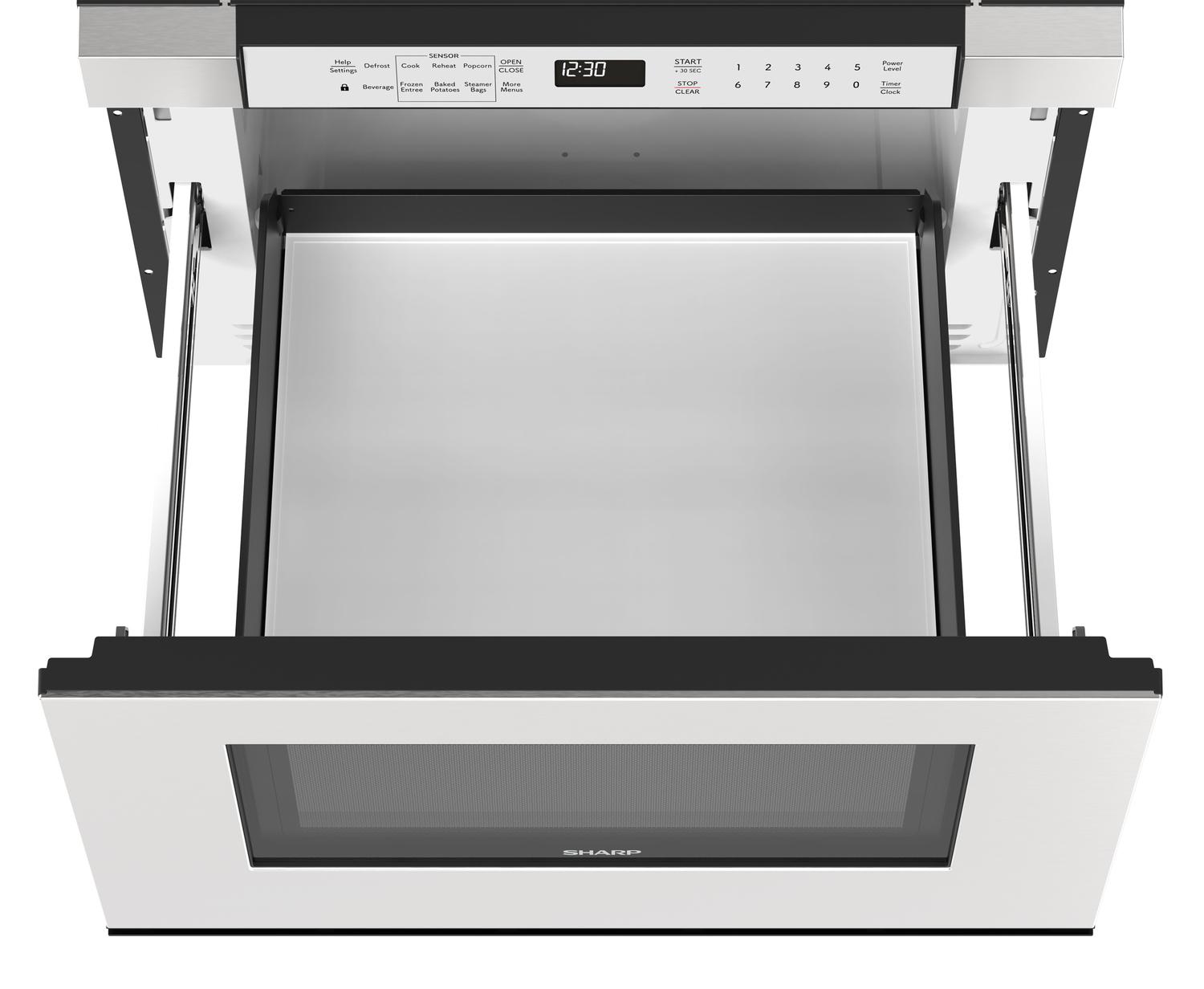

- Automatic Drawer System, Opens with a Press of a Button and Gently Closes with a Soft Nudge

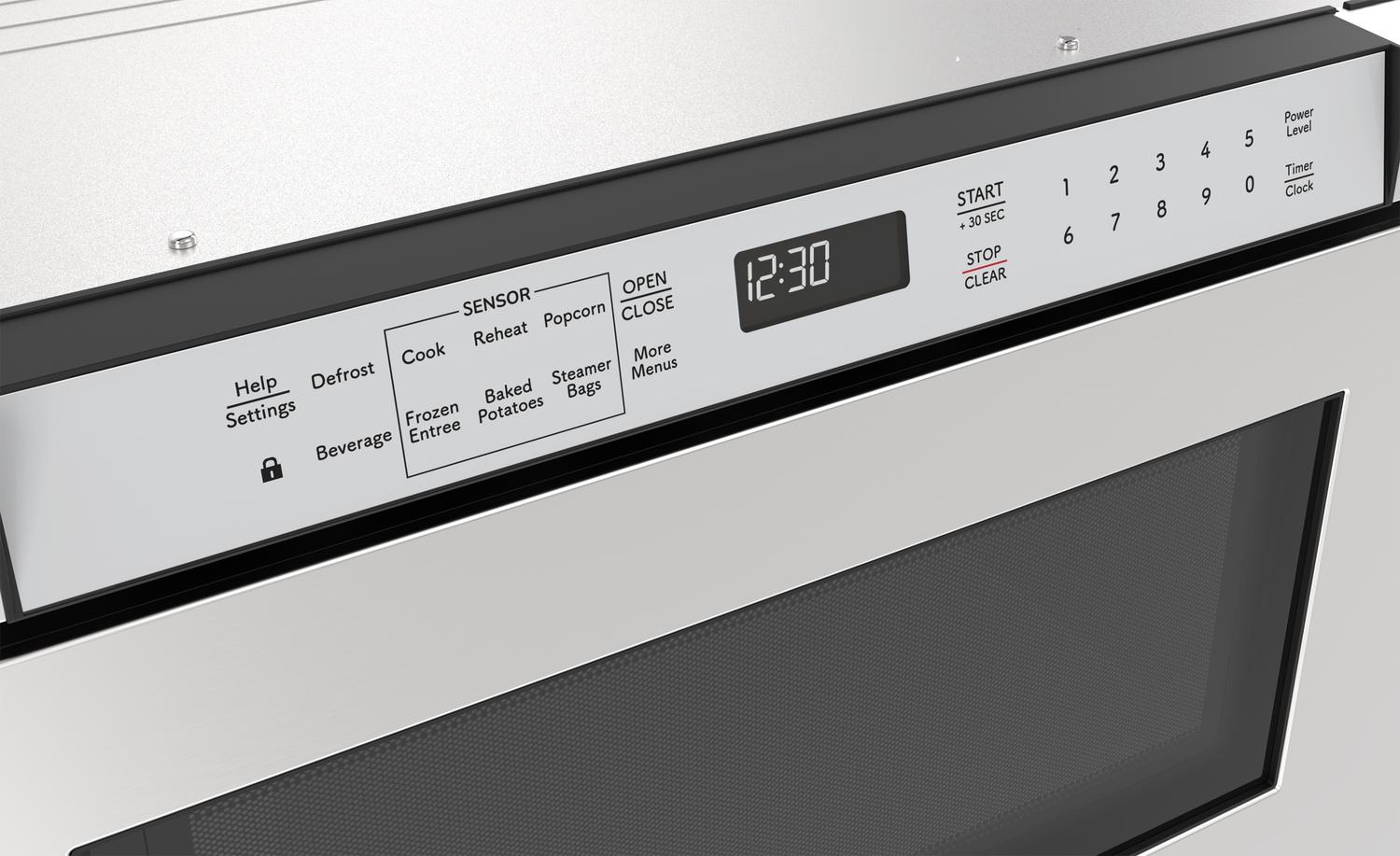

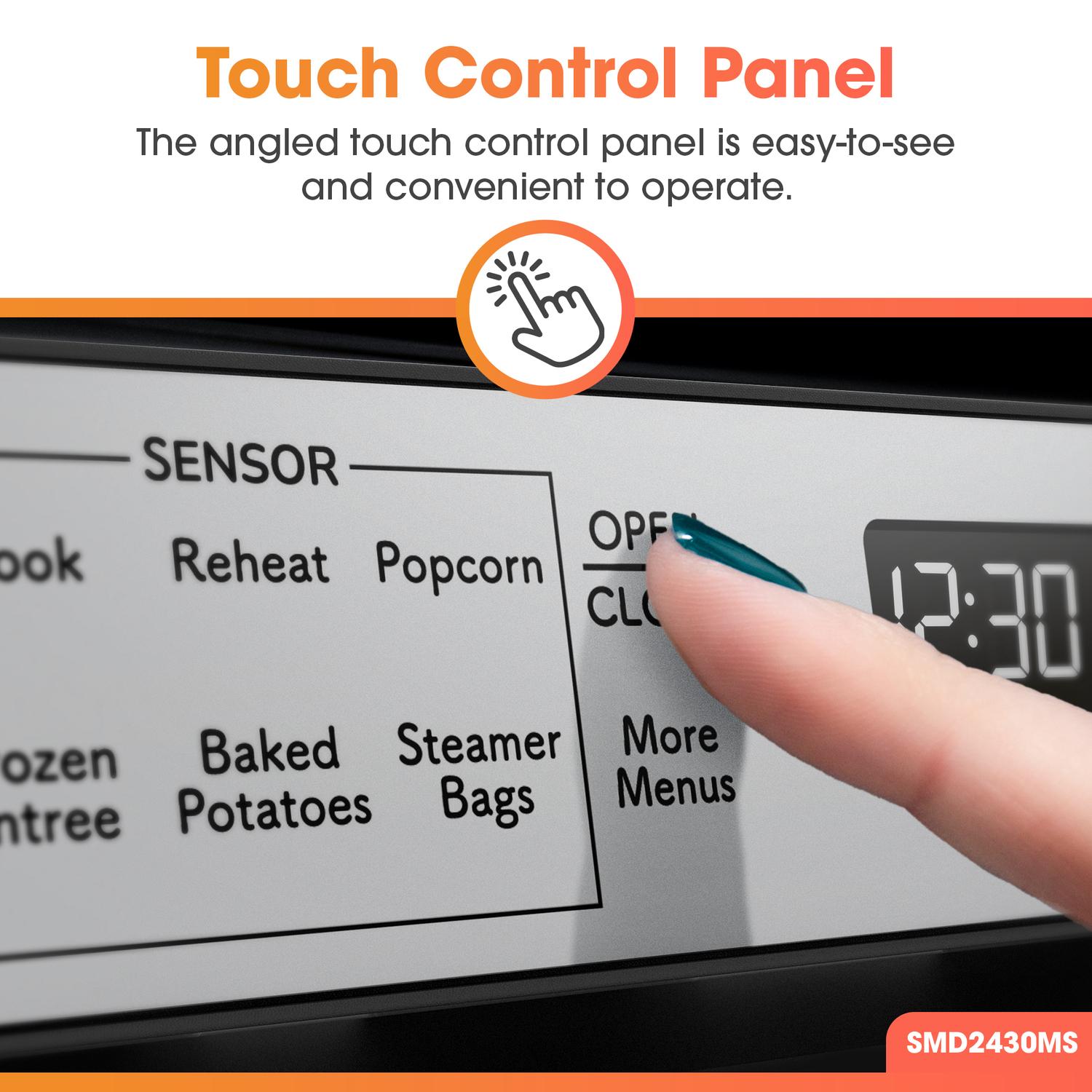

- Sleek Silver, Angled Control Panel for Easy-to-Use Operation
- Sensor Cook (R) Technology Helps Take the Guesswork out of Cooking and Defrosting by Sensing the Food s Moisture

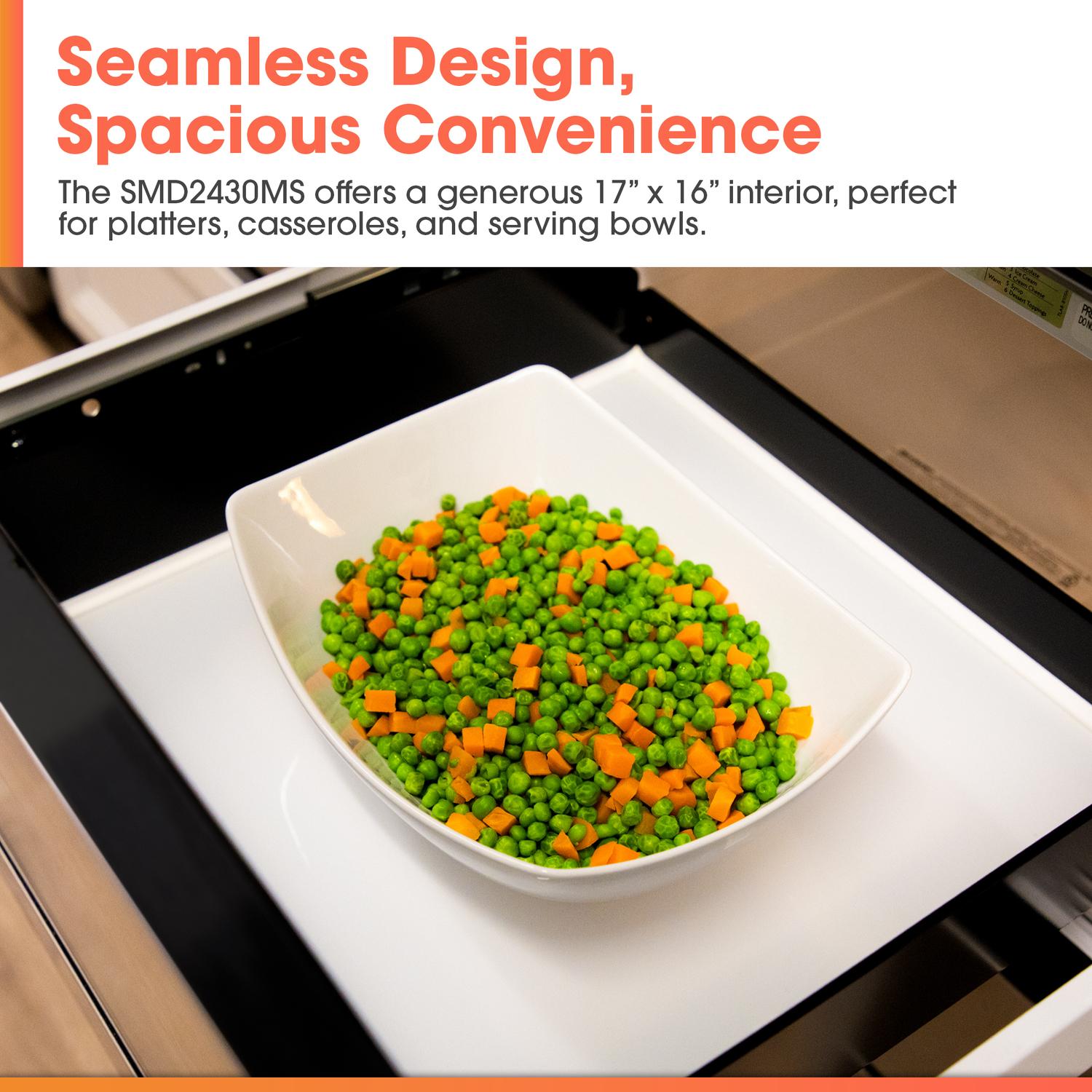

- 17 by 16 Spacious Design for Accommodating Platters, Casseroles, and Serving Bowls

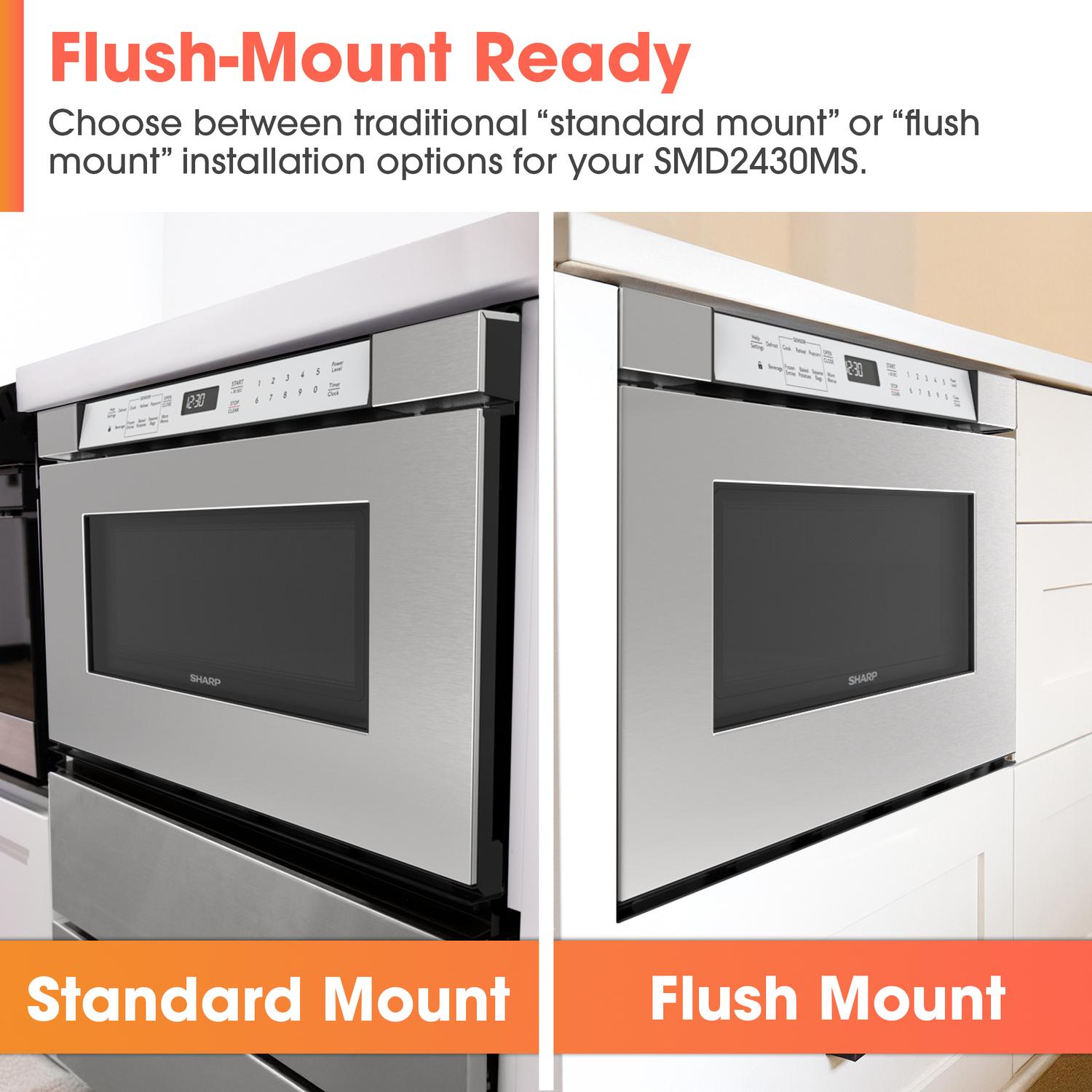

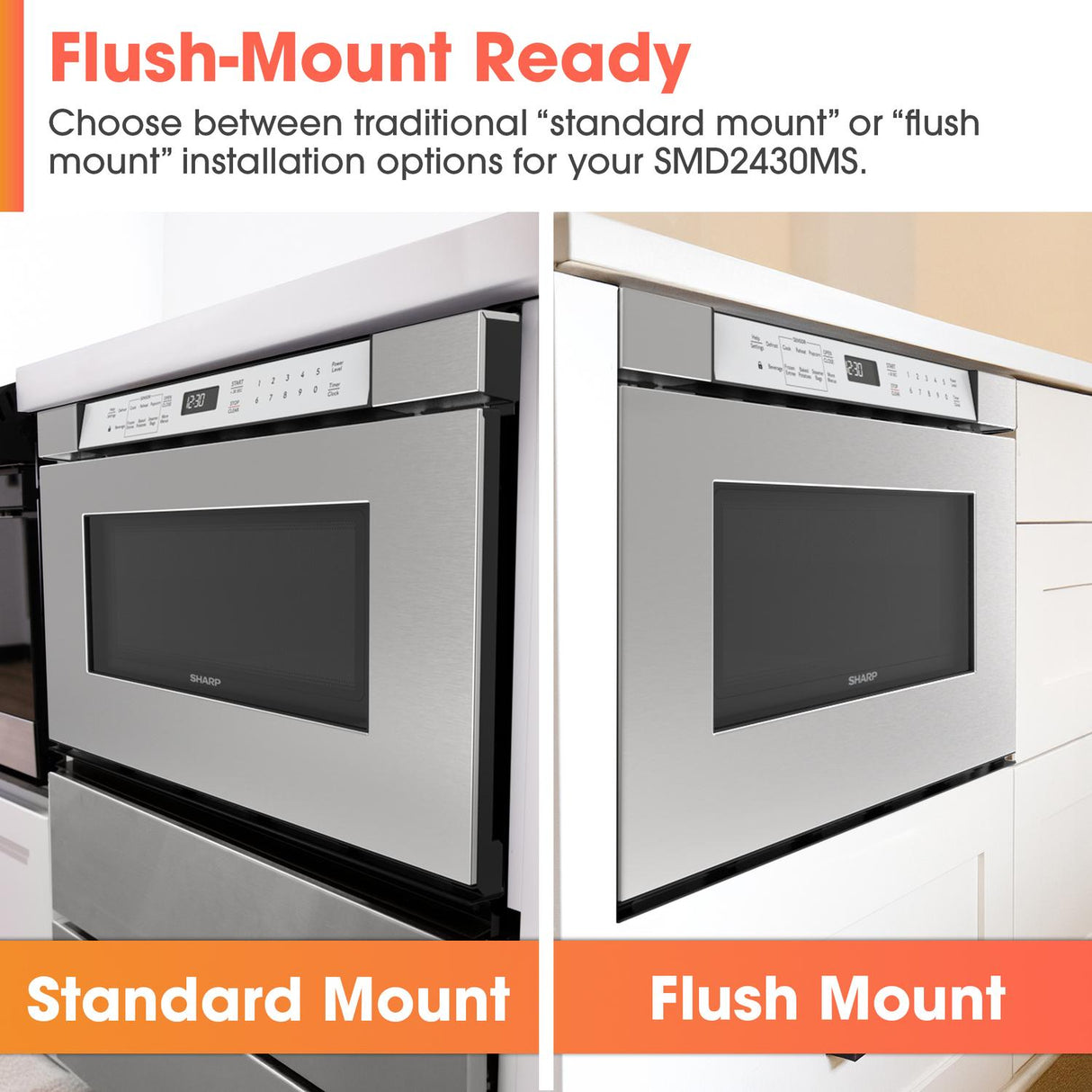

- Flush-Mount Ready with Built-In Airflow Control
- Designed with ADA Compliance in Mind, the Under-Counter Design Provides Flexibility to Fit Practically Any Lifestyle

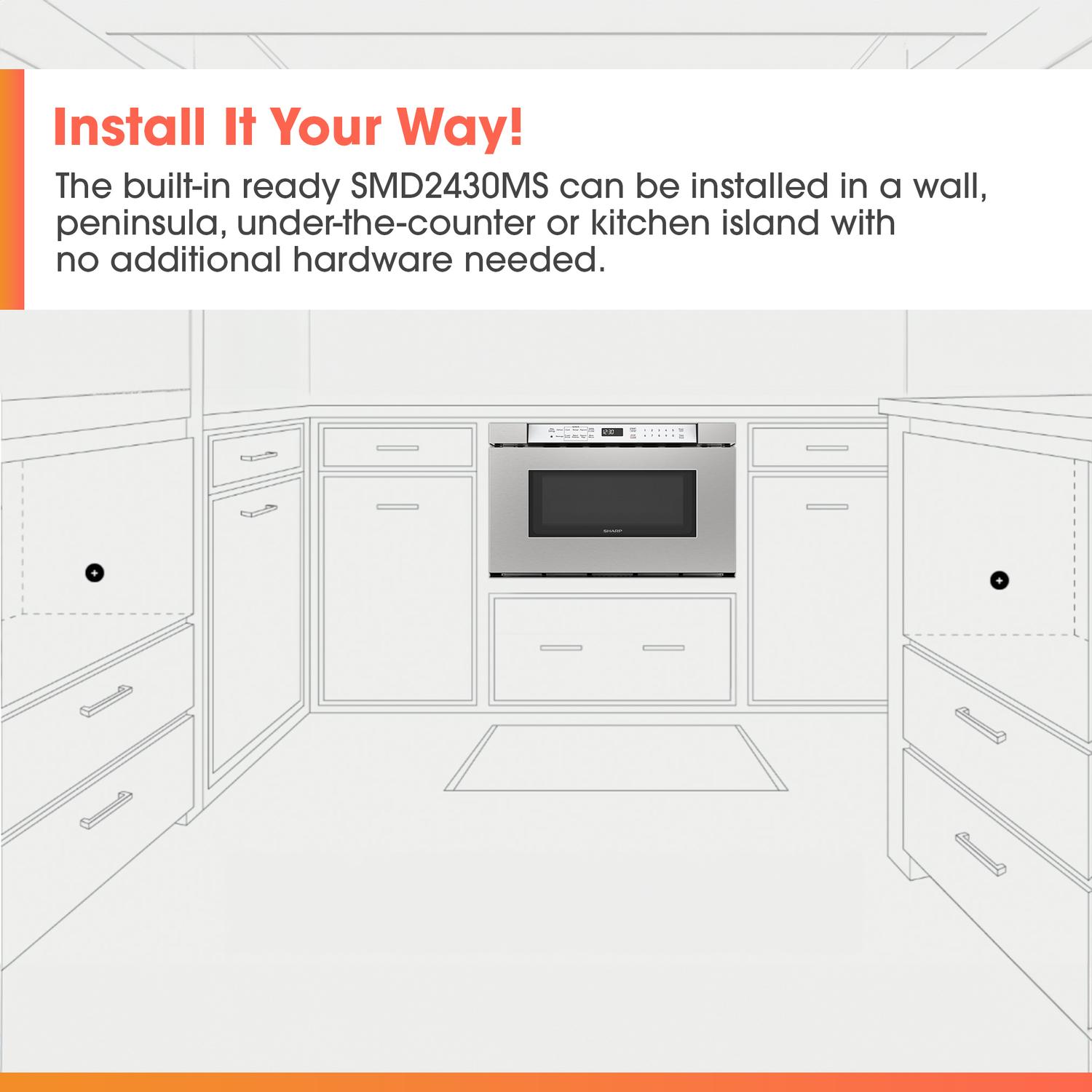

- Install into an Island, Peninsula, Standard Cabinetry, or Beneath Other 24 in. Built-in Appliances

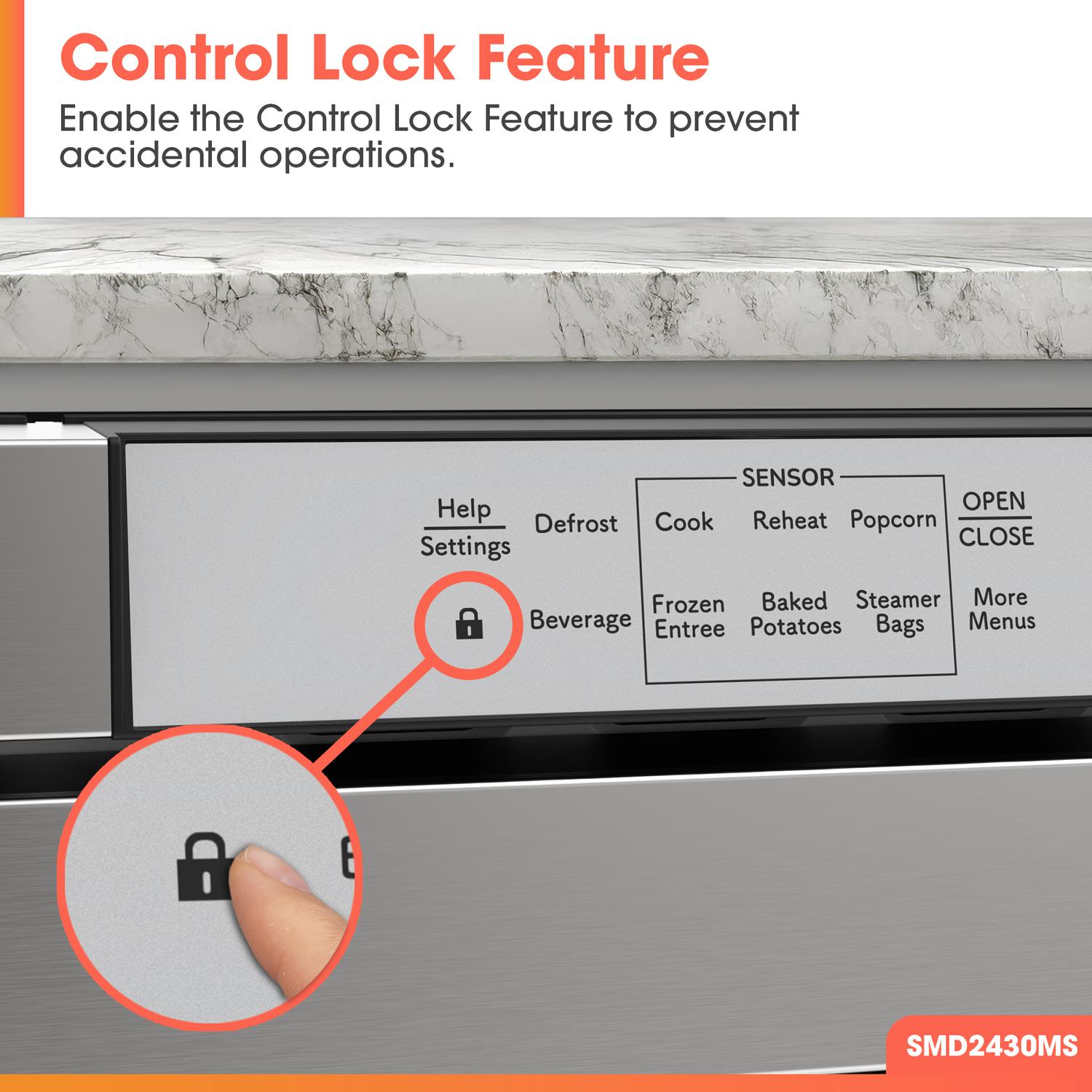

- Control Lock to Prevent Accidental Operation by Children and While Cleaning
- Optional Pedestal Accessory ( SKMD24U0ES ) for Easy Installation
- Extended Warranty
| FEATURES | |
| Finish | Stainless Steel |
| Drawer Opening | Automatic Door Open / Close Button |
| Width | 24 |
| Capacity (cu. ft.) | 1.2 |
| Output Power | 950 watts |
| Interior Light | Incandescent |
| Open / Close | Yes |
| Start / +30 sec | Yes |
| Stop / Clear | Yes |
| Power Level | 11 |
| Timer / Clock | Yes |
| Control Lock | Yes |
| Help / Settings | Yes |
| Demo Mode | Yes |
| End of Cooking Reminder | Yes |
| CONTROL PANEL | |
| Control Panel Location | Center/Top |
| Control Panel Type | Membrane |
| Display Type | LCD 7-Segment |
| Display Color | White on Black Background |
| COOKING / MENU PRESETS | |
| Popcorn | Yes, Sensor |
| Reheat | Yes, Sensor |
| Sensor Cook | Quick Fresh Vegetables, Longer Fresh Vegetables, Frozen Vegetables, Sweet Potatoes, Ground Meat, Fish/Seafood, White Rice, Brown Rice |
| Frozen Entrée | Yes, Sensor |
| Baked Potatoes | Yes, Sensor |
| Steamer Bags | Yes, Sensor |
| Defrost | Ground Meat, Steaks/Chops, Boneless Poultry, Bone-In Poultry, Roast, Casserole or Soup |
| More Menus | Melt Butter, Melt Chocolate, Soften Ice Cream, Soften Cream Cheese, Warm Syrup, Warm Dessert Toppings, Fresh Rolls/Muffins, Frozen Rolls/Muffins, Keep Warm |
| ADDITIONAL FEATURES | |
| Flush Mount Ready | Yes |
| OPTIONAL ACCESSORY | |
| Product Name | Drawer Under-the-Counter Pedestal |
| Model | SKMD24U0ES |
| Color | Stainless Steel or Custom Panel Ready |
| UPC | 074000620865 |
| ADDITIONAL SPECIFICATIONS | |
| Power Source | 120V, 60HZ / 15A / 1.67 KW |
| DIMENSIONS & WEIGHT (in./lbs.) (w x h x d) | |
| Cavity Interior Dimensions | 17-5/16 x 7-1/8 x 16-9/16 |

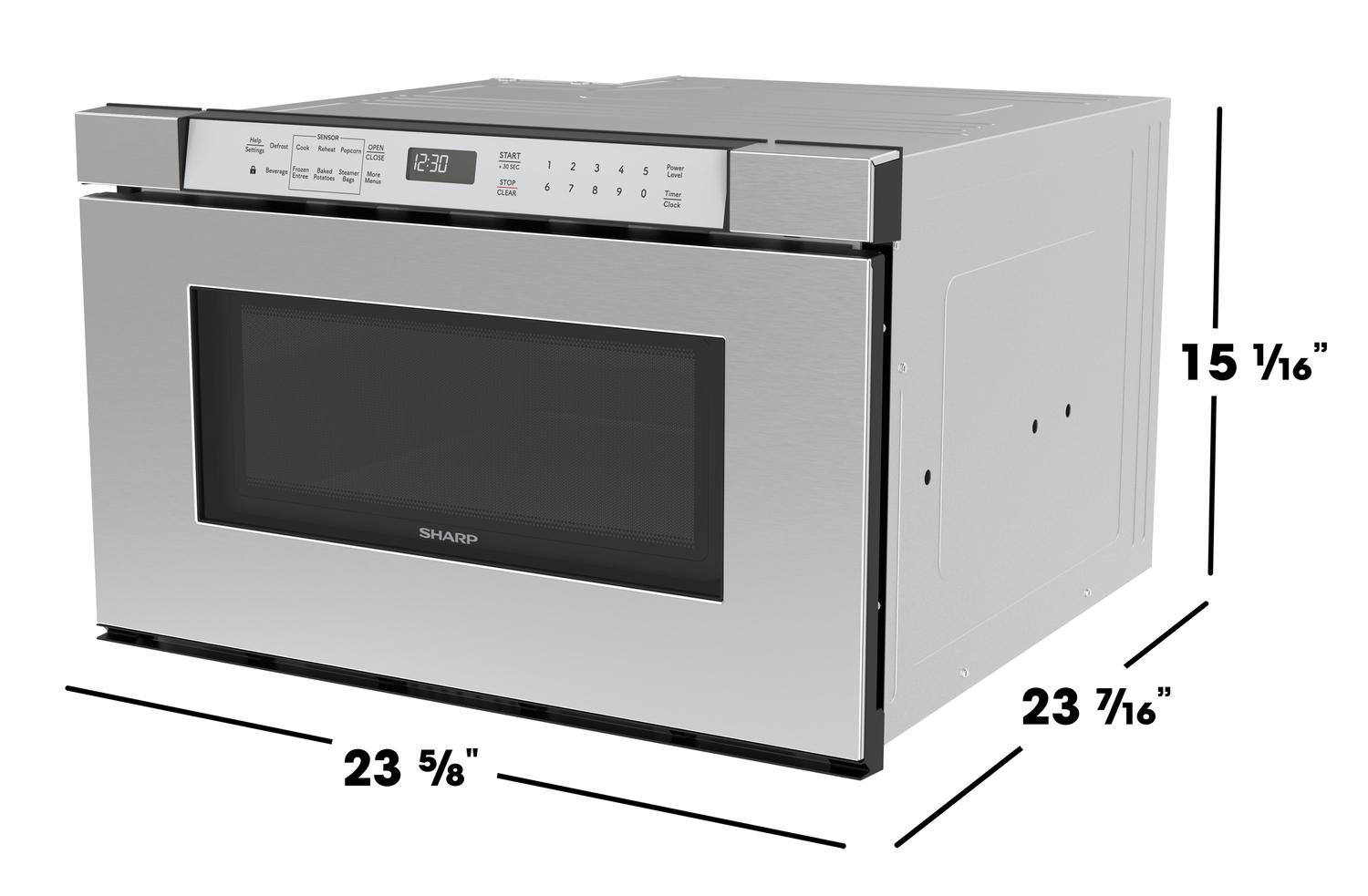

| Product Dimensions | 23-5/8 x 15-1/16 x 23-7/16 |
| Shipping Dimensions | 27-3/4 x 21-3/4 x 29-1/4 |
| Standard Mount Cutout Dimensions | 22-1/8 x 14-13/16 x 23-1/2 |
| Flush Mount Cutout Dimensions | 23-7/8 x 15-5/16 x 23-1/2 |
| Product Weight / Shipping Weight | 72.0 lbs. / 83.6 lbs. |
| Warranty/UPC | |
| Parts | 1 Year (In Home-Limited) |
| Labor | 1 Year (In Home-Limited) |
| Magnetron Tube | 4 Years total (Parts Only) |
| UPC | 074000623026 |
| FEATURES | |
| Finish | Stainless Steel |
| Drawer Opening | Automatic Door Open / Close Button |
| Width | 24 |
| Capacity (cu. ft.) | 1.2 |
| Output Power | 950 watts |
| Interior Light | Incandescent |
| Open / Close | Yes |
| Start / +30 sec | Yes |
| Stop / Clear | Yes |
| Power Level | 11 |
| Timer / Clock | Yes |
| Control Lock | Yes |
| Help / Settings | Yes |
| Demo Mode | Yes |
| End of Cooking Reminder | Yes |
| CONTROL PANEL | |
| Control Panel Location | Center/Top |
| Control Panel Type | Membrane |
| Display Type | LCD 7-Segment |
| Display Color | White on Black Background |
| COOKING / MENU PRESETS | |
| Popcorn | Yes, Sensor |
| Reheat | Yes, Sensor |
| Sensor Cook | Quick Fresh Vegetables, Longer Fresh Vegetables, Frozen Vegetables, Sweet Potatoes, Ground Meat, Fish/Seafood, White Rice, Brown Rice |
| Frozen Entrée | Yes, Sensor |
| Baked Potatoes | Yes, Sensor |
| Steamer Bags | Yes, Sensor |
| Defrost | Ground Meat, Steaks/Chops, Boneless Poultry, Bone-In Poultry, Roast, Casserole or Soup |
| More Menus | Melt Butter, Melt Chocolate, Soften Ice Cream, Soften Cream Cheese, Warm Syrup, Warm Dessert Toppings, Fresh Rolls/Muffins, Frozen Rolls/Muffins, Keep Warm |
| ADDITIONAL FEATURES | |
| Flush Mount Ready | Yes |
| OPTIONAL ACCESSORY | |
| Product Name | Drawer Under-the-Counter Pedestal |
| Model | SKMD24U0ES |
| Color | Stainless Steel or Custom Panel Ready |
| UPC | 074000620865 |
| ADDITIONAL SPECIFICATIONS | |
| Power Source | 120V, 60HZ / 15A / 1.67 KW |
| DIMENSIONS & WEIGHT (in./lbs.) (w x h x d) | |
| Cavity Interior Dimensions | 17-5/16 x 7-1/8 x 16-9/16 |
| Product Dimensions | 23-5/8 x 15-1/16 x 23-7/16 |
| Shipping Dimensions | 27-3/4 x 21-3/4 x 29-1/4 |
| Standard Mount Cutout Dimensions | 22-1/8 x 14-13/16 x 23-1/2 |
| Flush Mount Cutout Dimensions | 23-7/8 x 15-5/16 x 23-1/2 |
| Product Weight / Shipping Weight | 72.0 lbs. / 83.6 lbs. |
| Warranty/UPC | |
| Parts | 1 Year (In Home-Limited) |
| Labor | 1 Year (In Home-Limited) |
| Magnetron Tube | 4 Years total (Parts Only) |
| UPC | 074000623026 |
