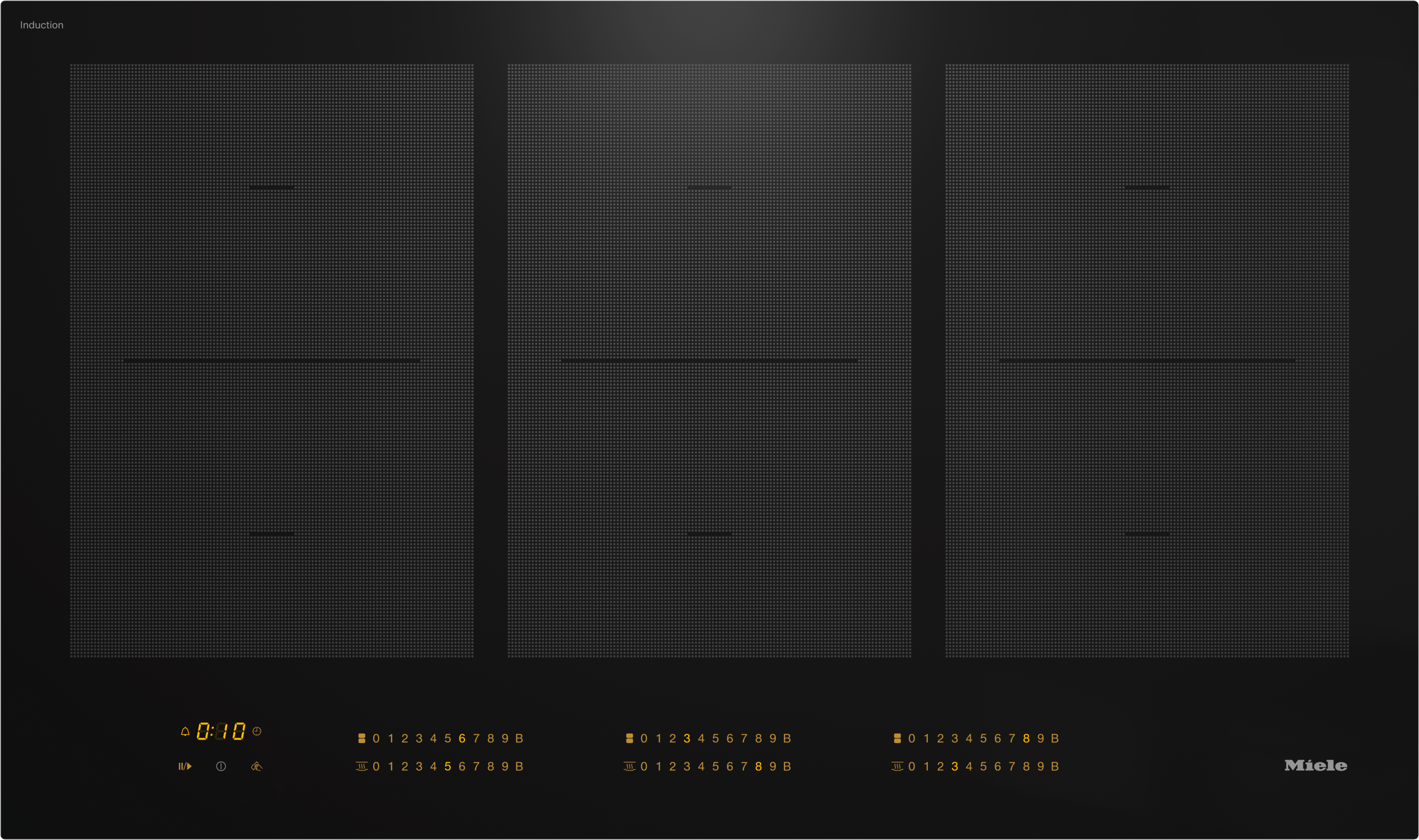

KM 7745 FL - 36-inch induction cooktop, operated with its own controls with 3 PowerFlex cooking areas for maximum performance
Model: KM7745FL
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
KM 7745 FL - 36-inch induction cooktop, operated with its own controls with 3 PowerFlex cooking areas for maximum performance
Model: KM7745FLQuick Specs
Depth
21.25"
Height
4.12"
Sabbath
NO
ADA
NO
Wifi
NO
Cooktop
6
Vent
NO
Induction
YES
KM 7745 FL - 36-inch induction cooktop, operated with its own controls with 3 PowerFlex cooking areas for maximum performance is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-2 weeks
Available to Order
Regular price
$3,499.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21.25"
Height
4.12"
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Cooking oven number of cooktop element
6
Downdraft Ventilation
NO
Cooking is Induction
YES
RPM
-1.0
Energy Star Rated
NO
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
TwinBooster
Flexible power: Induction output can be individually distributed or used for one single zone.
Safety functions
The safety functions protect you from any nasty surprises - even if your mind is on other things.
PowerFlex
Unbeatably fast and versatile: the booster output of up to 7.3 kW.
SmartSelect
Quick and intuitive: power levels and times can be selected separately for each cooking zone.
- SmartSelect
- Quick and intuitive: power levels and times can be selected separately for each cooking zone.
- Safety functions
- The safety functions protect you from any nasty surprises - even if your mind is on other things.
- TwinBooster
- Flexible power: Induction output can be individually distributed or used for one single zone.
- PowerFlex
- Unbeatably fast and versatile: the booster output of up to 7.3 kW.
- Con@ctivity 3.0
- Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
- Intuitive quick selection via number sequences - Smart Select
- 6 cooking zones incl. 3 high-power PowerFlex cooking areas
- With a width of 35 7/8 (909) in (mm) for proud-mounted or flush-mounted installation
- Shortest heating-up times - TwinBooster
- Communication with the ventilation hood - automatic Con@ctivity function
| Heating type | |
| Fuel type | Induction |
| Design | |
| Ceramic surface color | Black |
| Flush-mounted installation | |
| Proud installation | • |
| Cooking zone details | |
| No. of rings | 6 |
| Number of cooking areas | 3 |
| Maximum number of pans | 6 |
| PowerFlex cooking zones | |
| No. | 6 |
| Type | PowerFlex cooking zone |
| Size in mm | 150 - 230 |
| Max. rating in W | 2100 |
| Max. booster rating in W | 3000 |
| Max. TwinBooster rating in W | 3700 |
| 1st cooking zone/cooking area | |
| Position | Left |
| Type | PowerFlex bridge |
| Size in mm | 230x390 |
| Max. rating in W | 3100 |
| Max. booster rating in W | 3400 |
| Max. TwinBooster rating in W | 3700 |
| 2nd cooking zone/cooking area | |
| Position | Centered |
| Type | PowerFlex bridge |
| Size in mm | 230x390 |
| Max. rating in W | 3400 |
| Max. booster rating in W | 4800 |
| Max. TwinBooster rating in W | 7400 |
| 3rd cooking zone/cooking area | |
| Position | right |
| Type | PowerFlex bridge |
| Size in mm | 230x390 |
| Max. rating in W | 3400 |
| Max. booster rating in W | 4800 |
| Max. TwinBooster rating in W | 7400 |
| User convenience | |
| Networking with Miele@home | • |
| Automatic function | Con@ctivity 3.0 |
| Operation via touchpad sensors | Smart Select |
| Display color | Yellow |
| Pan/Pan-size sensors | • |
| Automatic switch-off for all rings | • |
| Safety | |
| Overheating protection | • |
| Residual heat indicator | • |
| Technical data | |
| Width in in. (mm) | 35 7/8 (909) |
| Height in in. (mm) | 3 1/8 (77) |
| Built-in height with mains connection box in in. (mm) | 4 1/8 (103) |
| Depth in in. (mm) | 21 1/4 (538) |
| Internal cutout dimensions width in in. (mm) with flush installation | 889 |
| Internal cutout dimensions depth in in. (mm) with flush installation | 518 |
| External cutout dimensions width in in. (mm) with flush installation | 913 |
| External cutout dimensions depth in in. (mm) with flush installation | 542 |
| Weight in lbs. (kg) | 61 (28) |
| Total connected load in kW | 11.200 |
| Voltage in V | 208-240 |
| Frequency in Hz | 50-60 |
| Power cord length in ft. (m) | 3 (1.2) |
| Standard accessories | |
| Connection wire | • |
- Intuitive quick selection via number sequences - Smart Select
- 6 cooking zones incl. 3 high-power PowerFlex cooking areas
- With a width of 35 7/8 (909) in (mm) for proud-mounted or flush-mounted installation
- Shortest heating-up times - TwinBooster
- Communication with the ventilation hood - automatic Con@ctivity function
