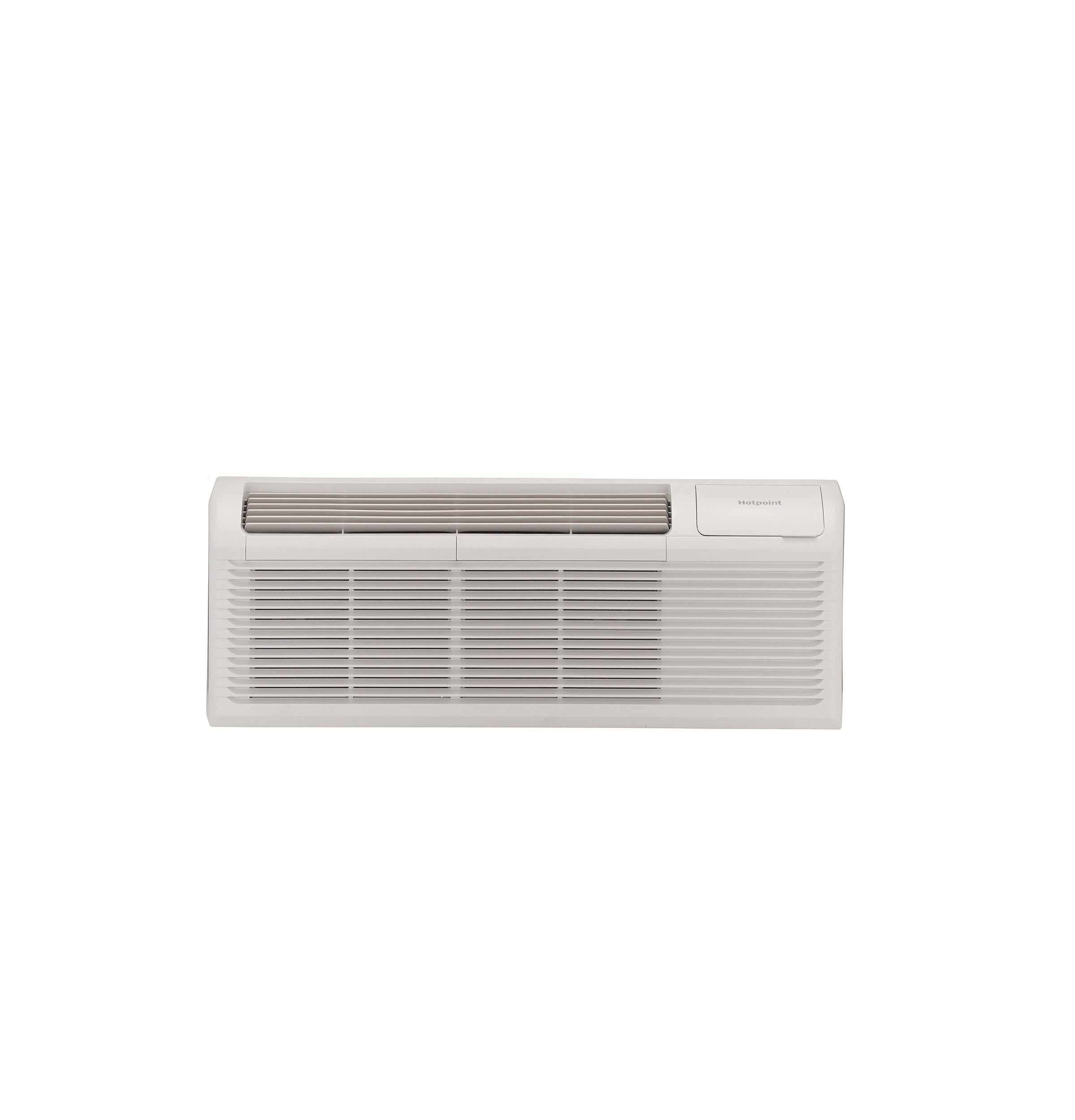

Hotpoint® PTAC with Electric Heat 15,000 BTU, 30 amps, 230/208 Volt
Model: AH11E15D5B
Authorized Dealer
1
of
15
Loading...
Authorized Dealer
Hotpoint® PTAC with Electric Heat 15,000 BTU, 30 amps, 230/208 Volt
Model: AH11E15D5BQuick Specs
Energy
NO
Hotpoint® PTAC with Electric Heat 15,000 BTU, 30 amps, 230/208 Volt is backordered and will ship as soon as it is back in stock.
Estimated to ship in 4-8 days
In Stock
Regular price
$646.73
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Energy Star Rated
NO
Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
3-speed fan
Give guests control over their comfort with three fan speeds to choose from
- 3-speed fan
- Give guests control over their comfort with three fan speeds to choose from
- 4-temperature limiting options
- Easily select one of four temperature ranges for peak efficiency and total customer comfort
- Freeze and frost protection
- Automatic freeze and indoor frost control keep units operating in peak condition
- Auto power recovery
- In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
- Self diagnostics
- Quickly and easily identify service needs with a nine-point diagnostic code system
- Automatic emergency heat
- Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
- Backed by an industry leader
- With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
- Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
- Intuitive display
- Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
- Power cord (LCDI) included
- Hotpoint PTACs come with everything needed for a quick and easy installation
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound
- Removable filters for easy maintenance
- 3-speed fan
- 4-temperature limiting options
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound
- Removable filters for easy maintenance
- Freeze and frost protection
- Auto power recovery
- Self diagnostics
- Automatic emergency heat
- Backed by an industry leader
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
- Intuitive display
- Power cord (LCDI) included
| CAPACITY | |
| Cooling BTUH (MAX) | 14500 Btu |
| CFM Indoor Fan Low | 315 |
| CFM Indoor Fan Medium | 348 |
| CFM Indoor Fan High | 376 |
| Cooling EER (BTUH / Watt) | 9.7 |
| Cooling BTUH (MIN) | 14400 Btu |
| APPEARANCE | |
| Installation | Through-the-Wall |
| Color Appearance | White |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| POWER / RATINGS | |
| Cooling - Amperes | 6.0/6.58 |
| Cooling - Watts | 1490/1480 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 5035/4125 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 22.0/19.7 |
| WEIGHTS & DIMENSIONS | |
| Overall Width | 42 in |
| Approximate Shipping Weight | 123.6 lb |
| Overall Height | 16 in |
| Overall Depth | 21 in |
| Net Weight | 113.9 lb |
| FEATURES | |
| Control Type | Electronic |
| Fan Speed Selections | 3 Cooling 3 Fan Only 3 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Unit Features | Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Concealed Manual Vent Control Vent Air Filter |
| Heating System | Electric Resistance |
- 3-speed fan
- 4-temperature limiting options
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound
- Removable filters for easy maintenance
- Freeze and frost protection
- Auto power recovery
- Self diagnostics
- Automatic emergency heat
- Backed by an industry leader
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
- Intuitive display
- Power cord (LCDI) included
 | |
|---|---|
| Product Type & Dimensions | |
Product Type |
|
| Other Features | |
Energy Star Rated |
|
